(Battery Management System) BMS can extend battery life and make battery work safely.
This model can be used for solar, LED lights, Emergency lights, Digital Equipment, etc.electric scooter,e-bike,tourisr sightseeing vehicle,electric tricycle,low speed ev,emergrncy ups,solar street light,RV&home energy storage......
Product Description
Model | LWS-20S30A-375(13s) |
PCM Size | L120*W63*T10 mm |
battery series | 4S-20S Available |
working current | 30A, 40A, 50A are available |
Usage (Cell Type) | Li-ion battery packs (3.7V/cell) LiFePO4 battery packs (3.2V/cell) |
Application | Electric vehicle, Ebike, etc |
Sample | available |

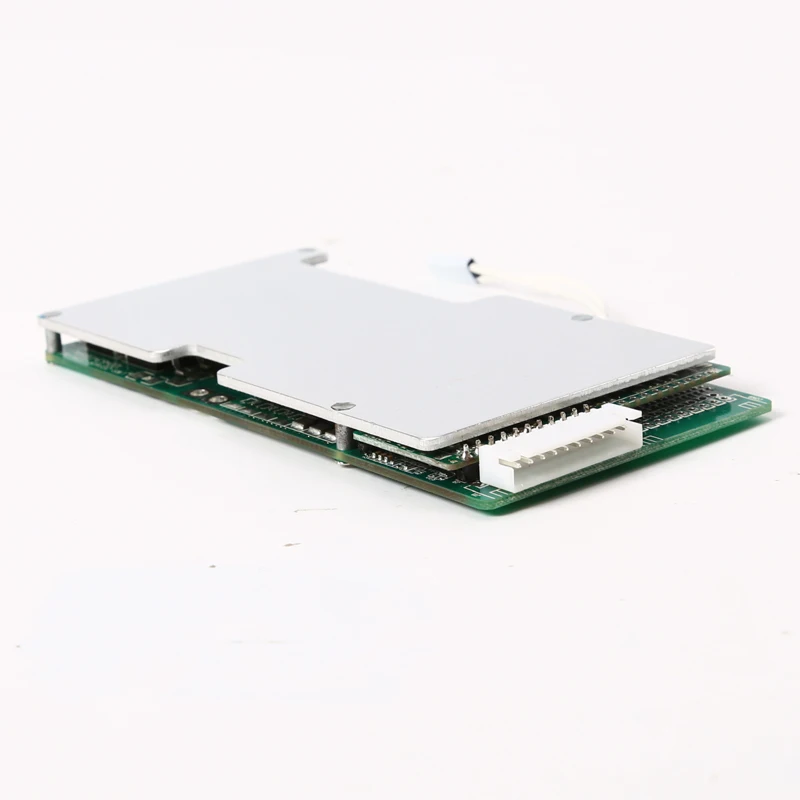

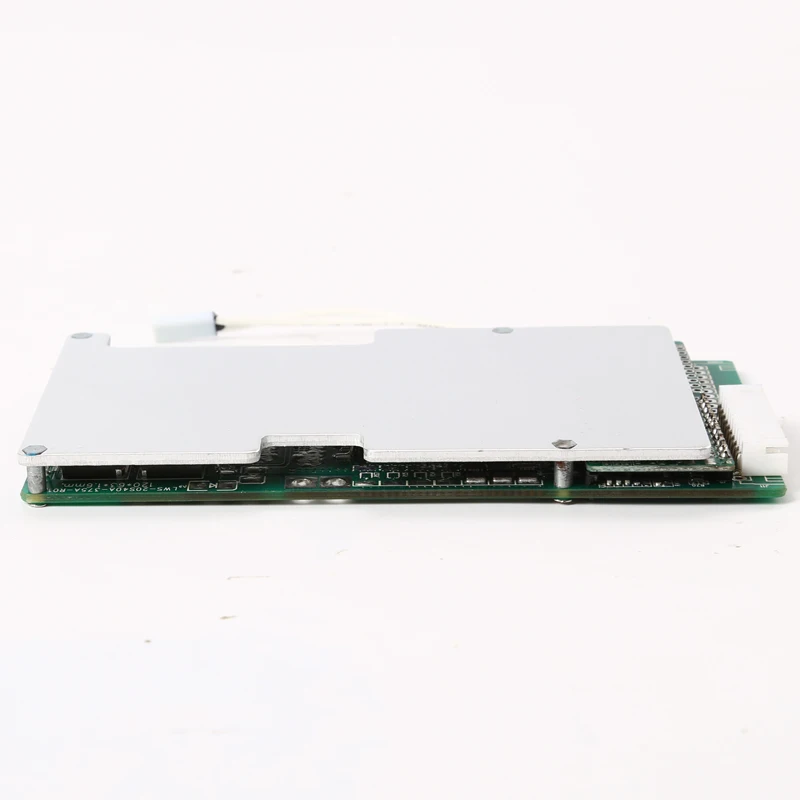

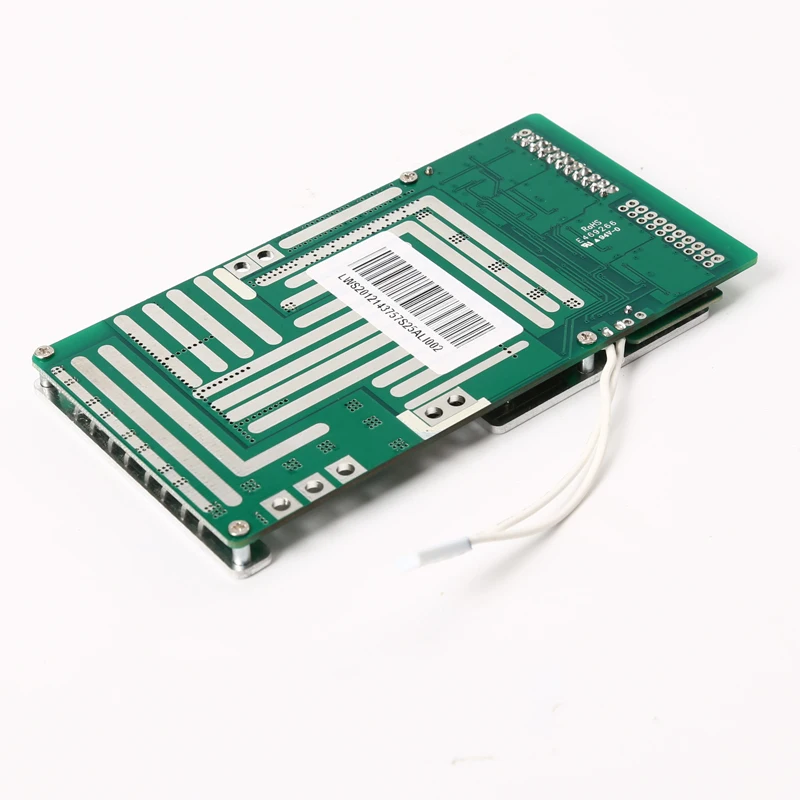

LWS 4S-20S BMS li-ion battery protect board 48V 8S 13S 14S 15S 16S 19S 20S 40A 50A for Electric Vehicle
PCM Specifications For 48.1V（13S） Li-ion Battery Packs | ||||||
Model:LWS-20S30A-375(13S) | ||||||
No. | Test item | Criterion | ||||
1 | Voltage | Charging voltage | DC：54.6V CC/CV | |||
Balance voltage for single cell | 4.20±0.025V | |||||
2 | Current | Balance current for single cell | 42±5mA | |||
Current consumption | ≤25μA | |||||
Maximal continuous charging current | 40A | |||||
Maximal continuous Discharging current | 40A | |||||
3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V | |||
Over charge detection delay time | 500mS—1500mS | |||||
Over charge release voltage for single cell | 4.15±0.05V | |||||
4 | Over discharge protection | Over discharge detection voltage for single cell | 2.75±0.08V | |||
Over discharge detection delay time | 1800mS—2500mS | |||||
Over discharge release voltage for single cell | 3.0±0.075V | |||||
5 | Over current protection | Over current detection voltage | 0.1±0.025V | |||
Over charge/discharge current detection current | 120±30A | |||||
Detection delay time | 1000mS-1600mS | |||||
Release condition | Cut load,Automatic recovery | |||||
6 | Short protection | Detection condition | Exterior short circuit | |||
Detection delay time | 200—500uS | |||||
Release condition | Cut load,Automatic recovery | |||||
7 | Resistance | Protection circuitry（MOSFET） | ≤20mΩ | |||
8 | Temperature | Operating Temperature Range | -40～+85℃ | |||
Storage Temperature Range | -40～+125℃ | |||||

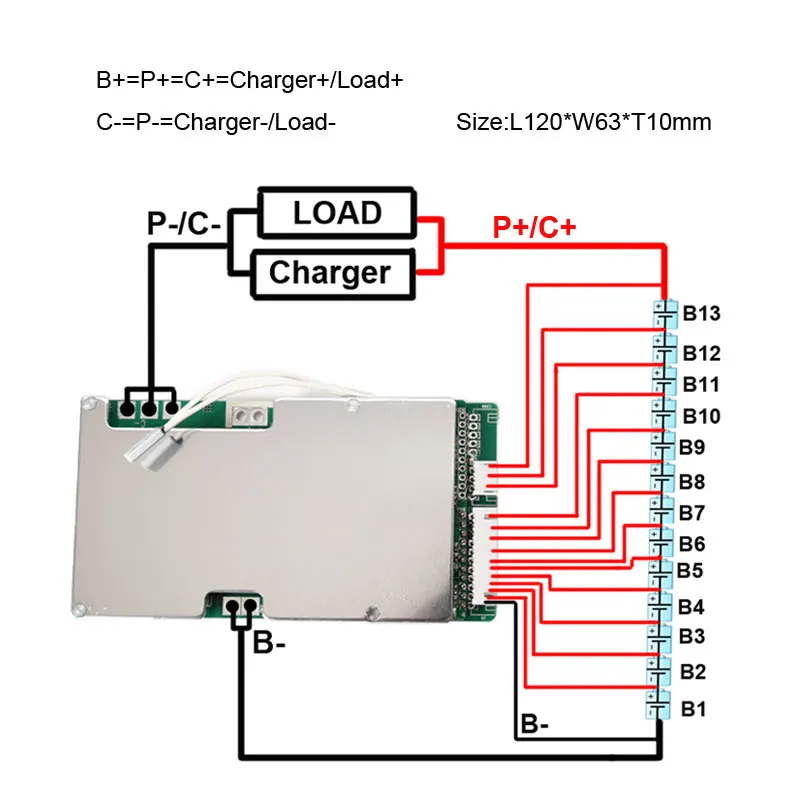

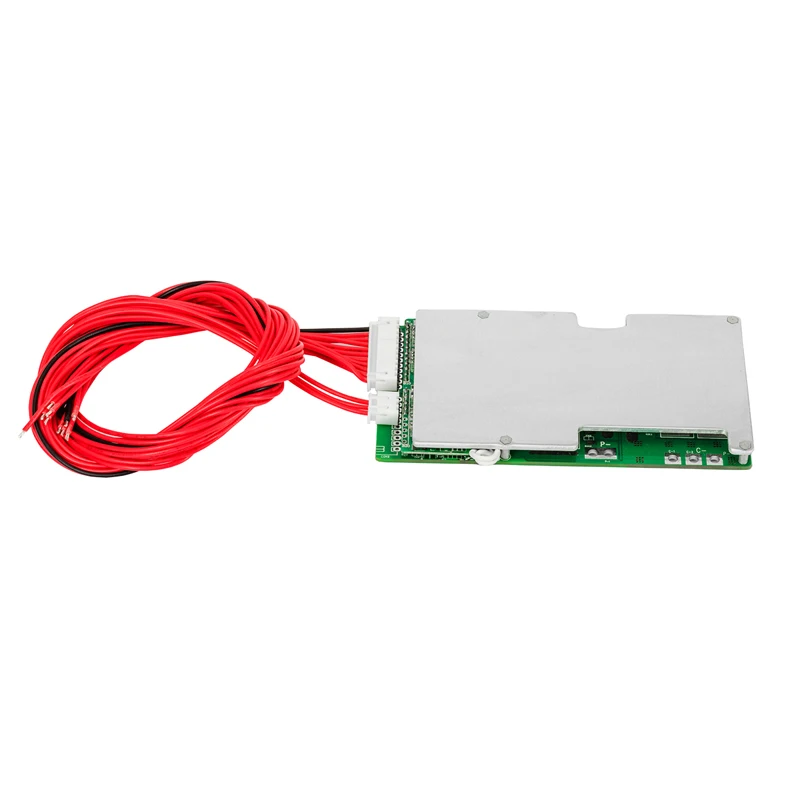

Wiring:
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2...B13; then insert the cable into the BMS;
(The maximum number of strings is 4S-20S strings, the example picture is 13 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
1. First connect the B- of the BMS to the total negative pole of the battery pack;
2.The cable starts from the thin black one connecting B-, the second red wire connects the positive pole of the first string of batteries, and the next string is connected in turn to positive pole of the battery,B-,B1,B2...B13; then insert the cable into the BMS;
(The maximum number of strings is 4S-20S strings, the example picture is 13 strings)
(Please weld the wires in order and avoid pseudo solder joints.)
3. Connect Charger C-/Load P- with BMS C-/P- (Use larger size wires)
4. Connect Positive Pole: Charger C+/Load P+ with Battery Pack B+ (Use larger size wires) .
