Pointer Metal tube rotameter vertical installation Flowmeter for gas liquid air chlorine nitrogen argon hydrochloric acid
- Category: >>>
- Supplier: Shanghai,Jeoro,Precision,Instruments,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

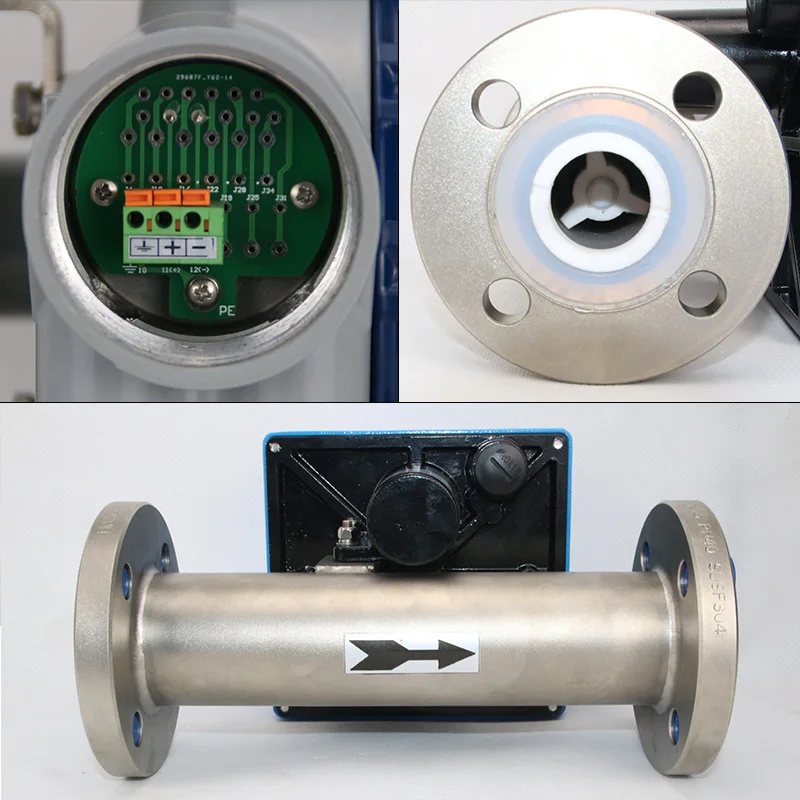

Pointer Metal tube rotameter vertical installation Flowmeter
for gas liquid air chlorine nitrogen argon hydrochloric acid
Technical Parameters | ||
Medium | Gas / liquid / steam | |
Measuring Range | Water: 10-300000L/h (20°C); Gas: 0.7-900m³/h (20°C) | |
Caliber range | DN15-200 | |
Accuracy class | Grade 1.0 / 1.5 | |
Installation method | Standard flange / thread / clamp / chuck / special customization | |
Installation direction | Vertical / horizontal / customized on demand | |
Signal output | Dial / digital display / 4-20mA / RS-485 / Hart | |
Working temperature | -80~200°C | |
Protection class | IP65 | |
Overview
JEF-100 series intelligent metal tube Flowmeter adopts the no-contact and no-hysteresis technology detecting changes in the angle of the magnetic field, and with high-performance MCU, which can realize LCD display: the instantaneous flow, total flow, loop current, environment temperature, damping time. Optional 4~20mA transmission (with HART communication), pulse output, high and low limit alarm output function, etc. The type of intelligent signal transmitter has high precision and reliability, and also high price performance, parameter standardization online and failure protection, etc.Features
• Suitable for small bore and low flow media
• Long life, reliable and low maintenance
• Low requirements for straight pipe sections
• Large LCD display, can display instantaneous flow and cumulative flow at the same time
• Backlight
• All-metal structure, can withstand high temperature, high pressure and strong corrosive media
• Data recovery, data backup and power failure protection functions
Application
suitable for flow measurement of gas or liquid with small and medium pipe diameter, low noise. such as air, water, lubricating oil, Steam, Hydrogen, O2 and other liquid or gas in the Chemical, Pharmaceutical, Petrochemical, Food, Metallurgical Industry.
