auto horizontal hard mint candy flat lollipop sweets pillow flow packaging machine manufacturer
- Category: >>>
- Supplier: Foshan Soontrue Mechanical Equipment Co. Ltd.
Share on (1600522809198):
Product Overview
Description

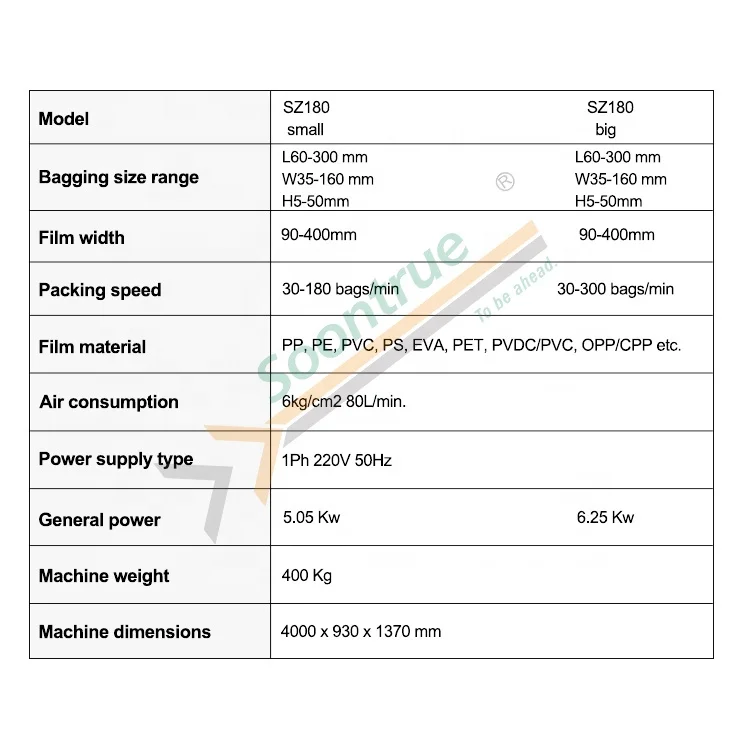

Model | Sl-150 | SZ180 | SZ580 | SW80E | SZ502 | SZ602 | ||
Bagging size range | L(mm) | 130-400 | 60-300 | 60-350 | 90-450 | 120-500 | 120-500 | |
W(mm) | 30-140 | 35-160 | 35-160 | 35-200 | Max.220 | Max.220 | ||
H(mm) | 35-70 | 5-50 | 5-50 | 5-80 | Max.80 | Max.80 | ||
Packing speed(bags/min) | 30-110 | 30-180 | 30-350 | 30-100 | 30-120 | 25-120 | ||
Packing film width(mm) | 80-400 | 90-400 | 90-400 | 90-500 | Max.500 | Max.600 | ||
Machine weight(kg) | 670 | 400 | 600 | 700 | 1200 | 1500 | ||
1.Compact machine structure with smaller footprint area.
2.Carbon steel or stainless steel machine frame with nice appearance.
3.Optimized component design realizing fast and stable packing speed.
4.Servo control system with higher accuracy and flexibility mechanical motion.
5.Different optional configurations and functions meeting different specific
2.Carbon steel or stainless steel machine frame with nice appearance.
3.Optimized component design realizing fast and stable packing speed.
4.Servo control system with higher accuracy and flexibility mechanical motion.
5.Different optional configurations and functions meeting different specific
requirements.

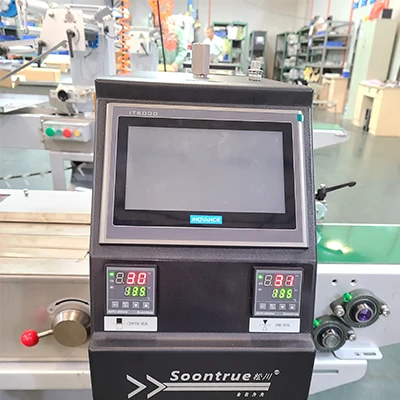

Screen：Most of the daily operations can be performed through the touch screen. The operation interface is simpler and easier to use than the general model, and has a recipe memory function.
Servo control：3 Servo drive system, compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.
Eye mark position value is adjusted via touch screen. Position value is directly showed on the screen.

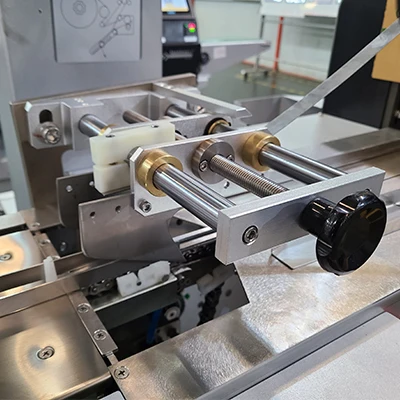

In-feed position is adjusted via touch screen. No need to manually adjust the handwheel.
Cutter speed is adjusted via touch screen. Easier to operate than manually adjustment by handwheel.
Thanks to the advanced and modernized workshop, lead time for small flow packaging machines is greatly reduced from 30 days to 7-15 days.
Q1: Does the dumpling maker machine have the function of flour mixing? | ||||||||
No, it doesn’t. The dumpling wrapper machine can only make dumpling skins from dough. You need an additional dough mixer to make the dough first, then put it in dough bucket of the machine. | ||||||||
Q2: Does the dumpling wrapping machine have leftover dumpling skins recycle function? | ||||||||
Yes, it does. The leftover dumpling skins will be recycled through the entrance in the middle of the turntable and sent back to the dough bucket for use. This design can save materials and effectively reduce production costs. | ||||||||
Q3: Can a machine produce dumplings of different shapes by changing molds? | ||||||||
No, it can’t. Since the forming process of different dumplings is different, each dumpling machine can only make dumplings of a specific shape. We highly recommend one machine for one shape in order to improve daily production efficiency. | ||||||||
Q4: Is the dumpling making machine easy to operate? | ||||||||
Yes, it is. The thickness of the professional dumpling machine is adjusted by three rollers, which is intuitive and easy to use. In addition, the machine uses a combination of servo motors and stepping motors, and most of the adjustments are realized through the HMI, which is easy to operate. | ||||||||
Q5: Is the daily maintenance of the dumpling wrapping machine convenient? | ||||||||
Yes, it is. The dough pressing area on the left can be cleaned with compressed air. In the dumpling forming area on the right, can be washed with water. And the stuffing filling assembly is with tool-free quick disassembly design. | ||||||||
Q6: What technical support for machine installation and commissioning can I get? | ||||||||
We have professional technical engineers to give you on line support. We can provide you with instructional videos for the installation and daily commissioning and maintenance. Online video call tutorial is also available for special cases. For some custom-made solutions, our experienced after-sales technicians can also provide on-site installation and commissioning services on buyers cost (except special period, such as COVID-19). | ||||||||
