High Cri 500W 72V Ceramic Cob Led 500W Grow 600W 400W Epistar Cob Led Diodes 4500K 5000K 5600K Cob Chip
- Category: >>>
- Supplier: Shenzhen Liangzan Optoelectronic Co. Ltd.
Share on (1600522813036):
Product Overview
Description
Products Description

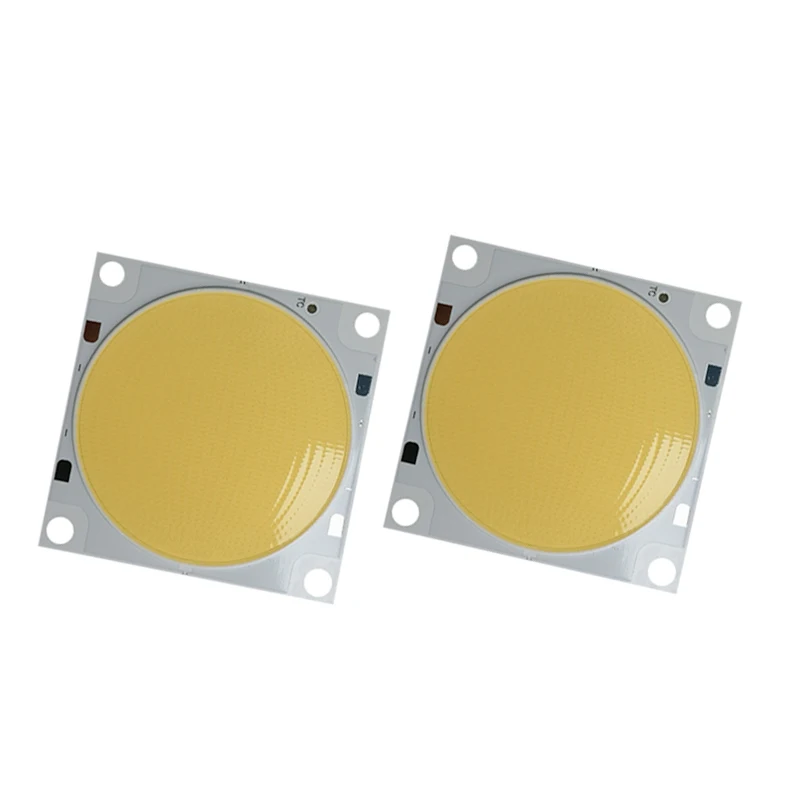

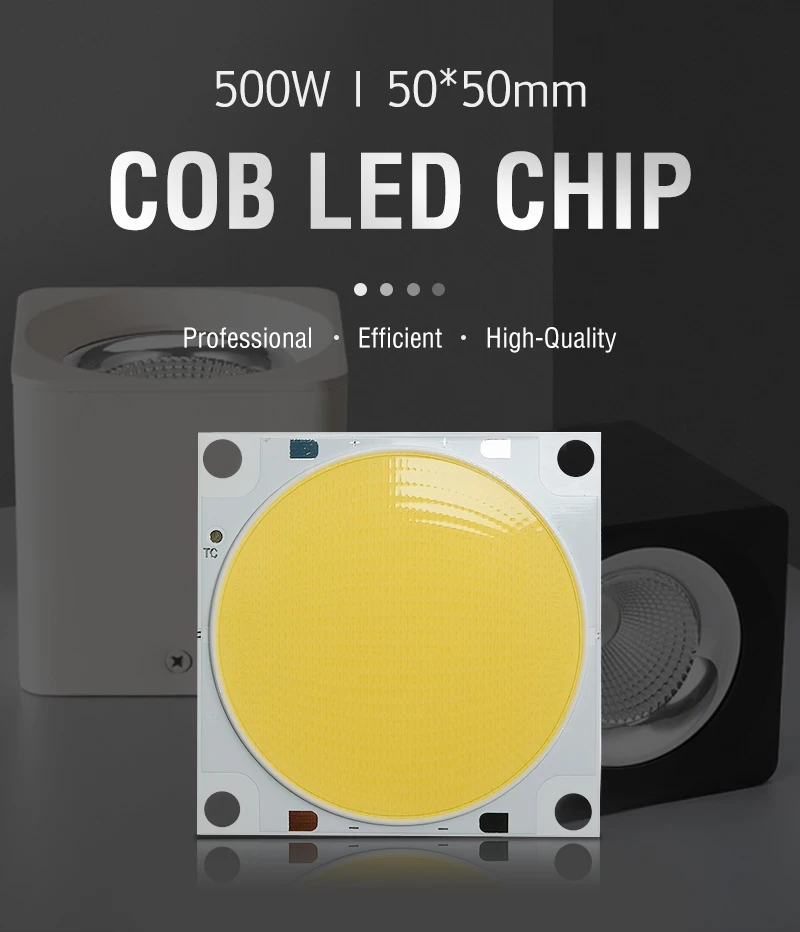

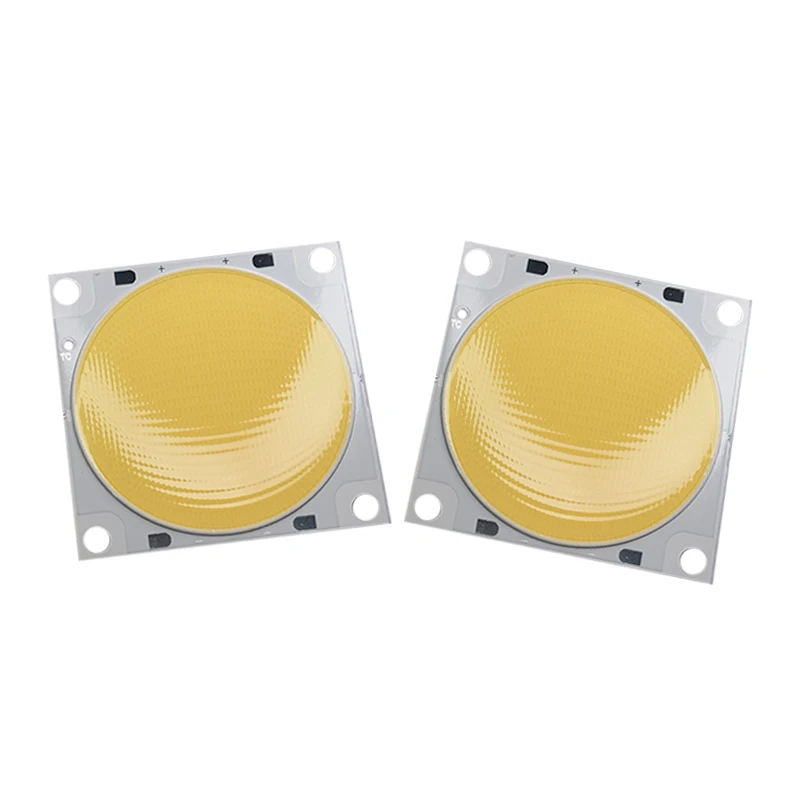

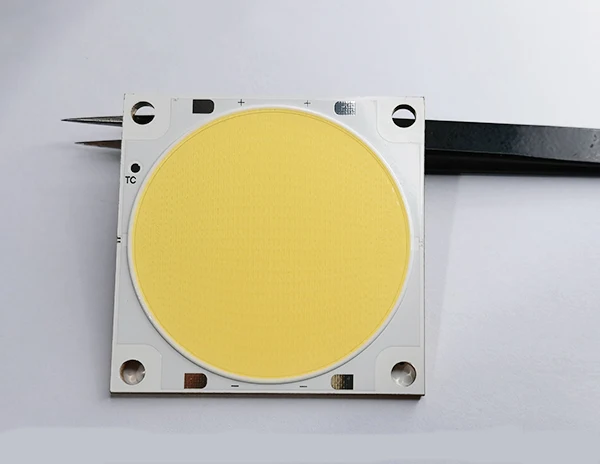

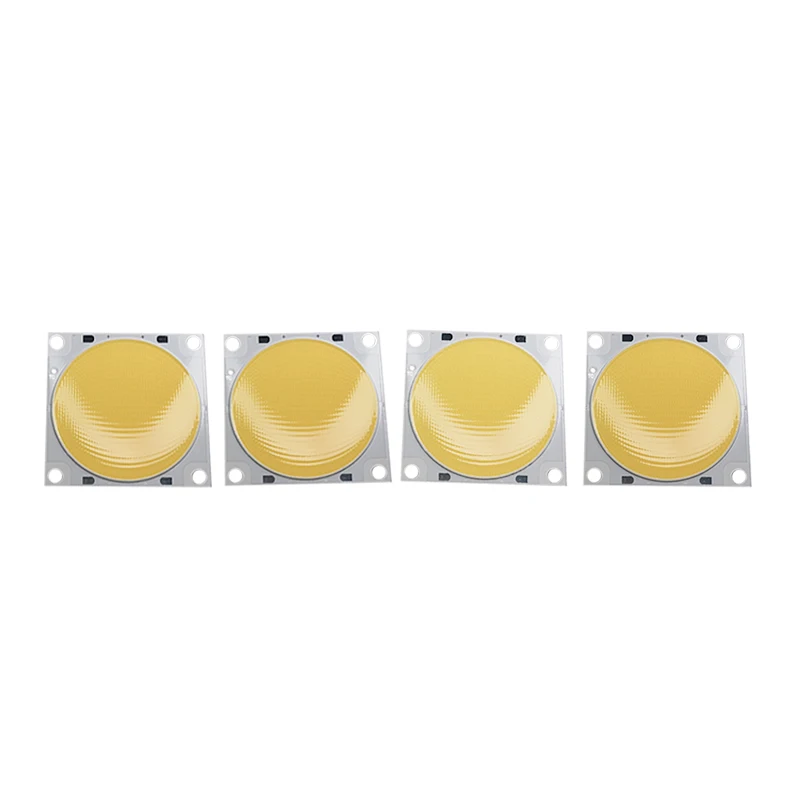

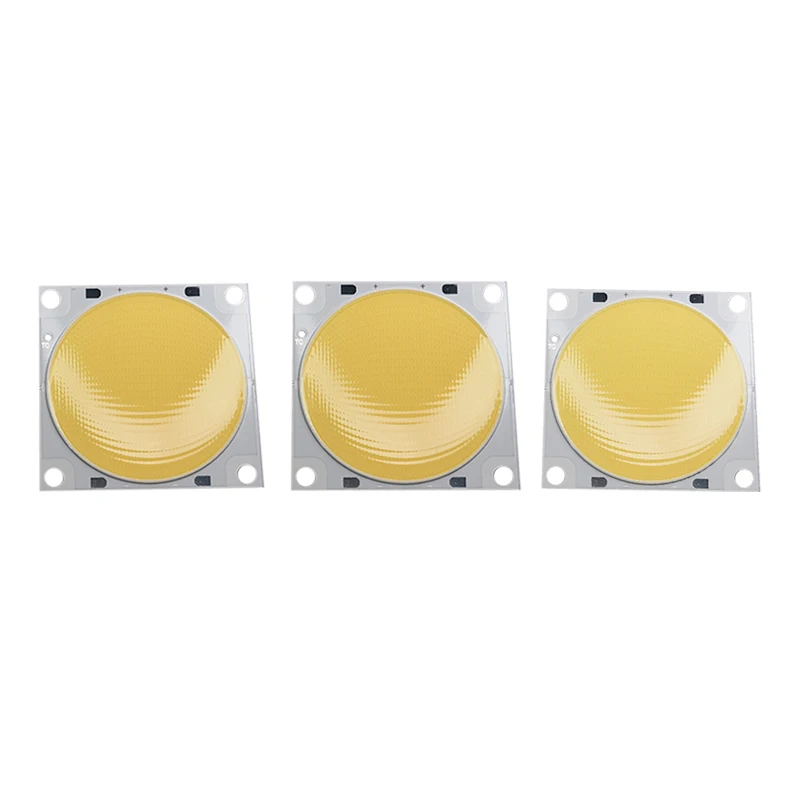

High Power COB LED 50*50mm 500W | ||
Model No. | HY05047-30D3-2448B | |
Power | 500W | |
Current | 6800mA | |
Efficiency | 100-110lm/w (RA>95) 130-140LM/W(RA>80) | |
Color Temp | 2700-6000K | |
Voltage | 70-74V | |
Size | 50*50mm | |
Light Area | 47mm | |
Series&Parallel | 24S48P | |
SDCM | ≤3 | |
Chip Brand | Bridgelux/ Sanan | |
Substrate material | Ceramics | |
Lifespan | 50000h | |
Warranty | 3years | |

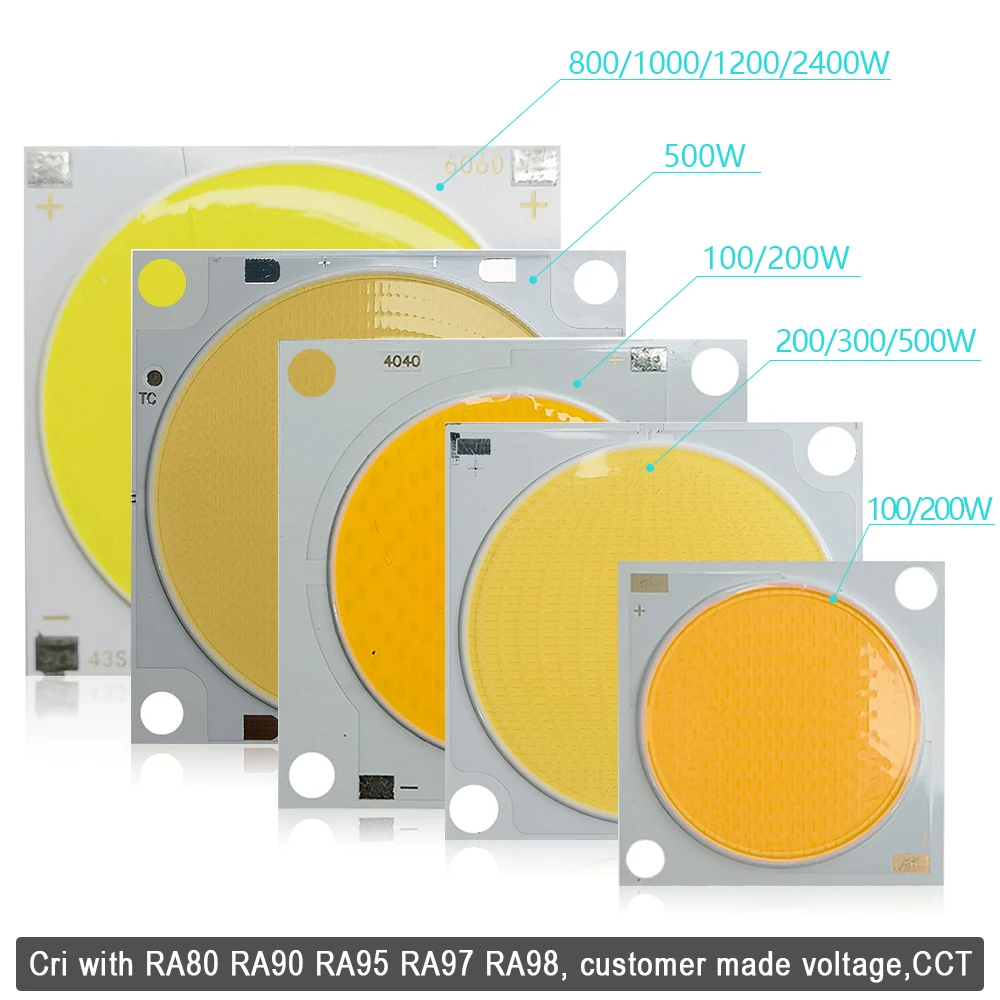

Part No. | Power (W) | Voltage (V) | Current (mA) | Efficiency (LM/W) | CRI (Ra) | CCT (K) |
60*60mm | 1200W | 130-150V | 4650*2mA | 90-150LM/W | 80-98 | 2000-25000K |
38*38mm | 500W | 108-112V | 2340*2mA | 100-150LM/W | 80-98 | 2000-25000K |
28*28mm | 200W | 30-34V | 6670mA | 90-150LM/W | 80-98 | 2000-25000K |
28*28mm | 200W | 54-58V | 3300mA | 100-160LM/W | 80-98 | 2000-25000K |
40*40mm | 200W | 30-34V | 3350mA | 90-130LM/W | 80-98 | 2000-25000K |
40*40mm | 100W | 30-34V | 3000mA | 90-110LM/W | ** | ** |
40*40mm | 200W | 30-34V | 6670mA | 90-160LM/W | 80-98 | 2000-25000K |
28*28mm | 200W | 27-32V | 3700mA | 90-130LM/W | 80-98 | 2000-25000K |
50*50mm | 500W | 72-76V | 7200mA | 105-115LM/W | Ra>80 | 2700-6000k |
300W | 54-57V | 5700mA | Ra>80 | 2700-6000k | ||
200W | 54-57V | 3700mA | Ra>80 | 2700-6000k |
Application
Company Information
Certifications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional. Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8:How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
