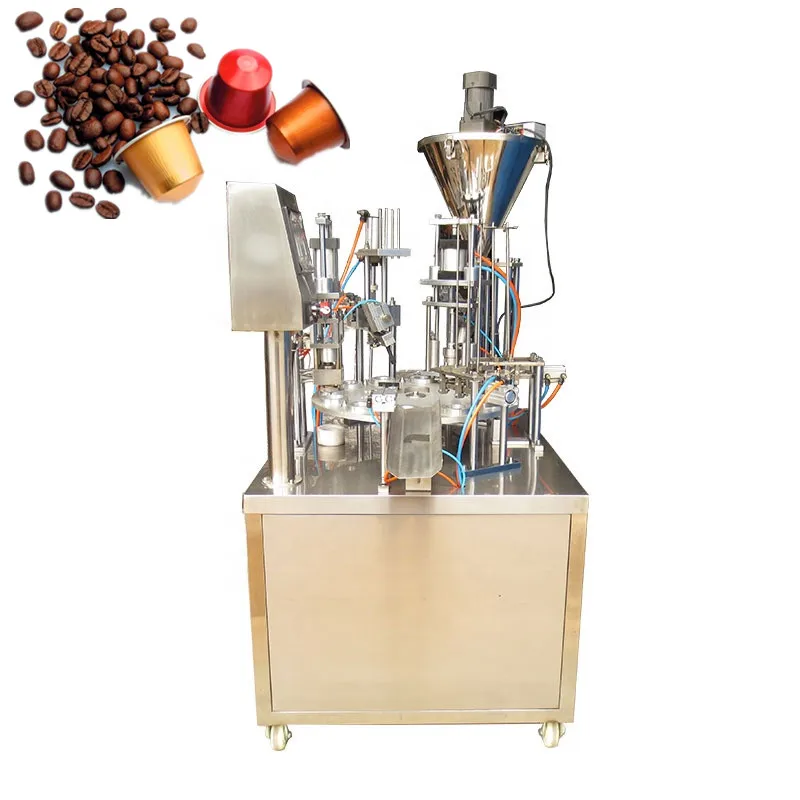

Small scale automatic rotary filling sealing machine for nespresso Small Capacity capsule coffee filling selling machine

Product Overview

Description

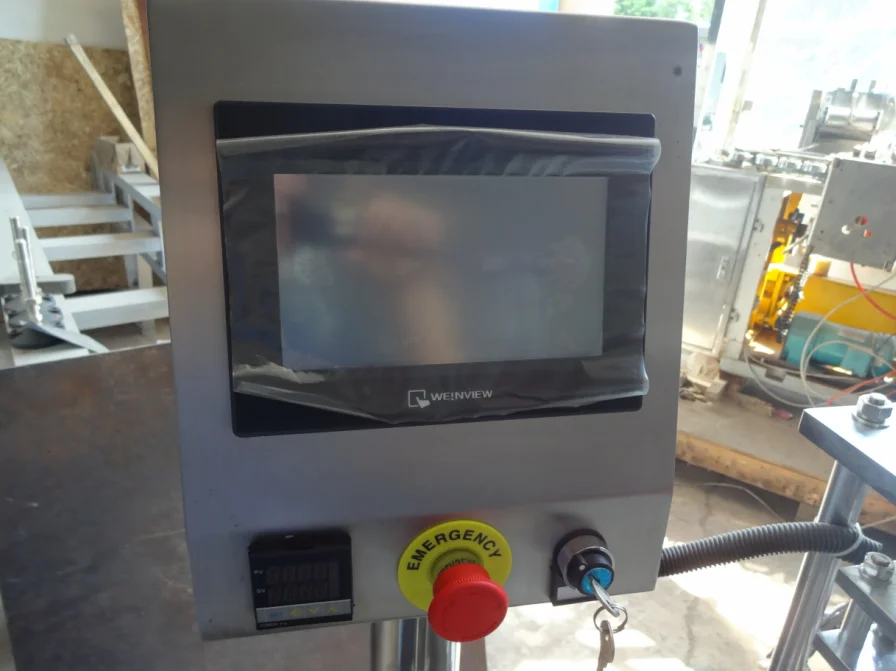

Rotary Type Coffee Capsule Filling Sealing Machine is suitable for filling various types of coffee capsules ( such as nesspresso/Dolce /k-cup). Can automatically complete the capsule cup's automatic drop cup, automatic filling, automatic suction film, sealing, automatic cup and other functions. The machine uses the Japanese ohm long programmable logic controller, pneumatic control element, intelligent digital display temperature control system, with the features of high sealing strength, good sealing performance, low failure rate and small floor space, which is preferred product for enterprise automation production.

Features:

• Stable, reliable, safe, with alarm function.


• Variable frequency control, the filling time can be adjustable.


• The configuration elements adopt the international famous brand.


• High filling accuracy, suitable for all kinds of cups.


• Alarm and shutdown when gas supply is low.


• Easy to clean and maintenance.

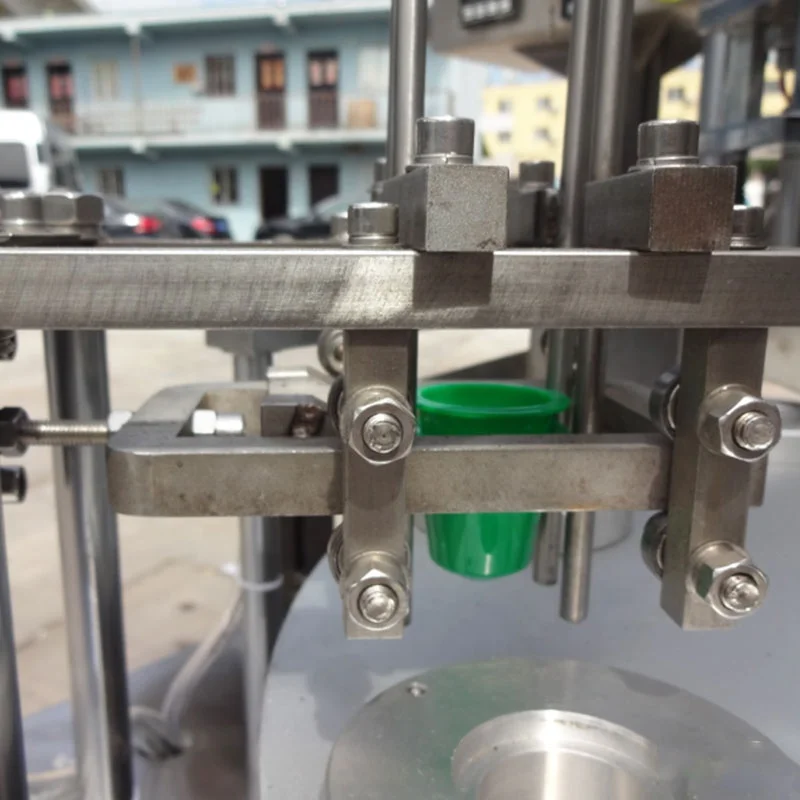

1. Falling Cups: Cups drop down one by one automatically.

2. Nitrogen: Flush nitrogen before filling coffee powder. (Nitrogen generator need configuration by customer)

3. Tank Mixing: Mixing coffee powder.

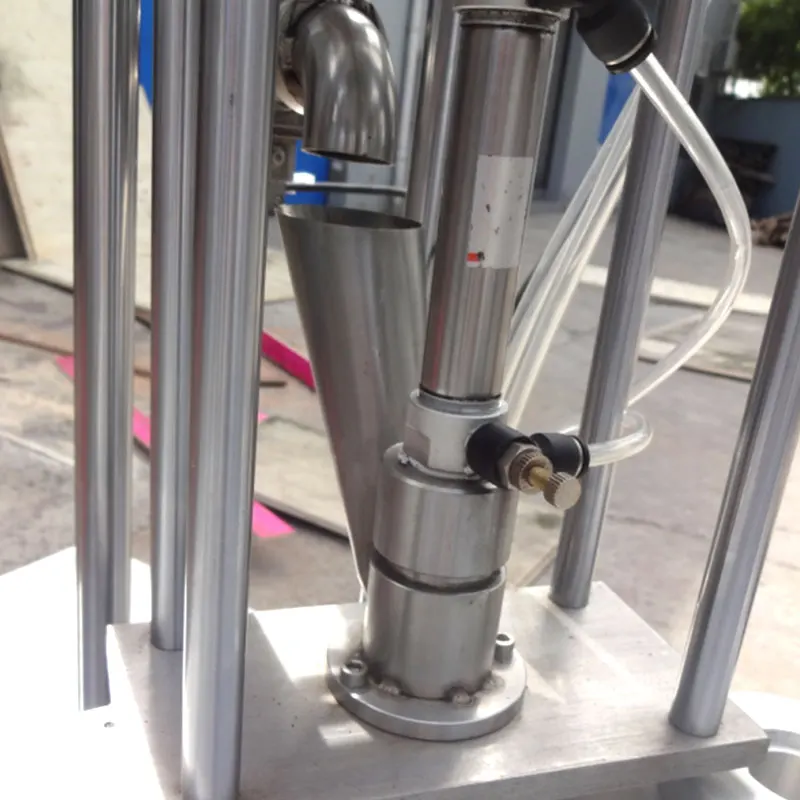

4. Filling Coffee Powder: Auger filling type.

5. Press Coffee: Compact coffee tight after filling.

6. Suck Putting Lids: Vacuum arm suck and put foils on cups for cup sealing.

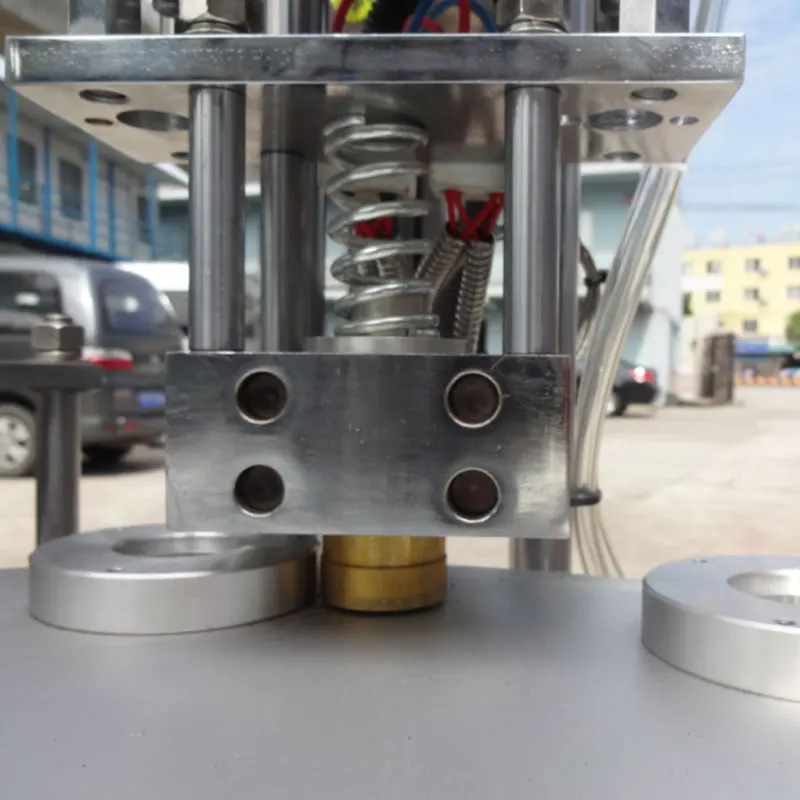

7. Heating Sealing: Push-out finished cups to a platform.

8. Pushout Finished Cups: Push-out finished cups to a platform.
