Product Overview
Description
Automatic Material Weighing Systems
Automatic material weighing systems are batching systems designed to require minimal operator monitoring or interaction.
Features
* Automatically Weighs Ingredients via Feeding Device.
* Multiple Components/Ingredients in Batch
* Batches Introduced Directly Downstream in the Process (Mixer, etc.) or Staged for Future Processing
* Multiple Formulations
* Ensures Batch Integrity (Batch Quality & Consistency) via Ingredient Weighment within Programmable Tolerance
* RFID and/or Barcode Scanning for Lot Tracking, Traceability and Batch Validation
* Report Generation
* Interfaces to Upper Level Systems
System Design Considerations
* Batch Size (min and max)
* Batch Rate (Batches Per Hour)
* Material Flow Characteristics
* Accuracy Requirements and Space Constraints (Floor Space)
* Ceiling Height
* Raw Material Source Packaging (Bag, Box, Bulk Bags, Totes, Drums…)
* Raw Material Dosing Size (Min and Max)
* Supply Bin Filling, Size/Capacity, Level Indication, Flow Aid, and Bin Lid Designs
* Materials of Construction (Material Contact & Non-Contact Construction, e.g. Stainless Steel, Coated Mild Steel, Plastic)
* Material Contact Construction Finish (Agricultural, Food, Pharma, or Industrial)
* Method of Transporting Batches Downstream
* Feeder Type and Size/Capacity (Standard Duty or Heavy Duty)
* Materials of Construction (Material Contact & Non-Contact Construction, e.g. Stainless Steel, Coated Mild Steel, Plastic)
* Material Contact Construction Finish (Agricultural, Food, Pharma, or Industrial)
* Dust Control Requirements
* Electrical Area Classification
Automatic material weighing systems are batching systems designed to require minimal operator monitoring or interaction.
Features
* Automatically Weighs Ingredients via Feeding Device.
* Multiple Components/Ingredients in Batch
* Batches Introduced Directly Downstream in the Process (Mixer, etc.) or Staged for Future Processing
* Multiple Formulations
* Ensures Batch Integrity (Batch Quality & Consistency) via Ingredient Weighment within Programmable Tolerance
* RFID and/or Barcode Scanning for Lot Tracking, Traceability and Batch Validation
* Report Generation
* Interfaces to Upper Level Systems
System Design Considerations
* Batch Size (min and max)
* Batch Rate (Batches Per Hour)
* Material Flow Characteristics
* Accuracy Requirements and Space Constraints (Floor Space)
* Ceiling Height
* Raw Material Source Packaging (Bag, Box, Bulk Bags, Totes, Drums…)
* Raw Material Dosing Size (Min and Max)
* Supply Bin Filling, Size/Capacity, Level Indication, Flow Aid, and Bin Lid Designs
* Materials of Construction (Material Contact & Non-Contact Construction, e.g. Stainless Steel, Coated Mild Steel, Plastic)
* Material Contact Construction Finish (Agricultural, Food, Pharma, or Industrial)
* Method of Transporting Batches Downstream
* Feeder Type and Size/Capacity (Standard Duty or Heavy Duty)
* Materials of Construction (Material Contact & Non-Contact Construction, e.g. Stainless Steel, Coated Mild Steel, Plastic)
* Material Contact Construction Finish (Agricultural, Food, Pharma, or Industrial)
* Dust Control Requirements
* Electrical Area Classification

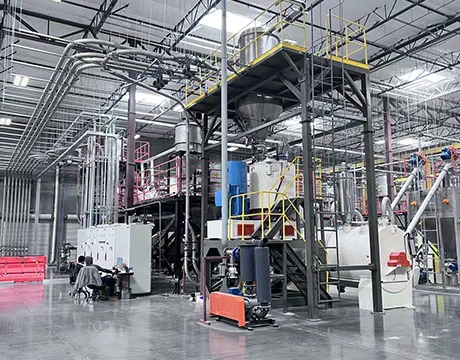

The system is designed for the automatic feeding of multiple extruders. The storage and transportation of materials are carried out in closed stainless steel containers and pipes. Some dust removal measures are taken to effectively prevent dust pollution and keep the workshop clean. The control system is controlled by imported PLC, and the main electrical components are imported famous brand products to ensure the long-term, reliable and efficient operation of the whole system. The control system can automatically or semi automatically complete the whole feeding process. The simulation screen can display the operation status of each part of the system in real time through the indicator light, and can flash the alarm for the failure part to attract the attention of the operator.

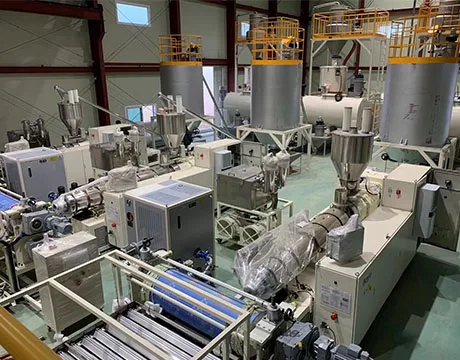

The extruder adopts the combination of vacuum feeding and screw feeding. The silo is equipped with two level meters. When the lower level meter shows that there is a lack of material, the feeder will work automatically to fill the material in the large silo to the small silo. When the upper level meter shows that the material is full, the feeder will stop working and temporarily stop feeding.
In order to ensure the normal and continuous operation of the extruder, a 50L small hopper is added above the extruder and a level gauge is equipped respectively. If any one of the six level gauges shows a lack of material, the screw feeder will automatically start to work and start feeding until all the six level gauges light up to show that the material is full, and the screw feeder will stop working; if one level gauge is short of material, the screw feeder will start working again, The whole feeding process runs automatically under the control of PLC.
