factory pcb sheet aluminium laminate material pcb laminate
- Category: >>>
- Supplier: Guangzhou Guangyou Electronics Co. Ltd.
Share on (1600523016803):
Product Overview
Description
Product Description

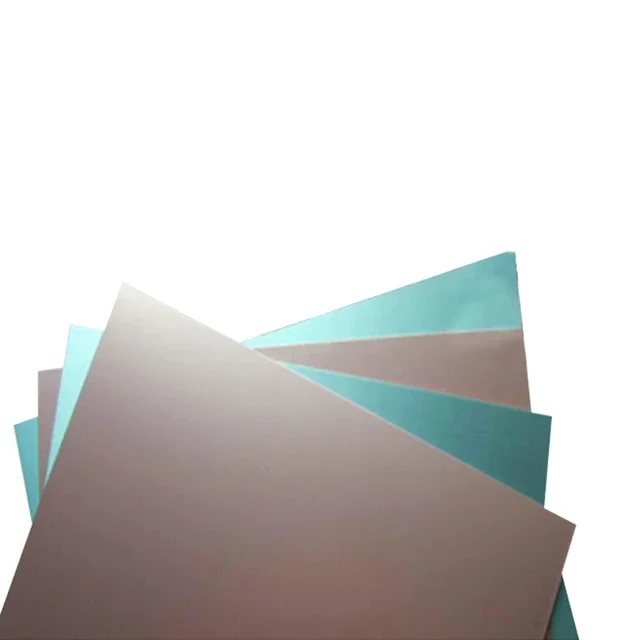

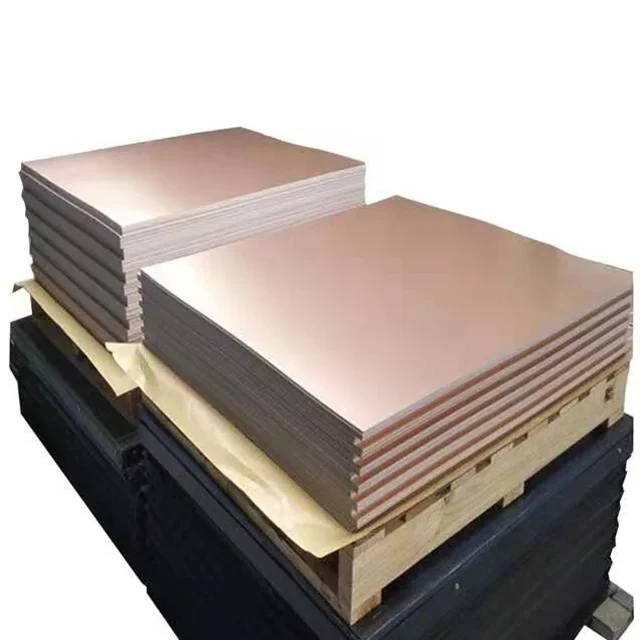

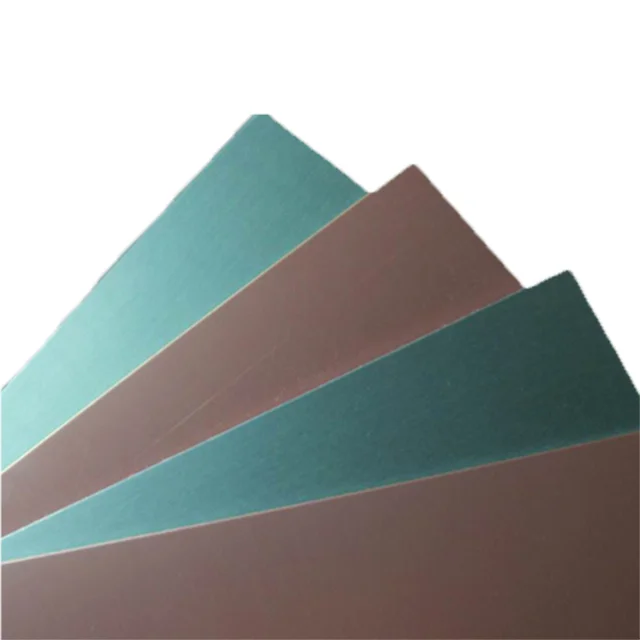

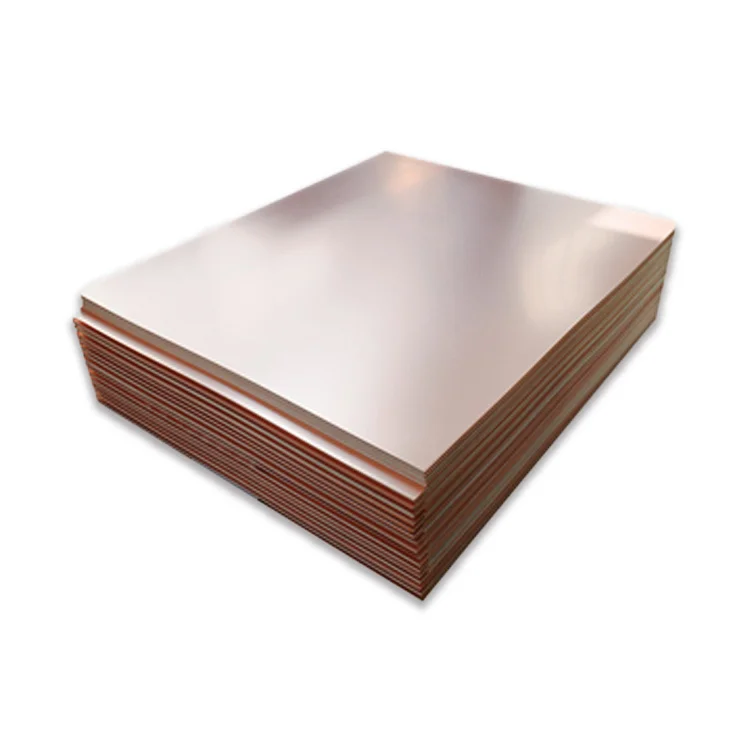

Aluminum Base Copper Clad Laminate PCB Raw Material Double Layer Copper Clad Laminate Sheet
Specification
Item | Unit | Test Condition | Insulation thickness 3mil（75um） | Insulation thickness 4.5mil(115um) | |
Copper thickness | OZ | 1～2oz | |||
Aluminum thickness | mm | 0.8/ 1.0/1.2/ 1.6/ 2.0/3.0 | |||
Standard size | mm | 500x1200 / 600x1000 / 500x600 | |||
Peeling strength | N/mm | IPC TM-650 2.4.9 | 1.8 | 1.8 | |
Thermal Stress | 288℃/60secX5 | IPC TM-650 2.4.13 | ok | ok | |
Thermal resistance | ℃/W | ASTM 5470-D | 0.65 | 0.65 | |
Heat transfer | W/m.k | ASTM 5470-D | 1.5 | 1.5 | |
Chemical Resistance | -- | IPC TM-650 2.3.2 | ok | ok | |
Surface resistance | ohm | C-96/35/90 | 108 | 108 | |
Volume resistance | Ohm.cm | C-96/35/90 | 108 | 108 | |
Breakdown Voltage | kv | IPC TM-650 2.5.6 | ≥3 | ≥5 | |
Dissipation Factor 1kHz Normal status 1MHz Normal status | C-96/35/90 | 4.8 4.6 | 4.8 4.6 | ||
Water absorption | % | D-24/23 | ≤0.05 | ≤0.05 | |
Comparative tracking index | V | IEC60112 | 600 | 600 | |
Flame resistance | -- | UL94 | V0 | V0 | |
More Different Types of Products Can Also be Customized!
Application range:
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Lighting: LED exterior wall lighting, street LED lighting, LED stage lighting, household LED lighting.
Recommend Products
Company Profile
Guangzhou Guangyou Electronic Co., Ltd
Guangzhou Guangyou Electronics Co., Ltd. is a high-tech enterprise specializing in the R&D, lamination, production and sales of LED heat-dissipating metal substrates. It has modern professional workshops and introduced a full set of advanced production equipment. It has more than 100 employees and has a line of The professional team of board production and strong production technology, our company has complete inspection equipment and strict quality inspection department to monitor the product quality in the whole process.
Products are widely used in LED lighting, car lights, stage lighting, high-power power supplies, home appliances, indoor and outdoor consumer electronics lighting. High heat dissipation metal substrate, copper substrate, single and double-sided composite board mainly solve the problem of PCB heat dissipation. LED high heat dissipation, high quality, high efficiency and high stability have become the unremitting goal of every Guangyou people. Creating value for customers is our company's service tenet.
Our Factory

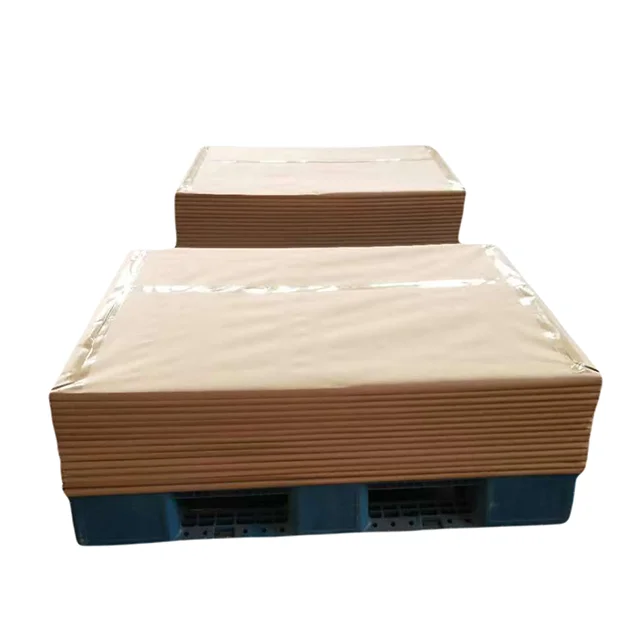

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
-Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).
Please confirm with us before placing orders.
Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit ;
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
