0.91 inch 0.96 inch 1.3 inch blue white yellow green 4/6/7 pin IIC communication small OLED display module
- Category: >>>
- Supplier: Shenzhen Cian Technology Co. Ltd.
Share on (1600523140462):
Product Overview
Description
Product Description

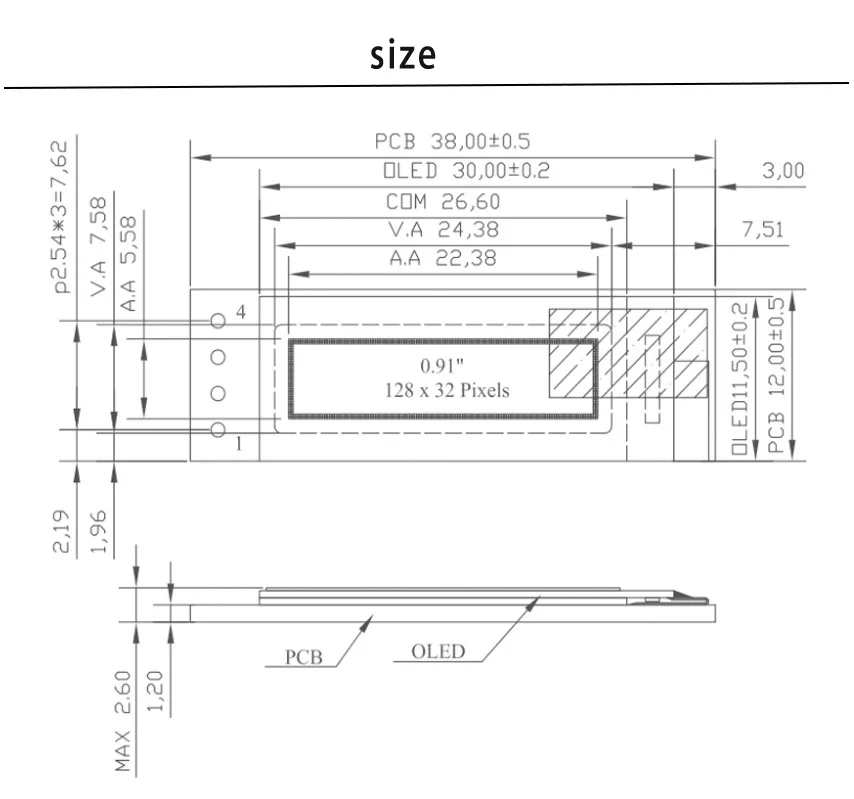

| Name | 0.91 inch OL ED display module |
| Color | blue light, white light |
| Dot matrix | 128x32 dot matrix (8 Chinese characters and 2 lines) |
| Driver IC | SSD1306 |
| Supply voltage | 3.3v |
| interface tye | 11C,12C |
| pin number | 4 |
| display area | 22.38*5.58 |
| Size | 38*12*2.6mm |
| Interface definition: | 1 foot: GND (ground wire) 2 feet: VCC (power cord) 3 feet: SCL (clock line) 4 feet: SDA (data line).5V) |

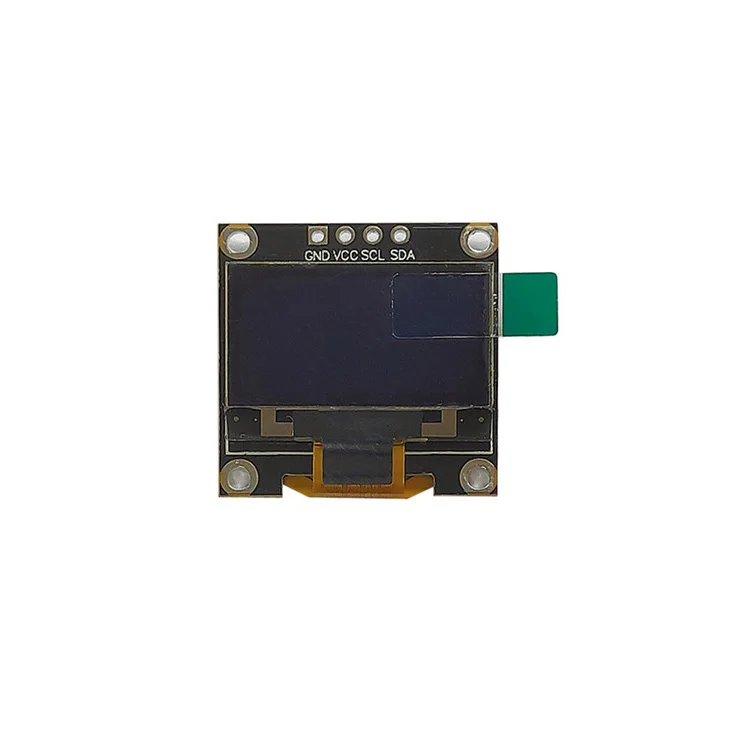

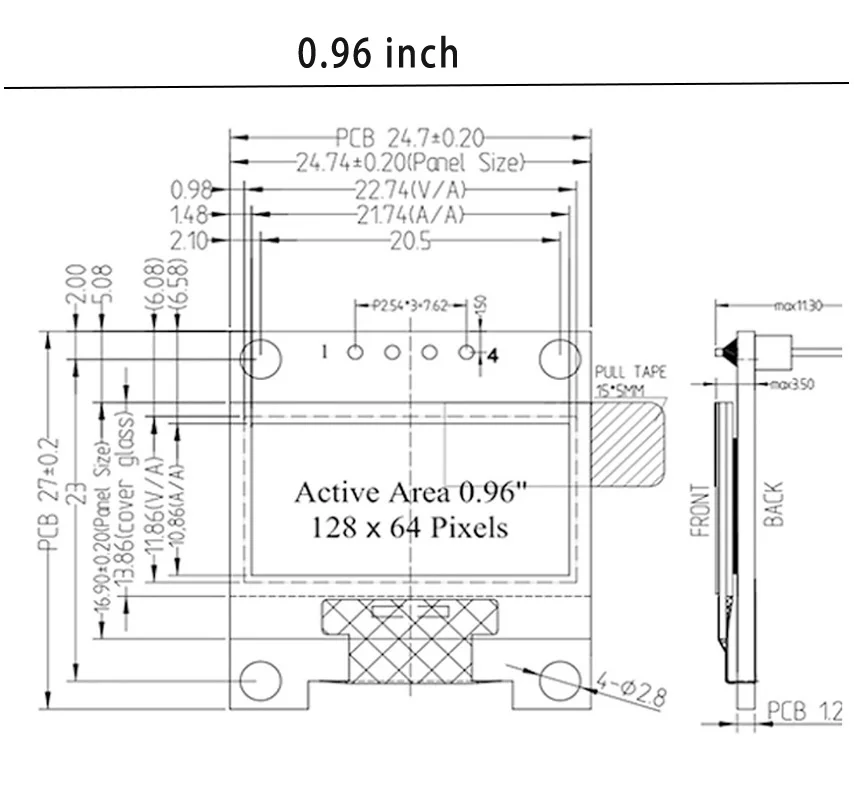

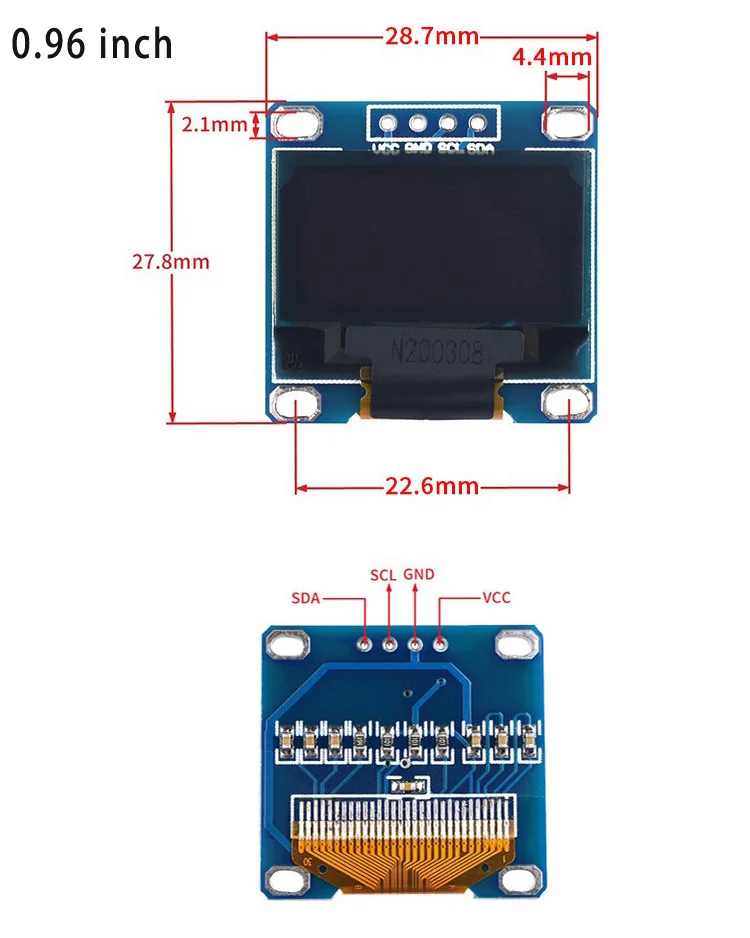

| Name | 0.96 inch OL ED display module |
| Color | white light |
| resolution | 128*64 |
| Large viewing angle | > 160° |
| Wide voltage support | 3.3V~5V DC |
| Working temperature | -30°C~80°C |
| Driver chip | ss1306 |
| display area | 22.38*5.58 |
| Ultra-low power consumption | 0.04W during normal operation |
| Communication method | IIC, only 2 I/0 ports are required |
| Backlight | OLED self-luminous, no need for backlight |
| Size | White, blue module volume (length, width and thickness): 27.00MM*24.7MM*3.7MM Yellow and blue dual-color module volume (length, width and thickness): 27.0MM *27.0MM*4.1MM |
| Support many platforms | 51 series MSP430 series, STM32/2. CSR chip, etc. |
| Pin definition | GND: Ground VDD: 3.3-5V SCK: serial clock SDA: Serial data |

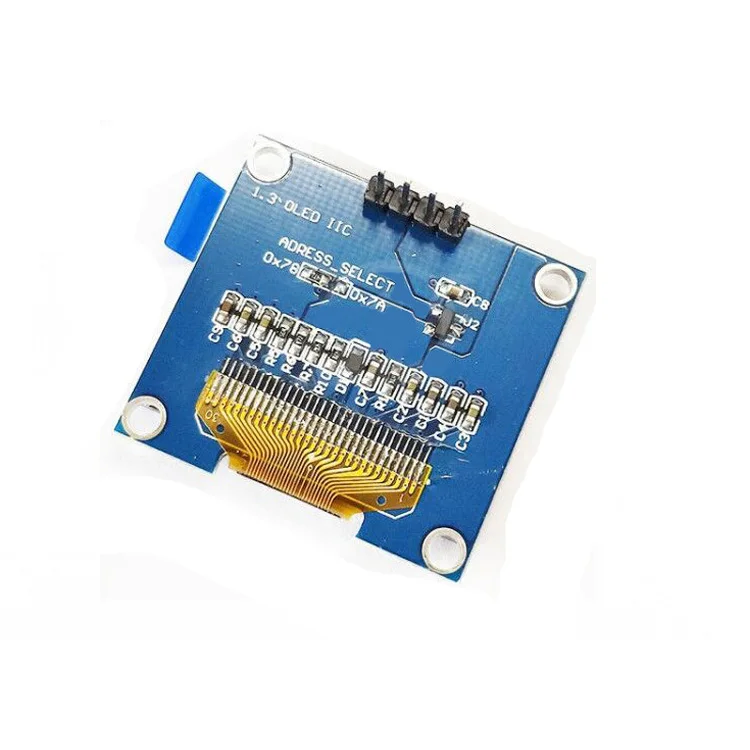

1.3 Inch OLED
resolution:128*64
Company Information
ShenZhen CiAn Technology co .,Ltdwas established in 2013, We deal in integrated circuits, including IGBT modules, sensor, triode, diode, capacitor, resistor, transistor, LED, power module, etc. All of these products are made for commercial, industrial use and even for military.
Over the years, our company has built up an enviable reputation overseas and at home with its excellent services, guaranteed quality, competitive price and fast delivery, we will reply to your question within 24 hours. Your order will be wlecomed at any time!
Packaging & Shipping
1. We will ship the items within 3-5 working days after the payment is reached.
2. Packing in professional anti-static bag,carton and so on.3. We can ship to you by DHL/TNT/UPS/EMS/Fedex. Please contact us directly and we will ship as your requirement.
FAQ
1. Q: What is your products quality ?
A: We offer all parts are new and original .
2. Q:What is your lead time?
A: Goods would be shipped in 3-20 work days after payment received, finally depends on quantities
3.Q What is your sample policy?
A: We can supply the sample for free if we have ready parts in stock, but the customers have to pay the courier cost.
Q4: What is the products warranty?
A: 1 year to replace new free for any quality problem
5.Q: What’s your advantage?
A: Competitive price & Good quality control & Fast production and delivery & Low MOQ & Professional sales and good after-sale service
