Product Overview
Description
Product description
JWELL PVC Pipe Extrusion Production Line Features
√This line with the characteristic of modern structure, advanced intelligent human-friendly √operation interface, high-efficient performance.
√Accurate temperature control system ensures good plastification and material melting performance.
√Professional and special screw and barrel design ensures high quality products.
√Advanced design gearbox with high torsion ensures stable running.
√Precisely SIEMENS PLC operation system highly improves the efficiency of the whole line.
√Low energy cost, excellent production performance, long-term using.

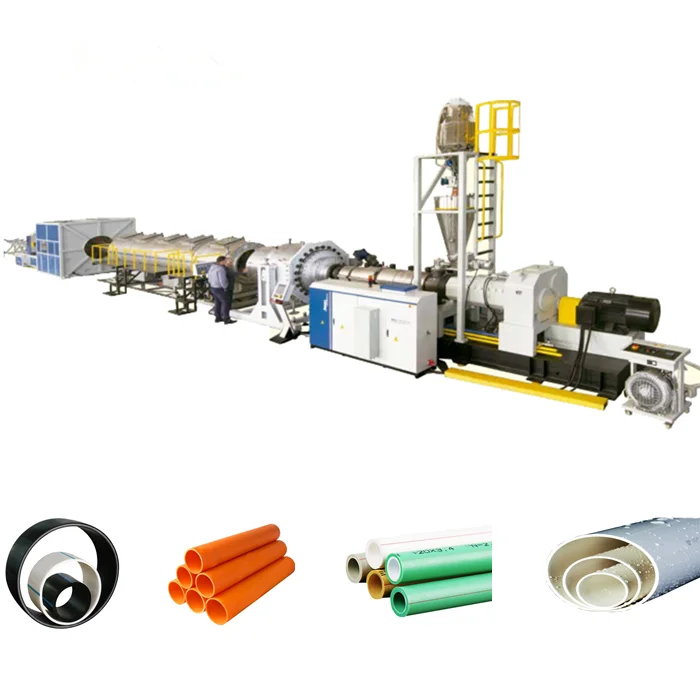

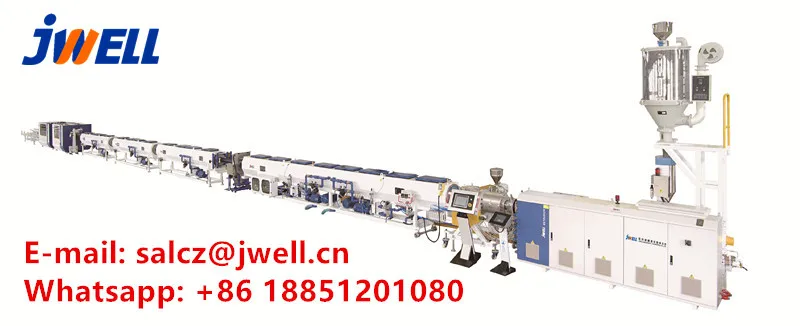

Production process
Spray cooling water tank → Haul-off→ Cutter → Stacker

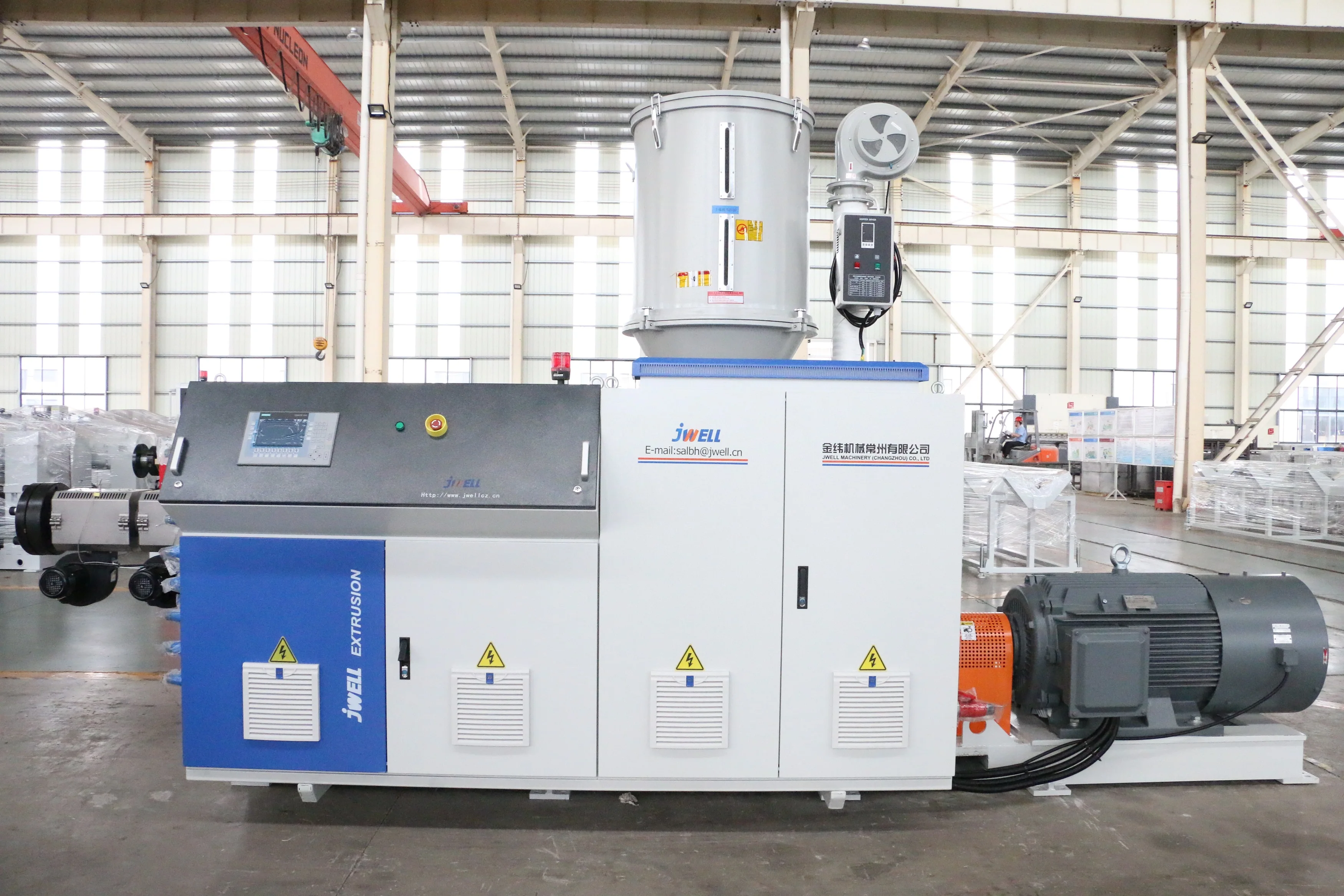

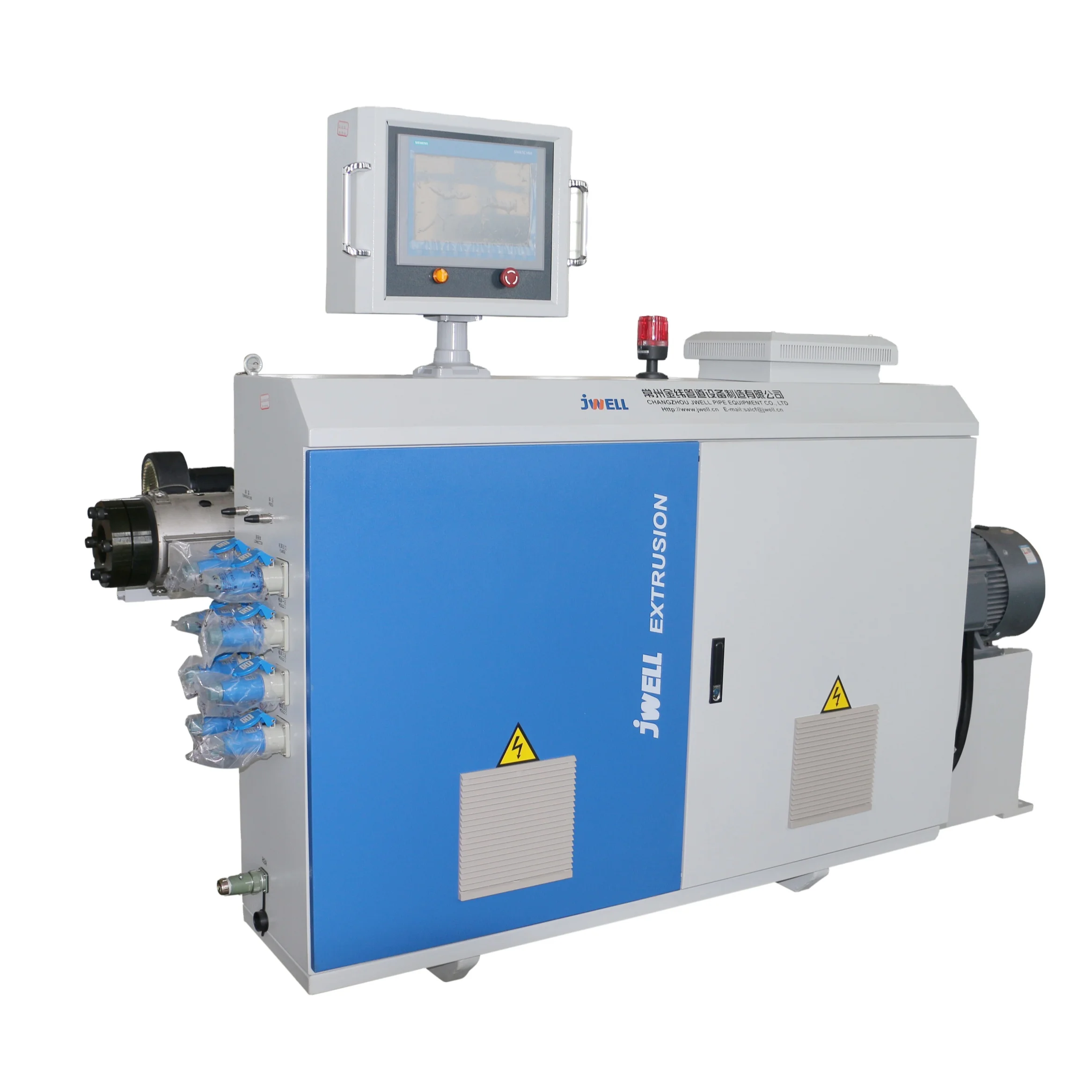

Extruder
Extruder type: | SJZ65/132 | Feature: | Customized,High quality&speed,Stable,Intelligent,Easy operation |
Pipe diameter:mm | 20-110 | Gearbox: | High torque wtih NSK bearing |
Output:kg/h | 250-300 | Electrical component: | Siemens, ABB, OMORN, Schneider and so on |
Main motor power:kw | 37 SIEMENS | System Control: | Intelligent PLC control, human-friendly interface |
Screw material: Have own screw barrel factory | 38CrMoAlA | Certified: | ISO CE |
Mould material: | 40Cr | After-sales Service: | Video technical support, Free spare parts, Field installation |
It will be much better if you can tell us specific pipe size (diameter/thickness/pressure), then we can suggest you the most suitable machine meet your requirements.
Are you interested? Contact us WhatsApp: +86 18851201080

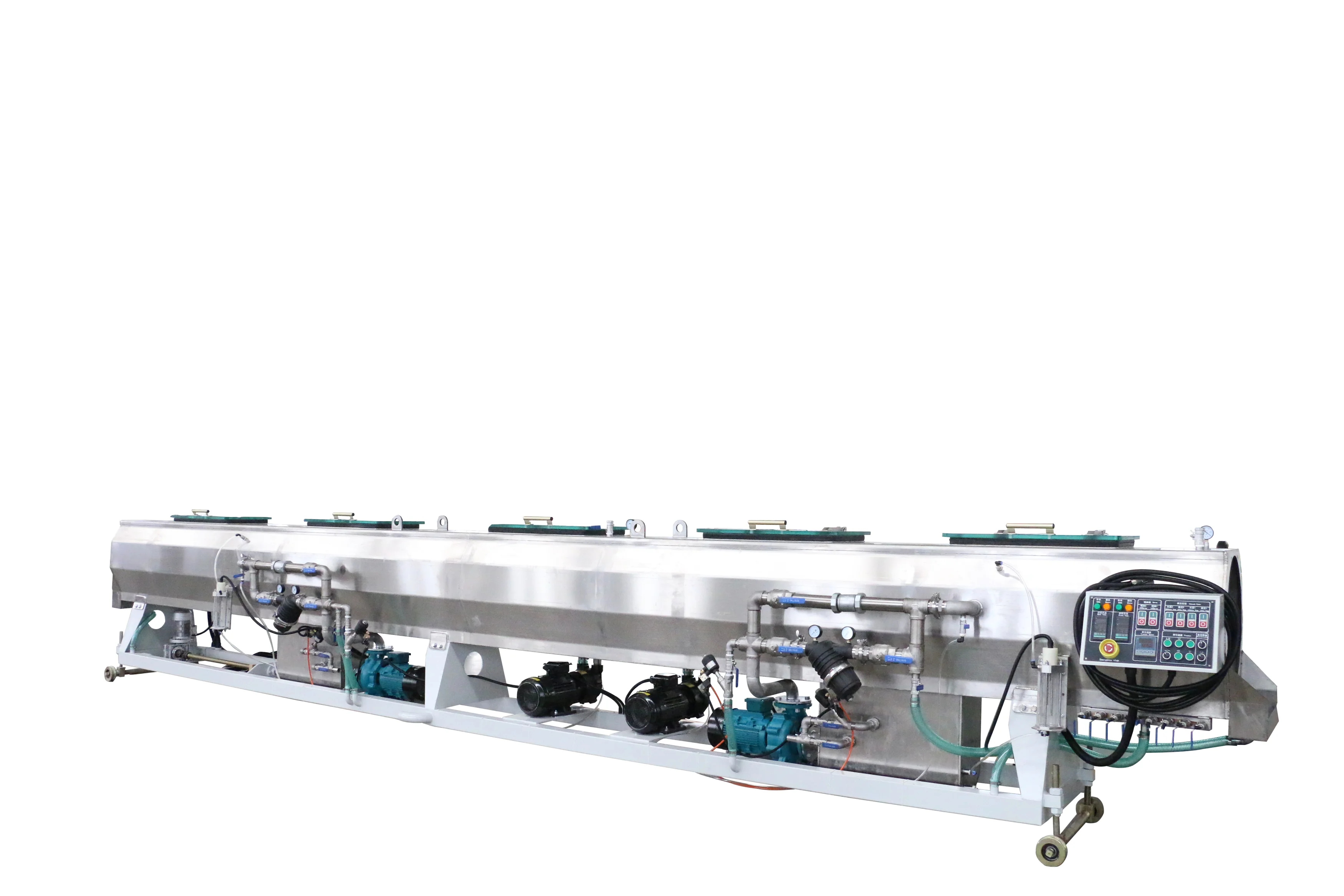

Calibration Tank
--Material: Bran-new stainless steel
--Length: 6000mm or customized
--Other parts: Vacuum pump, water pump, intelligent easy operation panel
--Length: 6000mm or customized
--Other parts: Vacuum pump, water pump, intelligent easy operation panel
Great vaccum calibration to ensure the good shape and surface of the pipe.

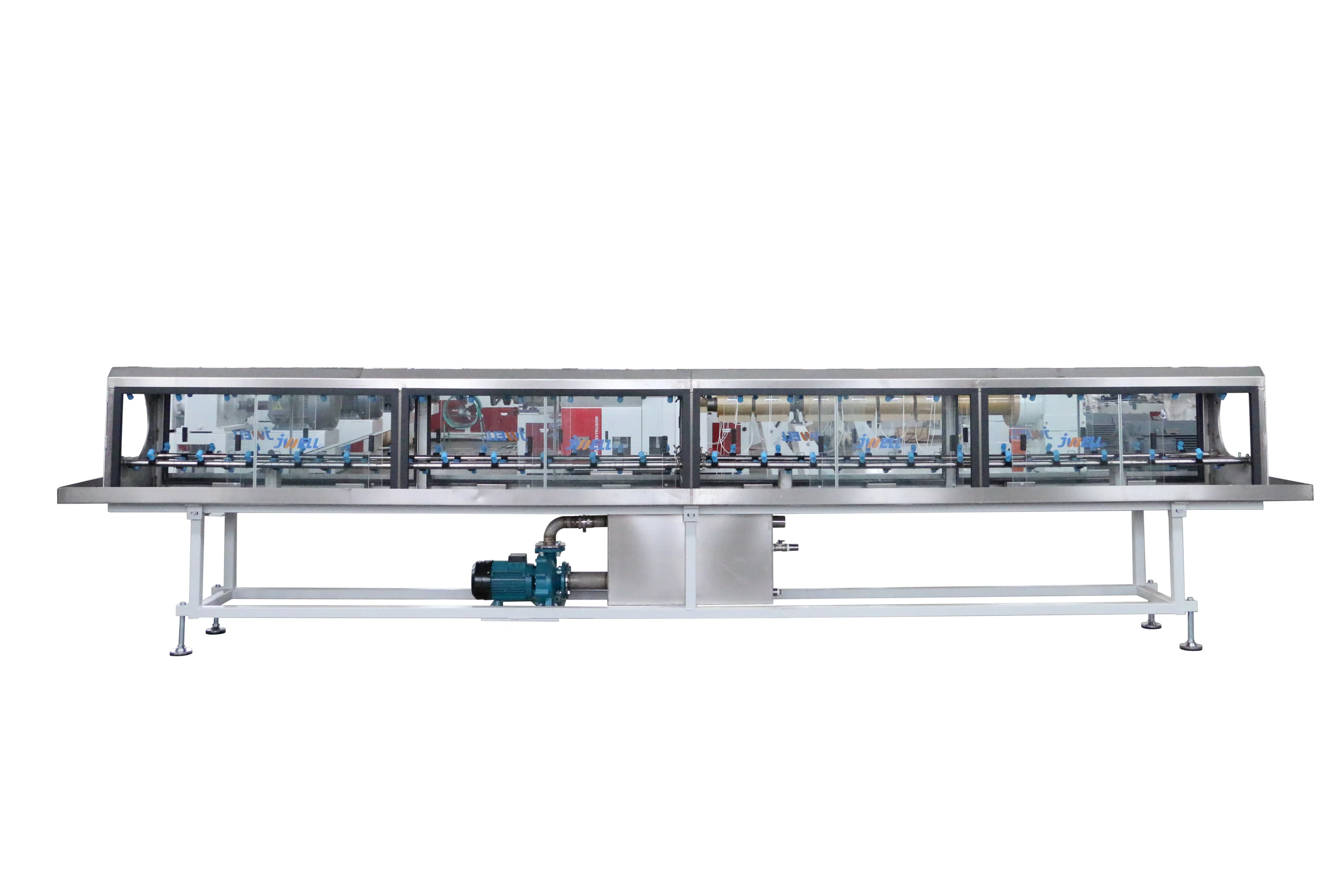

Spraying Cooling Tank
--Material: Bran-new stainless steel
--Length: 6000m or customized
--Length: 6000m or customized
--Other parts: Vacuum pump and water pump help quickly cool the pipe so that make higher production
Haul-off Machine
--ABB inverter control the speed very precisely
-- Adopt pneumatic gas cylinder, controlled by automatic system
-- Adopt pneumatic gas cylinder, controlled by automatic system
--Safe Device to prevent workers from clamping by the caterpillar

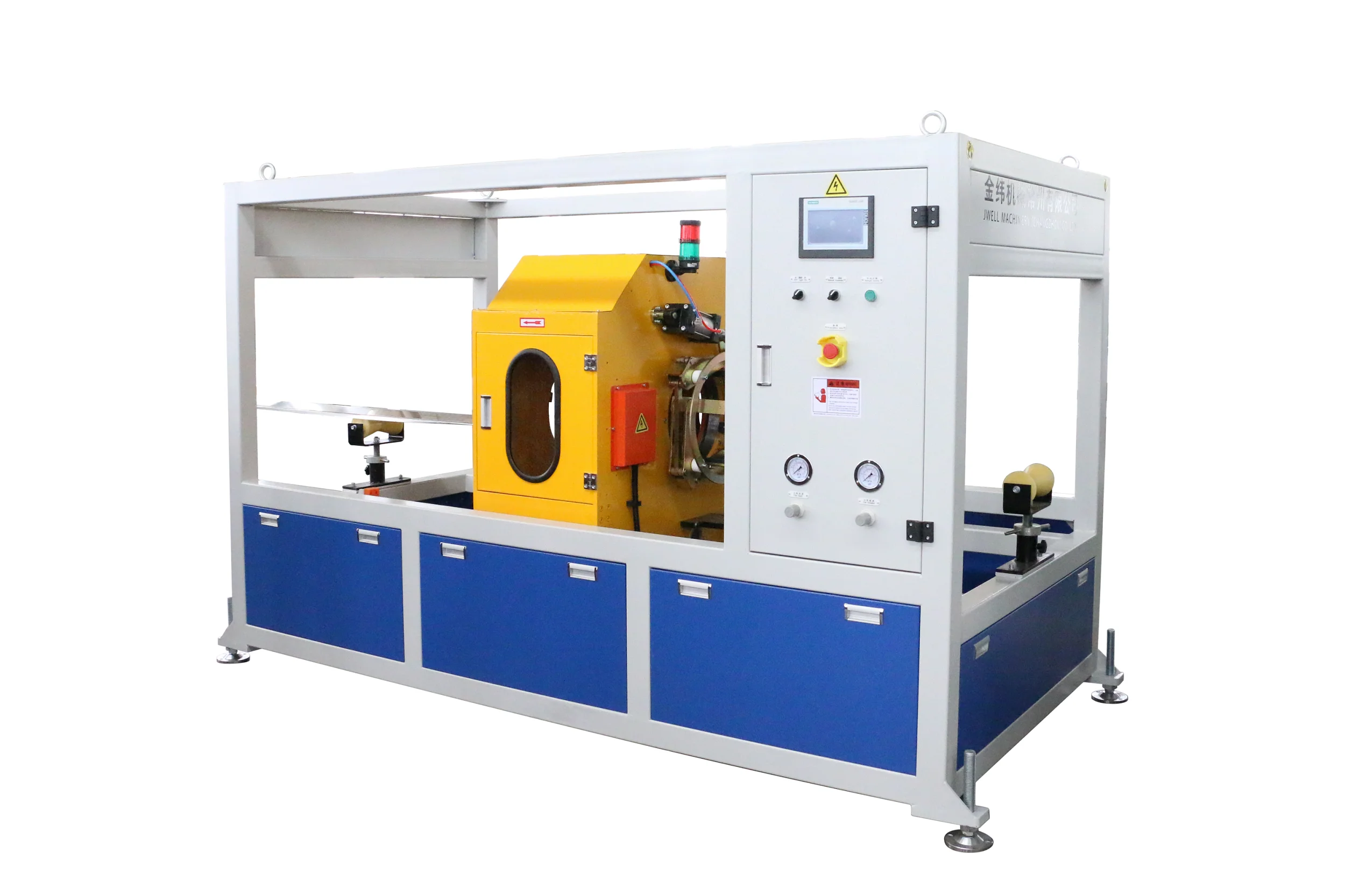

Cutting Machine
--Cutting Saw: Adopt Alloy Steel Saw, faster and more durable
--Machine Type: No dust cutting machine
--Machine Type: No dust cutting machine
--This type cutting machine can reduce the dust in your factory, and with lower noise, control by automatic system
--Safe Device to prevent workers from clamping by the caterpillar

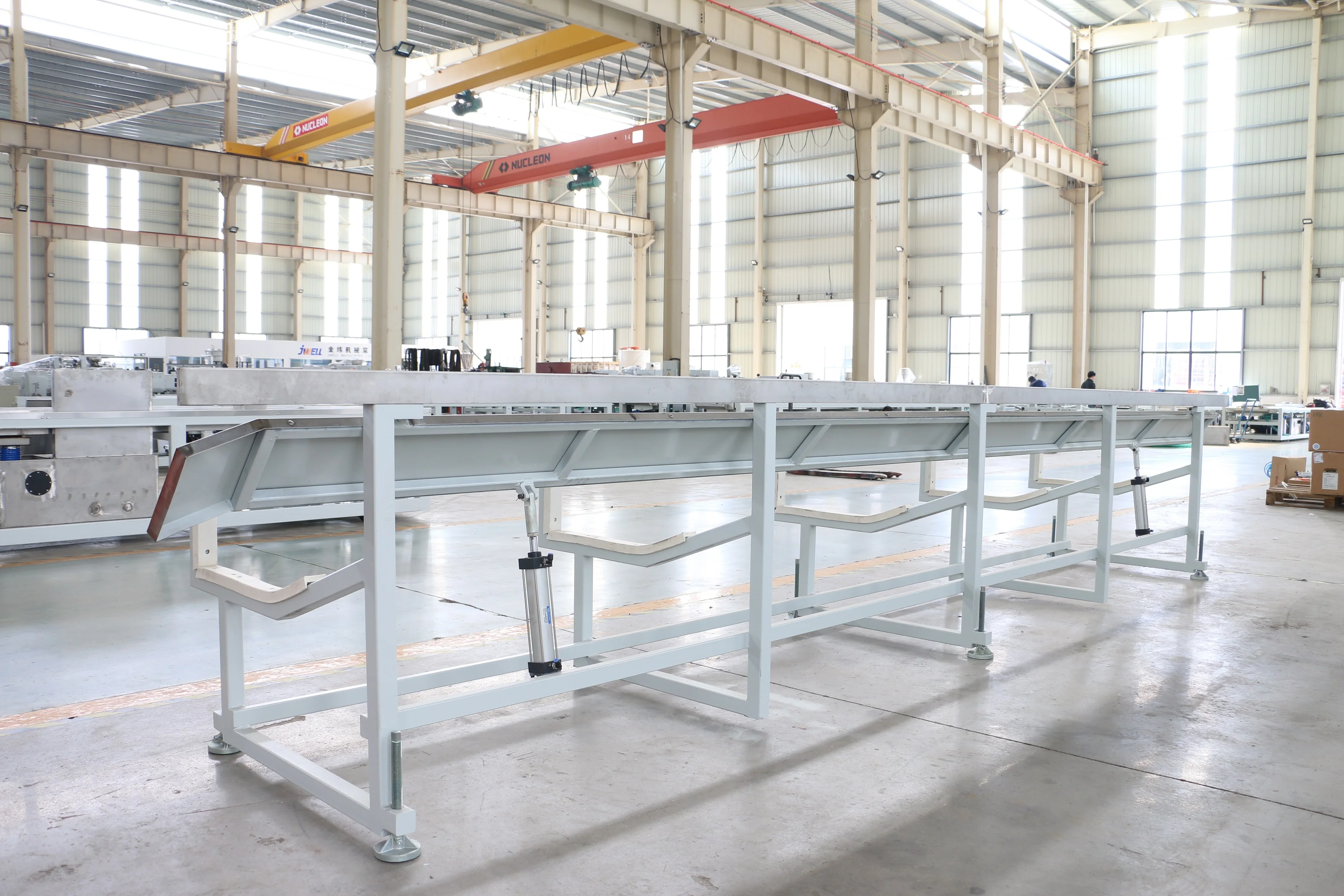

Stacker
--Material: Stainless Steel Board
--Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal
--Stacking Mode: Stacking by Gas Cylinder, adopt Limited Switch Send out Cutting Signal
Main parameter
Type | Diameter(mm) | Extruder type | Main motor power(kw) | Capacity(kg/h) |
JWG-PVC63 | Φ16~Φ63 | SJZ65/132 | 37 | 250-300 |
JWG-PVC110 | Φ20~Φ110 | SJZ65/132 | 37 | 250-300 |
JWG-PVC160 | Φ50~Φ160 | SJZ65/132 | 37 | 250-350 |
JWG-PVC250 | Φ75~Φ250 | SJZ80/156 | 55 | 300-450 |
JWG-PVC400 | Φ200~Φ400 | SJZ80/173 | 75 | 450-600 |
JWG-PVC500 | Φ250~Φ500 | SJZ80/173 | 75 | 450-600 |
JWG-PVC630 | Φ315~Φ630 | SJZ92/188 | 110 | 650-750 |
JWG-PVC800 | Φ400~Φ800 | SJZ95/192 | 132 | 850-1000 |
JWG-PVC1000 | Φ630~Φ1000 | SJZ110/220 | 160 | 1100-1200 |
JWG-PVC1200 | Φ800~Φ1200 | SJZ110/220 | 160 | 1100-1200 |

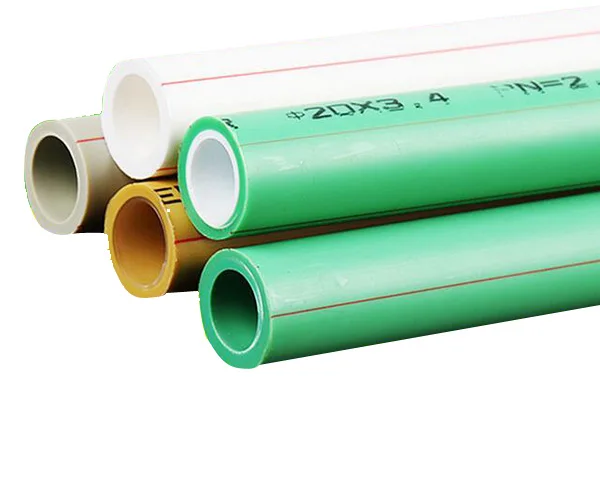

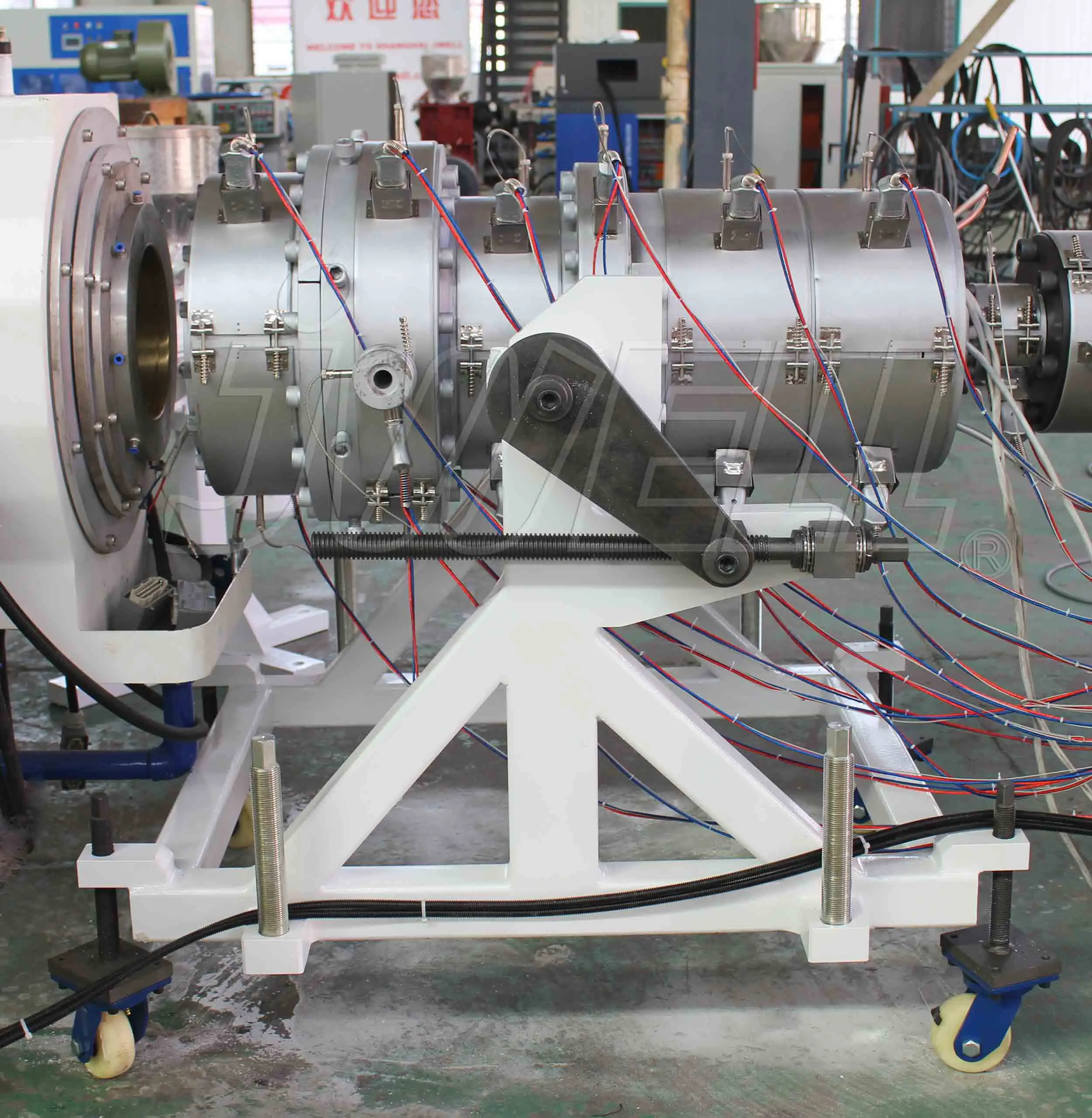

A variety of specifications and models of PVC twin-screw extruder can produce pipes of different diameters and different wall thicknesses. Specially designed screw structure with uniform plasticization and high output. Extrusion molds made of high quality alloy steel, internal flow channel chrome plating, polishing treatment, wear and corrosion resistance; with a dedicated high-speed sizing sleeve, pipe surface quality is good; The special cutter for PVC pipe adopts a rotating clamping device, which does not require replacing the fixture with different pipe diameters. With chamfering device, cutting, chamfering, one-step molding. Support optional online belling machine.
Our company
JWELL MACHINERY (CHANGZHOU) CO., LTD

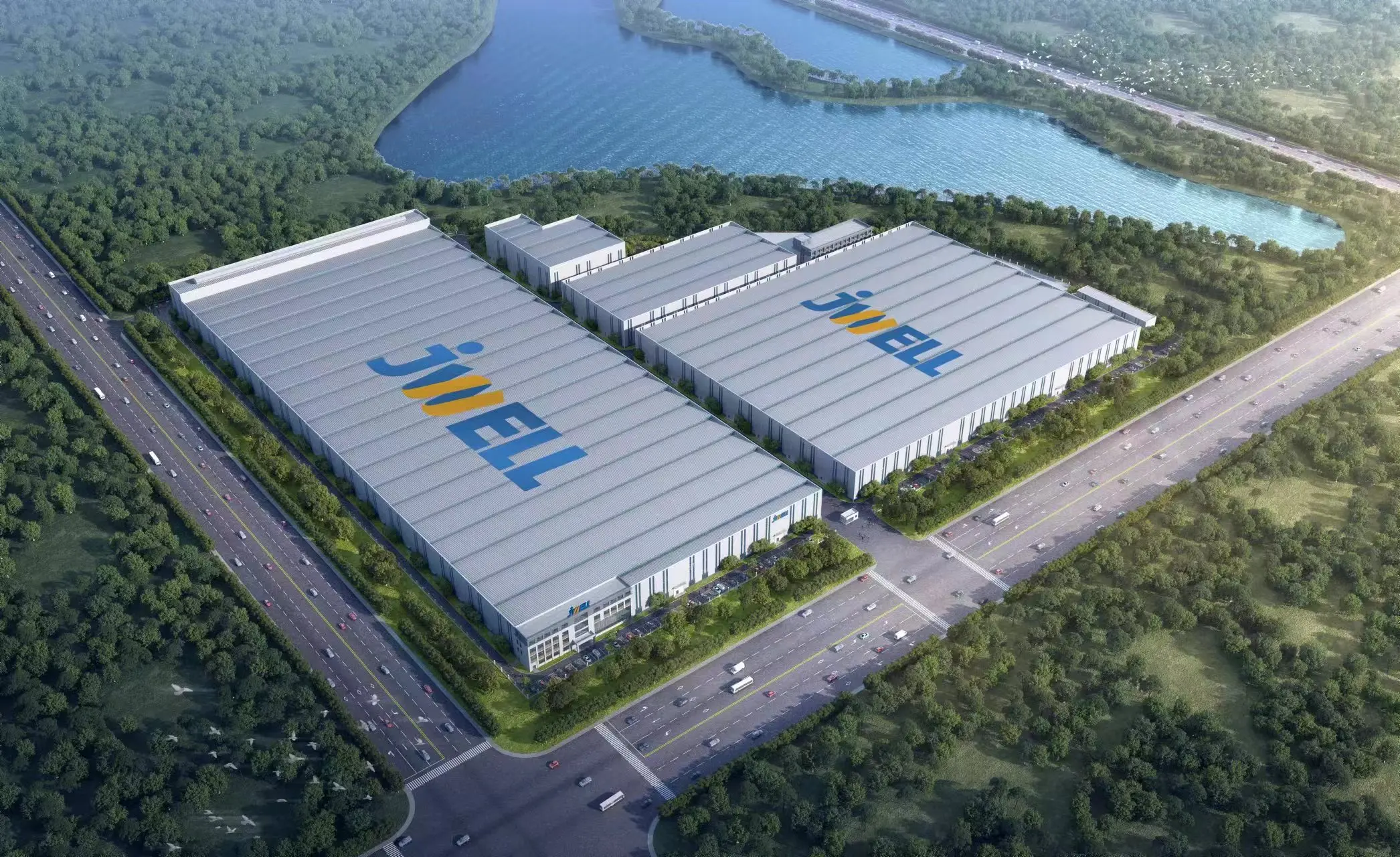

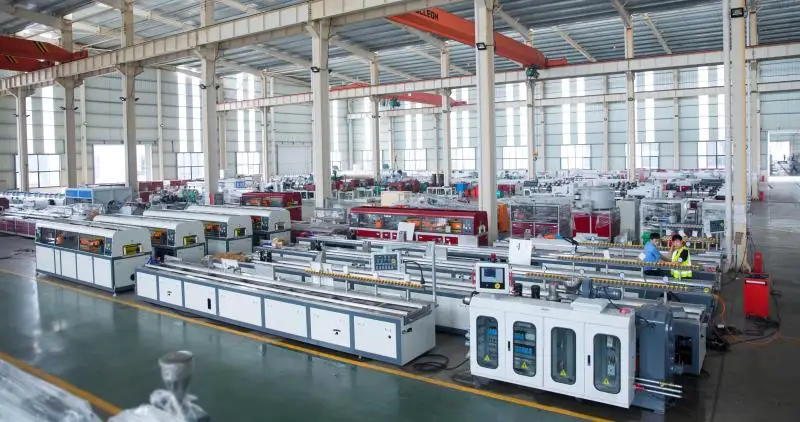

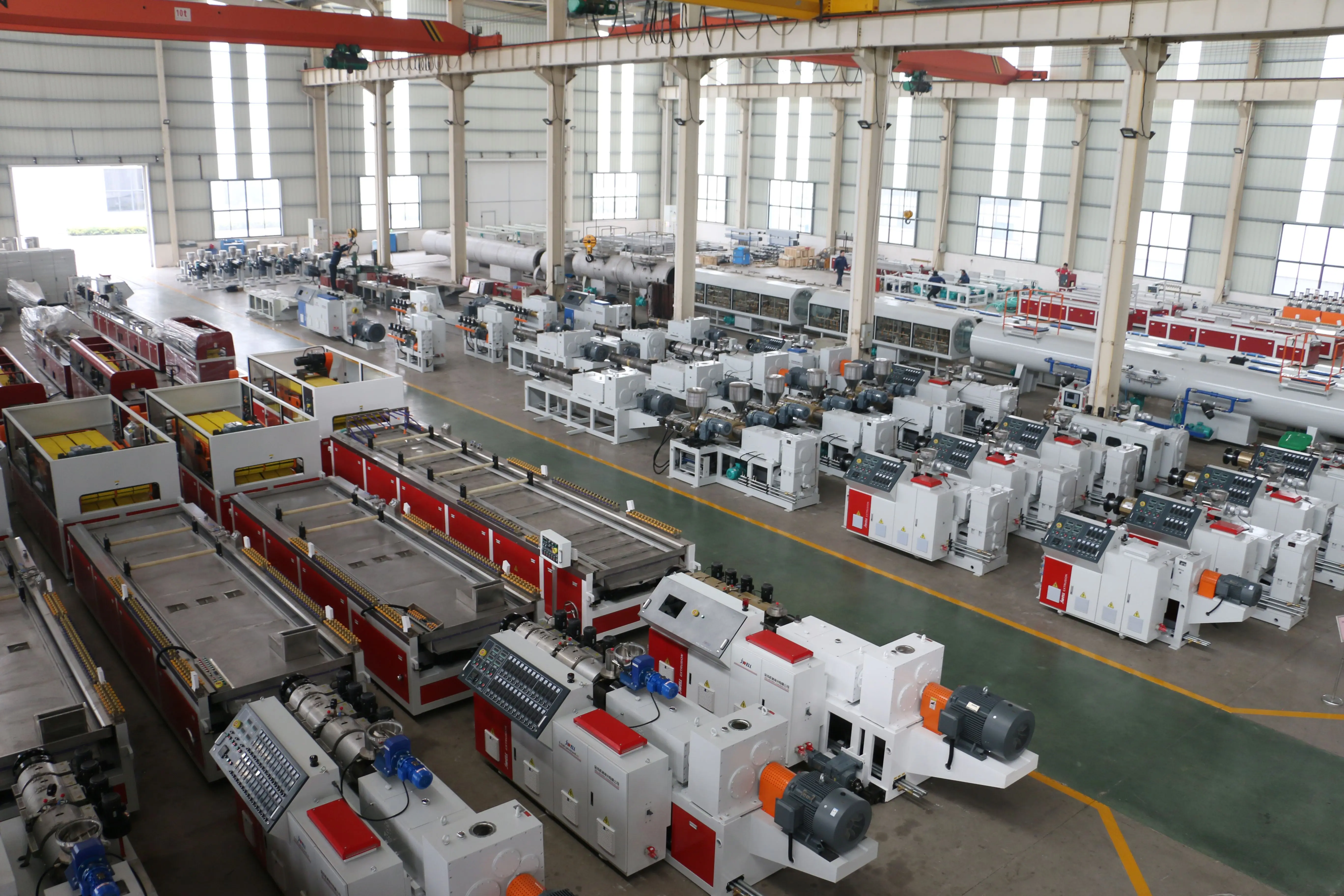

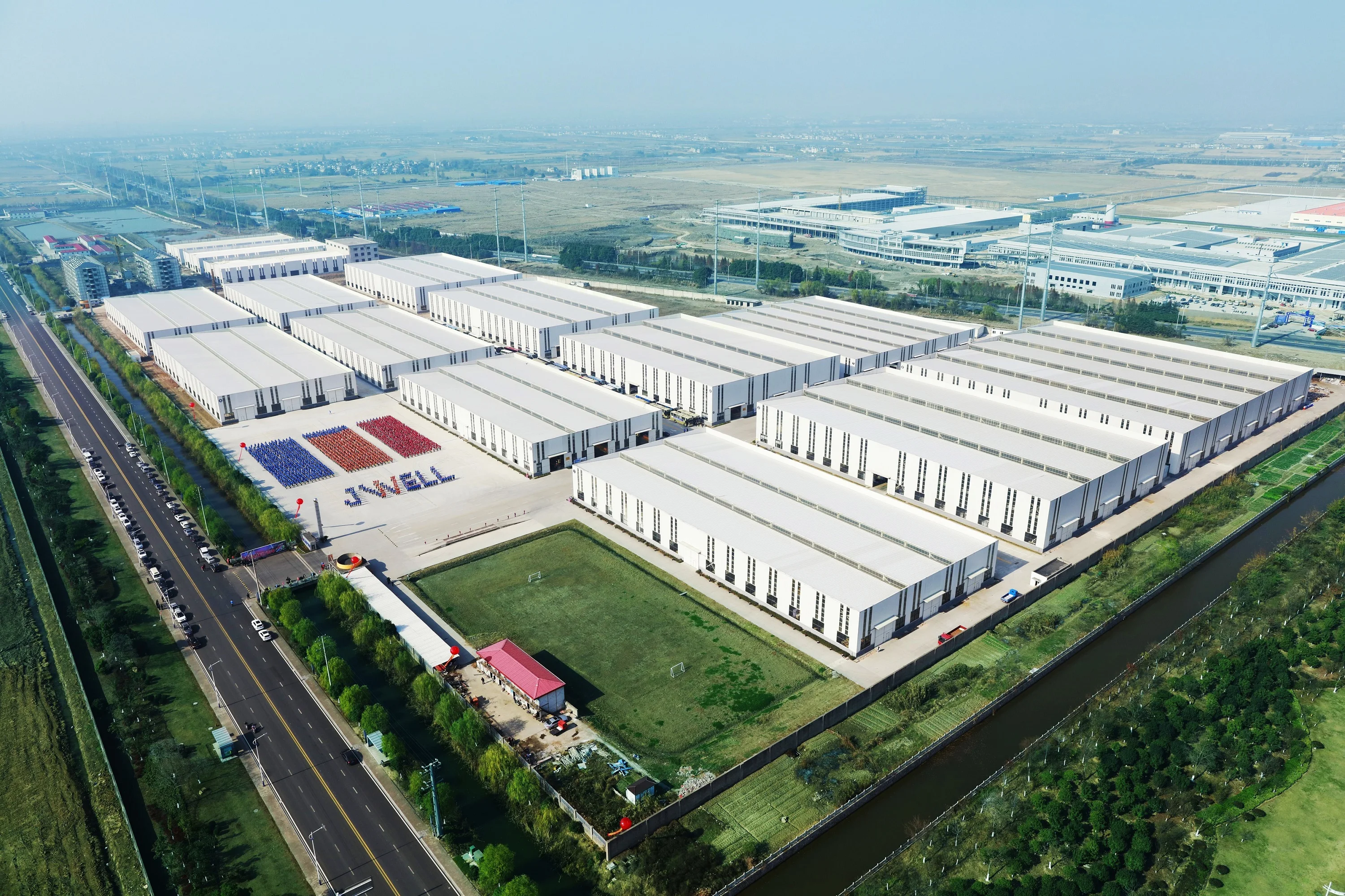

Founded in 1997, Jwell is one of the technology leaders in extrusion machinery and has ranked No.1 in the extrusion industry for 12 consecutive years in China. Over 25 years, we’re focused on researching and developing high-quality plastic extrusion machines for pipe, profile, sheet, film, pelletizer machine, recycling machine and blow molding machine with innovation spirit at 8 large production bases in China and Thailand, and we export 3000+ lines to 120+ countries every year with rich experience of local production and market.

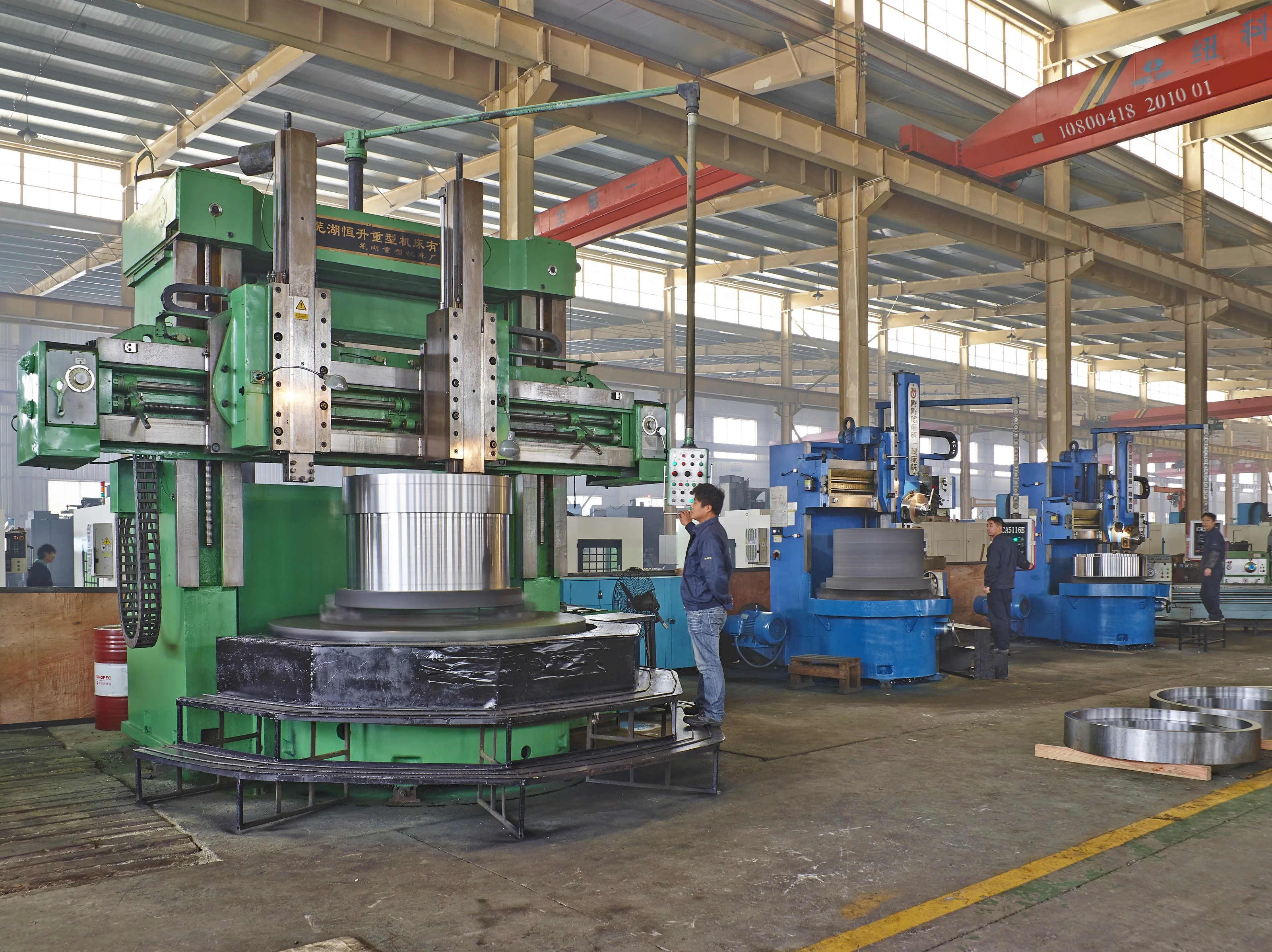

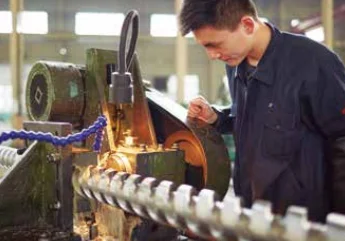

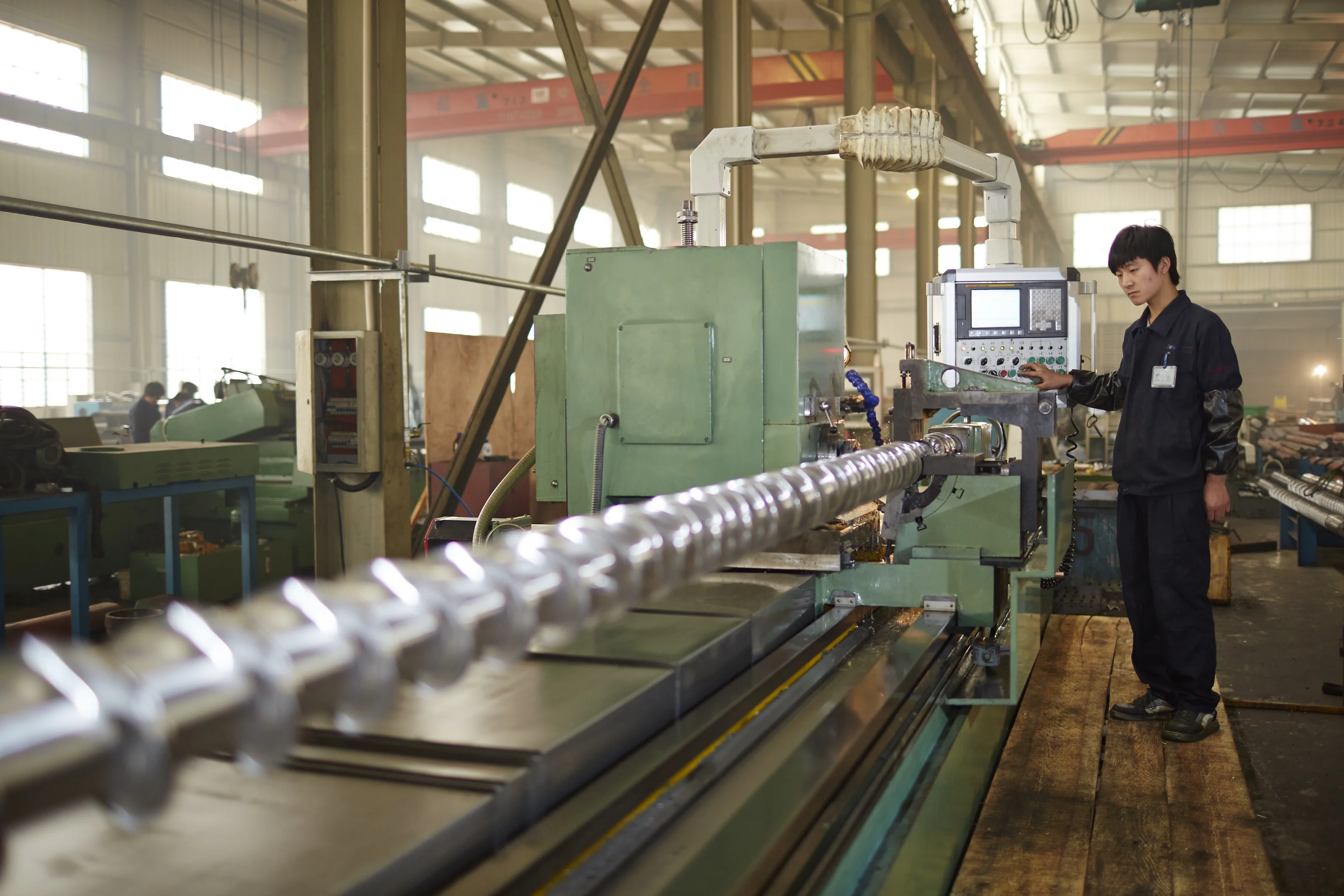

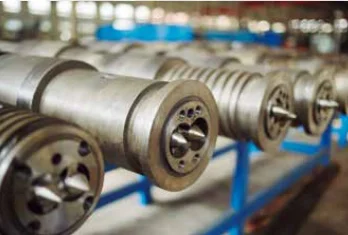

Besides, we have own screw barrel company founded in 1978, 9 large metal processing plants, 3 heat treatment nitriding plants, 1000 + international advanced processing equipment, 400+ patents, 10 high-tech cooperative enterprises, and most importantly, stable and first-class supply chain. Based on advanced manufacturing technology and rich resource, we can provide sustainable and professional solutions and reliable after-sales service for you during the whole production process to create a brilliant future together!
Besides, we have own screw barrel company founded in 1978, 9 large metal processing plants, 3 heat treatment nitriding plants, 1000 + international advanced processing equipment, 400+ patents, 10 high-tech cooperative enterprises, and most importantly, stable and first-class supply chain. Based on advanced manufacturing technology and rich resource, we can provide sustainable and professional solutions and reliable after-sales service for you during the whole production process to create a brilliant future together!
Exhibition

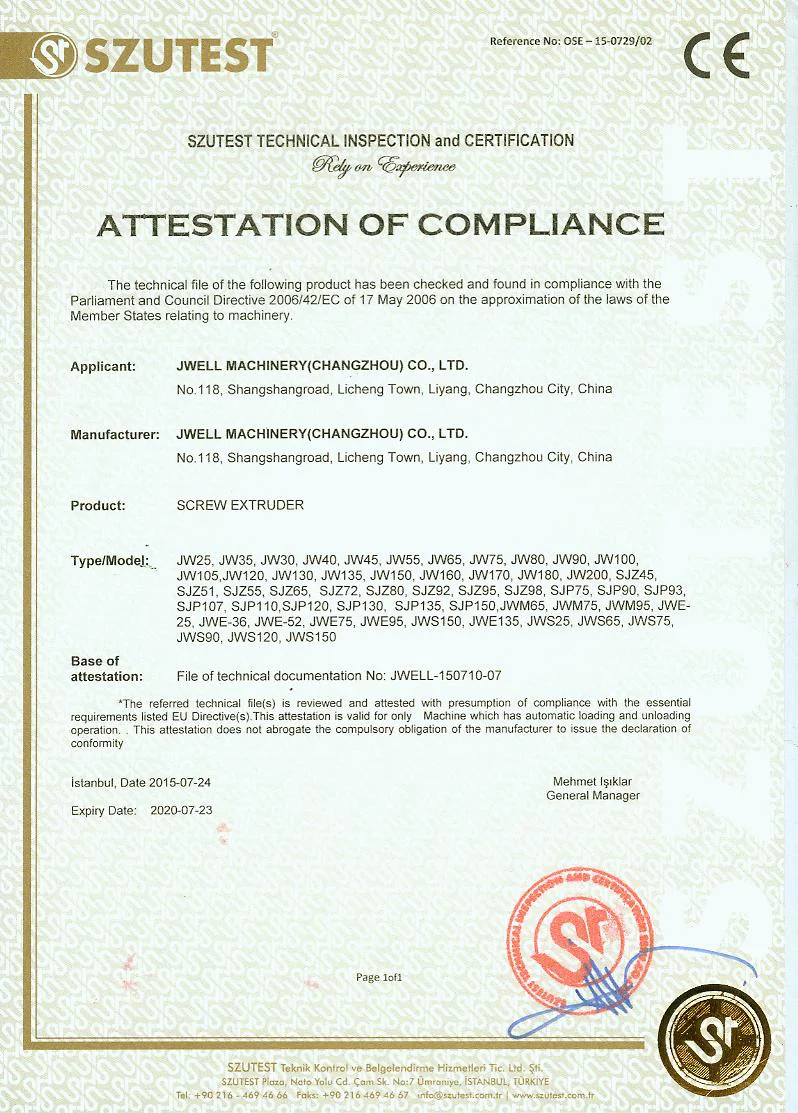

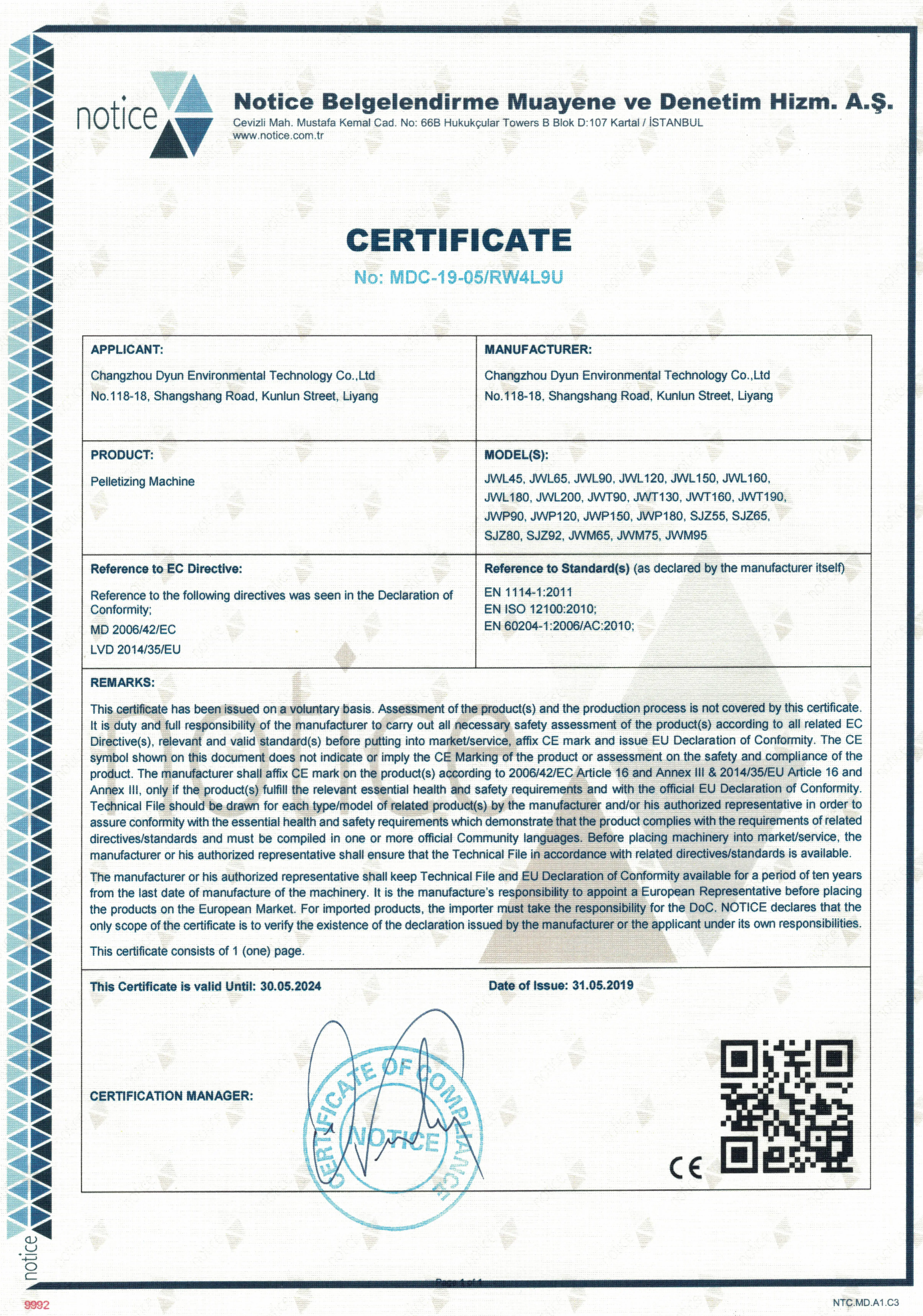

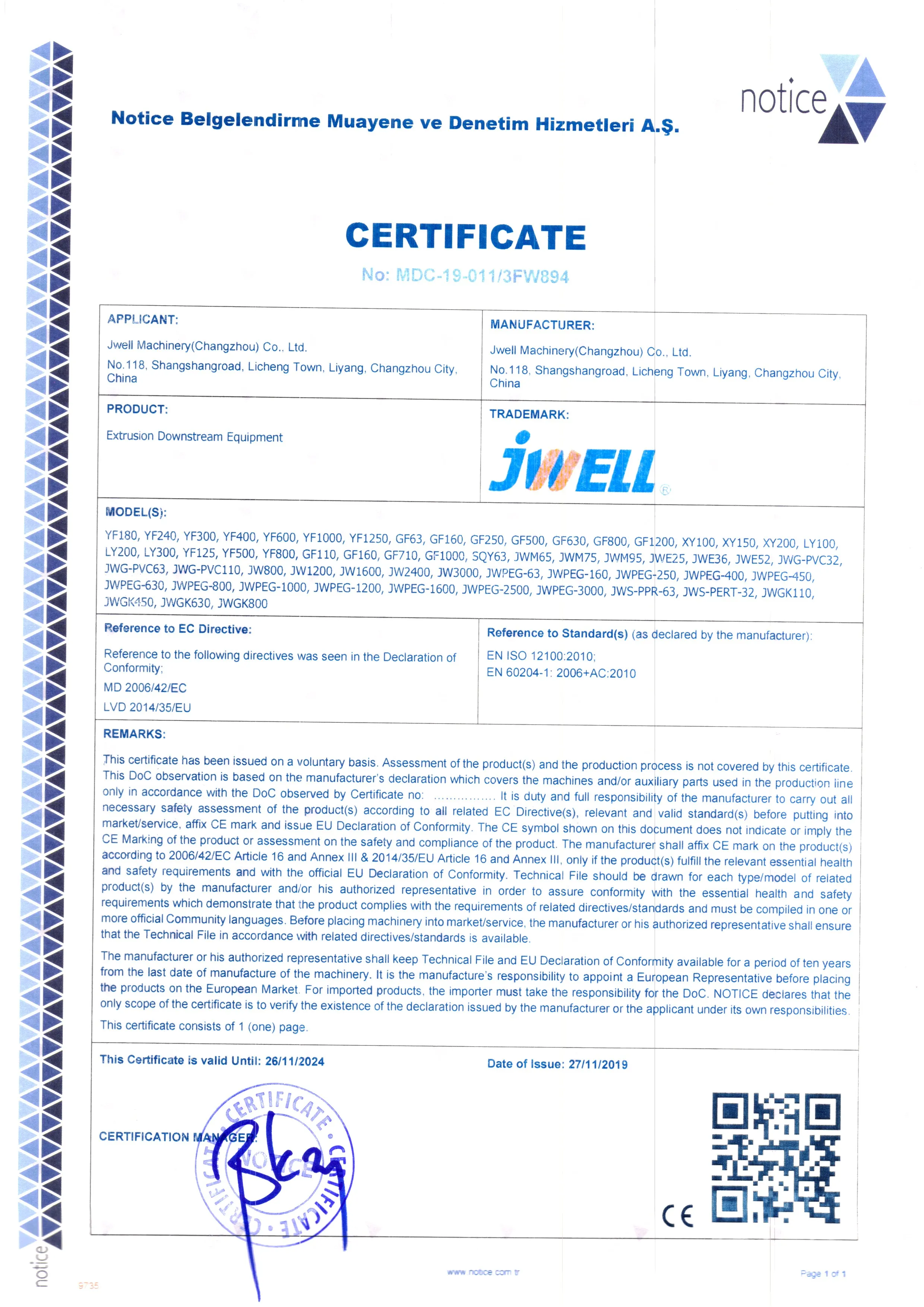

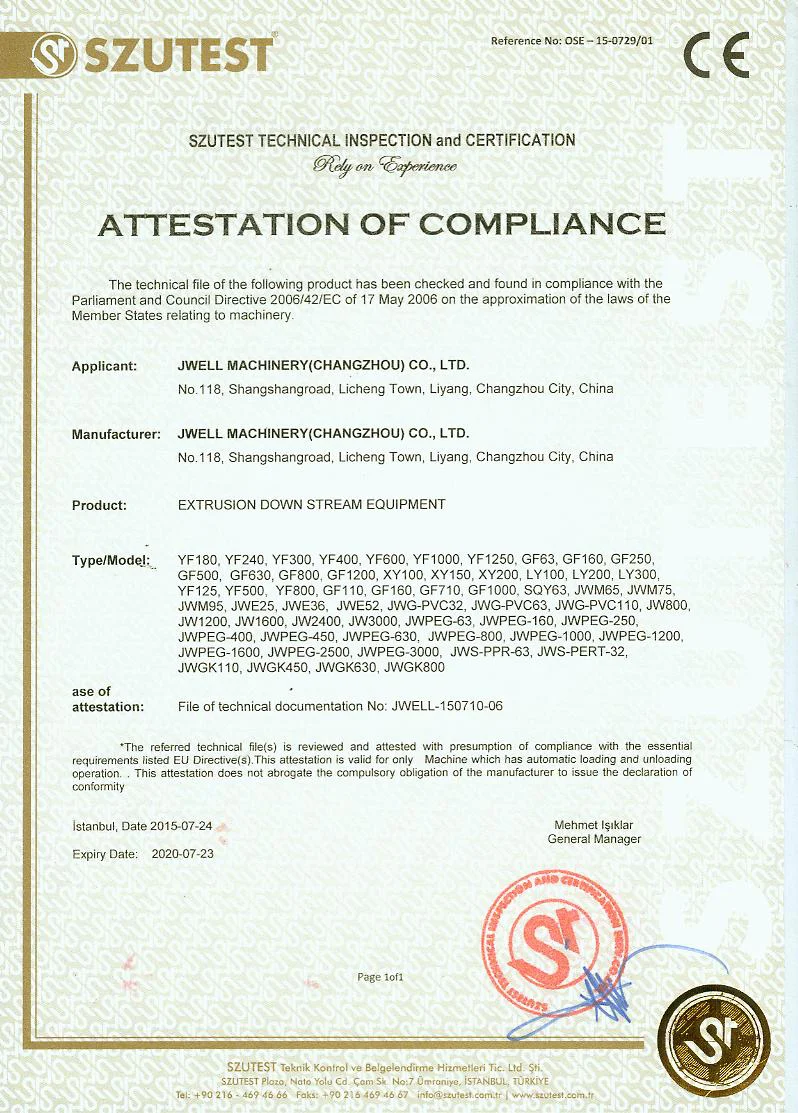

Certifications

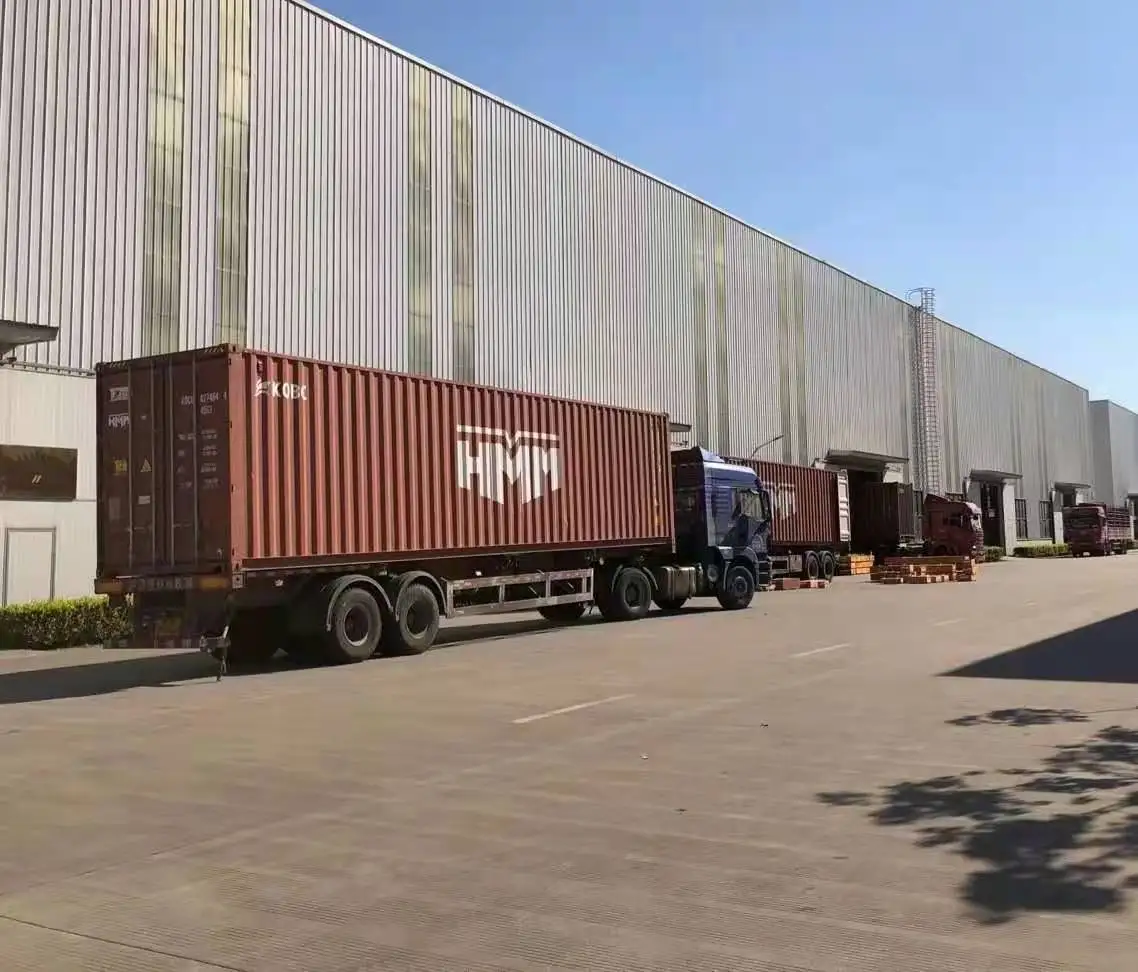

Delivery

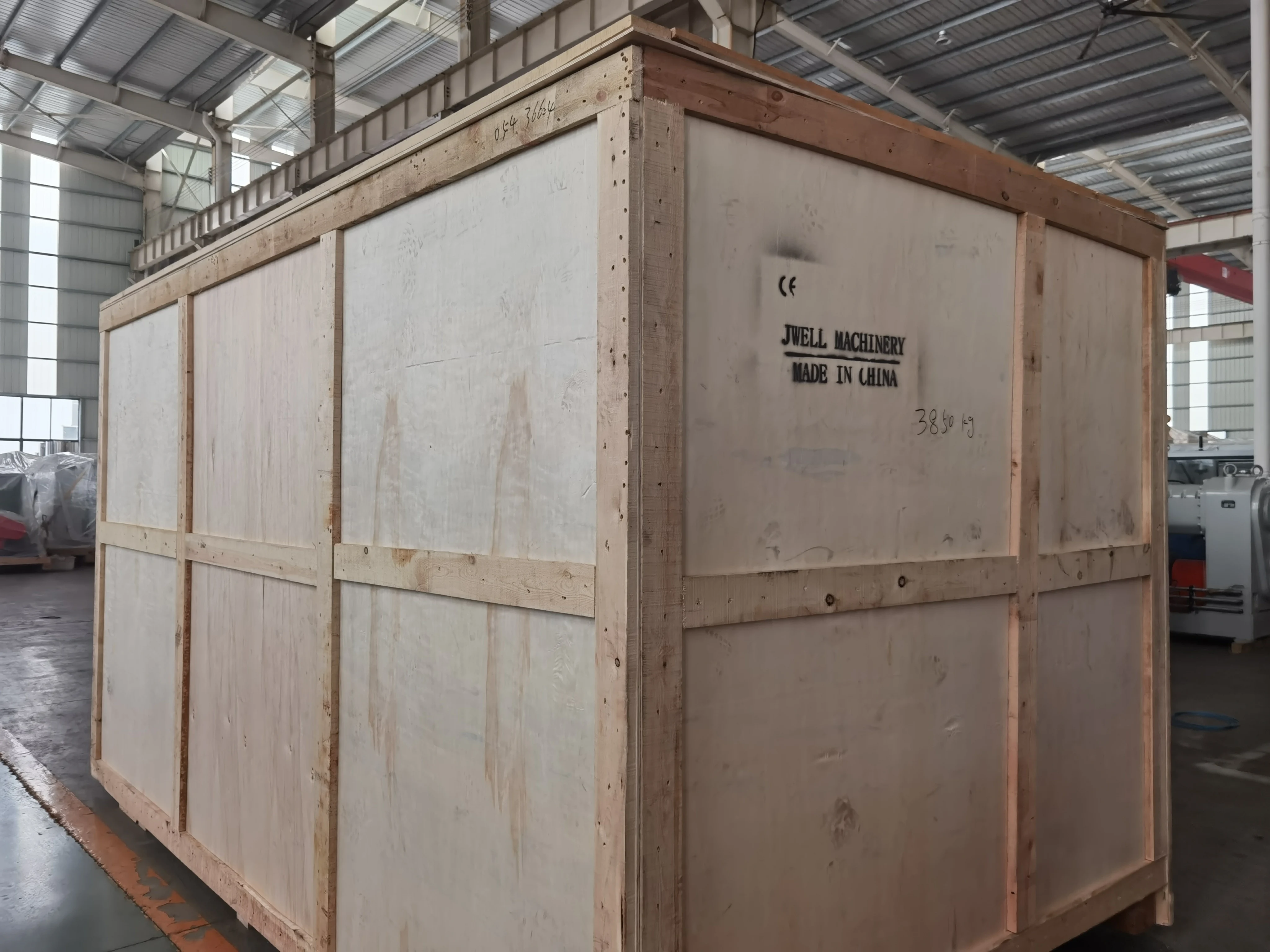

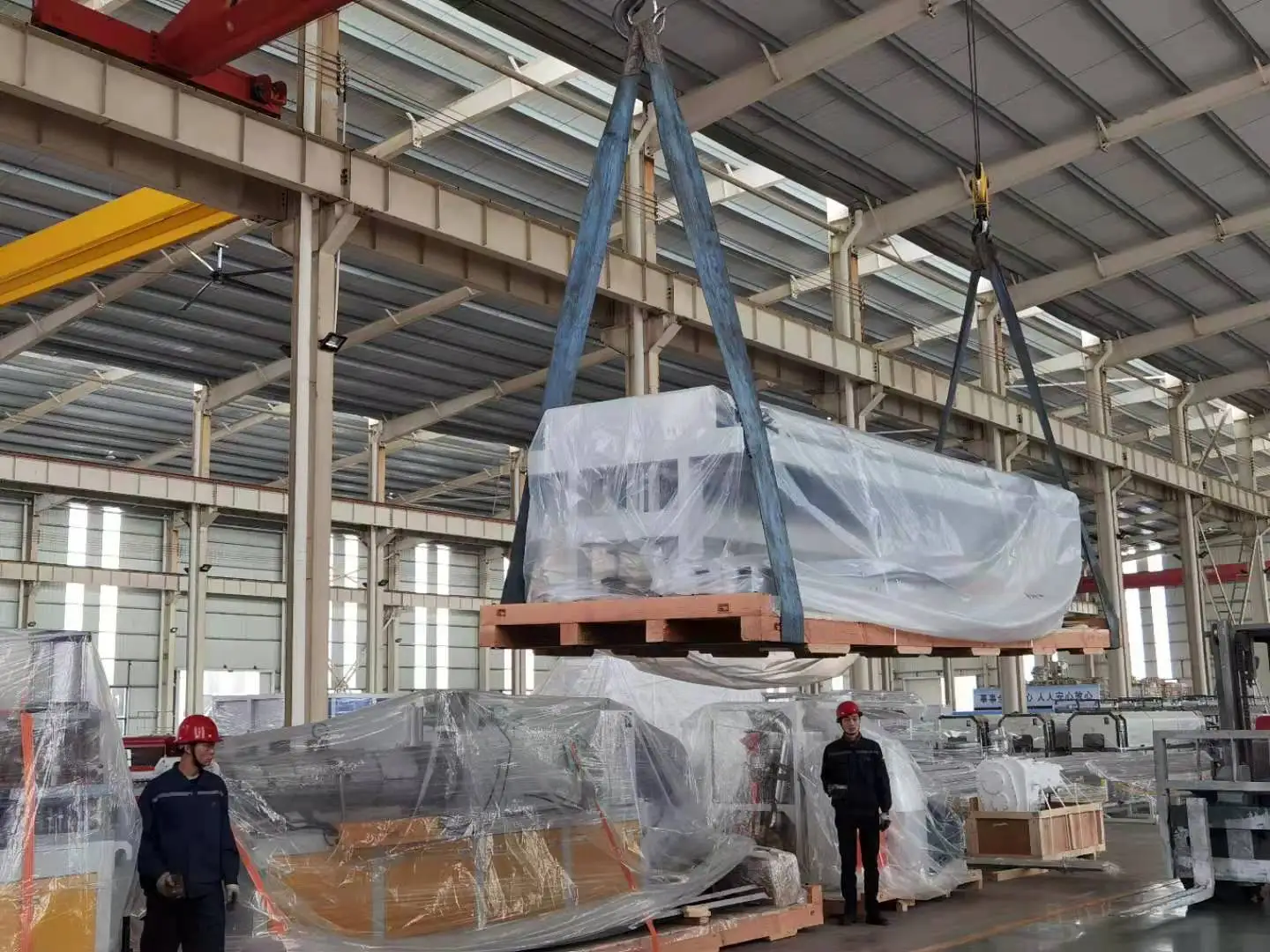

Packed with fumigated wooden pallet and film, internal small parts are fixed with wood.
FAQ
1. Why choose Jwell?
(1) More professional. We have specialized in plastic extrusion machines for over 25 years and established 8 large production bases with 3000+ employees. Jwell has ranked No.1 in the extrusion industry for 12 consecutive years in China.
(2) Truly high-quality equipment. Most core components of our production line are produced by our own company. Over past 25-year development, we have established complete and stable supply chain consisted of famous brands and national first-class agents who have passed our strict quality inspection and factory site inspection. Besides, we have own screw barrel manufacturing company founded in 1978 who produced the first screw in China at that time, 3 heat treatment nitriding plants, 1000 + international advanced processing equipment and 400+ patents.
(3) We put honesty first. The core concept of our company is to be honest. We sincerely serve every customer, timely feed back problems, solve problems, and constantly optimize equipment performance and service level.
2. How about your after-sales service?
We provide you free spare parts of the machine and guide the installation and commissioning of the production line on site or online. When you encounter problems in production, we will provide solutions at the first time and contact our local commissioning engineers to help you at your factory.
3. How can we check the machine before delivery?
Before delivery, we will test the production of equipment in our factory to ensure smooth production in your factory. If you can't send someone to check and accept on site, we will show you the whole process of trial run in the form of network video call.
4. How long it will take to make delivery?
According to different machines, the time of shipment is different, like 30days to 60days. But we always try best to deliver machines as soon as possible.
5. How about the payment way?
First advance payment of 30% of the contract value must be made by the Buyer within 10 bank days since signing the contract by T/T. Second payment of 70% of the contract value shall be T/T or L/C within 10 days before the shipment.
(1) More professional. We have specialized in plastic extrusion machines for over 25 years and established 8 large production bases with 3000+ employees. Jwell has ranked No.1 in the extrusion industry for 12 consecutive years in China.
(2) Truly high-quality equipment. Most core components of our production line are produced by our own company. Over past 25-year development, we have established complete and stable supply chain consisted of famous brands and national first-class agents who have passed our strict quality inspection and factory site inspection. Besides, we have own screw barrel manufacturing company founded in 1978 who produced the first screw in China at that time, 3 heat treatment nitriding plants, 1000 + international advanced processing equipment and 400+ patents.
(3) We put honesty first. The core concept of our company is to be honest. We sincerely serve every customer, timely feed back problems, solve problems, and constantly optimize equipment performance and service level.
2. How about your after-sales service?
We provide you free spare parts of the machine and guide the installation and commissioning of the production line on site or online. When you encounter problems in production, we will provide solutions at the first time and contact our local commissioning engineers to help you at your factory.
3. How can we check the machine before delivery?
Before delivery, we will test the production of equipment in our factory to ensure smooth production in your factory. If you can't send someone to check and accept on site, we will show you the whole process of trial run in the form of network video call.
4. How long it will take to make delivery?
According to different machines, the time of shipment is different, like 30days to 60days. But we always try best to deliver machines as soon as possible.
5. How about the payment way?
First advance payment of 30% of the contract value must be made by the Buyer within 10 bank days since signing the contract by T/T. Second payment of 70% of the contract value shall be T/T or L/C within 10 days before the shipment.
