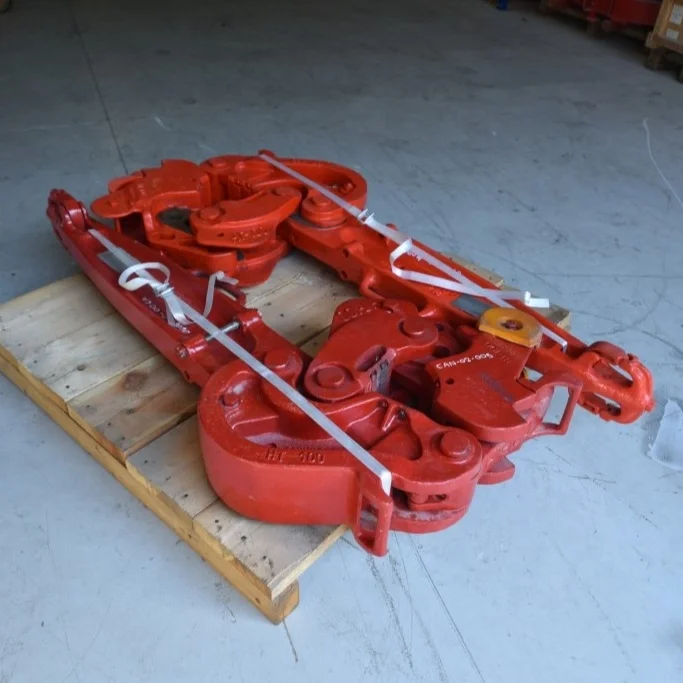

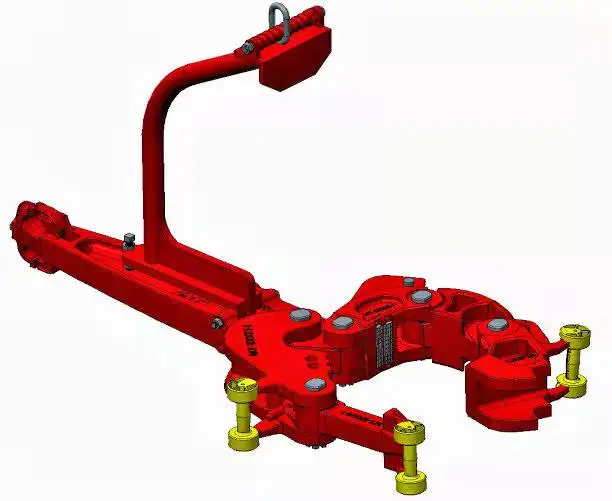

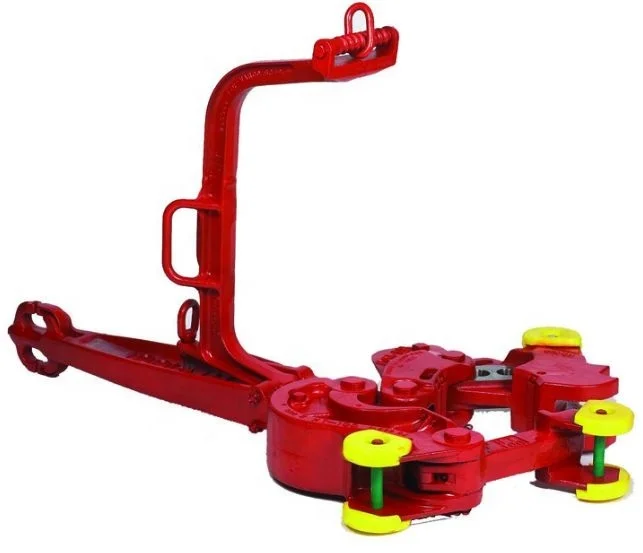

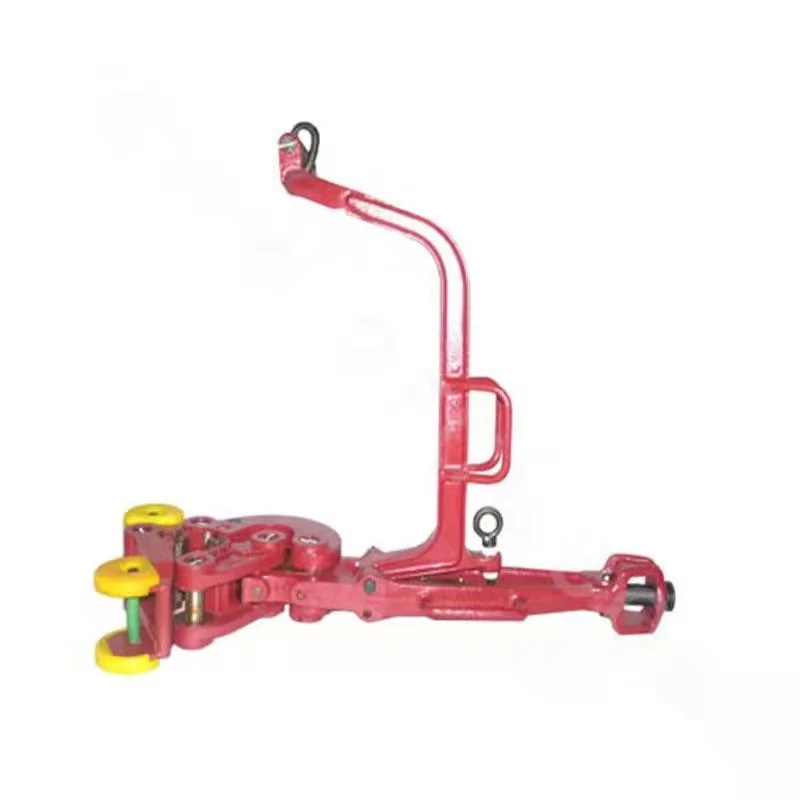

API drill pipe manual tongs / drill pipe handling equipment manual tongs type c
- Category: >>>
- Supplier: Yantai Sunrise Machinery Co. Ltd.
Share on (1600523300792):
Product Overview
Description
Product Paramenters
Manual tong HT35 From2 3/8in to 10 3/4in -48KN.M
Manual tongs are necessary tools applied to make up and break out pipes. Changing lug jaws and latch steps can adjust different handling sizes of the tongs. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
Manual Tong HT35 2 3/8” ~ 10 3/4” -48KN.M | ||||||||||||||
Model | Size range | Lug Jaw | Size Range | Rated cap | Equivalent model | |||||||||
No | Latch step | inch | KN.M | lbs.ft | ||||||||||
HT35 | 2.3/8-10.3/4 | #1 | 1 | 2.3/8-3.668 | 20 | 15,000 | Type C | |||||||
#2 | 1 | 2.7/8-4.1/4 | 20 | 15,000 | ||||||||||
#3 | 1 | 3.1/2-5.1/4 | 34 | 25,000 | ||||||||||
#4 | 1 | 5.1/2-7 | 48 | 35,000 | ||||||||||
#5 | 1 | 7-8.5/8 | 34 | 25,000 | ||||||||||
#6 | 1 | 9.5/8-10.3/4 | 43 | 32,000 | ||||||||||
MANUAL TONG SELECTION CHART
Model/Type | Pipe Range (inch) | Max Torque capacity | ||||
KN.M | Ft Lbs | |||||
Type DB | HT65 | 3.1/2-17 | 90 | 65,000 | ||
Type SB | HT55 | 3.1/2-13.3/8 | 75 | 55,000 | ||
Type B | - | 3.3/8-13.3/8 | 75 | 55,000 | ||
Type C | HT35 | 2.3/8-10.3/4 | 48 | 35,000 | ||
Type LF | HT14 | 2.3/8-7 | 22 | 14,000 | ||
Type SDD | HT100 | 4-17 | 136 | 100,000 | ||
Q2.3/8-10.3/4/35 | Workover tong | 2.3/8-10.3/4 | 35 | 25,000 | ||
Type AAX | - | 2.7/8-13.3/8 | 75 | 55,000 | ||
Type WWB | - | 2.3/8-10.3/4 | 48 | 35,000 | ||
Type WWC | - | 2.3/8-10.3/4 | 27 | 20,000 | ||
Q13.3/8-5.1/2/35 | Casing tong | 13.3/8-25.1/2 | 35 | 25,000 | ||
Q25.1/2-36/35 | Casing tong | 25.1/2-36 | 35 | 25,000 | ||
