Votol EM 100 100A 130A Boost 72v With EBS Flux Weakening Function Hall Motor Controller
- Category: >>>
- Supplier: Wuxi Yuma Power Technology Co. Ltd.
Share on (1600523305939):
Product Overview
Description
Votol EM-100 100A 130A Boost 72v With EBS Flux Weakening Function Hall Motor Controller
EM series controller is sine wave type controller, which is brushless DC controllerwith flux-weakening. Generally, it matches well with Almost Brushless DC PMSM Motors, if you want to match with new brand motor, some parameters should be tested by yourself.
Note: this price not including a USB cable for program.
Note: this price not including a USB cable for program.
Specification
Controller Type | Sine Wave Brushless DC Motor Controller | ||||||
Controller Design | Sine Wave, Programmable by PC, with regen function | ||||||
Controller Brand | Votol | ||||||
Model | EM100S | ||||||
Matched Motor | 2KW-3KW | ||||||
DC current | 100A, boost 130A | ||||||
Phase current | 330A | ||||||
Net weight | 1.65kgs | ||||||
Instaliing Size | 218mmx123mmx62mm | ||||||
Max. Power | 7200W | ||||||
Degree of protection | IP67 | ||||||
Flux Weakening Ratio | 100~150% | ||||||
Max. Efficiency | 89~93% | ||||||

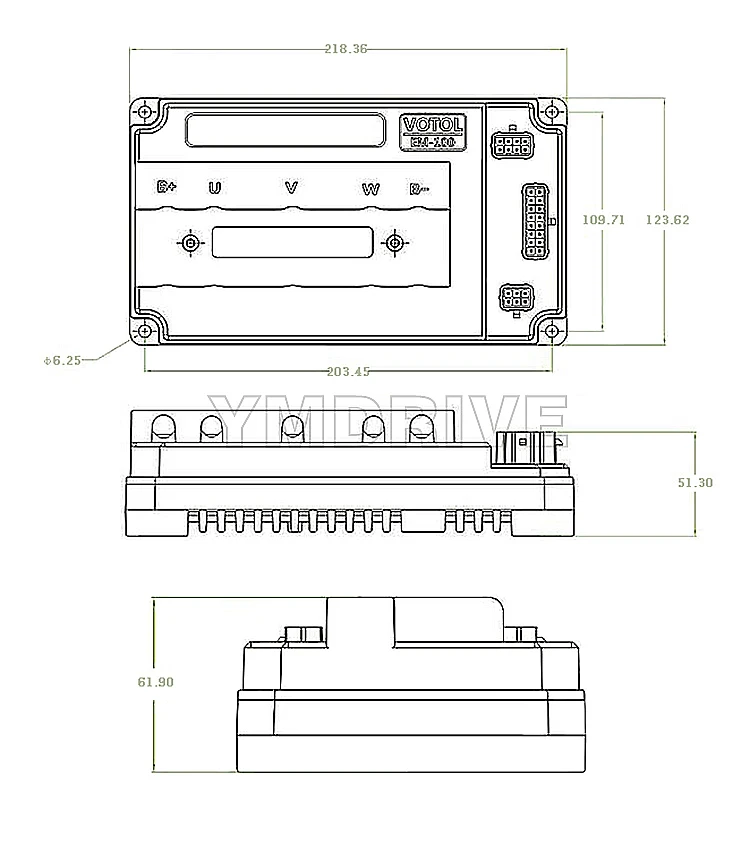

Drawing
Wiring Definition
Software Surface

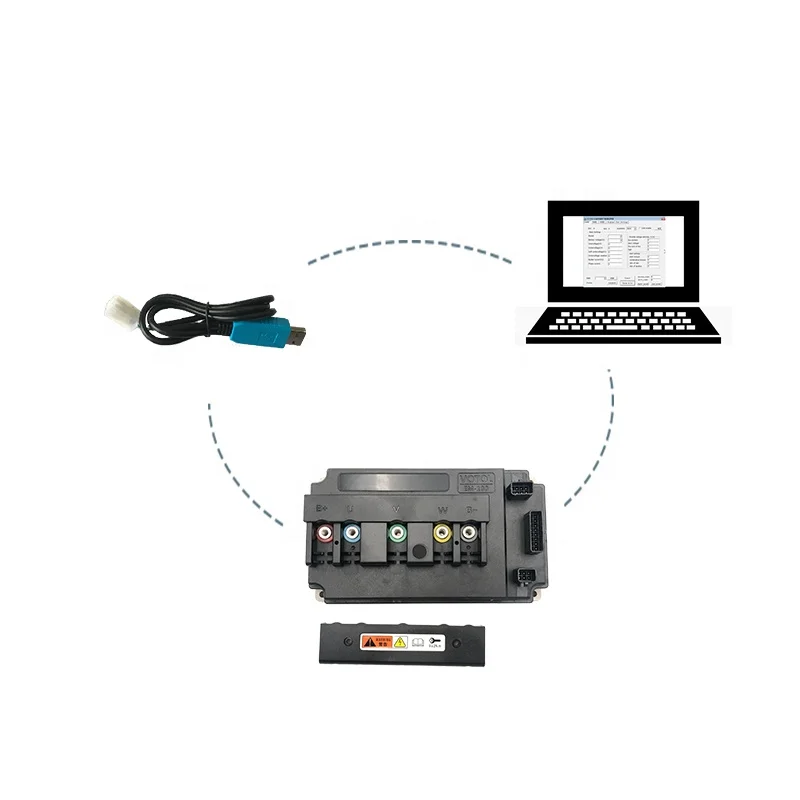

This controller can be programmable by PC, so that you can adjust lots controller parameters according to your motor specification.
Q1. Are you trader or manufacture?
A: We're motor manufacture and also have professional export department.
Q2. What is your warranty policy?
15months for motors, other parts with 1 year warranty time.
Q3. Can I get some samples?
Yes, we offer sample for quality check, but we do not supply free sample. Moreover, some samples support to customized.
Q4. What is the delivery time?
It usually takes 10-15 days, but the exact delivery time might be different for customized products. Once we confirmed the all details of order, we will put all source into it.
Q5. What is your terms of payment?
For big order T/T 30% as deposit, and 70% before delivery, for small order pay by T/T or paypal 100% in advance.
Q6. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001.
