new hybrid solar inverter 5.6kw
- Category: Power Supplies >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (1600523317636):
Product Overview
Description
Product Description
Specification
Model | HY3622VMIV | HY5632VMIV | ||
RATED POWER | 3600VA/3600W | 5600VA/5600W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC(For Personal Computers) ； 90-280VAC(For Home Appliances) | |||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation(Batt. Mode) | 230VAC±5% | |||
Surge Power | 7000VA | 11000VA | ||
Efficiency(Peak) | 90%-93% | |||
Transfer Time | 10ms(For Personal Computers) ；20ms(For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY | ||||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
SOLAR CHARGER & AC CHARGER | ||||
Max.PV Array Open Circut Voltage | 500VDC | 500VDC | ||
Max.PV Array Power | 4000W | 6000W | ||
MPP Range@operating Voltage | 120-450VDC | 120-450VDC | ||
Max.Solar Charge Current | 120A | 120A | ||
Max.AC Charge Current | 60A | 60A | ||
Max.Charge Current | 180A | 180A | ||
PHYSICAL | ||||
Dimension， Dx WxH(mm) | 115x300x400 | |||
Net Weight(kgs) | 10 | 11 | ||
Communication Interface | USB/RS 232/RS 485/Bluetooth/Dry-contact | |||
ENVIRONMENT | ||||
Humidty | 5%to 95%Relative Humidity(Non-condensing) | |||
Operating Temperature | -10°C to 50°C | |||
Storage Temperature | -15°C to 60°C | |||
Approximate Back-Up TimeTable： | ||||
Model | Backup Time@24Vdc100Ah(min) | |||
359 | 880 | |||
54 | 131 | |||
22 | 51 | |||
Model | Backup Time@48Vdc100Ah(min) | |||
490 | 1030 | |||
72 | 172 | |||
32 | 72 | |||
Packing & Delivery
Foam + Strong carton
Size:59*39*21cm
20GP: 570PCS
40GP:1150PCS
Size:59*39*21cm
20GP: 570PCS
40GP:1150PCS
Company Profile
Company info. & Advantages
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;

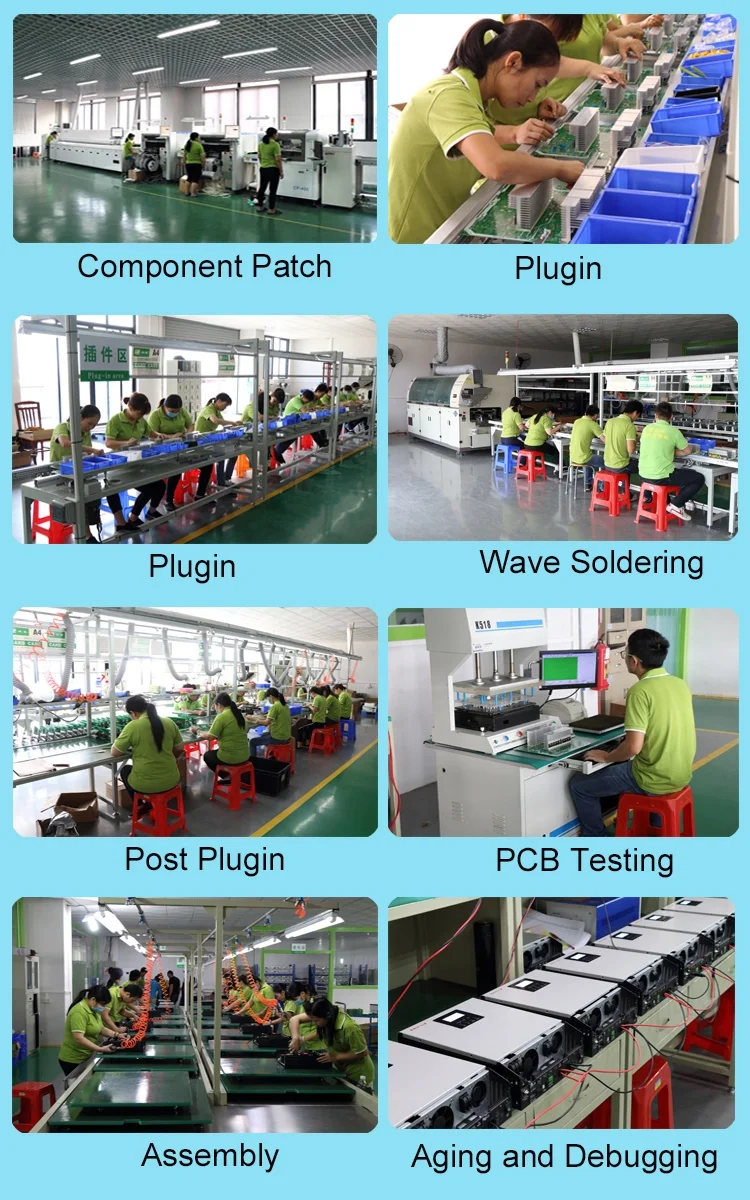

Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
OUYAD Group was established in 2000, main products are solar modules(power from 5Wp to 370Wp), wind turbine generator system(power from 200W to 50KW), inverters, UPS and batteries for wind/solar power systems.
Main Honor:
2010 Ouyad was accredited as "High-Tech Enterprise of Guangdong Province" by Guangdong Province government;
2014 Ouyad was accredited as "National High-Tech Enterprise" by China government;
2016 Ouyad was accredited as "Foshan City Smart Wind & Solar Hybrid Power System engineering technology research Center" by Foshan City government;
2017 Ouyad was accredited as "Guangdong Province Smart Wind & Solar Hybrid Power System engineering technology research Center" by Guangdong Province government;
Product Quality Control
Ouyad Group as an export-oriented company, product quality standards are in full accordance with international standards like IS09001, GB/T28001-2011,IDTOHSHS18001:2007. Products all international certified like CE, CQC, VDE, LVD, SONCAP, Inmetro etc.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Warranty term:
1) The warranty period is 12 month from the date of shipment,
2) CE certified.100% QC before shipment.
3)Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable)
5)We will provide free pcb board during the warranty, but buyer need to pay for the shipment fee.Contact us directly for warranty issues,Buyer is responsible for warranty return shipping.
6)We sure all the products are good quality, in case it has some quality problem in warranty period, you need to send me the products pictures and details problem information Video is of great help and then our engineer team will analyze the
information.If any quality problems appear in the warranty period, we will responsible for it, repaired or replace.
We are based in Guangdong, China, start from 2007,sell to Africa(32.00%),Mid East(30.00%),Domestic Market(15.00%),Southeast Asia(15.00%),North America(2.00%),Western Europe(2.00%),Eastern Europe(2.00%),Northern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Inverter,Solar,Panel,Windturbine,Lithium Ion Battery
4. why should you buy from us not from other suppliers?
Company info. & Advantages
OUYAD Group was established in 2000, Ouyad Group is a scientific and technological enterprise engaged in the research, development and production of solar, wind and ternary lithium battery energy storage systems,solar inverter.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Warranty term:
1) The warranty period is 12 month from the date of shipment,
2) CE certified.100% QC before shipment.
3)Warranty will cover only items that are deemed to fail under normal usage. Accidental damage due to environmental causes or incorrect usage and installation will not be covered in warranty (but still serviceable)
5)We will provide free pcb board during the warranty, but buyer need to pay for the shipment fee.Contact us directly for warranty issues,Buyer is responsible for warranty return shipping.
6)We sure all the products are good quality, in case it has some quality problem in warranty period, you need to send me the products pictures and details problem information Video is of great help and then our engineer team will analyze the
information.If any quality problems appear in the warranty period, we will responsible for it, repaired or replace.
