Application:

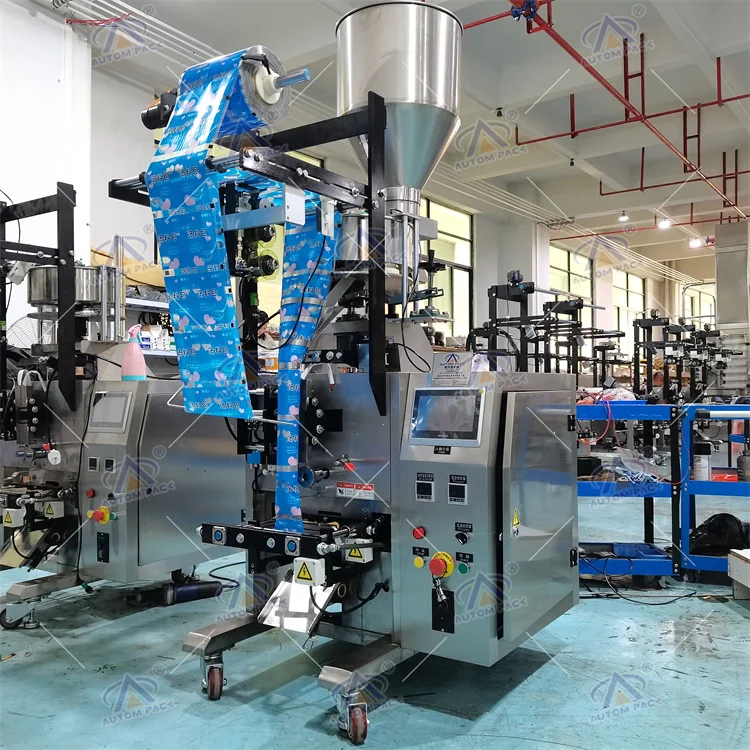

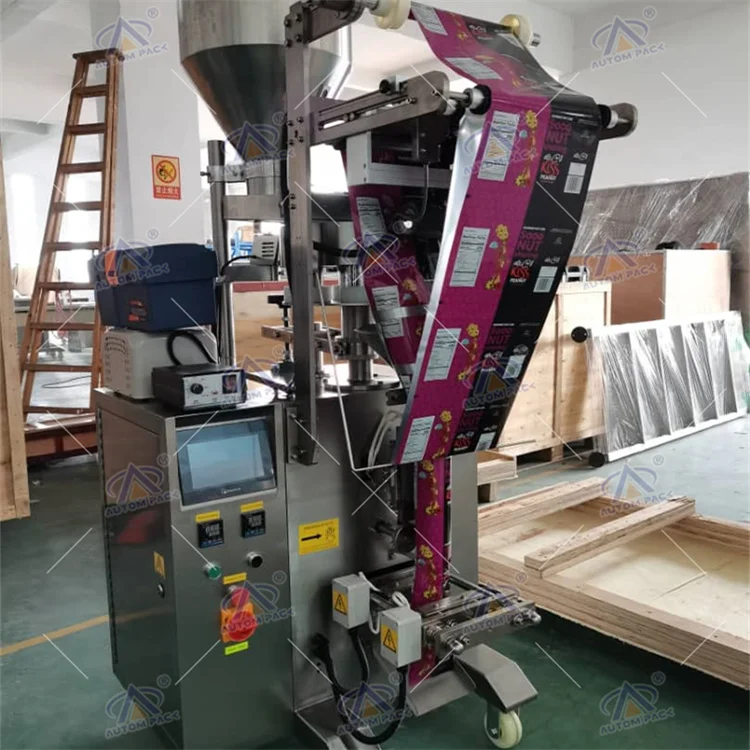

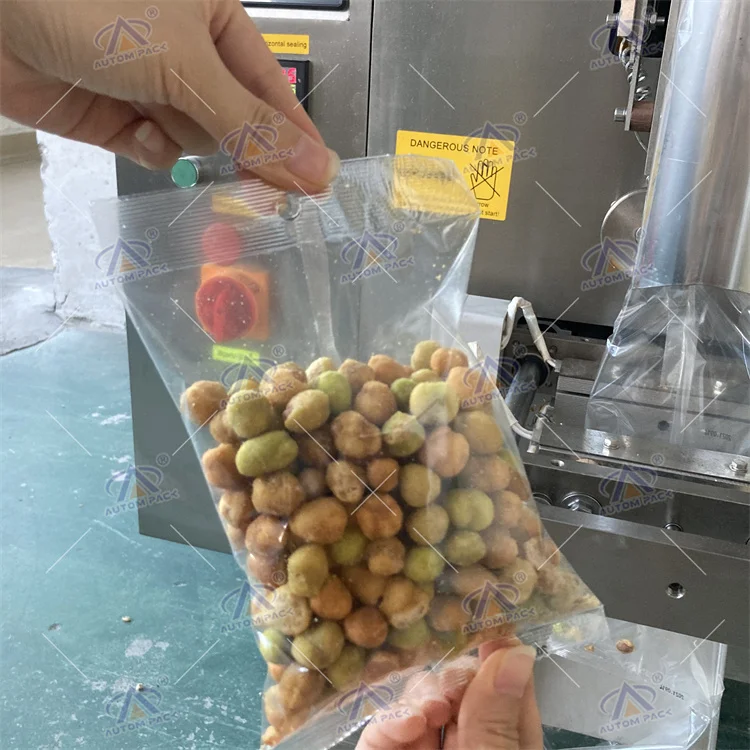

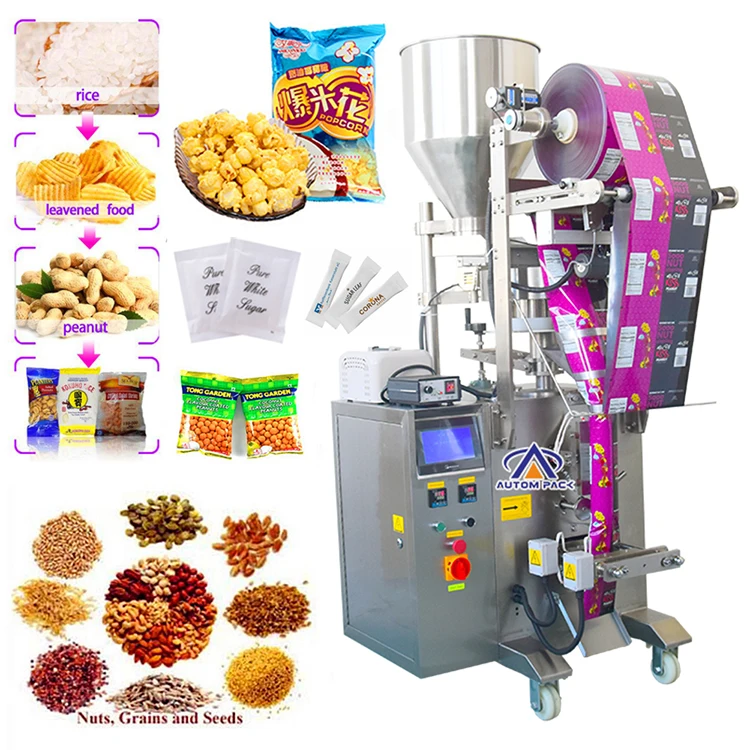

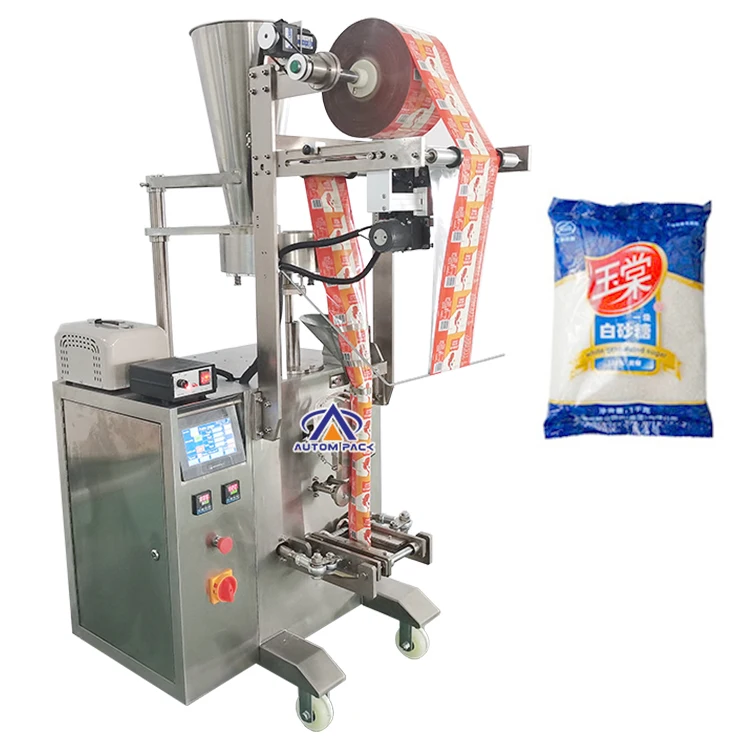

This kind of packing machine is suitable for packing powders or granule into small bags, ATM-320C model max. bag size L200xW150mm, ATM-380C model max. bag size: L350xW180mm, which can automatically complete filling, sealing, date printing, cutting, counting process, and it is used to pack small pieces of food, puffed food, tea, herb, coffee, soya, beans, roasted nuts, beans, cereal, grain, sugar, salt, small hardware, grain food etc.

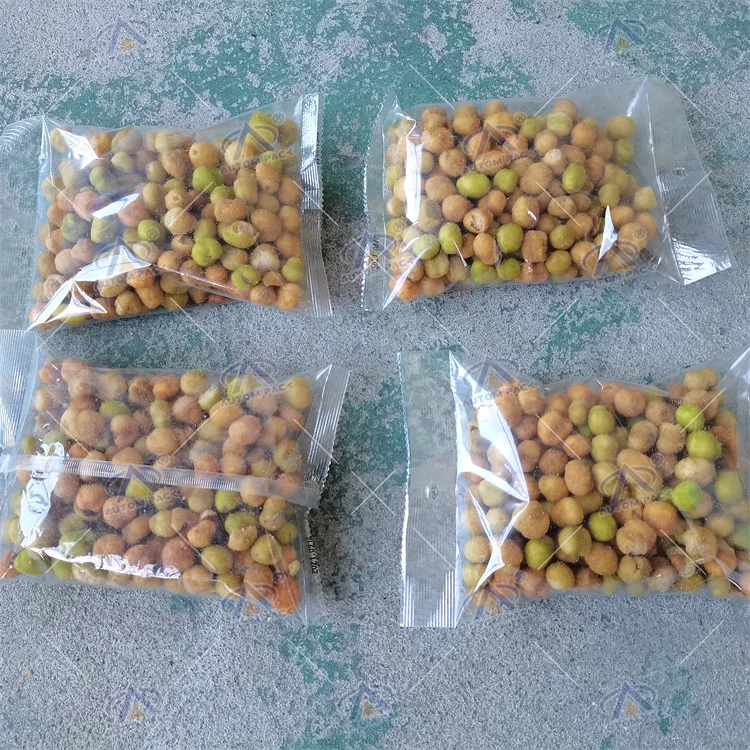

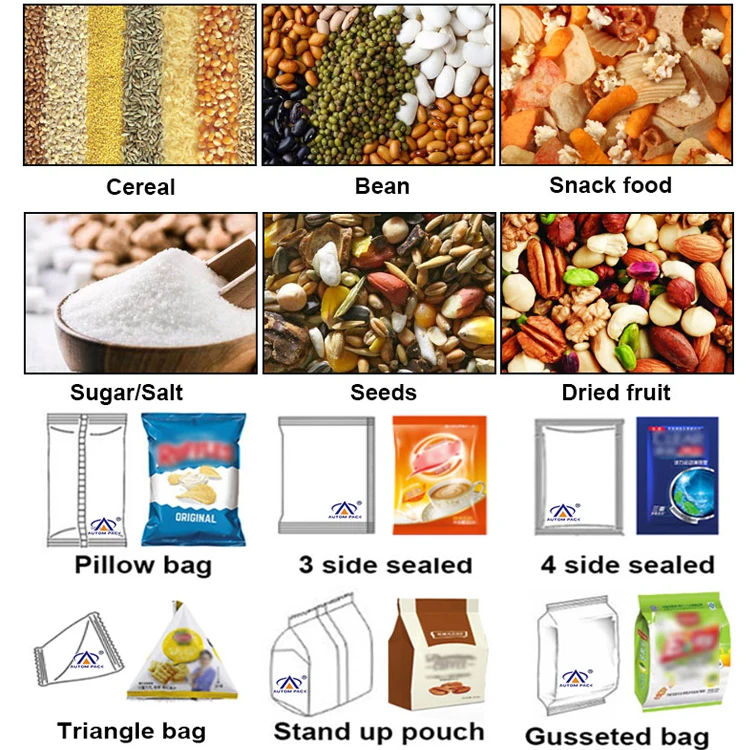

Bag types: back-sealing bag, 3 sides seal bag, 4 sides seal bag, stick bag, linking bags.

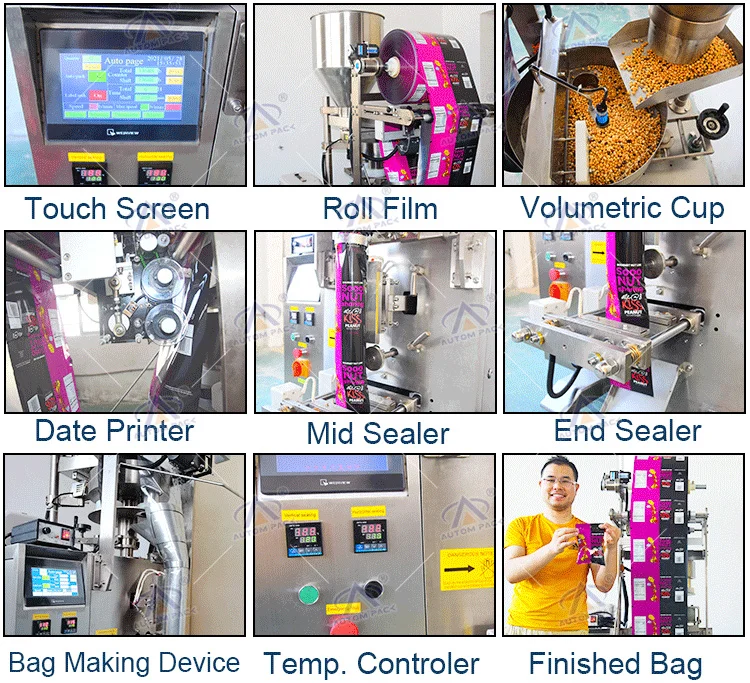

Features:

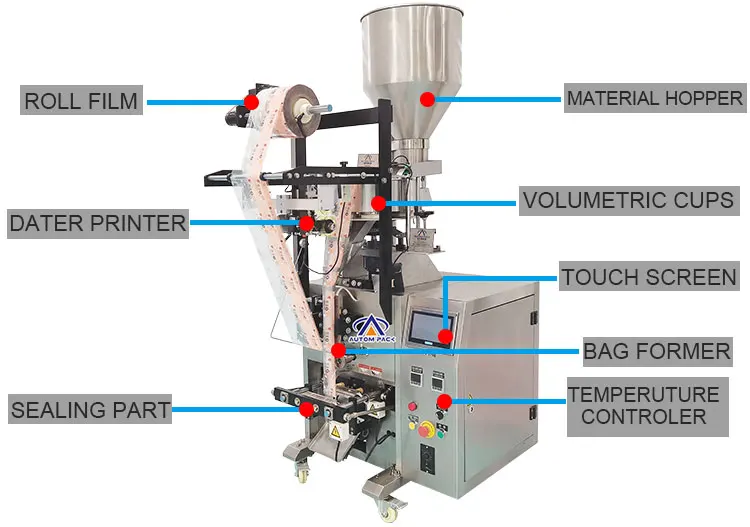

1.Products dosing, Filling, Laminate heat sealable pouch making and sealing.
2.Stainless steel structure and surface.

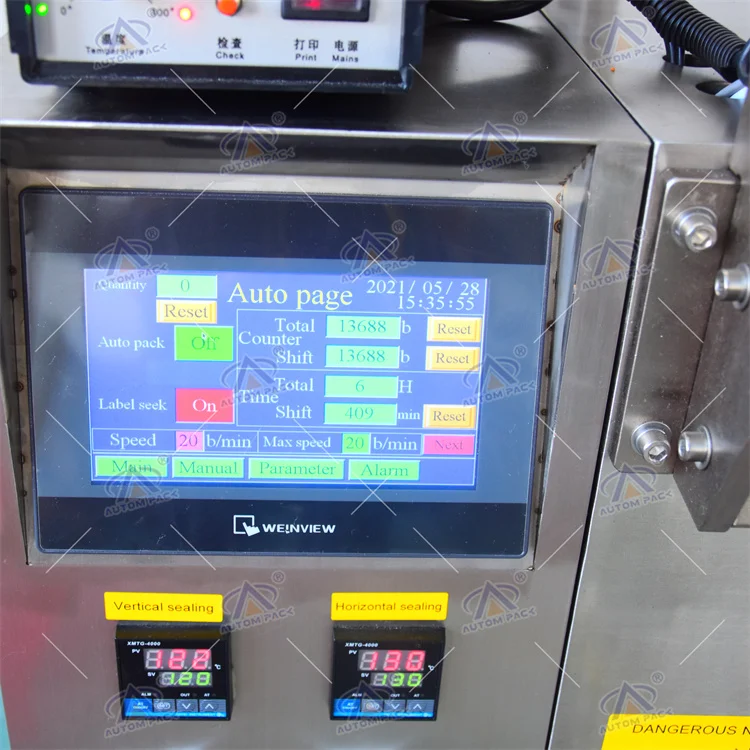

3.Weighing and Packaging PLC & HMI Control Integrated, More stable operation.
4.Easy to understand for parameter setting.
5.Simple changing of pouch former, adapting different pouch size requirement.
6.Intelligent temperature controlling configuration, ensure the sealing beautiful and smooth.
7.Configure with packaging film pre-pulling device, to enable stable pouch making.
8.No film no filling, and easy to change the packaging film.
9. Color mark sensitive tracking, to read the color mark on the film automatically to make the length.




| Item | ATM-320 | ATM-380 | ATM-320S |
| Film width | 120-320mm | 180-380mm | 80-220mm |
| Bag length | 50-200mm | 60-280mm | 50-200mm |
| Bag width | 30-150mm | 60-180mm | 20-150mm |
| Film roll diameter | Max. 300mm | Max. 320mm | Max. 320mm |
| Measuring range | 5-200ml | 5-500ml | 5-200ml |
| Packaging rate | 5-50 bag/min | 5-50 bag/min | 5-50 bag/min |
| Packing film thickness | 0.04-0.10mm | 0.05-0.12mm | |
| Working voltage | 220v 50/60hz 2.2kw | 220v 50/60hz 2.5kw | 220v 50/60hz 2.0kw |
| Packing material applications | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE | ||
| Working voltage | 220v 50/60hz 2.2kw | 220v 50/60hz 2.5kw | 220v 50/60hz 2.0kw |
| Dimensions | L970mm*W680mm*H1950mm | L1100mm*W800mm*H2150mm | L970mm*W825mm*H2020mm |
| Gross weight(kg) | about 300kg | about 450kg | about 300kg |



Packing details:
1) Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
Guangzhou/Shenzhen/Foshan or we will deal with you according to your requirement.
If any special requirements, we will pack it as requested.



Foshan Autom Packaging Machinery Co., Ltd. (hereinafter to be referred as "AUTOMPACK") is professional in designing, producing and sales of food packing machines. One of the deeply cultivated professionals in packaging industry. We have strong R &D team, perfect production technology and strict machine inspection standard system. Our main products are doypack bag packing machine, horizontal pillow packing machines, granule packing machine, powder packing machine, liquid packing machine, filling machine, labeling machine, cartoning machine, tea bag packing machine, automatic feeding and packing line. All of such products meets GMP standard and have CE certificates. We have our own brand AUTOMPACK, but OEM and ODM is always welcomed.

1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
2:How can I trust you for the first time business?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
6:Are you manufacturer or trading company?
We are manufacturer, we are selling factory direct price of our packing machines. Our factory is located in Nanhai District, Foshan city, Guangdong Province, China.
