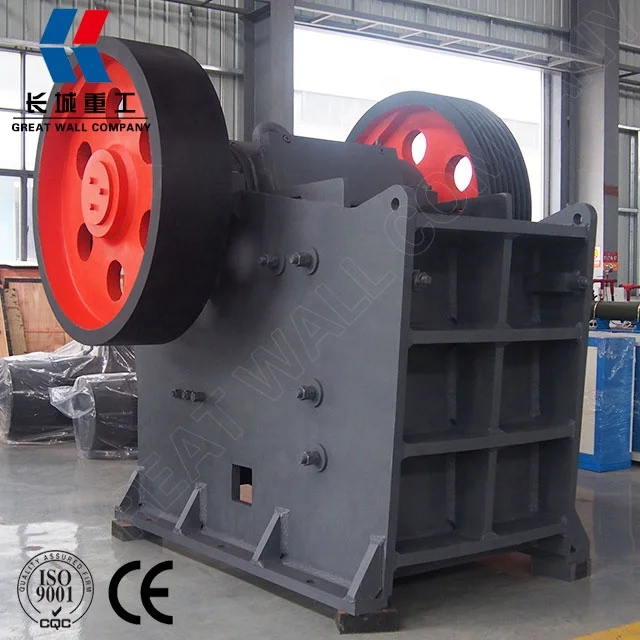

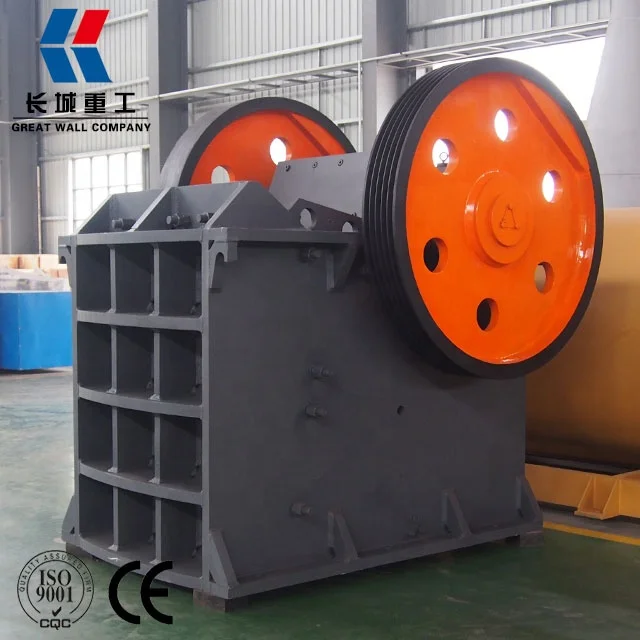

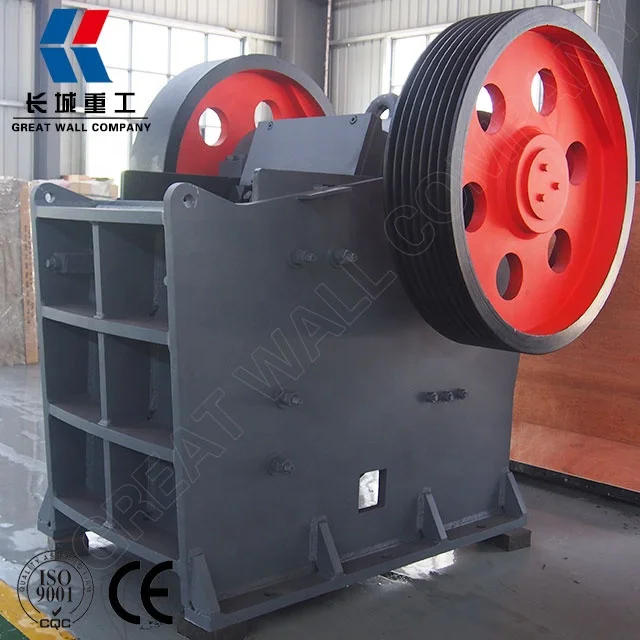

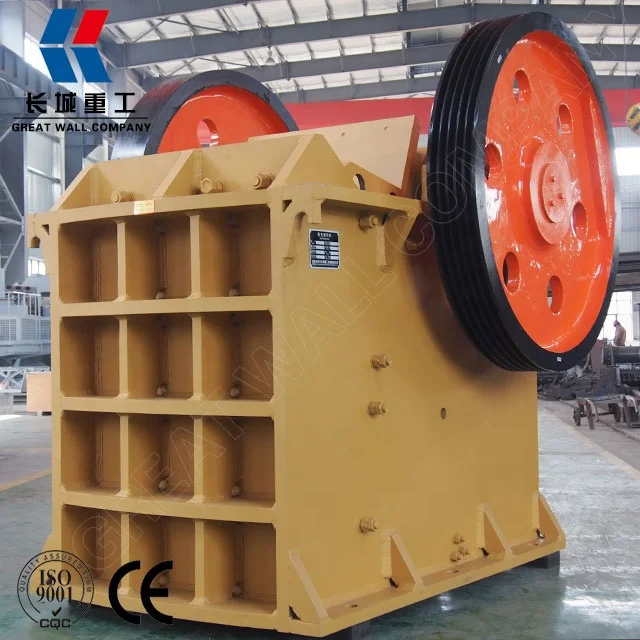

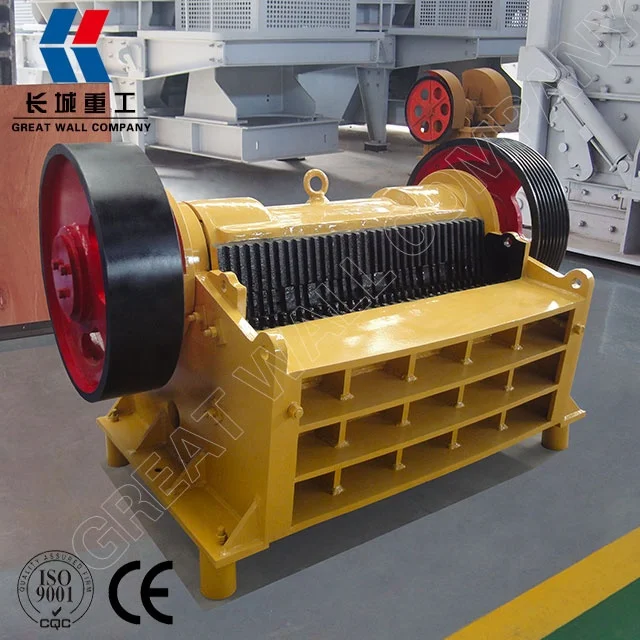

PE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price
- Category: >>>
- Supplier: Zhengzhou Great Wall Heavy Industry Machinery Co. Ltd
Share on (1600523342323):
Product Overview
Description
PE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price
Product Overview
"Great Wall Make Great Machine"
PE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price
Product Description
| Usage and Application PE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price |
The Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. It is suitable for primary and secondary crushing of all kinds of minerals and rocks with compressive strength less than 320 MPa.
| Working PrinciplePE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price |
The belt and belt pulley are driven by a motor, and the movable jaw moves up and down via eccentric shaft. The angle between fixed jaw and movable jaw becomes smaller when the moving jaw runs down, then the materials are crushed into pieces. It becomes bigger when the movable jaw runs up. The movable jaw plate leaves the fixed jaw plate under the action of tension rod and spring, then the end products come out from the crushing cavity.
| FeaturesPE250x400 Stone Jaw Crusher for Granite Basalt River Stone With Good Price |
1. Simple structure, convenient maintenance;
2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.
Technical Parameters
| Model | Feed Opening Size (inch) | Feed Opening Size (mm) | Max. Feeding Size (mm) | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) | Overall Dimension (mm) |
| PE250×400 | 10x16 | 250×400 | 200 | 20-50 | 5-20 | 15 | 2.9 | 1430×1310×1340 |
| PE400×600 | 16x24 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 6.8 | 1700×1732×1653 |
| PE500×750 | 20x30 | 500×750 | 425 | 50-100 | 40-100 | 45-55 | 11.2 | 2035×1921×2000 |
| PE600×900 | 24x36 | 600×900 | 500 | 65-160 | 60-140 | 55-75 | 16.5 | 2290×2206×2370 |
| PE750×1060 | 30x42 | 750×1060 | 630 | 80-150 | 90-230 | 90-110 | 29 | 2655×2302×3110 |
Packaging & Shipping
Packaging Detail:
1. Packing Requirement: Standard Containers;
2. Inner Packing: Product wrapped by PP-Bubble;
3. Outer Packing: Load container, Spare Parts in wooden case;
Transportation:
1. These machines are processed to be rustproof and moisture proof before delivery.
2. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
3. All items are in bulk or containers, details will be negotiated by both parts afterwards.
Terms of Trade:
1.Payment: 30% advance payment by T/T, 70% balance should be paid off before loading, Western Union, L/C is available.
2. FOB and EXW all are available.
3. Production lead time: 15-40 days.
