dc dc converters 36v 48v to 12v step down buck converter 1A 2A 3A 5A 10A 15A 20A 30A 40A 50A 60A voltage reducer

| Model No. | XW-48-12-Series | |
| Input | Input Voltage | DC 48V |
| Input Voltage Range | DC 30-60V | |
| Output | Output Voltage | DC 12V |
| Output Current | 1-60A Optional | |
| Output Power | 12-960W Optional | |
| Conversion Efficiency | > 93% | |
| Ripple (Full load test) | <200mV | |
| No-load current | 70mA | |
| Working Temperature | -40~85℃ | |
| Waterproof Rating | IP68 | |
| Protection | Over-current /Over-voltage/Over-heat /Short-circuit protection | |

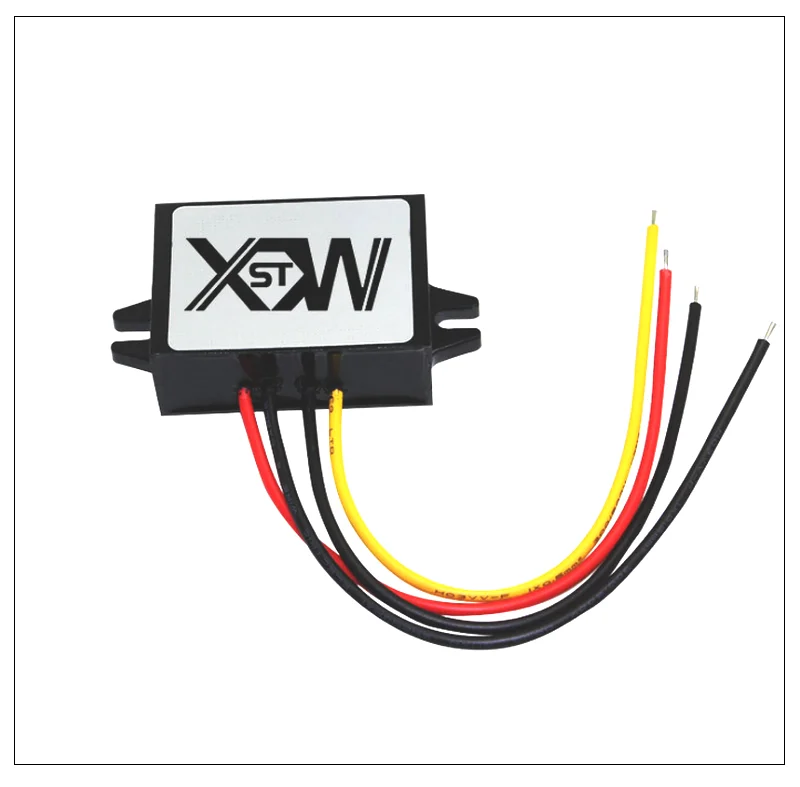

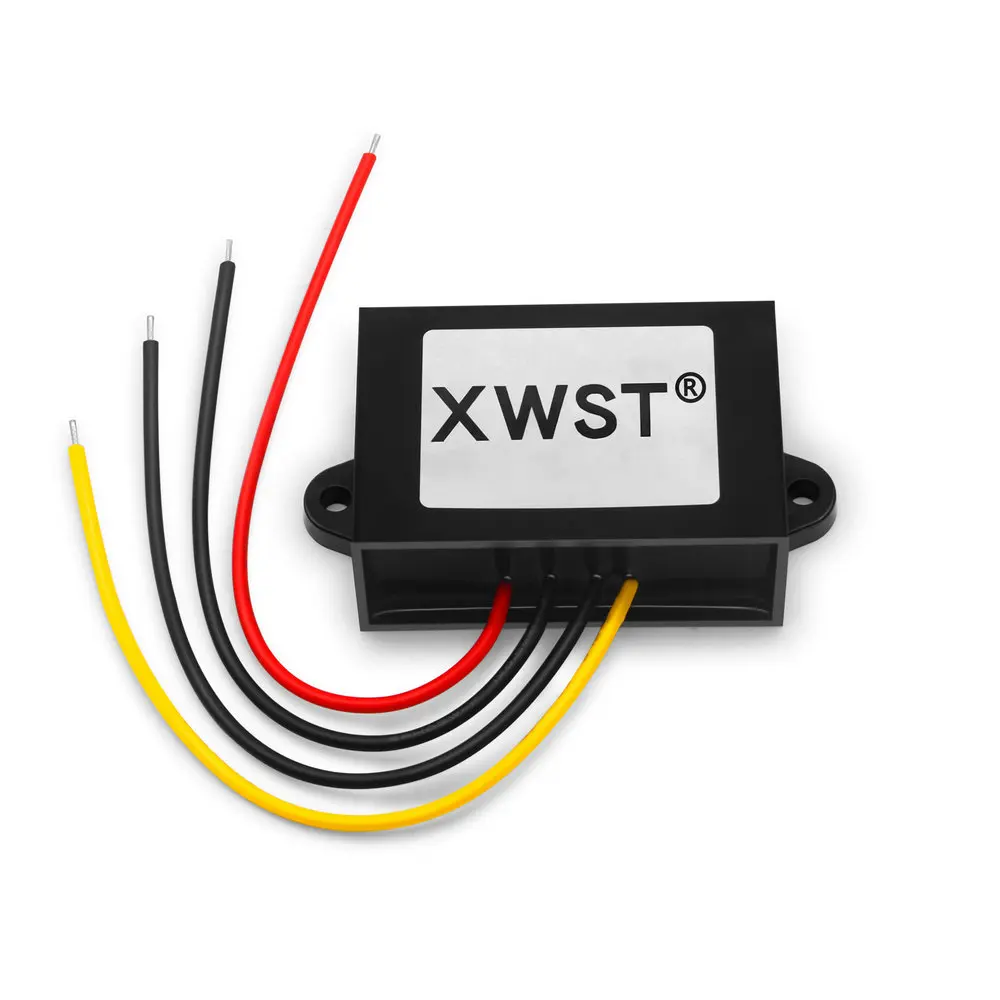

| 1-2A Output | Plastic 46*32*18MM, 53g/pc | |
| 3-5A Output | Plastic 58*40.5*22MM, 97g/pc | |
| 6-25A Output | Aluminum 74*74*32MM, 260g/pc | |
| 30-33A Output | Aluminum 100*80*39MM, 550g/pc | |
| 50-60A Output | Aluminum 150*127*63MM 1.6KG/pc | |
| Packing | Carton 30*25*20cm, GW:16KG | |
Attention:
Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged
To assure this converter has the sufficient voltage and power pls make sure the voltage and power input is enough.










Huizhou Xinwei Technology, former as Shenzhen Xinwei Technology, is a professional leading manufacturer engaged in power conversion solutions more than 8 years. Our mian products include power supply DC-DC boost converters, DC-DC buck converters, Auto Buck and Boost DC-DC Converter ,Isolated DC-DC Converter and others . We have 600 square factory with 3 product line by advanced equipments and developing teams. XWST is international trademark. We look forward to cooperate with you in near future.
