Fiber PoE Media Converter 10/100Base Tx to 100Base Fx, Single Mode, 20 80Km, Duplex SC 100M PoE Ethernet Media Converter
- Category: >>>
- Supplier: Shenzhen Silink Technology Co. Ltd.
Share on (1600523384468):
Product Overview
Description
Products Description
Fiber PoE Media Converter 10/100Base-Tx to 100Base-Fx, Single Mode, 20-80Km, Duplex SC 100M PoE Ethernet Media Converter
What This Product Does
The PoE+ Gigabit/100M Ethernet Media Converter extends communication distance with high performance of data transmission via single mode fiber optic cable. It is designed specially to satisfy the growing demand for higher power required network equipment such as network cameras, VOIP telephones, wireless LAN access points and other network devices that need higher power. The PoE+ Gigabit/100M Ethernet Media Converter is an ideal solution to deliver data and power network devices directly via the RJ45 interface without the need of installing extra power outlets and electrical cabling.
Feature
◈ Complies with IEEE802.3af/at.
◈ Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
◈ LEDs Indicate Ethernet and Fiber Link Status at a Glance.
◈ Plug-and-play, Used as a Standalone Unit on a Desktop or Shelf.
◈ Extends fiber distance up to 2-80km.
◈ PoE Powered.
Hot-swappable
Installation requires no manual configuration, simple operation
Heat Dissipation
Porous heat dissipation mode, efficient heat dissipation
Auto-MDI/MDIX
Automatically detects cable connection type and configures the connection appropriately.

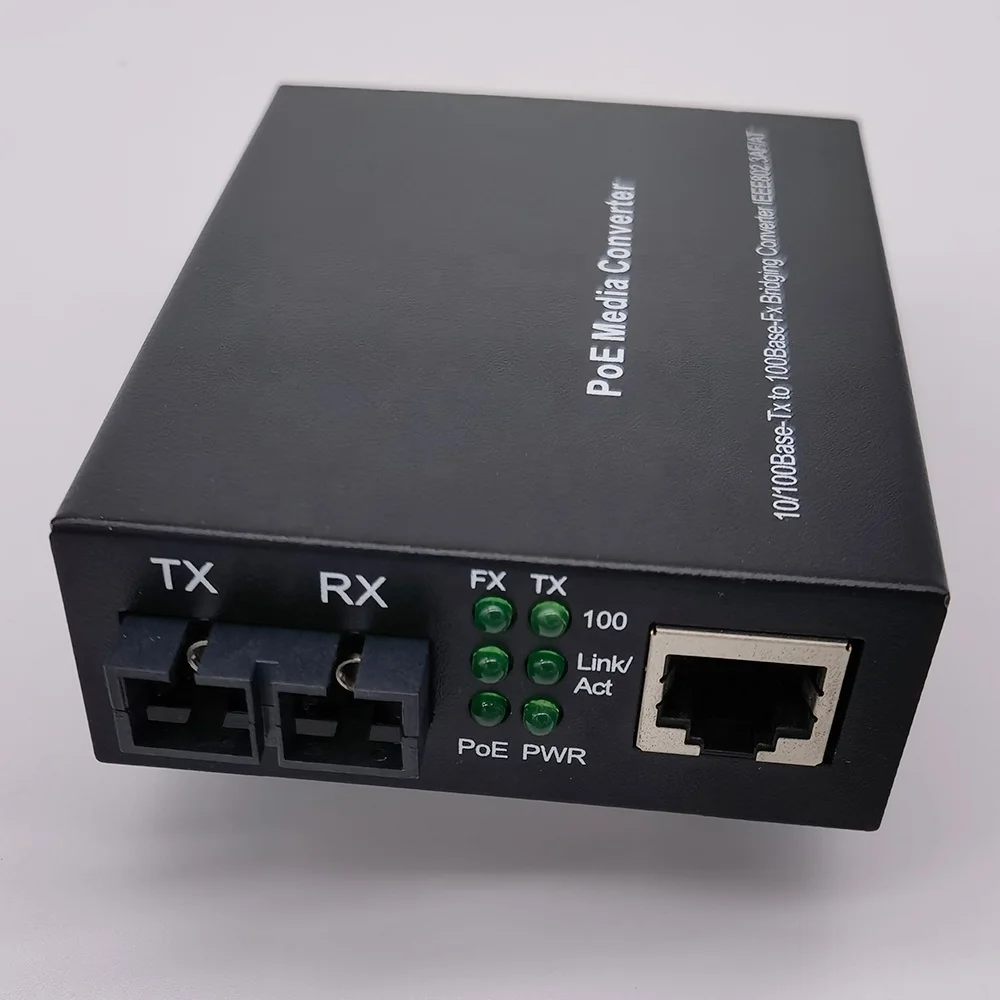

LED Network Status
LED indicators for easy network diagnose and quick installation.
Switch Power Pupply
Flame retardant housing, overcurrent and overvoltage protection, short circuit protection.
PoE Powered
Provide data and power via copper cabling to powered devices.
PoE Standard | IEEE 802.3af/at |
Interface | 1× 100 Mbps Duplex SC Fiber Port 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
wavelength | 1310nm/1550nm |
Distance | 2/20/40/60/80/100/120km |
Cable Type | Fiber: Singlemode 9/125µm Copper: Cat5/5e/6 |
Power Supply | 5 V/1.0 A |
Operating Temperature | 0˚C to 50˚C |

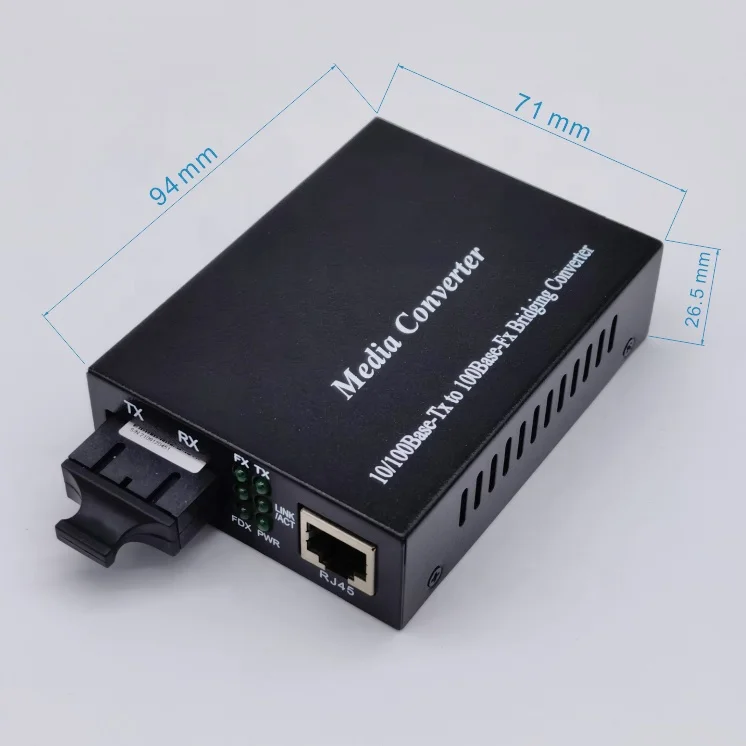

Dimensions | 94*71*26.5 mm |
Packing & Delivery
Delivery
◈ International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
◈ You also can choose your own shipping forwarder, please notify us in advance.
◈ Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
We can provide OEM services, and can design packaging, Logo, and labels according to customer requirements.
Warranty:
2 year warranty
2 year warranty
Our Advantages:
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
1. Advanced production and testing equipment.
2. Professional manufacturer, 100% tested.
3. Full compliance with ISO 9001 quality management system.
4. Our company has experienced professional R&D and Sales team.
5. Provide reliable solutions and satisfactory services.
6. Warmly services with careful attentions.
Ordering Information
100M Single Fiber | ||
MC-M111S-Axx | 10/100Base-Tx to 100Base-Fx, WDM 20-80Km | |
MC-M111S-Bxx | 10/100Base-Tx to 100Base-Fx, WDM 20-80Km | |
MC-M121S-A20 | 2 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M121S-B20 | 2 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
MC-M141S-A20 | 4 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M141S-B20 | 4 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
MC-M181S-A20 | 8 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1310 | |
MC-M181S-B20 | 8 x 10/100Base-Tx to 100Base-Fx ,WDM 20Km ,Tx1550 | |
100M Dual Fiber | 40G QSFP+ Passive Direct Attach Cable, x=1~7m | |
MC-M112M-2 | 10/100Base-Tx to 100Base-Fx, Multi Mode, 2Km | |
MC-M112S-xx | 10/100Base-Tx to 100Base-Fx, Single Mode, 20-120Km | |
MC-M122M-2 | 2 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M122S-20 | 2 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
MC-M142M-2 | 4 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M142S-20 | 4 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
MC-M182M-2 | 8 x 10/100Base-Tx to 100Base-Fx ,Multi Mode ,2Km | |
MC-M182S-20 | 8 x 10/100Base-Tx to 100Base-Fx ,Single Mode ,20Km | |
100M SFP | ||
MC-M112-SFP | 10/100Base-Tx to 100Base-Fx, FE SFP Port | |
Gigabi (1000M) Single Fiber | 25G SFP28 Active Optical Cable, x=0.5~100m | |
MC-G111S-Axx | 10/100/1000Base-Tx to 1000Base-Fx, WDM 20-80Km | |
MC-G111S-Bxx | 10/100/1000Base-Tx to 1000Base-Fx, WDM 20-80Km | |
Gigabi (1000M) Dual Fiber | 100G QSFP28 Active Optical Cable, x=1~100m | |
MC-G112M-05 | 10/100/1000Base-Tx to 1000Base-Fx, Multi Mode, 550m | |
MC-G112M-2 | 10/100/1000Base-Tx to 1000Base-Fx, Multi Mode, 2Km | |
MC-G112S-xx | 10/100/1000Base-Tx to 1000Base-Fx, Single Mode, 20-80Km | |
Gigabi (1000M) SFP | ||
MC-G112-SFP | 10/100/1000Base-Tx to 1000Base-Fx, GE SFP Port | |
MC-G242-SFP | 4 x 10/100/1000Base-Tx to 2 x 1000Base-Fx ,GE SFPPorts | |
MC-G282-SFP | 8 x 10/100/1000Base-Tx to 2 x 1000Base-Fx ,GE SFPPorts | |
Our Company
Shenzhen Silink Technology Co., Ltd. is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules: SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Fiber optical communications equipments: Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry.
FAQ
1, Can I have a sample order? What is your MOQ?
Answer: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
2, Are your transceivers compatible?
Answer: Yes,our OEM compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
3, How does your company do regarding quality control?
Answer: We have professional testing equipment and QC team. Every unit will be double tested with perfect performance before shipping.
4, What is your warranty time ?
Answer: We promise 3 years warranty for all products shipped from us.
5, Could I use our own logo, label and package?
Answer: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
6, What is the lead time?
Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
7, What is your payment terms?
Answer: T/T, Western union, Paypal.
8, What is the shipping terms?
Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
