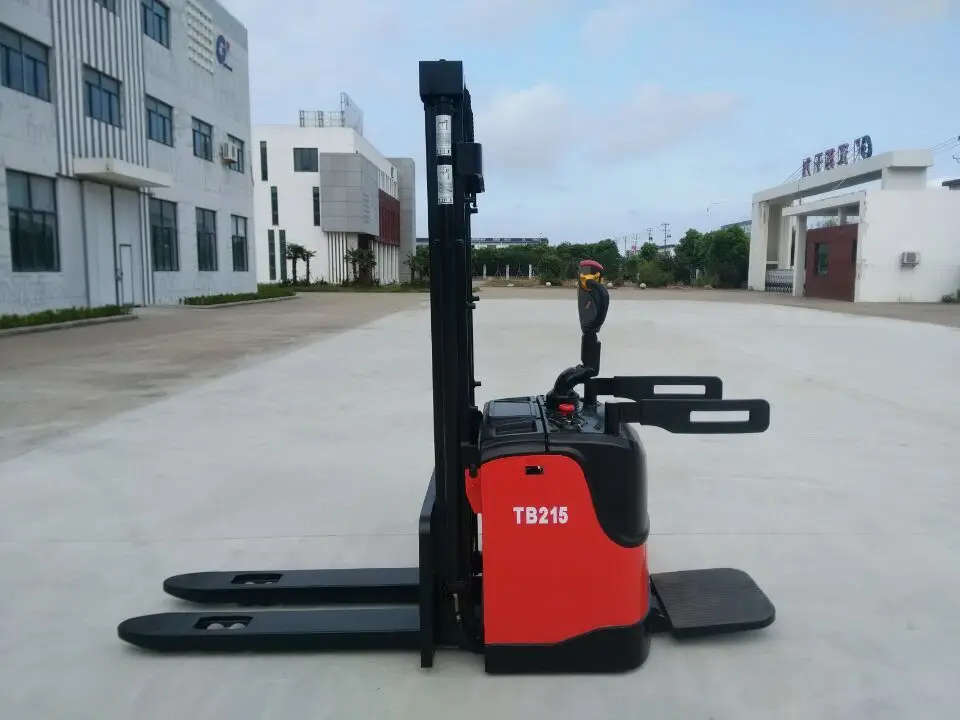

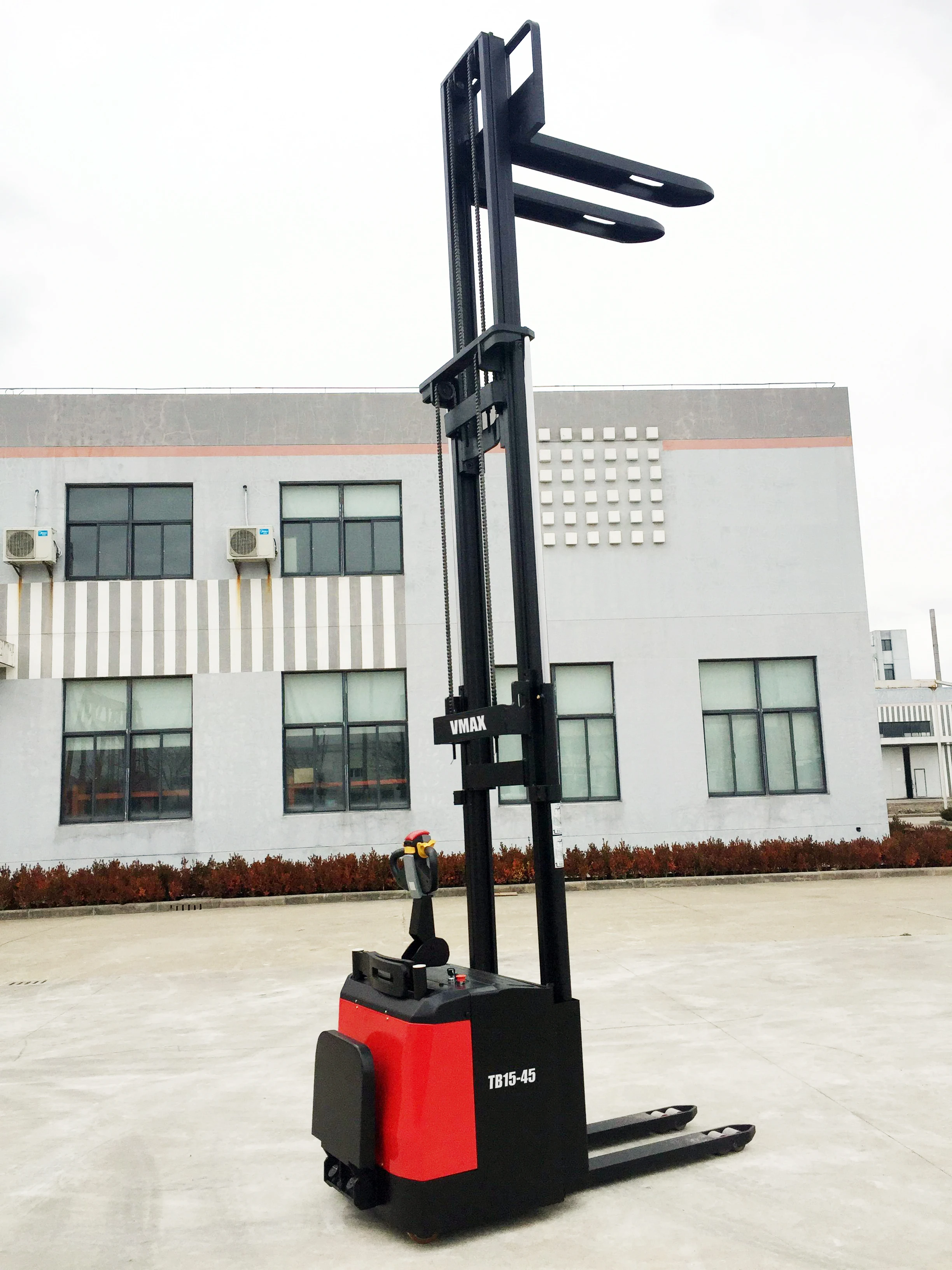

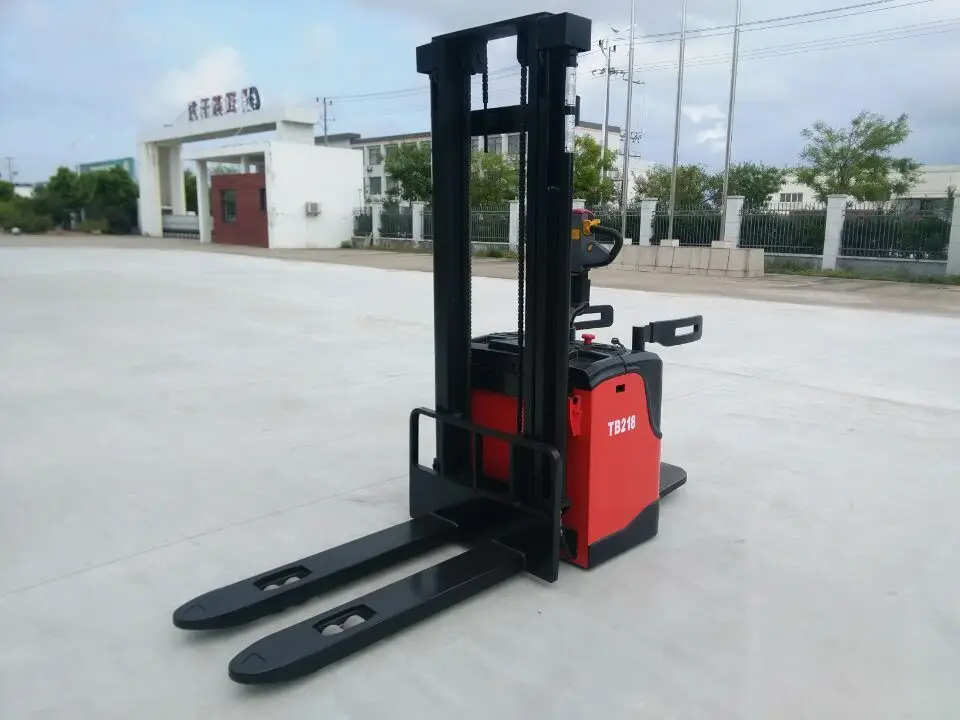

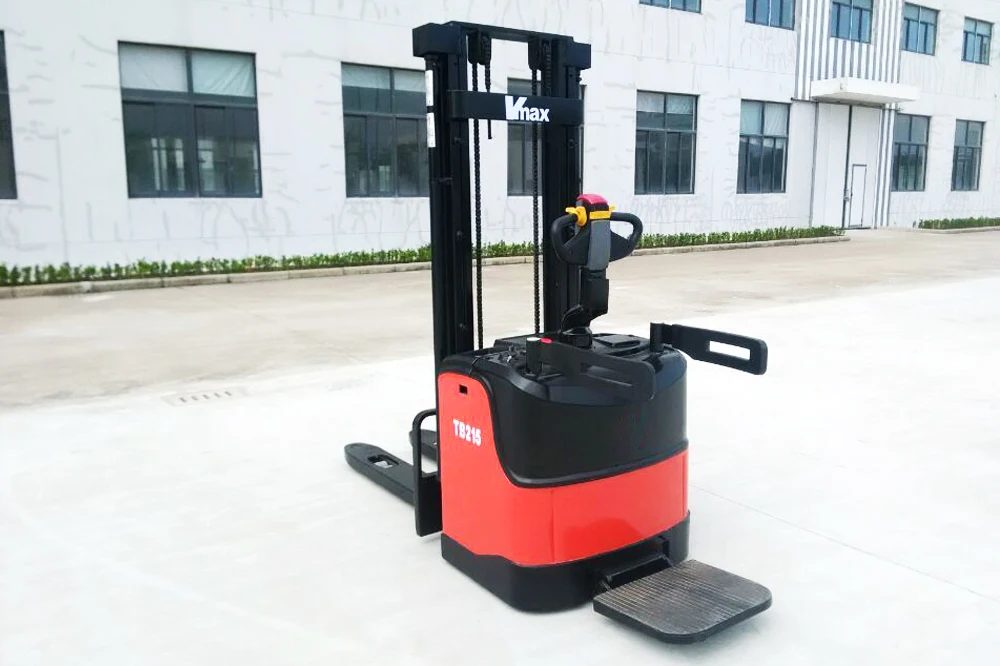

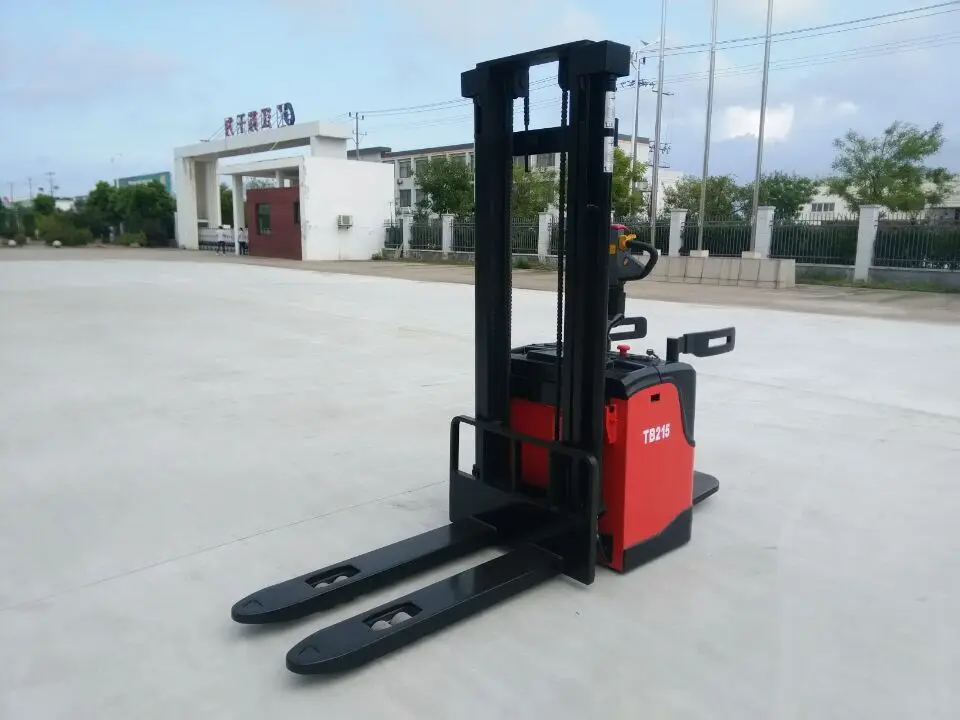

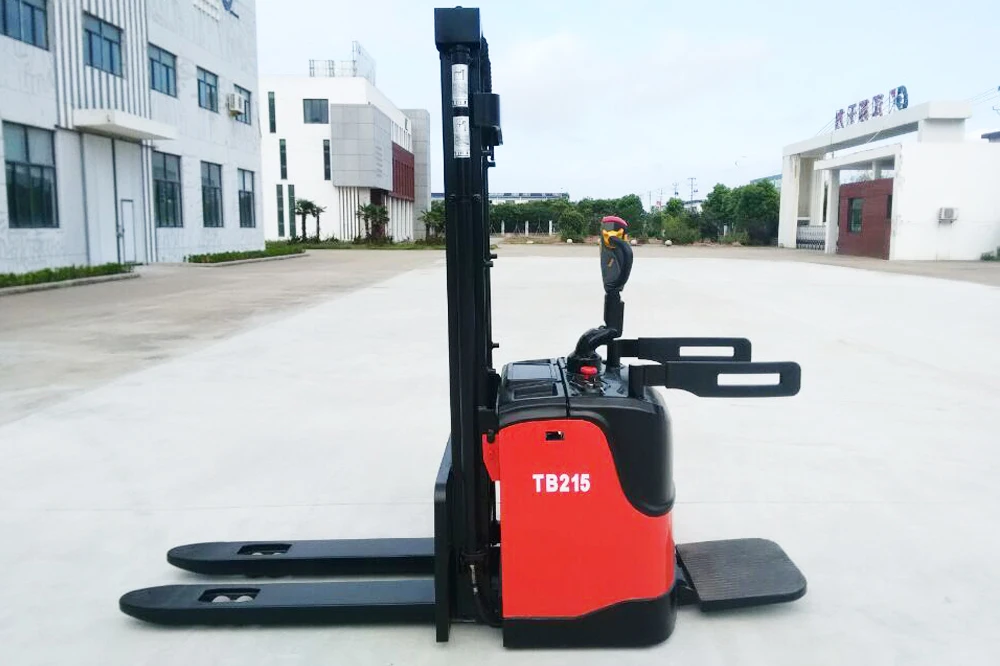

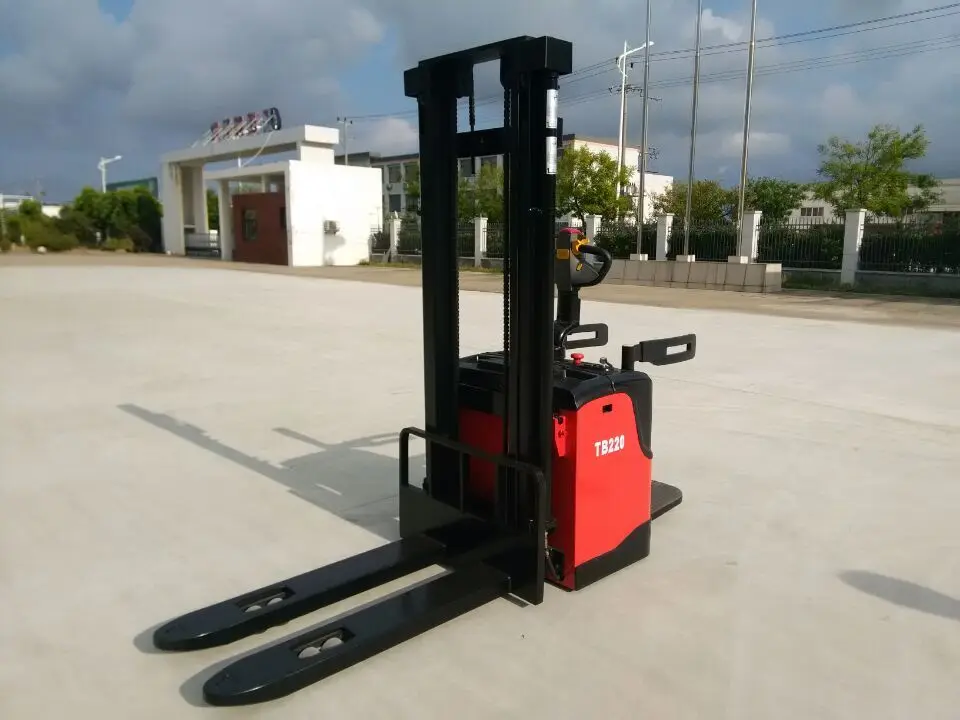

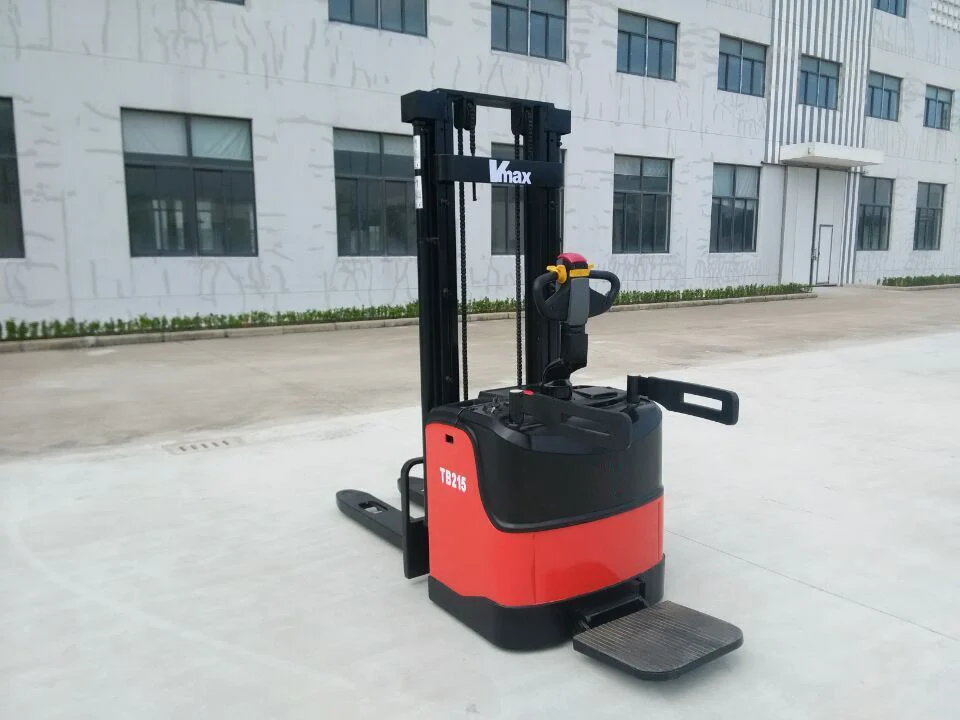

Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast
Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast

Lifting Stacker 0.5 Ton 1 Ton 500 Kg 1000 Kg Semi Full Electric Self Loading Forklift With Single Mast

Share on (1600523401339):


Price:$3,100.00 - $3,300.00

Quantity:


Product Overview

Description



Product Description






































































































































































































































































1.8-2.0T Electric Stacker (AC/DC)1.8-2.0T
ItemFeature
1Model TB218TB220
2 Type  Narrow legs Narrow legs
3 Mast type  2-Stage STD 2-Stage STD
4 Load capacitykg18002000
5 Load centermm600600
6 Wheel basemm13251325
7 Operating type  Walkle/Stand on Walkle/Stand on
8 Wheels
9Wheel type PUPU
10 Wheel quantity driving wheel/Balance wheel/Bearing wheel 1/2/41/2/4
11 Demension
12 Standard lift heightmm30003000
13 Lowered fork heightmm8686
14 Fork size(length/width/thickness)mm1150(1200)/180/601150(1200)/180/60
15 Overall lengthmm1970/23901970/2390
16 Overall widthmm10501050
17Outside with between legsmm570/600/650/685570/600/650/685
18 Inside with between legsmm180/230/280/315180/230/280/315
19 Min.turning radiusmm1630/19901630/1990
20Min.aisle width for pallets 800×1200mm2180/25802180/2580
21Min.aisle width for pallets 1000×1200mm2210/26002210/2600
22 Min.groud clearancemm3030
23 Performance
24 Travel speed,laden/unladenkm/h5/5.85/5.5
25 Lift speed,laden/unladenmm/s80/12080/120
26 Travel speed,laden/unladenmm/s80/9080/90
27 Gradeability,laden/unladen%5/85/8
28Electric configuration
29Drive motor /Lift motor/Steering motorkwAC1.5/DC3.0/DC0.15AC1.5/DC3.0/DC0.15
30Battery voltageV2424
31 Battery capacityAh280280
32Brake  Electromagnetic/Regenerative Electromagnetic/Regenerative
33 Controller CURTISCURTIS
34 Weight
35 Battery weightkg235235
36 Service weight with batterykg12501280




Company Information

-1---2---3--4-5--6-7









Our Services






 FAQ:


Any questions, welcome to contact us, we ill be always help you and support you.
1.May I know how soon I can get the machine after I transfer the deposit?
Usually, if the quantity is less than 20 units, we can finish the production in 15-20days. We will try our best to offer the machines to you as soon as possible.
2.How long the product warranty period?
The product warranty period is 18 months or 2000 hours.
3.How long have you engaged in this industry?
We have been engaged in this industry for more than 20years, Our hot products sold at home and abroad by our own foreign trade department and some trading company.
