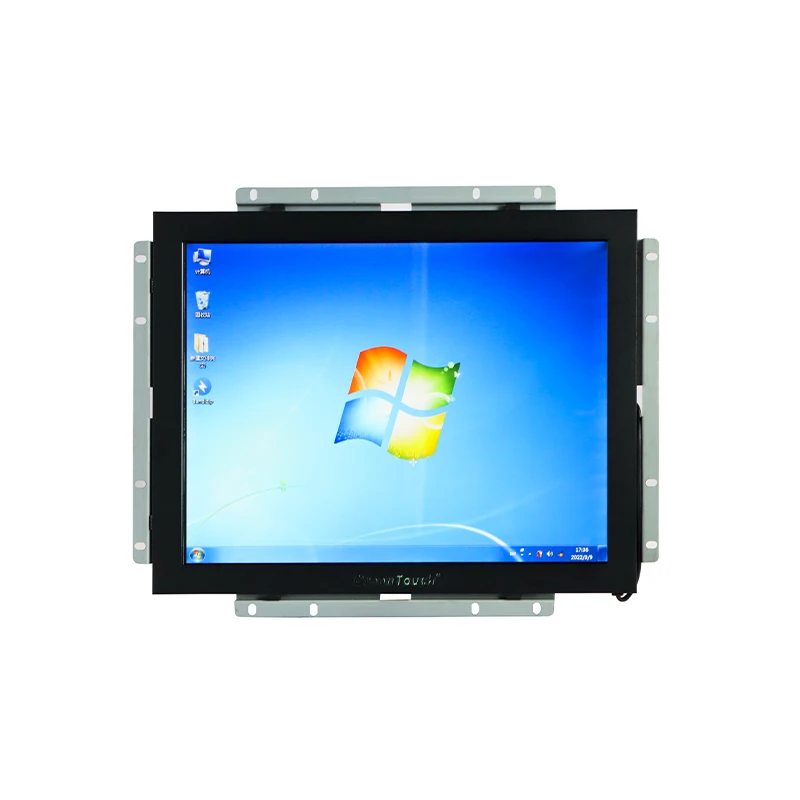

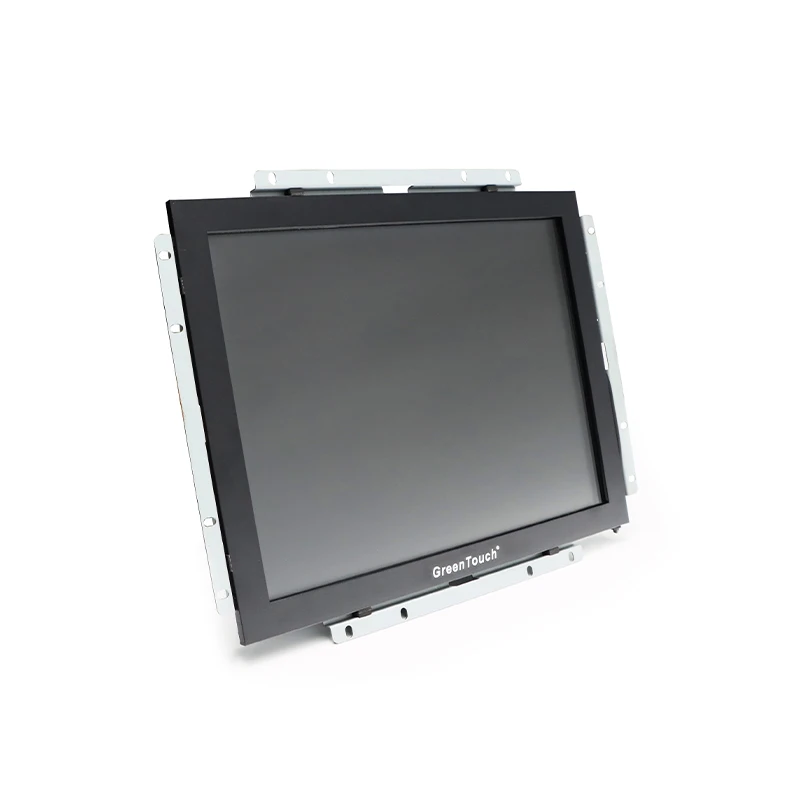

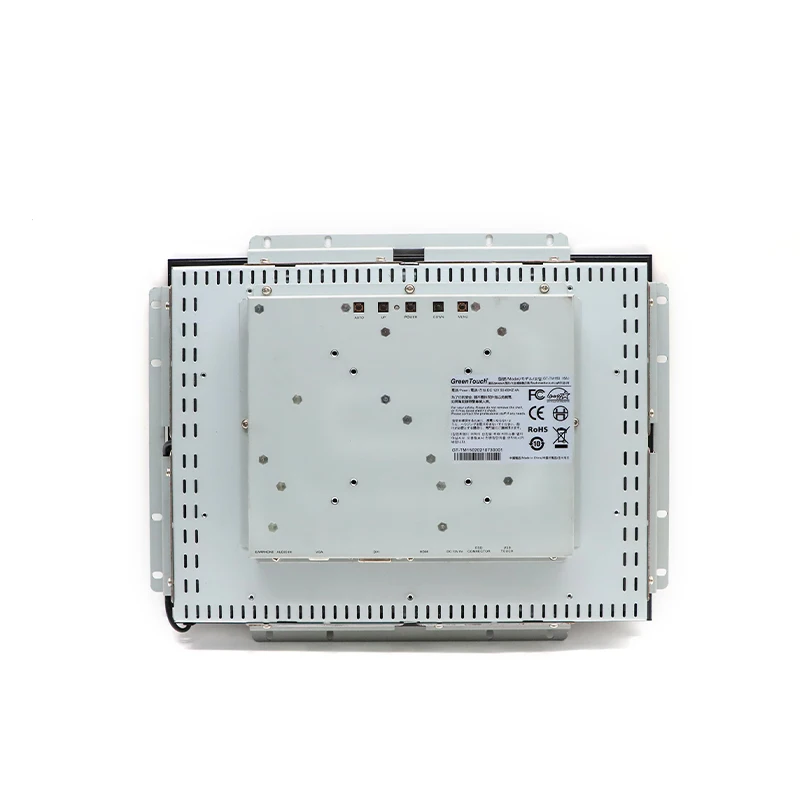

Open frame DP port SAW touch screen monitor 19 inch 5:4

Product Name:

Open Frame Touch Monitor

Display Type:

Active Matrix TFT LCD, LED Backlight

Diagonal Dimension:

19.0 " diagonal

P/N:

GT-TM-1905A-AWAL-HD

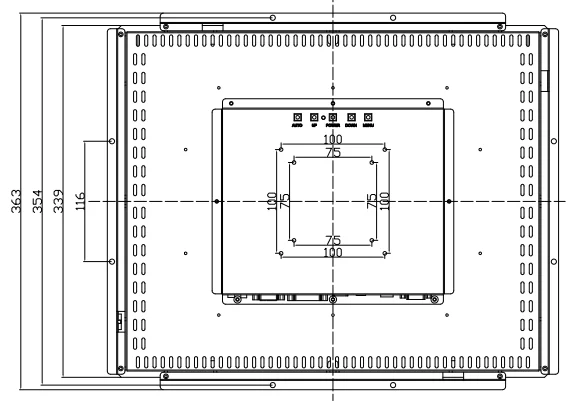

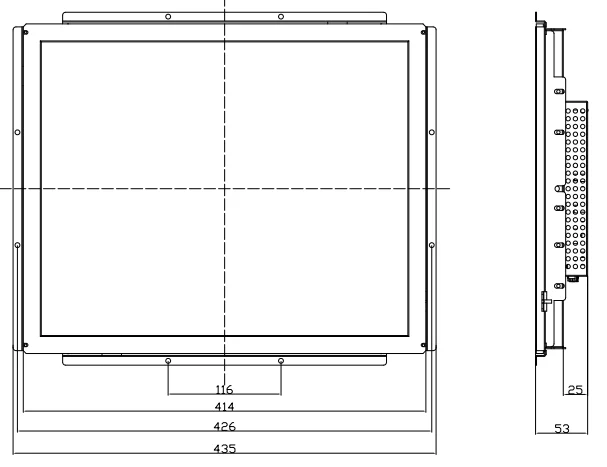

Display Size：

421.00mm(W) x345.00 mm(H),Thickness: 60mm

Active Area:

376.00mm(H) x 301.00mm(V)

Resolution：

1280 x 1024

Display Colors:

16.7M

Brightness:

250 nits

Contrast Ratio:

1000:1

Response time：

8 msec

Touch Type:

SAW touch,Single touch

MTBF:

50,000 Hours

Video Formats:

VGA ，DVI ，HDMI，DP(optional )

View Angle:

Horizontal (left / right): ± 85 ° or total 170 °

View Angle:

Vertical (up / down): ± 80 ° or a total of 160 °

Temperature:

Operating: 0°C to 40°C

Temperature:

Storage: -20°C to 60°C

Humidity:

Operating: 20% to 80%(Non-condensing)

Humidity:

Storage: 10% to 90% (Non-condensing)

OSD:

Digital OSD

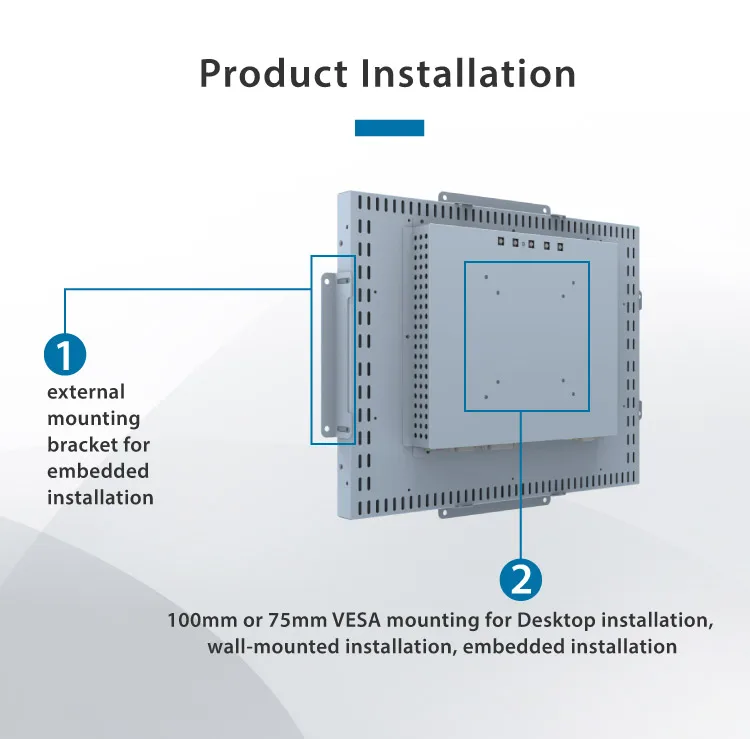

Mounting Options:

VESA Mounting，Open Bracket Mounting

Warranty:

1 Year

Agency Approvals:

FCC、CE、CB、CCC、HDMI

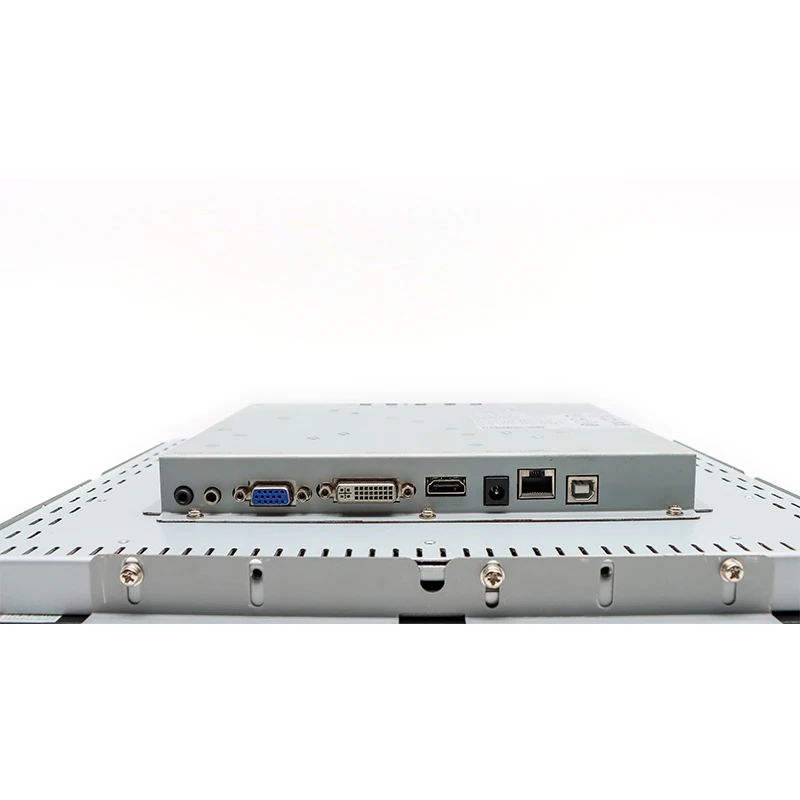

Input Video Connector:

Female Head DE - 15 Connector,Female Head DVI - D, Dual - Link Connector,Female Head HDMI Connector.

Power:

External DC,Input Voltage DC: 12V; INPUT POWER CONNECTOR SPECIFICATIONS，External DC, Input Voltage DC: 12V; INPUT POWER CONNECTOR
SPECIFICATIONS，(For All in one PC) - Type: DC Cartridge Receptacle; Cartridge ID: 5.5 mm(±0.3 mm; Needle OD: 2.0 mm (+0.0 -0.1
mm); Cartridge Depth: 8.0 mm (±0.3 mm);Power Connector (On Power Adapter) - Type: DC Cartridge Plug: Cartridge OD:5.5 mm (±
0.1mm); Needle Inner Diameter: 2.1 mm (± 0.1 mm); Cartridge Length: 9.5 mm (± 0.5 mm);

User Controls:

OSD Button: Menu, Up, Down, Select, Power; OSD: Contrast, Brightness,Horizontal / Vertical Bits Clock, Phase, Call Default,
Language (English,German, Spanish, Japanese,French); OSD Fail / Active: Power, OSD Menu.
