Жидкокристаллический полиэстер с высокой термостойкостью и высокой способностью потока, подходит для компонентов точности
- Category: Other Plastic Raw Materials >>>
- Supplier: T&T Industry (Shenzhen) Co. Ltd.
Share on (1600523417932):
Product Overview
Description
Product Description
LIQUID CRYSTAL POLYMER
It is a new type of polymer material that generally exhibits liquid crystallinity in the molten state. These materials have excellent heat resistance and molding processability.
The polymerization method is mainly based on melt polycondensation, and solid phase polycondensation is often supplemented by fully aromatic LCP to obtain high molecular weight products.
Non-fully aromatic LCP plastic raw materials are often produced by one-step or two-step melt polymerization.
The technology of continuous melt polycondensation to prepare high molecular weight LCP has been developed.
Tensile strength and flexural modulus can exceed the developed engineering thermoplastics.
Mechanical properties, dimensional stability, optical properties, electrical properties, chemical resistance, flame retardancy, good processability, good heat resistance, and low coefficient of thermal expansion.
LCP(Liquid Crystal Polyester)+20%GF
Property:LCP has the advantages of high strength,high rigidity,high temperature resistance,electric insulation,flame retardance,dimensional stability,chemical resistance,good air-tightness and balanced mechanical properties.
Characteristics:
- High strength,high heat resistance
- Excellent chemical resistance
- High flowability
- Excellent dimensional stablility
Properties for LCP+20%GF
| Properties | Standard | Condition | Unit | Value |
| Physical Properties | ||||
| Specific Gravity | ASTM D792 | 23℃ | g/cm3 | 1.63 |
| Mold Shrinkage,Flow | ASTM D955 | Cold mold, 48 hrs | % | 0.05-0.15 |
| Mold Shrinkage,Cross-Flow | Cold mold, 48 hrs | % | 0.05-0.15 | |
| Moisture Absorption | ASTM D570 | 23 °C; 50 % RH | % | 1 |
| Filler Content, Carbon Fiber | 800°C/2h | % | 0 | |
| Mechanical Properties | ||||
| Tensile Strength | ASTM D638 | 50mm/min | Mpa | 117 |
| Elongation at Break | ASTM D638 | 50mm/min | % | 1.2 |
| Flexural Strength | ASTM D790 | 3mm/min | Mpa | 159 |
| Flexural Modulus | ASTM D790 | 3mm/min | Mpa | 13100 |
| Izod Impact, Notched | ASTM D256 | 23℃ | J/m | 120 |
Our products

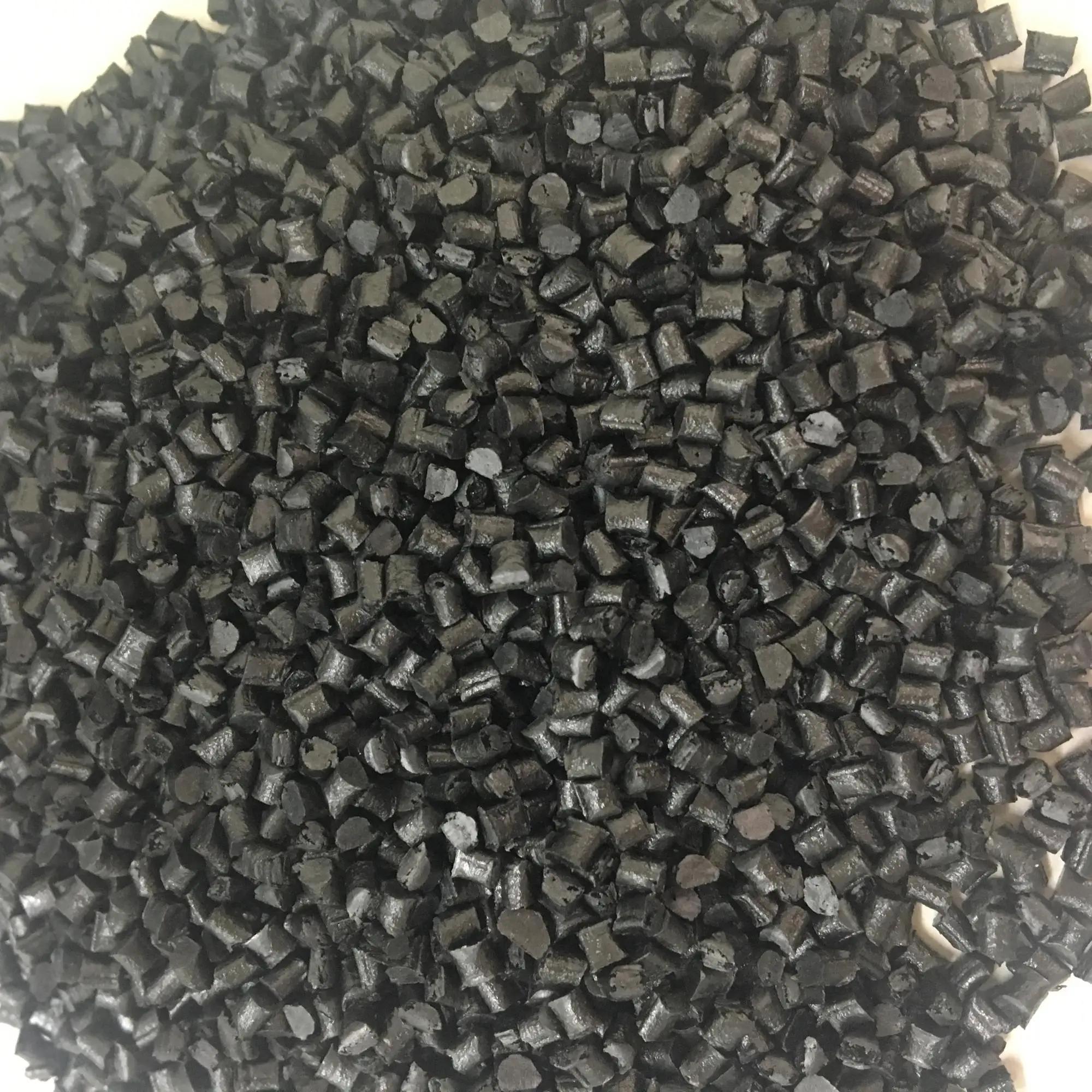

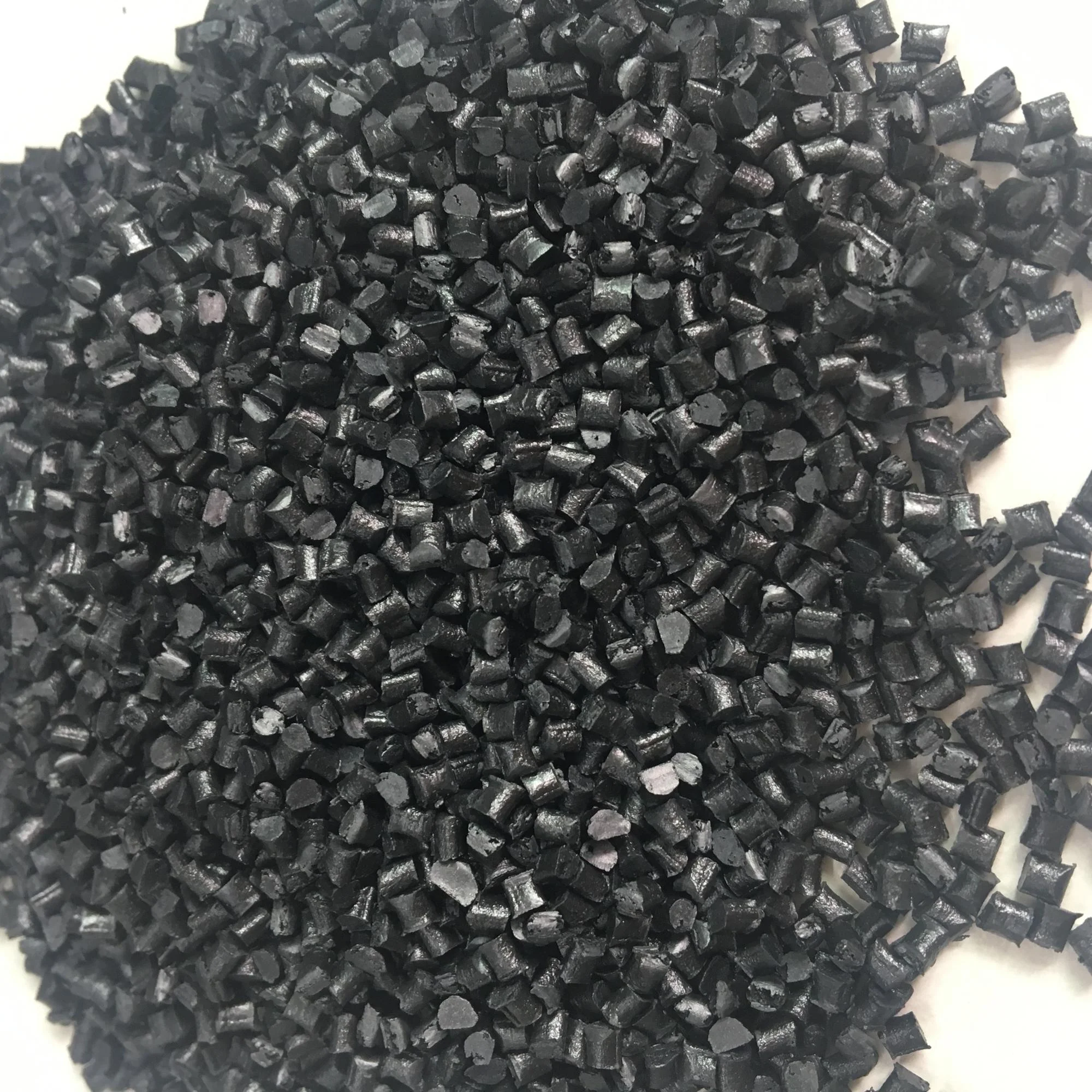

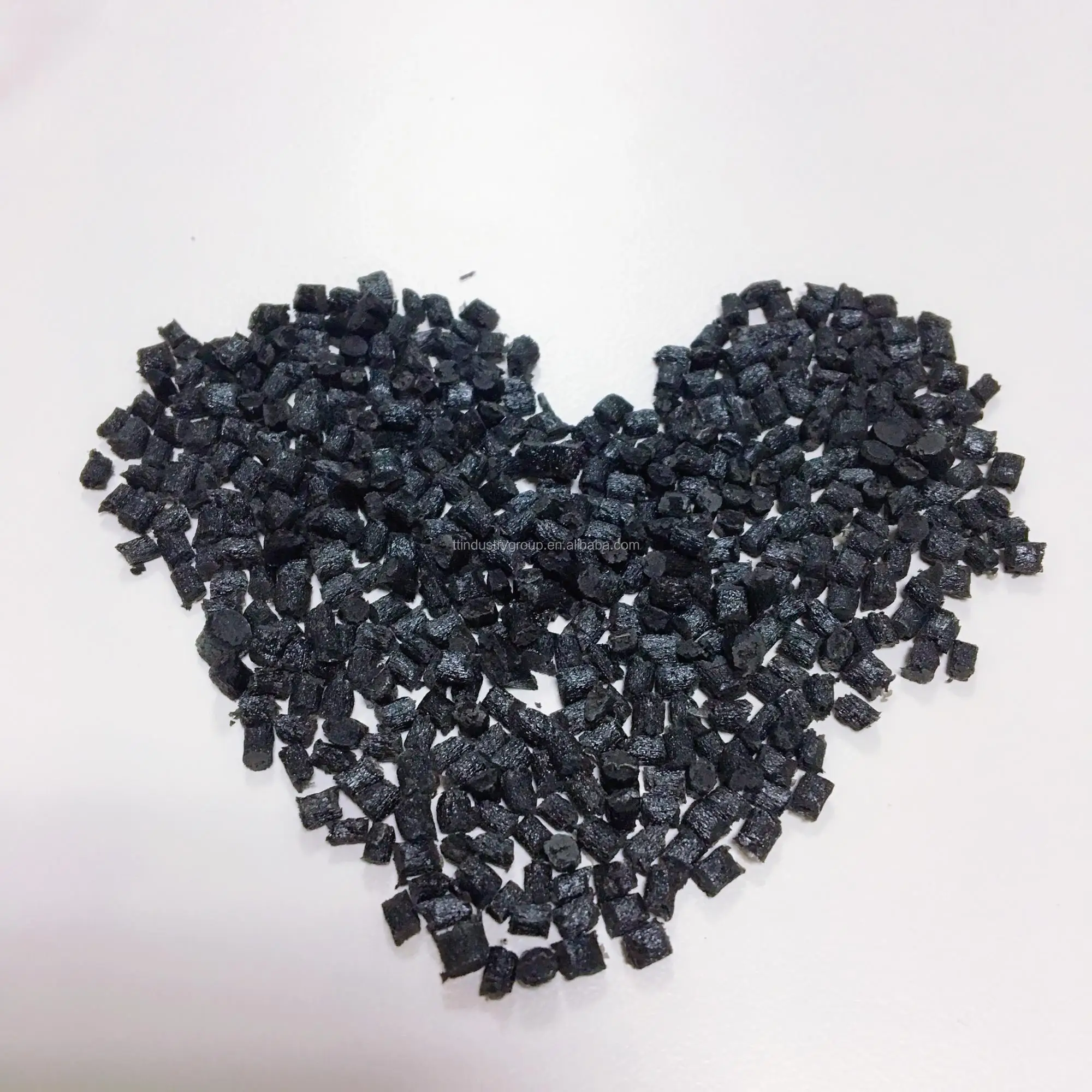

LCP+20%GF,black color
LCP+20%GF

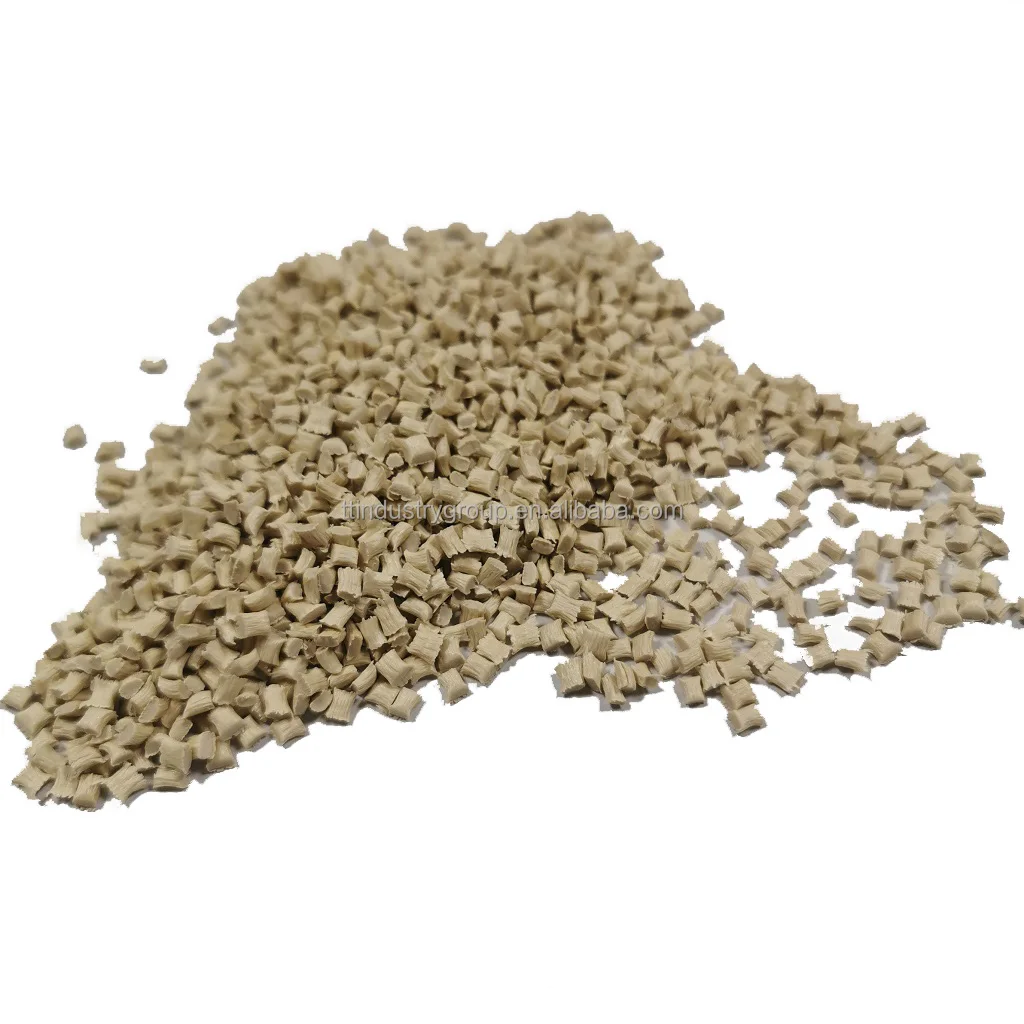

LCP+30%GF natural color equal E130i

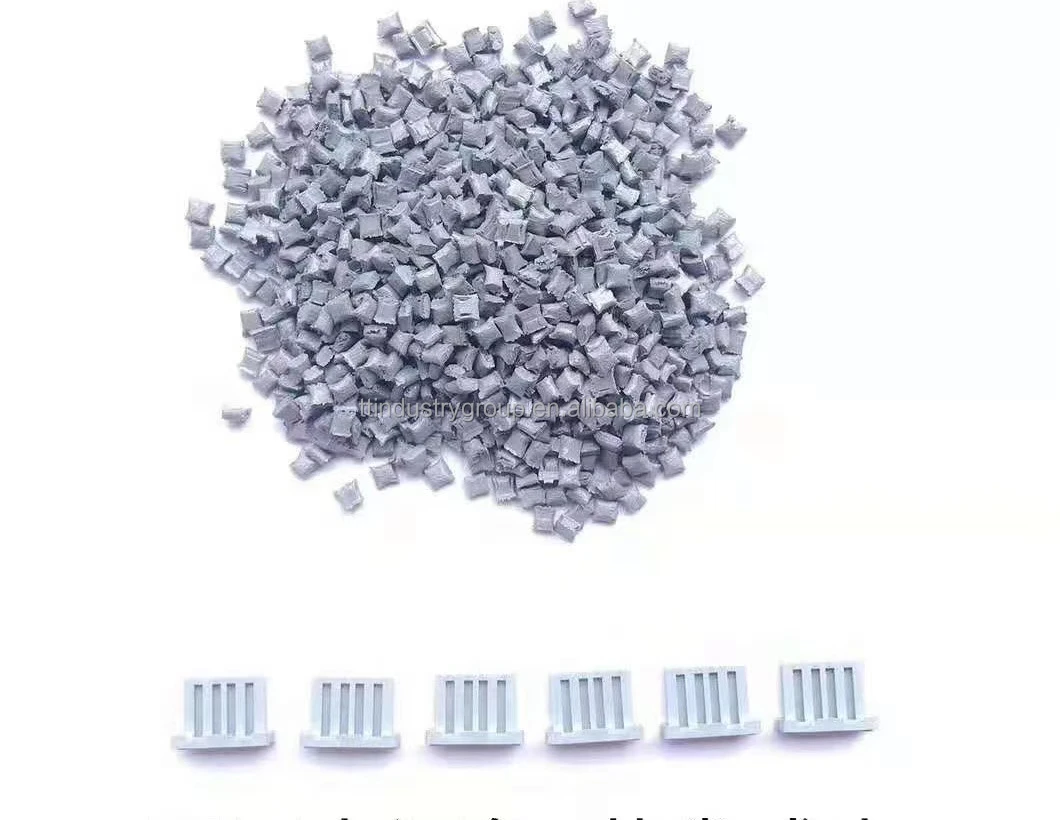

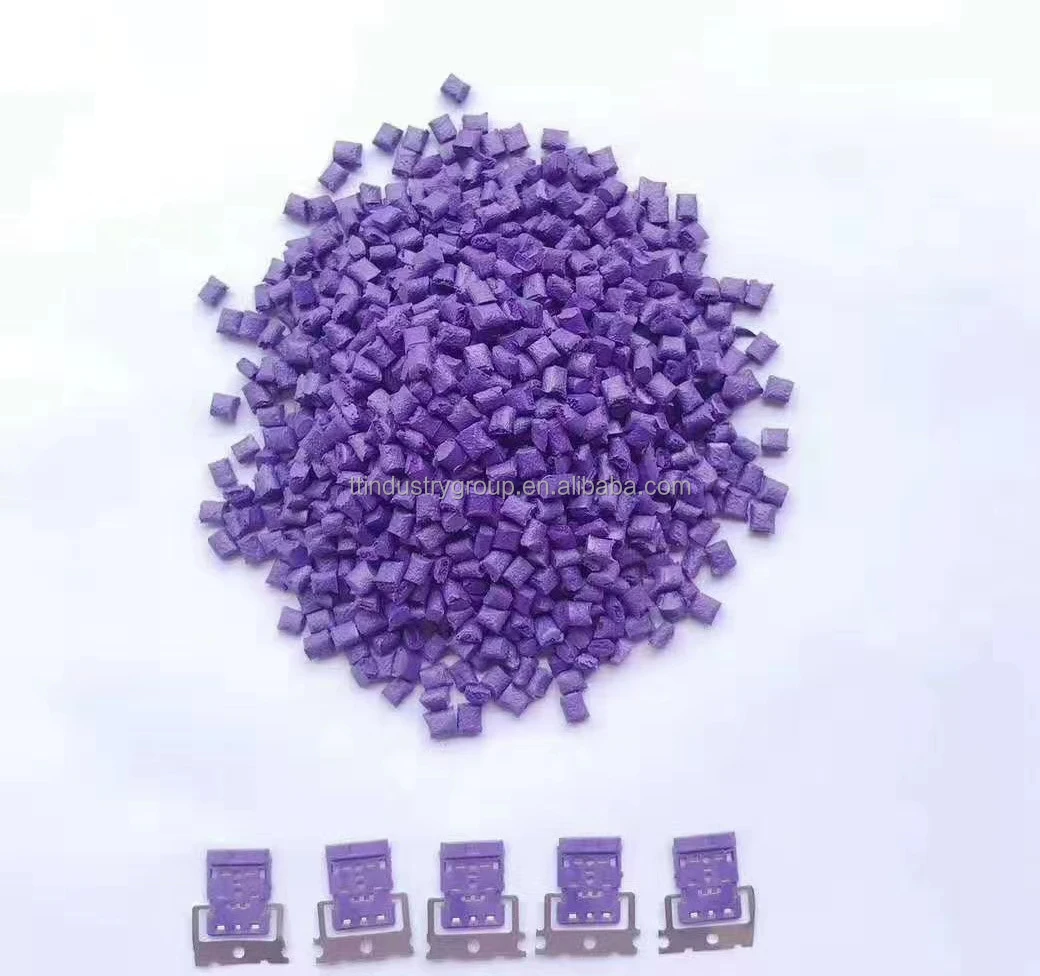

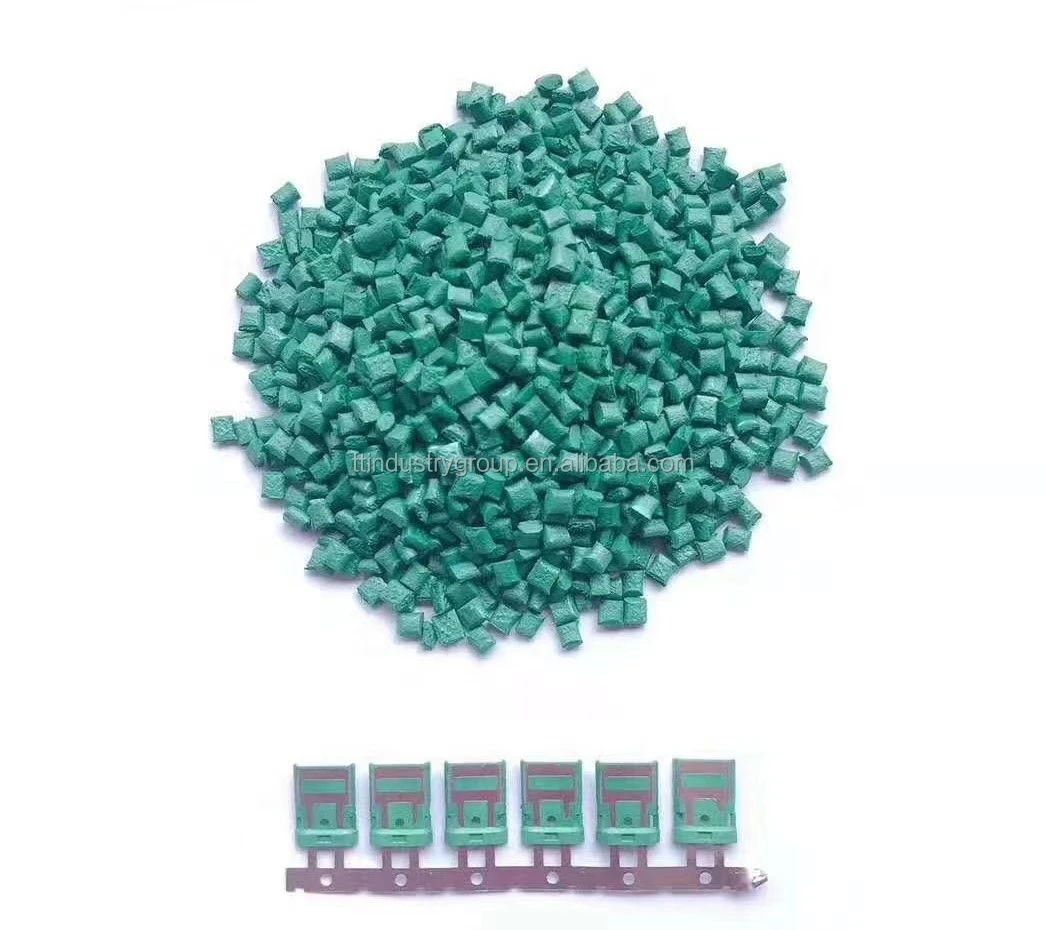

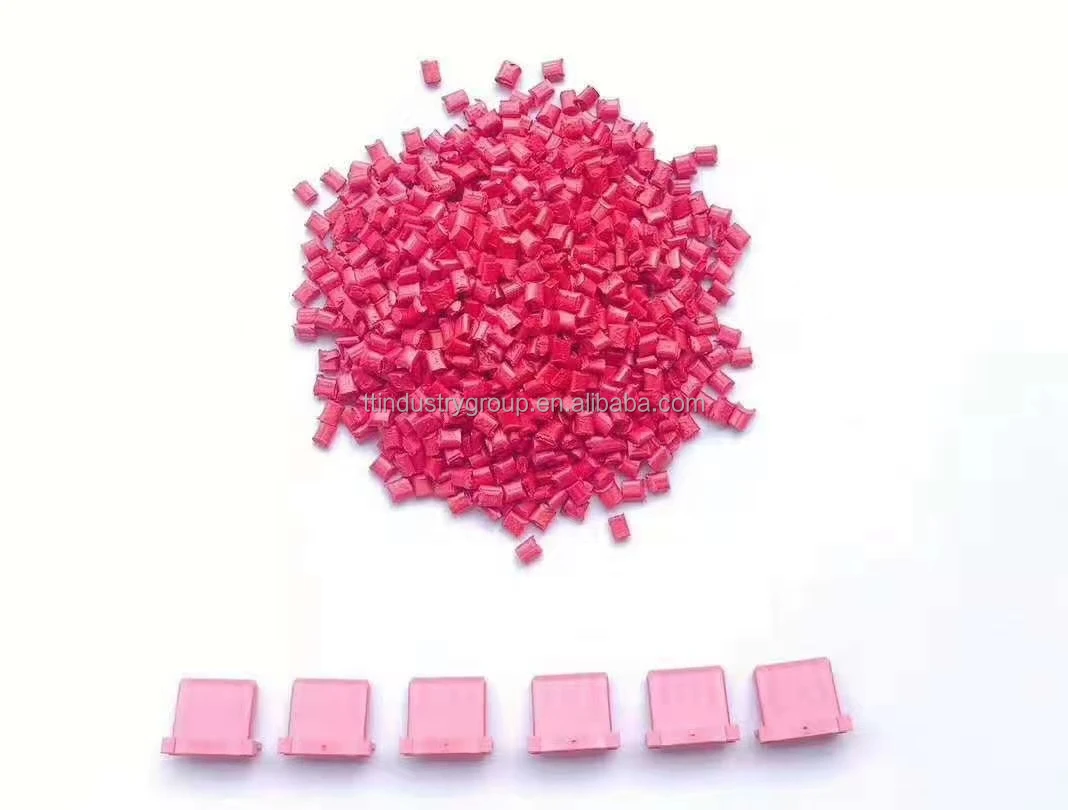

LCP+30%GF with color

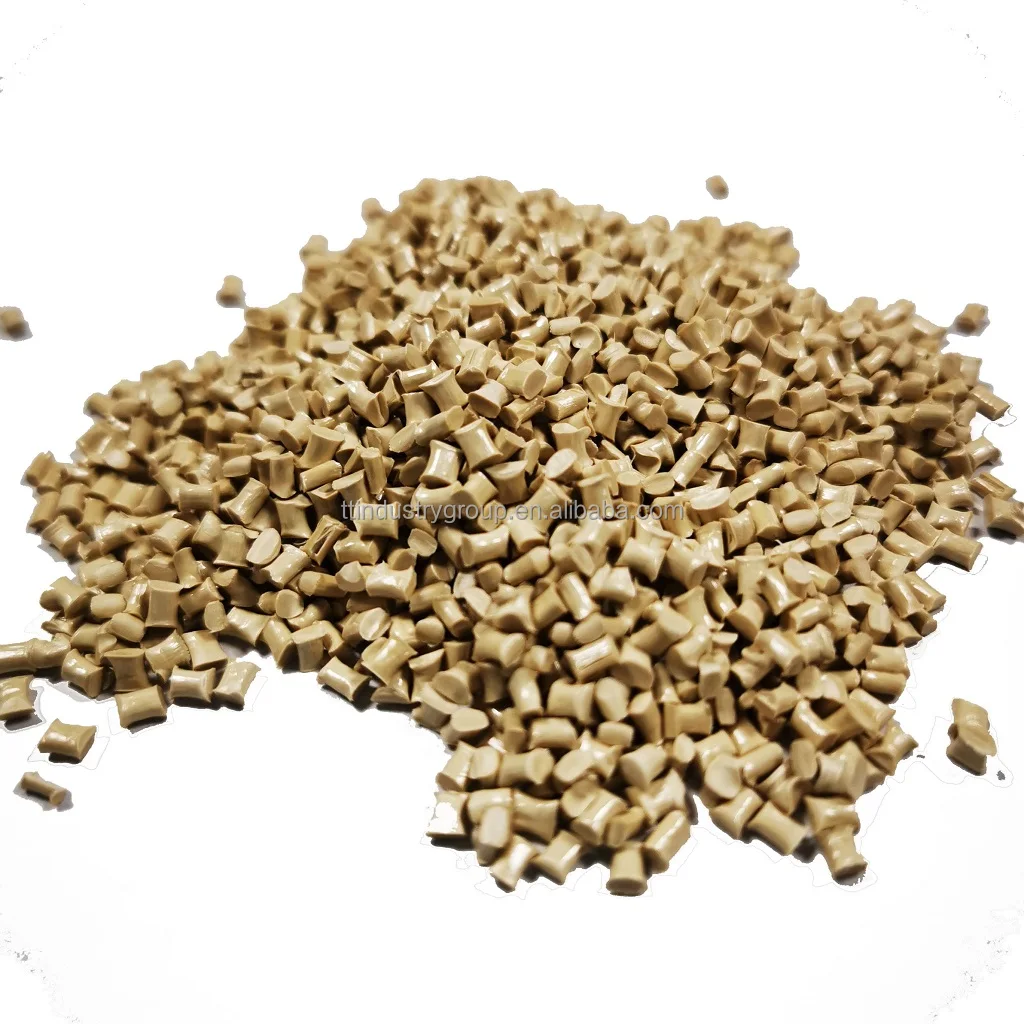

LCP virgin granule
Application

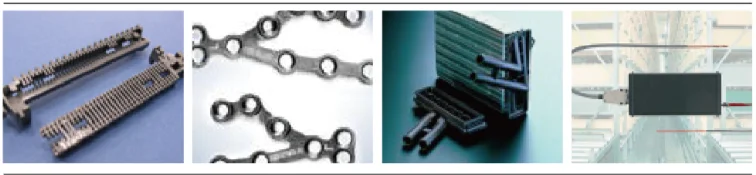

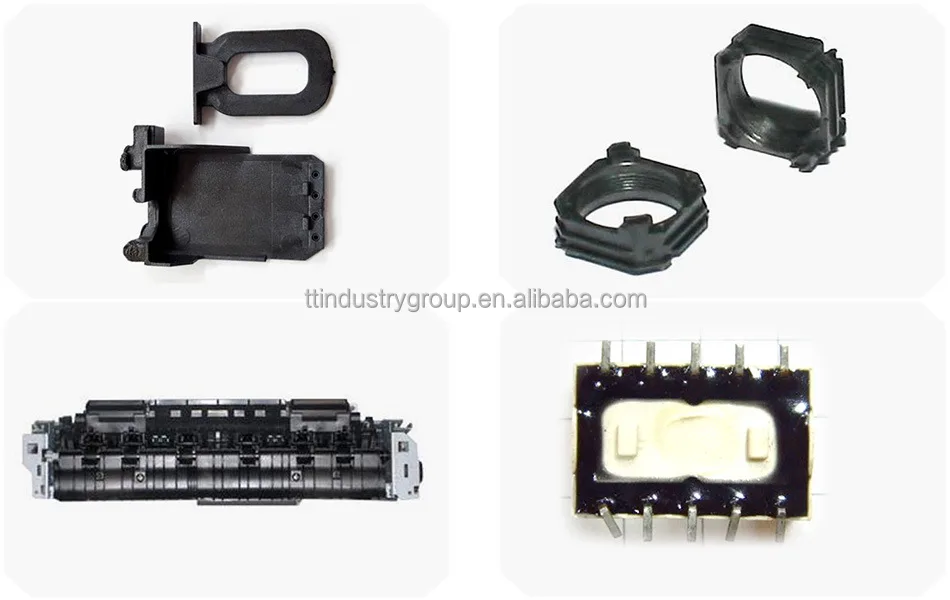

a. Electronic and electrical is the main market of LCP: the surface assembly welding technology of electronic and electrical has high requirements on the dimensional stability and heat resistance of the material (can withstand the vapor phase welding and infrared welding used in the surface assembly technology);
b, LCP: flexible printed circuit boards, satellite electronic components, jet engine parts, automotive mechanical parts, medical aspects;
c. LCP is added with high filler or alloy (PSF/PBT/PA):
-As integrated circuit packaging materials;
-Instead of epoxy resin as the encapsulation material of the coil frame;
-Used as fiber optic cable connector sheath and high-strength components;
-Instead of ceramic work, the packing material in the separation column is used.
Replacing plastics such as glass fiber reinforced polysulfone (Panels on the exterior of aerospace vehicles, braking systems on the exterior of automobiles).
LCP has been used in microwave containers and can withstand high and low temperatures. LCP can also be used for printed circuit boards, satellite electronic components, jet engine parts: for electrical and electronic and automotive mechanical parts or components; it can also be used in medical applications.
LCP can be added with high filler as integrated circuit packaging material to replace epoxy resin as the packaging material of coil skeleton; used as fiber optic cable connector head cover and high-strength components; instead of ceramics as filling material in chemical separation towers, etc. LCP can also be blended with polysulfone, PBT, polyamide and other plastics to make alloys, and the parts have high mechanical strength after molding.
Electrical &Electronics,Automobile,Chemical Engineering,Aviation & Aerospace,Optical Fiber etc.
Our Factory
T&T Industry Group Ltd is a customized engineering plastics company combining of R&D, Design, and Project Development. Currently our focus is on the project devlopement and optimal configuration of different resources, based on the actual situation of the One-Belt and One-Road industrialized countries and current new materials development, and world industrialized situation.
Packaging & Shipping
1. Waterproof Design(Dual package, Waterproof bag Inside)
2. Sealed Packaging,Impact resistant (Kraft paper bag+PE/Aluminum liner)
3. Customized package (25kg/bag or 500kg/bag)
4. Water-proof , Anti-breaking,Anti-extrusion . Anti-heavy throw
5. Transporation by sea, the sample can be shipped by air.
Our Services
Service procedure:
Consulting--solutions--quotation--sending samples--quality check--placing orders-- customization--deliver goods--after sell services
1.Technical backgroud Sales can provide in-time and professional responses to customers' inquiries.
2. Real-time Quality Inspection Tour in full production process;
3. Certicate of Analysis provided for each delivery of goods
4. After-sales quality tracking and feedback
5. Customers complains processing management system to guarantee the consistant improving service to each client.
FAQ
1.Samples leading time : 1-2 weeks after passed our test;
2.Bulk order leading time : 2-4 weeks ( customized materials ,seldom in stock)
3.Samples are delivered by FEDEX DHL ,TNT , UPS,Samples fee will be refund when the first bulk order comes .
4.Payment Term: T/T or L/C at sight;
5.Minimum Order Quantity: 1 MT
6.Delivery Time: Lead-time is around 7-14 working days after we receive the advance payment. It varies according to different products and quantity.
7,.he quality standard refers to the sample. And quality issues we provide free tech-support
