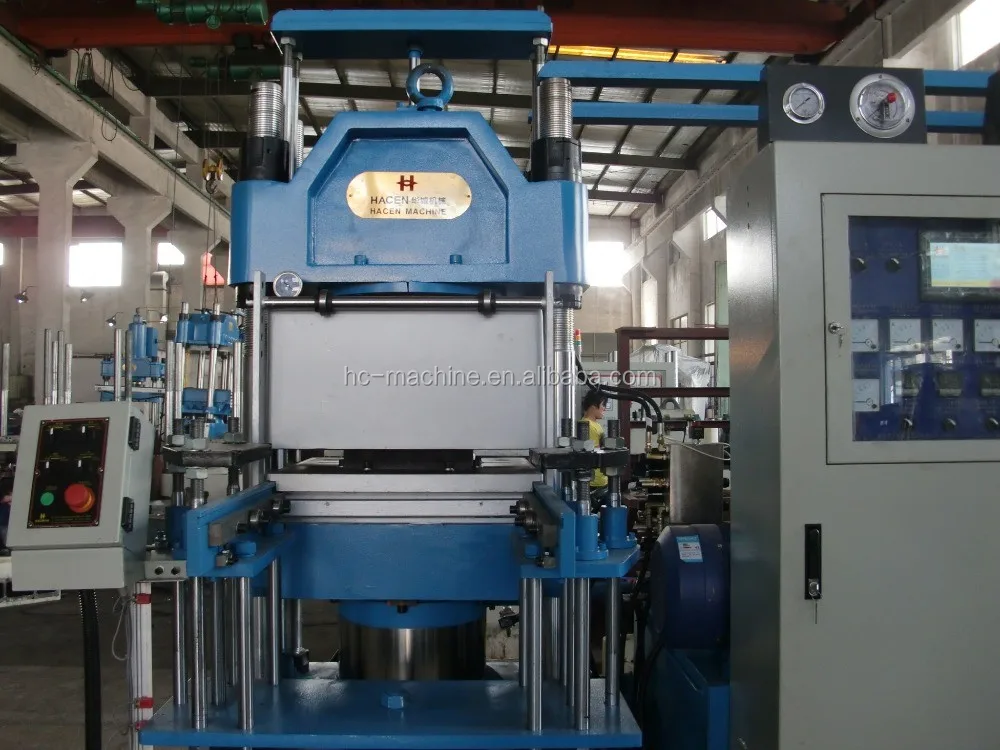

Rubber product making machine Silicone high pressure rubber injection molding machine
- Category: >>>
- Supplier: Yuyao Huacheng Hydraulic Electromechanical Co. Ltd.
Share on (1600523431534):
Product Overview
Description
Product Description
The machine applies to production of all kinds of O-rings, rubber keyboards, medical rubber parts and automotive rubber parts, etc. As the most economic and traditional type, it features simple operation and rapid molding and can support 3-layer mold release.
Product Feature
1. Through computer pressure and strain analysis of machine structure, this machine has a long service life;
2. Special heat plate design ensures even temperature distribution and one-step molding;
3. Heat plate 40 Cr nitrogen treatment ensures precision and long service life;
4. High-efficiency rapid vacuum system ensures no starved feeding and finished products contain no bubble.
5. Single machine and double machine for option;
6. 2RT/3RT/4RT for option;
7. Double motors:Doble motor and double oil pump,control and maintain convenient.
2. Special heat plate design ensures even temperature distribution and one-step molding;
3. Heat plate 40 Cr nitrogen treatment ensures precision and long service life;
4. High-efficiency rapid vacuum system ensures no starved feeding and finished products contain no bubble.
5. Single machine and double machine for option;
6. 2RT/3RT/4RT for option;
7. Double motors:Doble motor and double oil pump,control and maintain convenient.

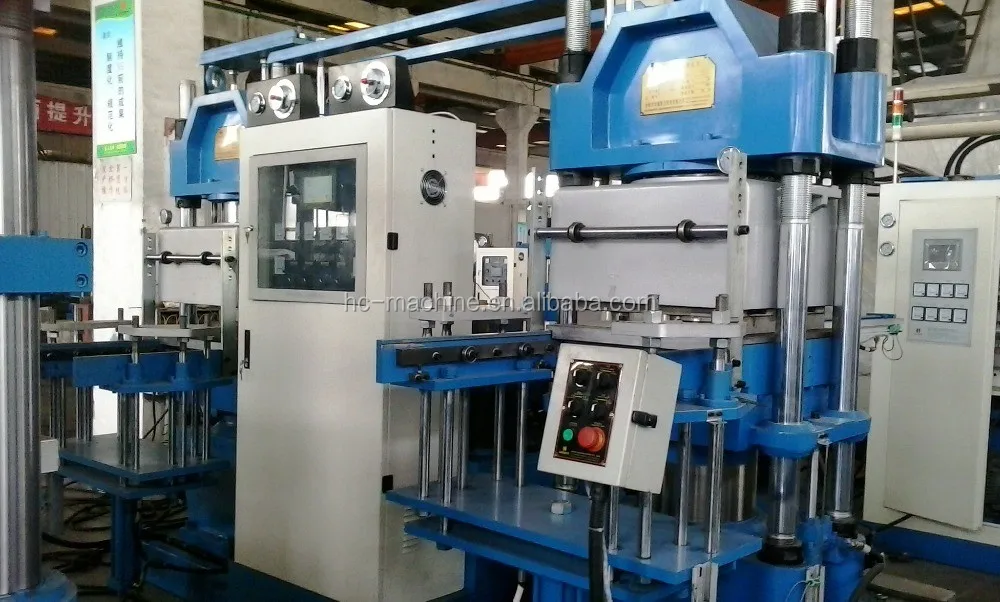

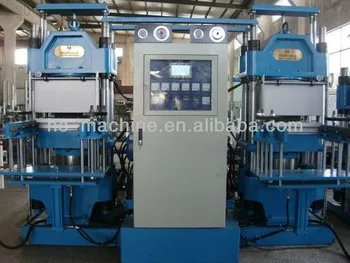

Detailed Images
Product Paramenters
Item | Unit | ZXB-100 | ZXB-200 | ZXB-250 | ZXB-300 | ZXB-350 | ZXB-500 |
Clamp force | Kn | 1000 | 2000 | 2500 | 3000 | 3500 | 5000 |
Clamp stroke | mm | 300 | 250 | 250 | 250 | 250 | 250 |
Max. opening | mm | 200-360 | 200-400 | 200-400 | 200-400 | 200-400 | 200-400 |
Heat power | Kw | 7.8 | 17.1 | 18.3 | 19.2 | 21.6 | 28 |
Up heat plate size | mm | 400*400 | 510*510 | 590*600 | 590*600 | 700*700 | 800*800 |
Down heat plate size | mm | 420*420 | 600*560 | 650*600 | 650*650 | 700*700 | 800*800 |
Mold thickness | mm | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 |
Motor power | Kw | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 |
Vacuum horsepower | Kw | VC-100(2.2Kw/50Hz) | VC-100(2.2Kw/50Hz) | VC-100(2.2Kw/50Hz) | VC-150(3Kw/50Hz) | VC-150(3Kw/50Hz) | VC-200(4Kw/50Hz) |
Recommend Products
Our Honor

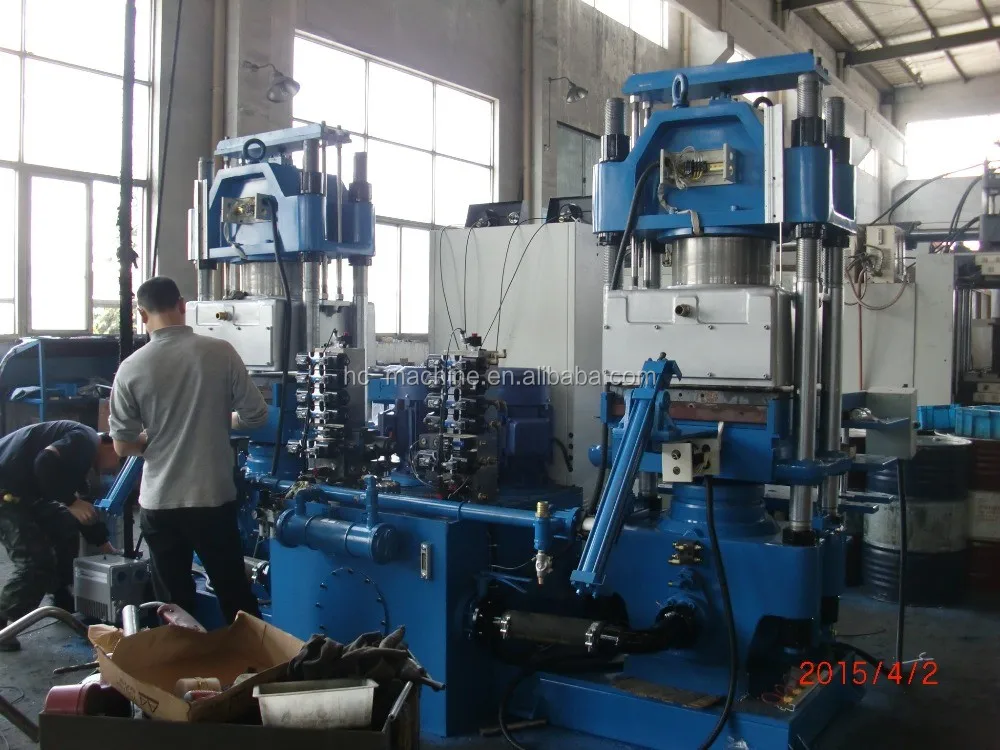

Factory overview
FAQ
Q: What’s requipments do you have?
A: Our company specialized in Thermosetting material molding, manufacture rubber silicone molding machine, injection molding machine, vacuum press machine, transfer molding machyine, BMC injection molding machine, LSR injection molding machine.
Q: How long has your company been established?
A: Our company established in 1992.
Q: What’s the warranty of your machine?
A: About one year.
Q: What’s the delivery time of your machine?
A; 10-60 work days
Q: Which countries have you exported?
A: We have export to many ccountries, Russia, Ukraine, Turkey, Pakistan, South Afria, Egypt, Poland, Germany, Korea, USA, Brazil ,Peru, Mexico, Indonesia, India, Vietnam, Tailand...
Q: How about the after-sale service?
A: We provide them free training so that they can use and maintain the machine independently. We will answer customer’s questions on technology in time. If needed, we will offer on-site guidance. We can provide free technical guidance if customers need new equipment.
Service
Pre-sale service:
We can provide the good technology and experience, to help the customer manufacture the good products and give the good suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
We can provide the good technology and experience, to help the customer manufacture the good products and give the good suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
