Hot selling high Pressure Motor Driven IBC Tote Tank Cleaning jet head
- Category: >>>
- Supplier: Cleaning Intelligent Equipment Technology (guangzhou) Co. Ltd.
Share on (1600523441074):
Product Overview
Description

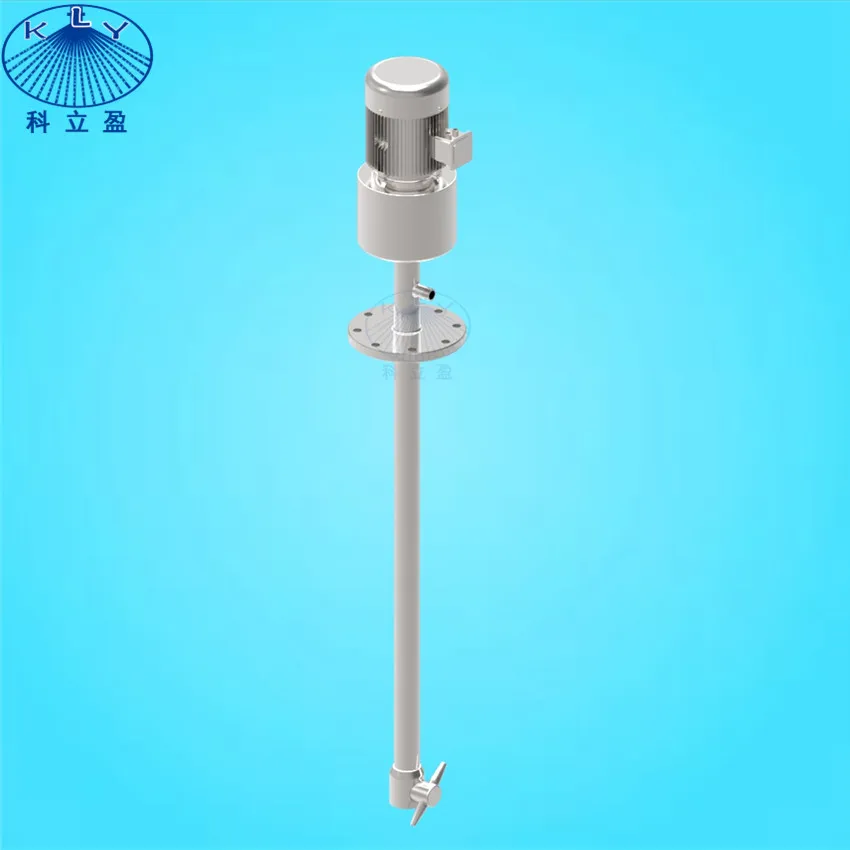

Motor Driven High Pressure Water Tank Cleaning Machine for IBC totes
Model | MD motor driven cleaning head |
Operating pressure: | 3-250bar |
Max. tank diameter | 3m |
Spay angle | 360° |
Material | 316L stainless steel |
Connection | 3/8''-2'' thread or flange connection |
Tempreture range | 95 ℃ |
MOQ | 1pcs |
Application | cleaning and rinsing of tank |
Design feature | motor drive, working at high pressure |
MD series are driven by the motor with external gear and provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.
Design feature:
Using dynamic seal at leakage point to reduce leakage, only3% leakage, thus save cleaning fluid
The nozzle have a uniqure steady flow design which can make the jet to be more concentrated, greater impact
Driven by external motor, thereby reducing the pressure loss of water flow, resulting in hugher water impact
Compact build ideal for small openings
Using dynamic seal at leakage point to reduce leakage, only3% leakage, thus save cleaning fluid
The nozzle have a uniqure steady flow design which can make the jet to be more concentrated, greater impact
Driven by external motor, thereby reducing the pressure loss of water flow, resulting in hugher water impact
Compact build ideal for small openings
Application:
Model MD series is a highly versatile machine and is applicable in most all types of
tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.
tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.

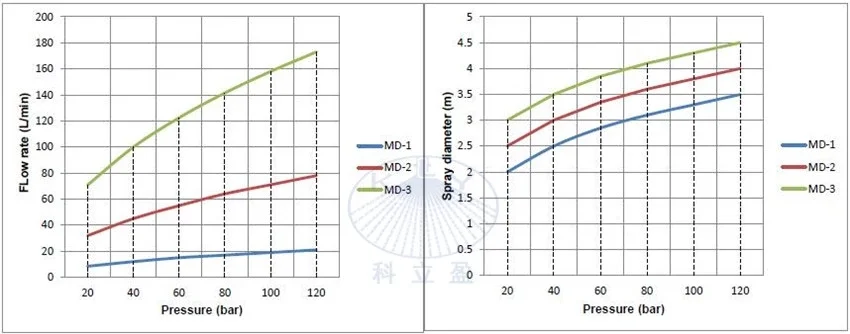

Performance data:

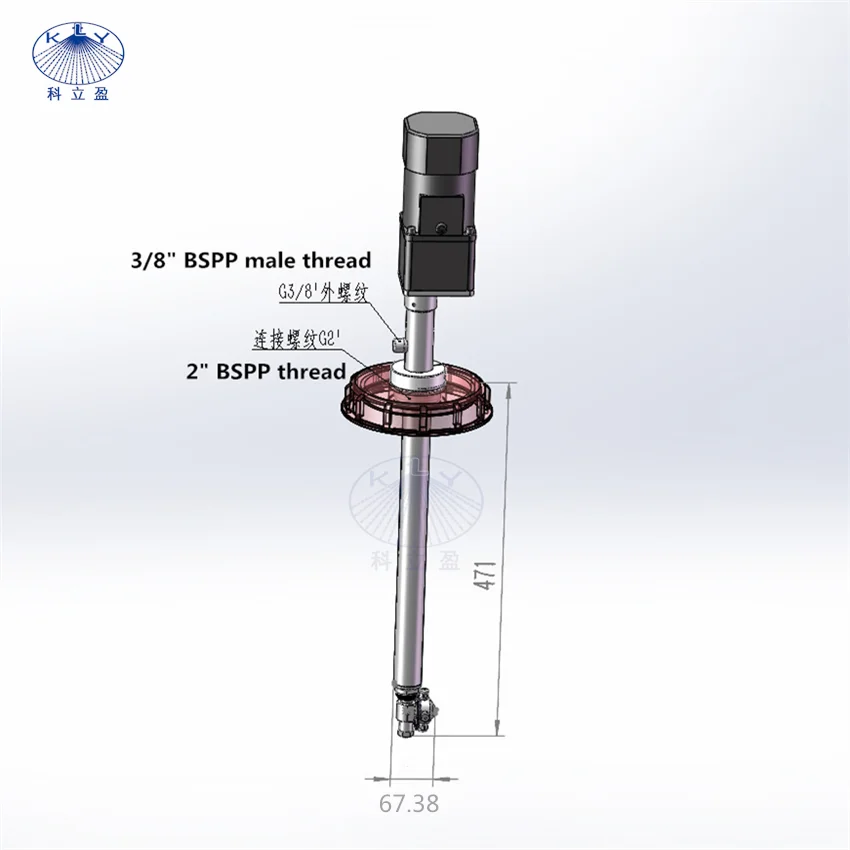

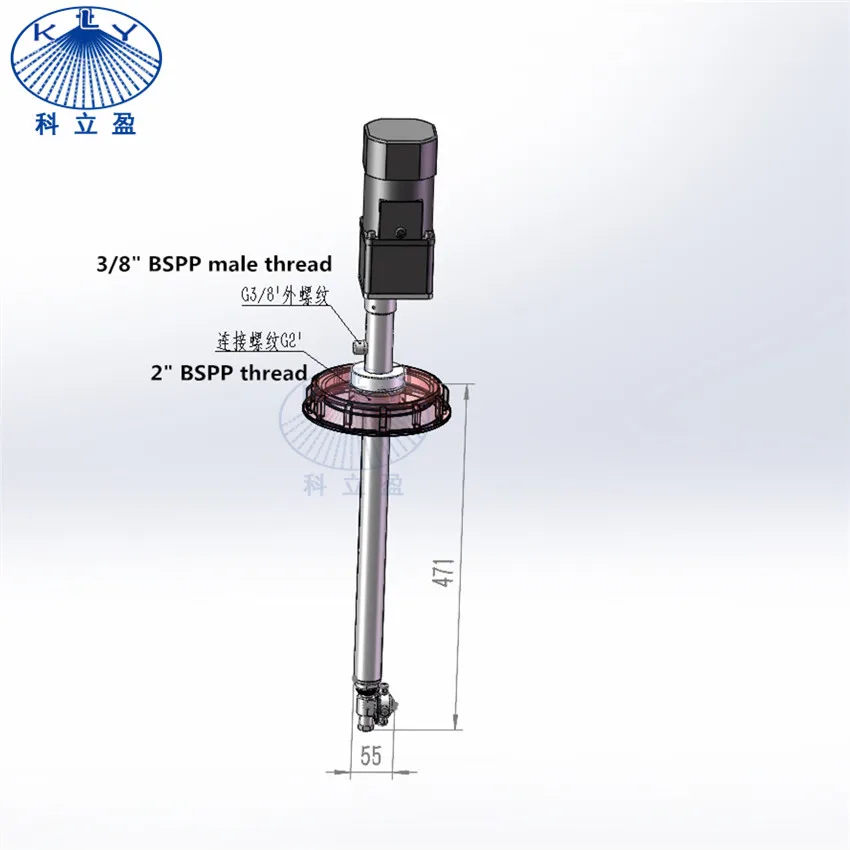

Dimensions of tank cleaning nozzle:
Cleaning process:
Cleaning effect:

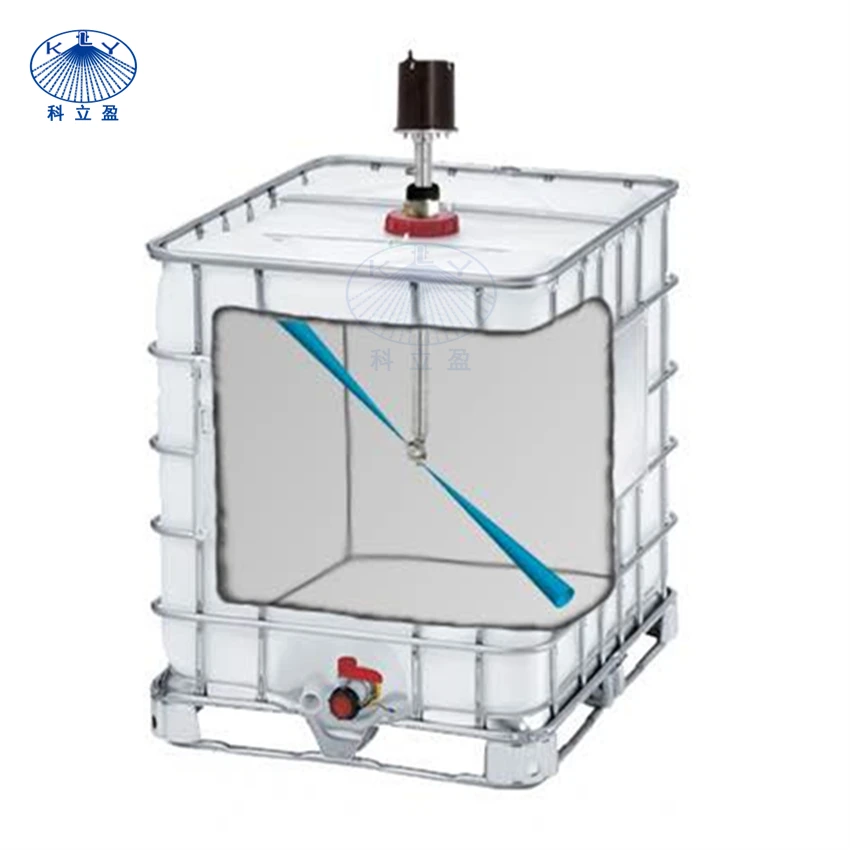

Application of 3D rotary tank cleaning nozzle:
1：Can the products be customized?
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
Yes, we accept OEM, just send us your layout or actual sample, we can arrange production according your design.
2:Is the MOQ fixed ?
For mass production orders,the MOQ cannot be lowered according to production requirements.For stock items,order quantity can be negotible.
3:How to order?
Please send one RFQ to us, our sales will confirm with you about the specification or other required things, then will send an official invoice to you via mail, which will be included the details of your order and bank information of our company.
4:How to pay?
We accept the payment via ESCROW, T/T (bank transfer) and Western Union, please inquire us about the details in advance.
5:How long about the production leadtime?
Different products and quantities have different procedures and different timing,normally it needs about 7-14 working days.
6: How to Deliver?
By air, by sea or by express(Fedex, DHL, UPS, TNT etc)
7:How to return?
Acceptable to the returns when you receive the products because of the following reasons.
1. Product was damaged, lost or missed
2. Different specification from required one.
Before ordering, please select a suitable product for you. As you know, all of us don't expect the return. If your return is the result of our error (you received an incorrect or defective item, etc.) we will cover the cost of return shipping. Please note that you are responsible for the cost of shipping for returns not due to our error.
