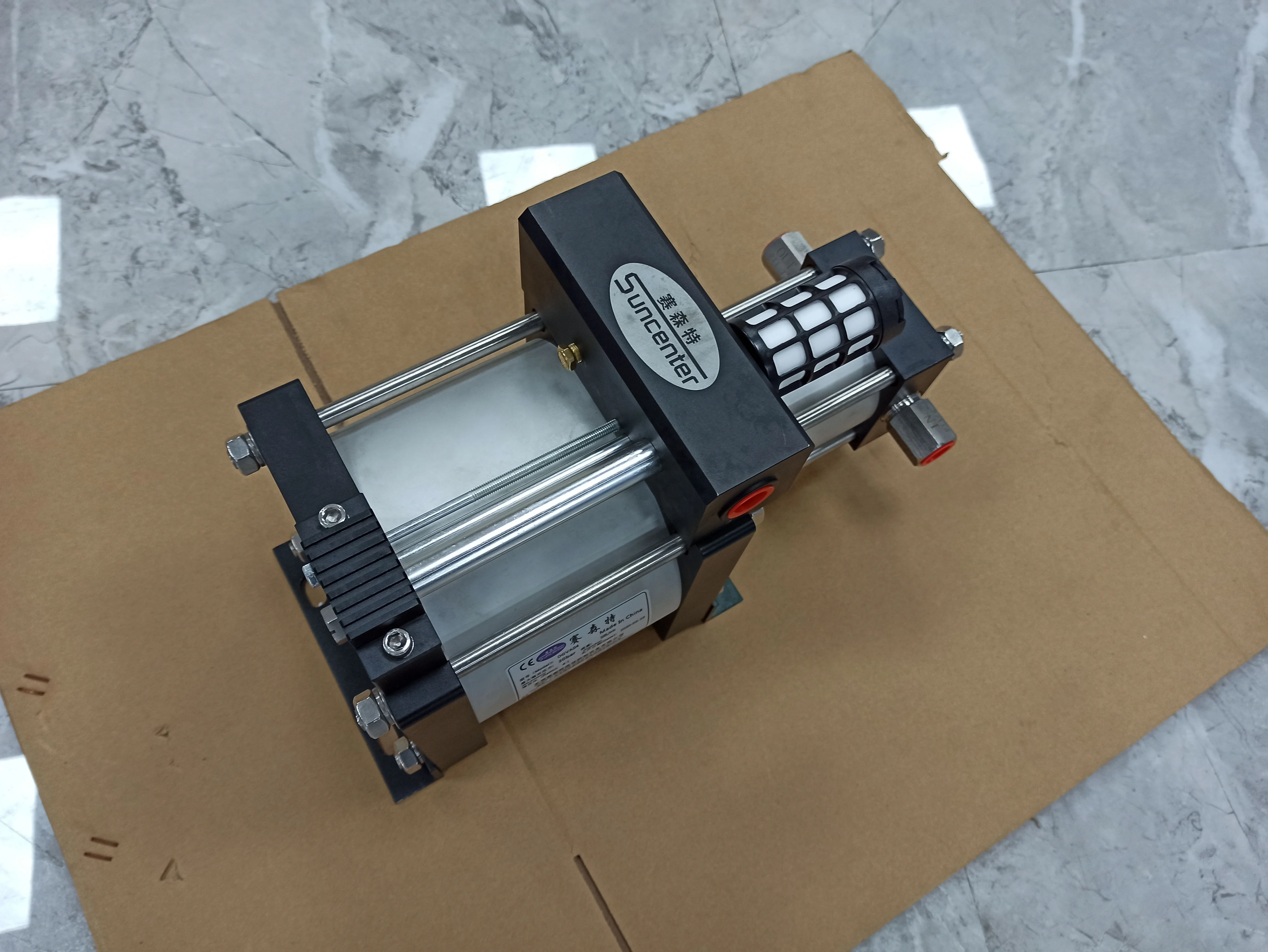

Suncenter Compatible Haskel 30 Bar DGVA04 model Air Pressure Pump
- Category: >>>
- Supplier: Dongguan Suncenter Fluid Control Equipment Co. Ltd.
Share on (1600523451074):
Product Overview
Description

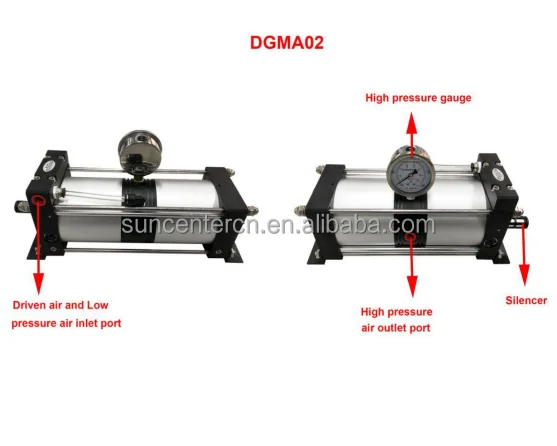

Air Booster Pump
DGMA02
technical parameters
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:2:1
Maximum flow rate : 580L/min
Maximum air output pressure: 16bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:2:1
Maximum flow rate : 580L/min
Maximum air output pressure: 16bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Model | Pressure boost ratio | Max. air outlet pressure | Formula to calculate air outlet pressure PB | Connection: (NPT thread) | Max. flow rate (L/min) |
DGMA02 | 2：1 | 16 bar | 2XPL | 1/2 / 1/2 | 580 |
DGVA02 | 2：1 | 16 bar | 2XPL | 1/2 / 1/2 | 1600 |
DGMA03 | 3：1 | 24 bar | 3XPL | 3/8 / 3/8 | 420 |
DGVA04 | 4：1 | 30 bar | 4XPL | 3/8 / 3/8 | 500 |
DGVA05 | 5：1 | 40 bar | 5XPL | 3/8 / 3/8 | 820 |
DGVA07 | 7：1 | 56 bar | 7XPL | 3/8 / 3/8 | 280 |
DGVA08 | 8：1 | 64 bar | 8XPL | 3/8 / 3/8 | 500 |
DGVA10 | 10：1 | 80 bar | 10XPL | 3/8 / 3/8 | 220 |

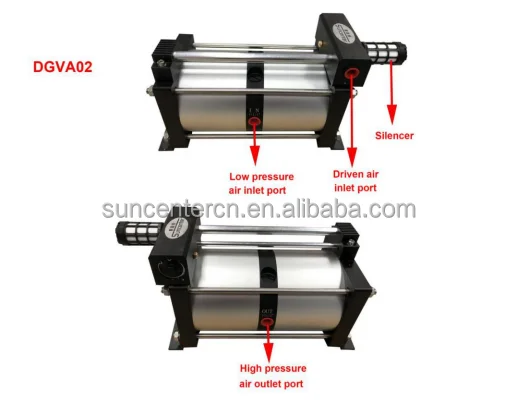

DGVA02
technical parameters
Driven source: clean compressed air
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:2:1
Maximum flow rate : 1600L/min
Maximum air output pressure: 16bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Driven source: clean compressed air
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:2:1
Maximum flow rate : 1600L/min
Maximum air output pressure: 16bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar

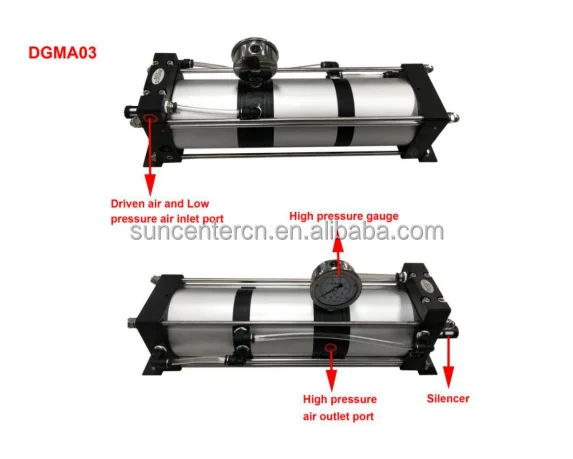

DGMA03
technical parameters
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:3:1
Maximum flow rate : 420L/min
Maximum air output pressure: 24bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 1-8bar (recommended drive pressure <8bar)
Boost Ratio:3:1
Maximum flow rate : 420L/min
Maximum air output pressure: 24bar.
Applicable medium: clean air
Air inlet minimum pressure: 1bar

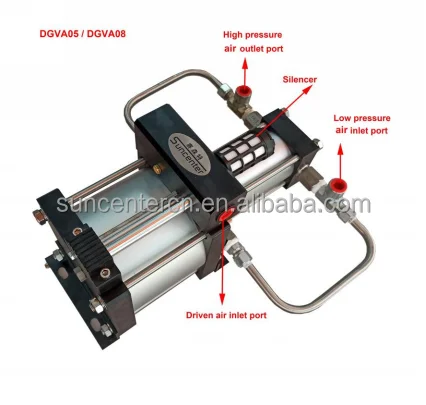

DGVA05/DGVA08
technical parameters
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 2-8bar (recommended drive pressure <8bar)
Boost Ratio:5:1
Maximum flow rate : 820L/min
Maximum air output pressure: 40bar.
Applicable medium: clean air
Air inlet minimum pressure: 2bar
Driven source: clean compressed air
Air pressure control system
Drive compressed air pressure: 2-8bar (recommended drive pressure <8bar)
Boost Ratio:5:1
Maximum flow rate : 820L/min
Maximum air output pressure: 40bar.
Applicable medium: clean air
Air inlet minimum pressure: 2bar

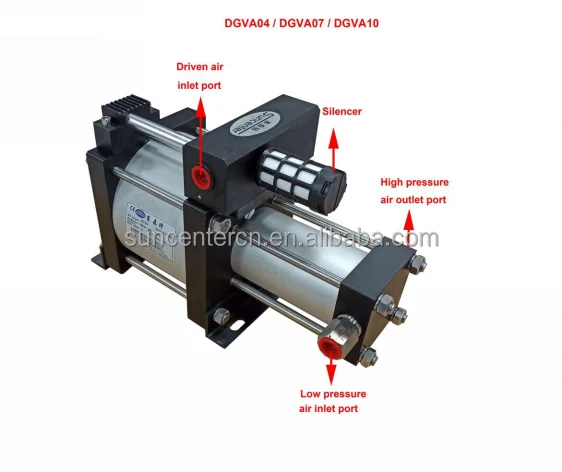

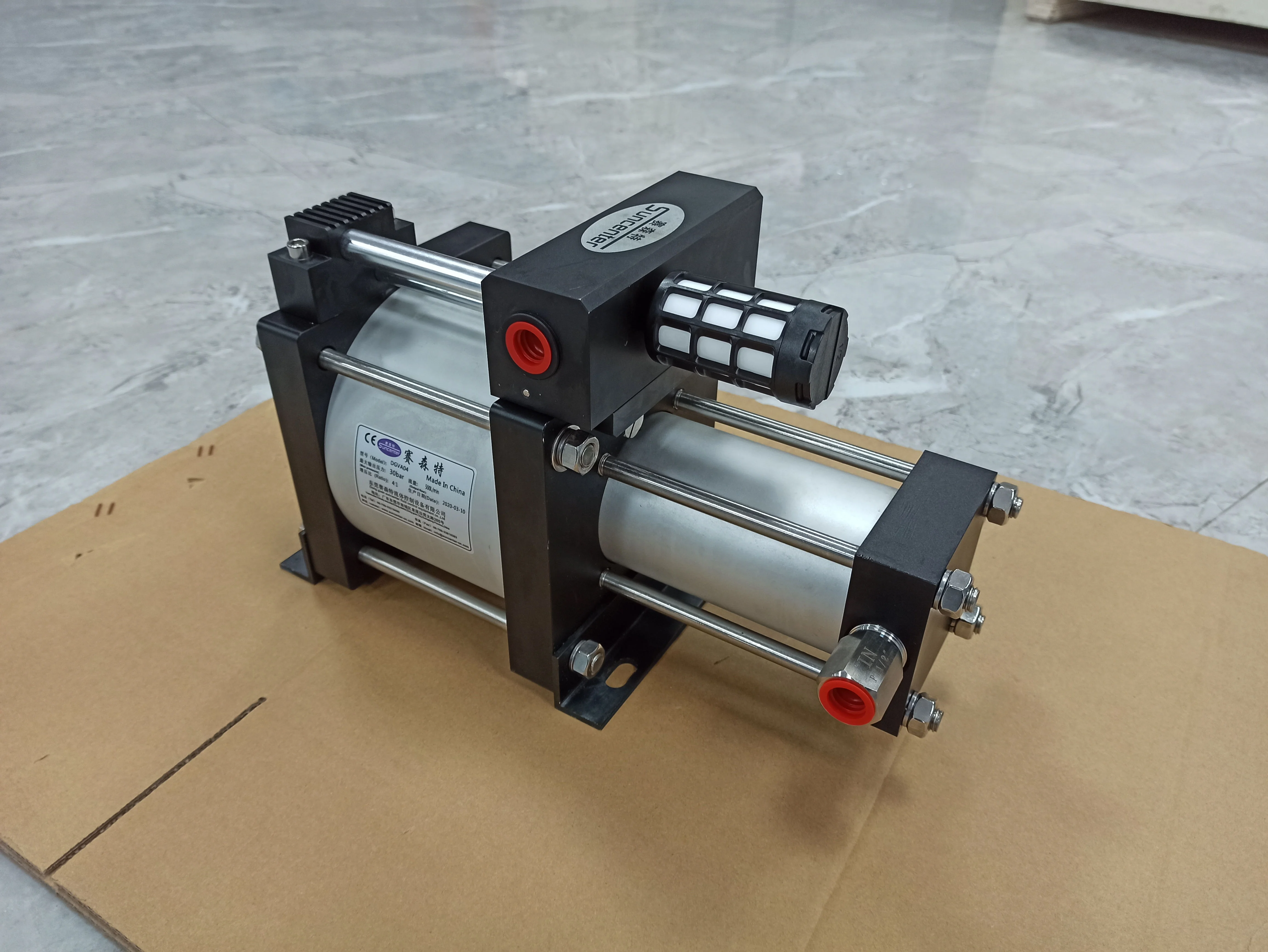

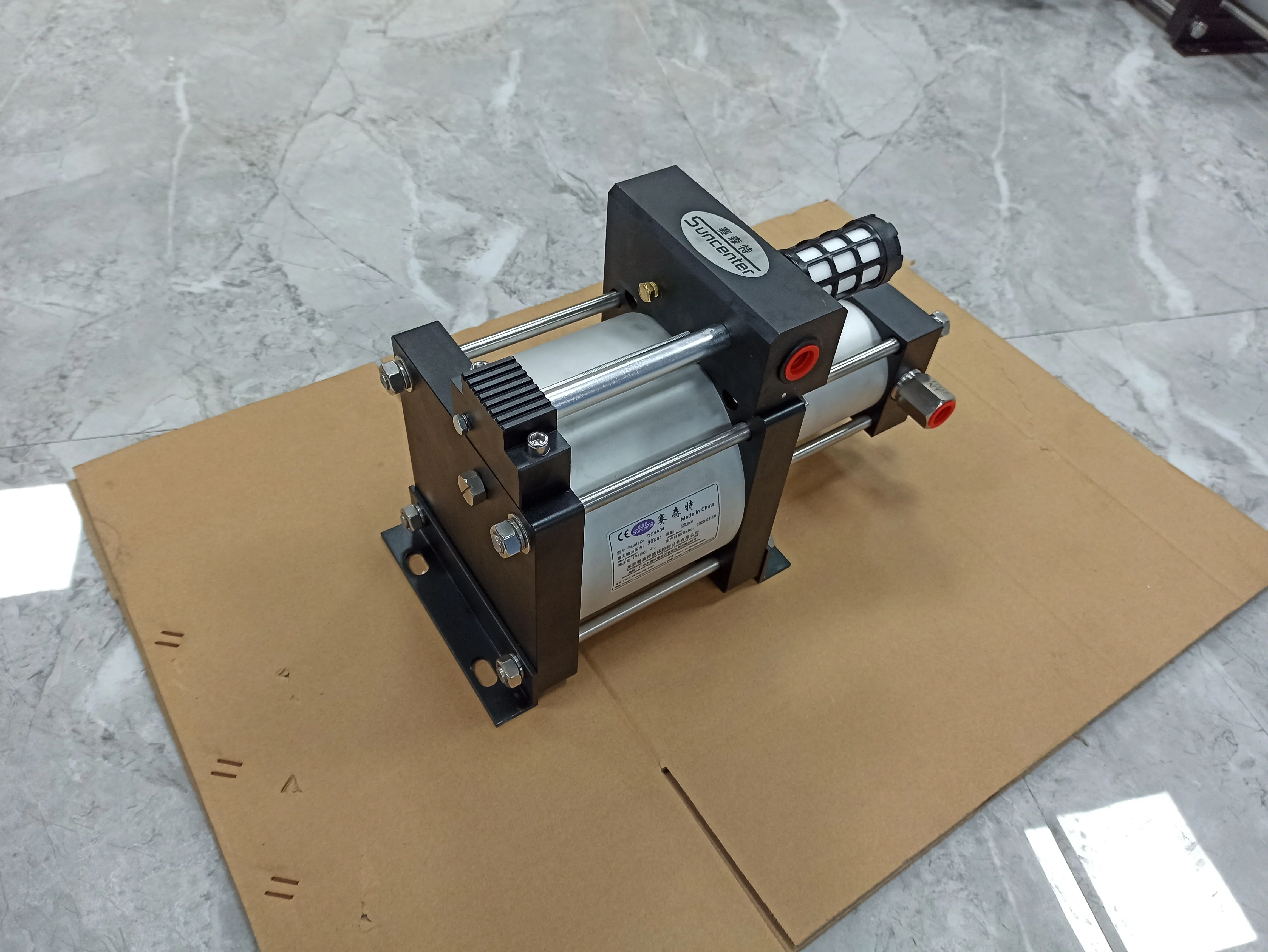

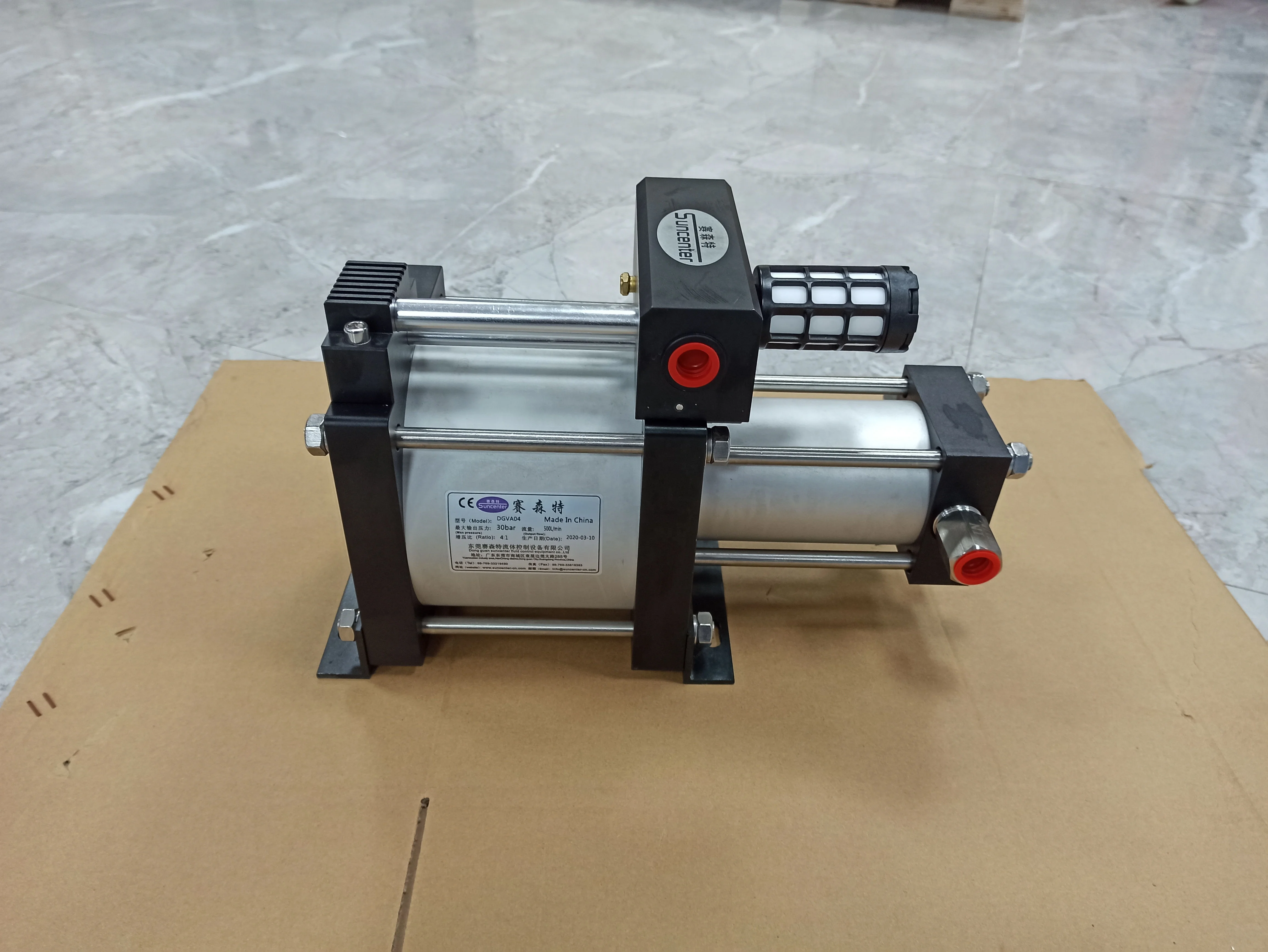

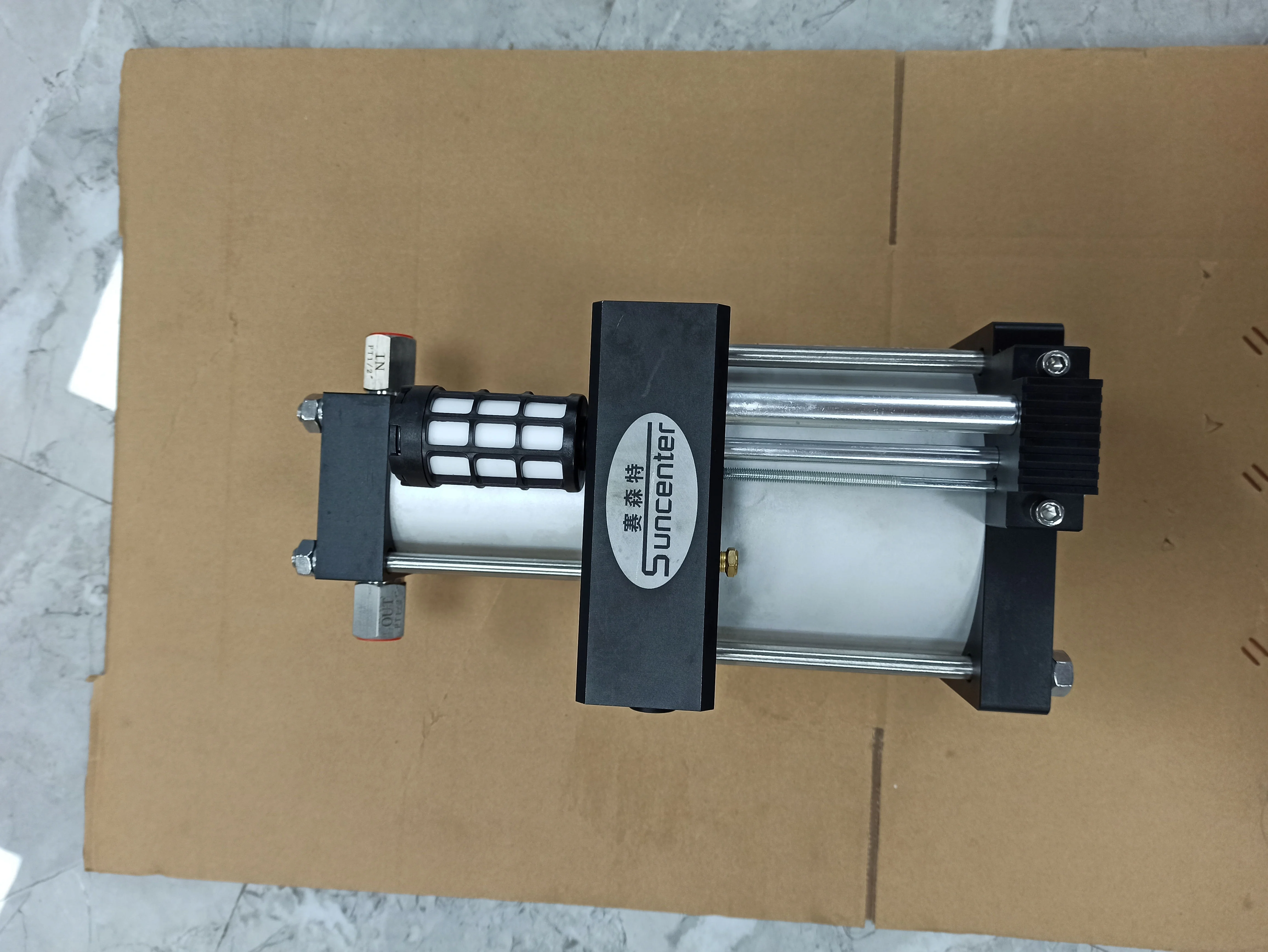

DGVA04/DGVA07/DGVA10
Suncenter DGVA04/DGVA07/DGVA10 series Pneumatic Air booster pump with single air control non-equilibrium air distributing valve to
realize the reciprocating motion of the pump, are made of aluminum alloy and stainless steel manufacturing, all the seals are
imported high quality products and equipment for the pneumatic drive are 10bar, in order to ensure the pump's life, it is
recommended driving pressure is less than or equal to 8 bar. This series pump's drive piston diameter of 160mm, as a single action
pump, all single acting pump head with exhaust cooling.
realize the reciprocating motion of the pump, are made of aluminum alloy and stainless steel manufacturing, all the seals are
imported high quality products and equipment for the pneumatic drive are 10bar, in order to ensure the pump's life, it is
recommended driving pressure is less than or equal to 8 bar. This series pump's drive piston diameter of 160mm, as a single action
pump, all single acting pump head with exhaust cooling.
Packing&Shipping
Package: pack in plywood case Shipment: by air/sea/express
Company Introduction
Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide
various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best
product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field.
Our main products including:
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)
1. High Pressure Booster Pumps ( Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)
2. High Pressure Systems (Gas/Liquid Booster System,Hydro test bench,Chemical injection system,CO2/FM200 filling machine, Tube
Expanding Machine)
3. High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine, Valve test bench,Impulse Testing
Machine, etc.)
4. Hydro-pneumatic cylinders and machines(pneumatic hydraulic cylinders,pneumatic riveting machines,pneumatic press machines etc.)

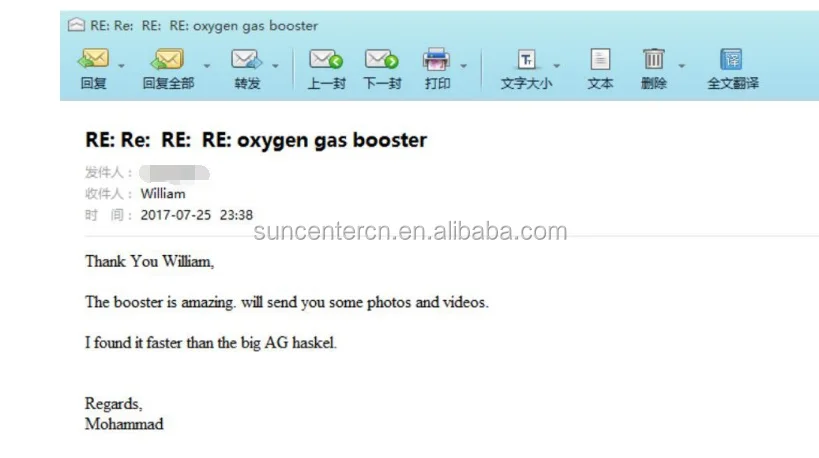

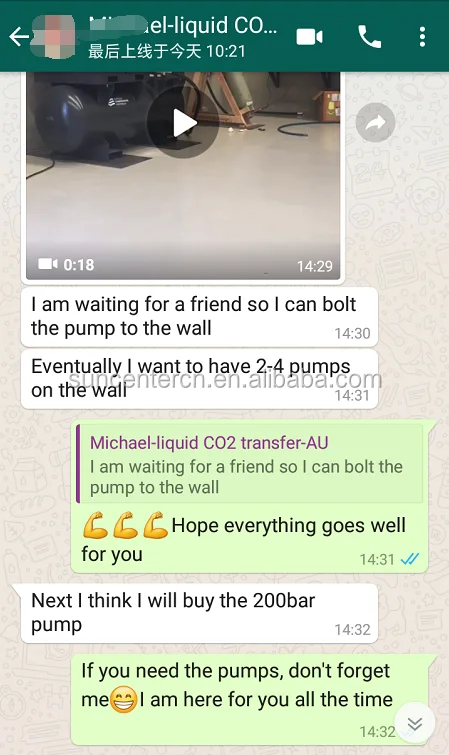

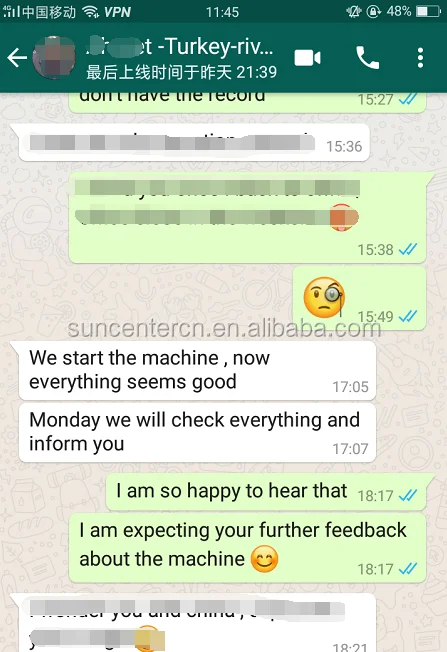

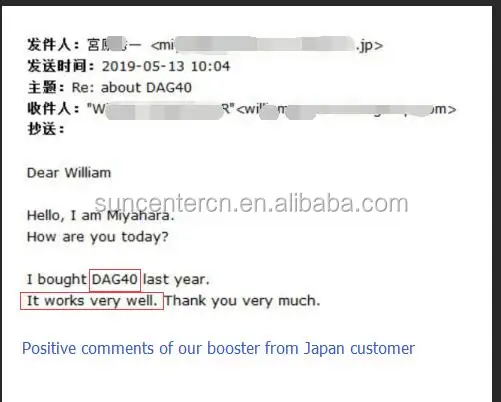

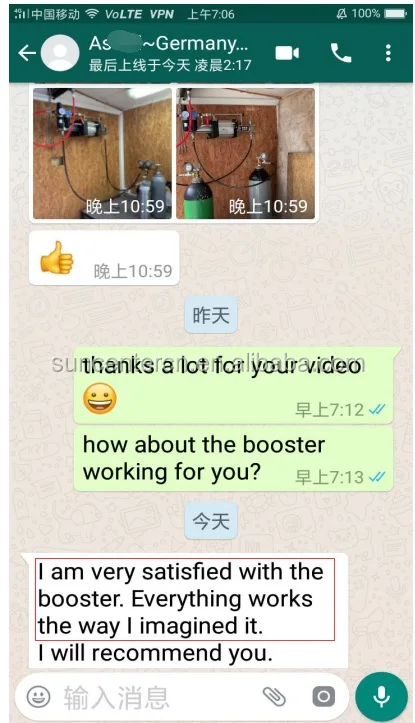

Customer review

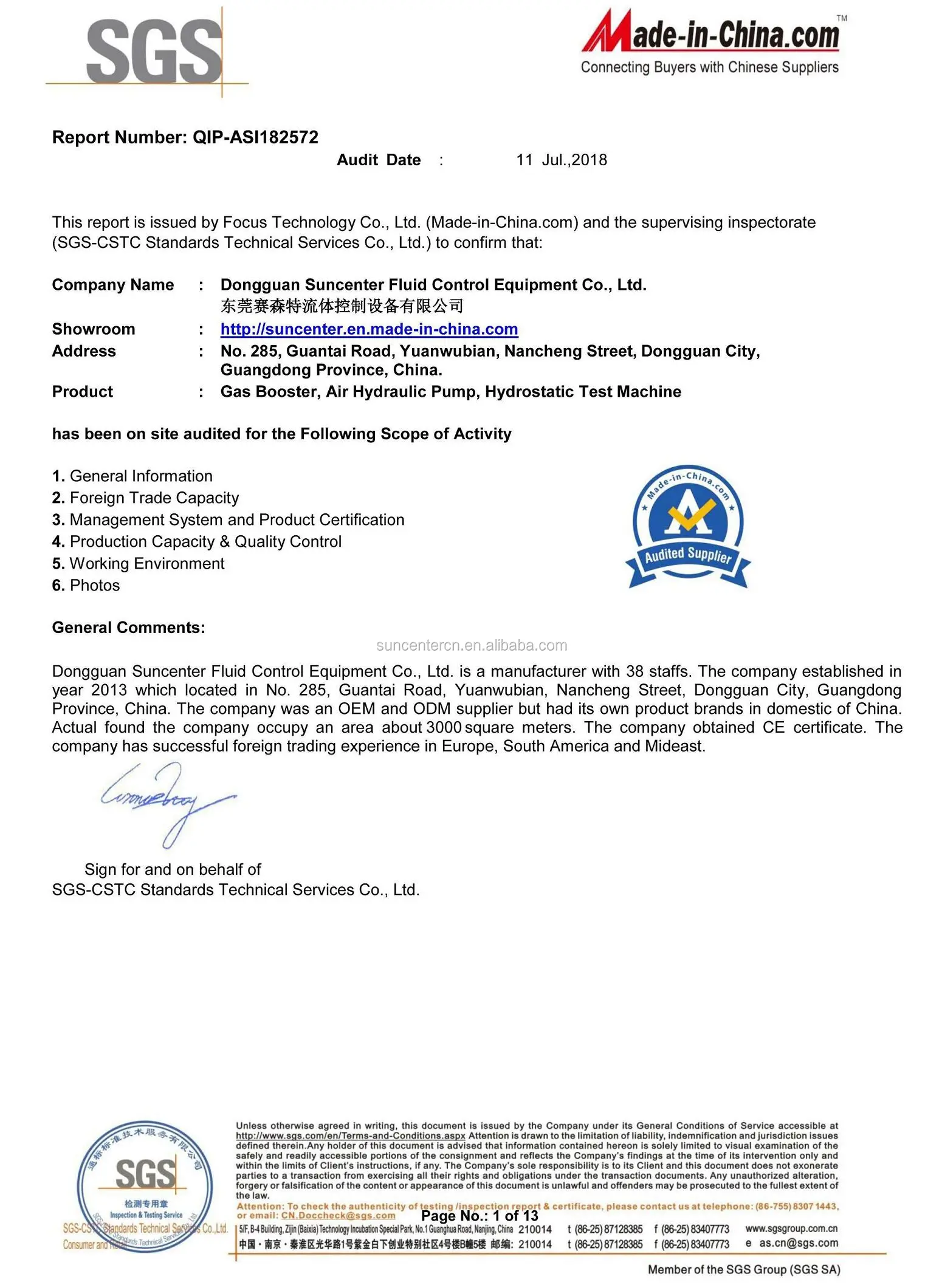

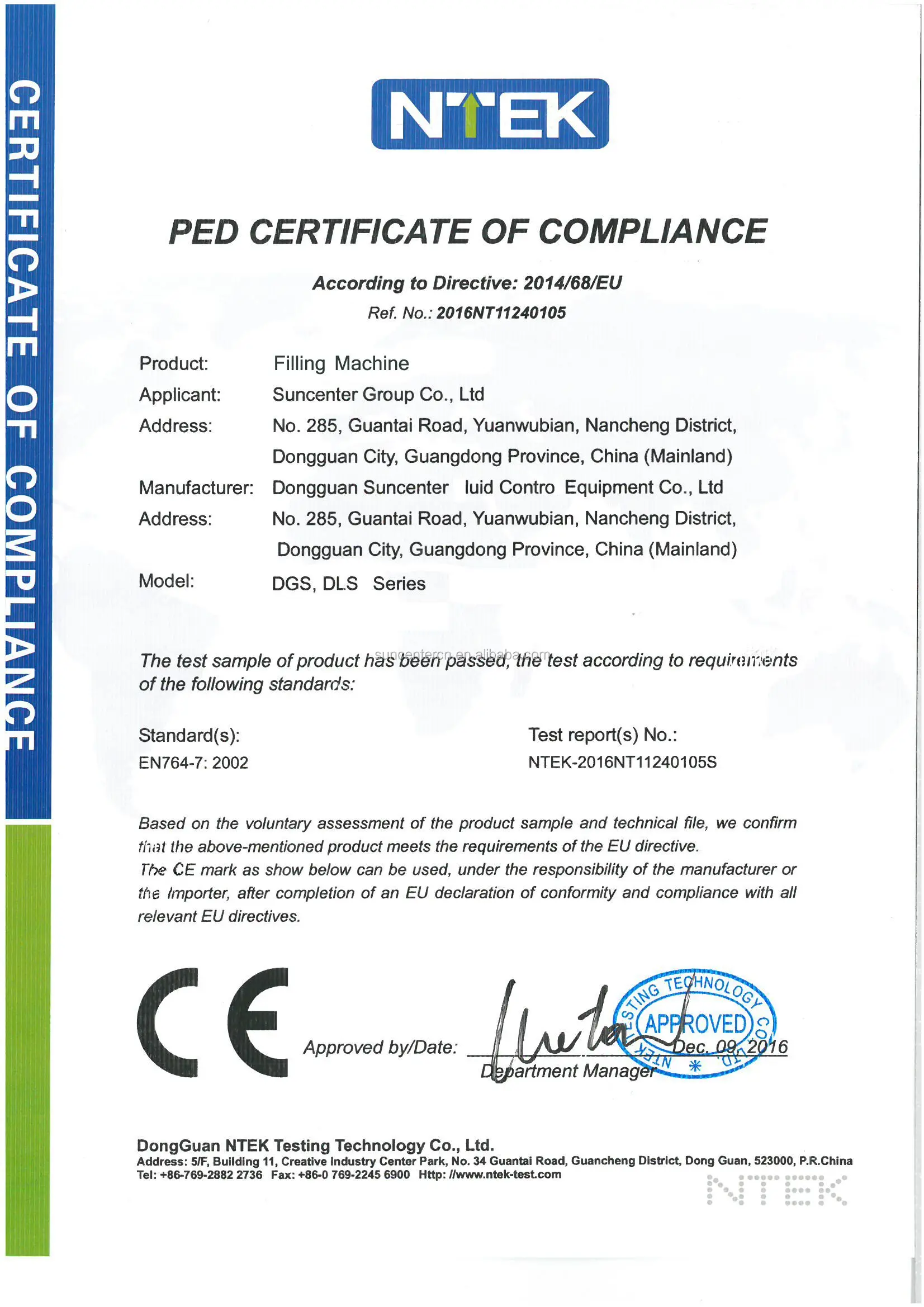

Certification
FAQ
Q: Are you factory?
A: Yes, we have more than 15 years experiences in high pressure fluid exchange and controlling field,we provide various kinds of pneumatic and hydraulic boosters,systems and solutions.
Q: Where's your location? can I visit you? A:Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China.
Q: How to operate the machine?
A: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q: How long is your warranty? A: 13 months.
Q: Where's your location? can I visit you? A:Welcome to visit Suncenter, we are in Dongguan City, Guangdong province, China.
Q: How to operate the machine?
A: After you get the machine, we will send you the working video to teach you for maintenance and operating.
Q: How long is your warranty? A: 13 months.
Our Advantages
-1. 15 years of manufacturing experience history.
-2. faster lead time, the fastest delivery is about 5-10 working days.
-3. CE & SGS certificate approval factory.
-4. Quality control for every step while production.
-5. Professional engineers have working experience in Maximator.
