  • M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector
M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector

M16 Waterproof Connector 5 Pin 5 Core IP67 Male Female Plug LED Connector

Share on (1600523462532):


Price:USD 0.75 - USD 1.68

Quantity:


Product Overview

Description





Products Description




Product Specification




Mechanical Property
Contact Cores
2Pin
5Pin
Male Pin diameter
φ2.3mm
φ1.5mm
Male / Female Contact Material
Brass (Gold plating / Nickel Plating)
Over-Mold Material
PA66
Insulator Material
PA66+30% fiber
Wire Gauge
<2.5mm2
<1.0mm2
Cable Diameter
6-11mm
Protection Degree
IP67
Operating Temperature
-40℃-125℃
Plug / unplug Durability
1500


Electrical Property
Pins Number
2Pin
5Pin
Rated Current
15A
10A
Rated Voltage
250V
Test Voltage
1000V
Contact Resistance
10mΩ
Insulation Resistance
200MΩ




Details Images

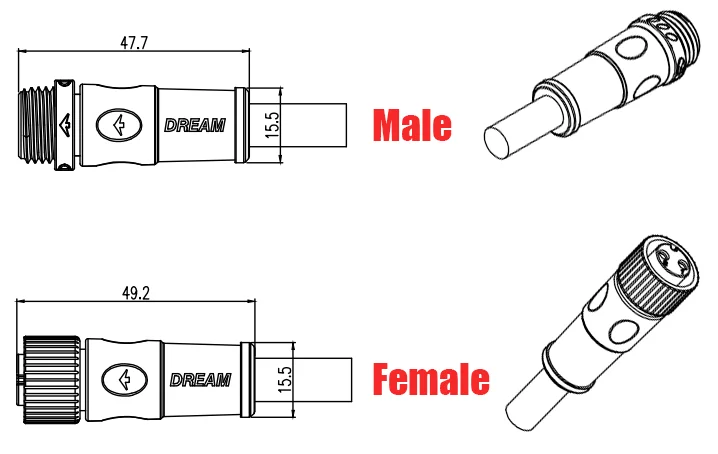

Product Paramenters




Customer Feedback




Product packaging




Why Choose Us


Shenzhen Realeader Industrial Co.,Ltd
Shenzhen Realeader Industrial Co.,Ltd , which focus on waterproof connectors for over 14 years. Realeader's main products are waterproof plugs , waterproof connectors and circular connectors . The company with independent research and development capabilities , scientific and sound production management system and a wide rang of testing equipment , has passed ISO9001 quality management system.

Adhering to the spirit of continual learning and striving for perfection, the company has developed a variety of waterproof signal connectors , waterproof power connectors , waterproof motor plugs , waterproof mufti-function plugs, "T" type connectors , "Y" type connector , as well as other types of waterproof connectors and circular connectors . The products are widely used in LED lighting lamp , intelligent induction products , household products , new energies , electrical bicycle motor , outdoor appliance, transportation , agricultural machinery and other industrial and fields .

We sincerely look forwarder to working with the board masses of new and old customers sincere cooperation, mutual benefit the industry level and create a better future !




FAQ
1. Q: Do you have E-catalog? Can you send me the catalog to check all your products?
A: Yes,we have product catalog.Please contact us online or send an Email for catalog.

2. Q: I need your price list of all your products, do you have a price list ?
A: Sorry , we do not have the price list of all the product , we also need to check the price from our company price system ,thanks for your kindly understanding .

3. Q: Does your company provide OEM and ODM service ?
A: Yes , Our Company provide OEM & ODM service , Pls kindly provide your company Logo and Your own drawing for our engineer reference , thank you
4. Q : Can I have my own design for the package ?
A : Yes. Pls kindly provide your design and Dimension of the Cartons , thanks

5. Q: Can you provide Free samples ?
A: Yes , we can provide 2 piece free sample for your test , just pay the shipping cost we can send the sample to you .

6. Q: What kind of payment do you accept ?
A: We accept T/T(Wire transfer), Western Union and Paypal.
7. Q : What about your delivery time ?
A : We have a lot of products in stock . We can send the stock products in 3-4days. If without stock , we need to confirm the delivery time according to your detailed quantity .
