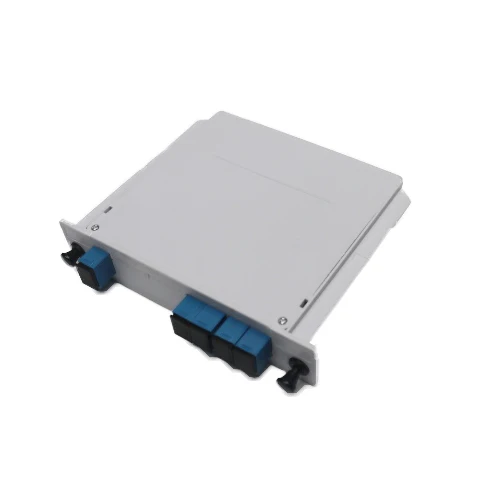

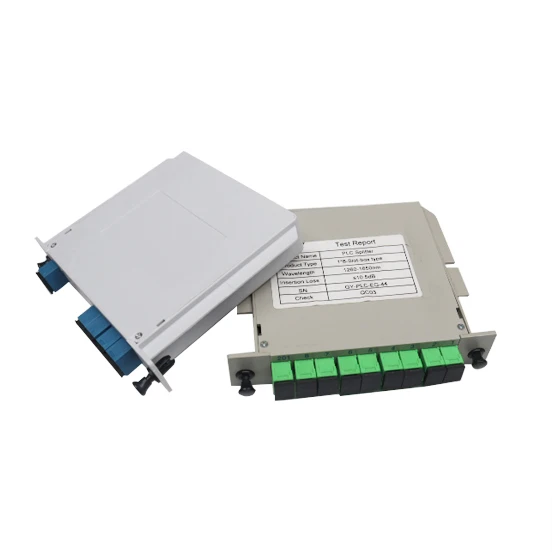

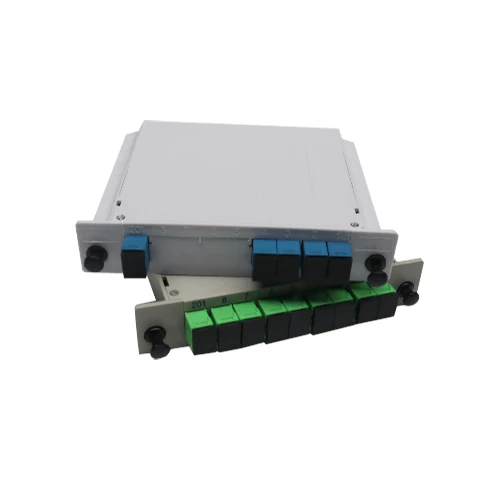

APT SC APC UPC PLC 1X4 1X8 1X 16 Single Mode Splitter Device Cassette Passive Fiber Optical Box 2/4/8/16 Way FTTH
- Category: >>>
- Supplier: Qingdao Applied Photonic Technologies Co. Ltd.
Share on (1600523464046):
Product Overview
Description
Products Description
Quick details
PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the
characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.
characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.
Product application
1) LAN, WAN and Metro Networks
2) FTTH project & FTTX Deployments
3) CATV System
4) GPON, EPON
5) Data-base Transmit Broadband Net
2) FTTH project & FTTX Deployments
3) CATV System
4) GPON, EPON
5) Data-base Transmit Broadband Net
Product properties
Product Features:
1)Low insertion loss, and High reliability

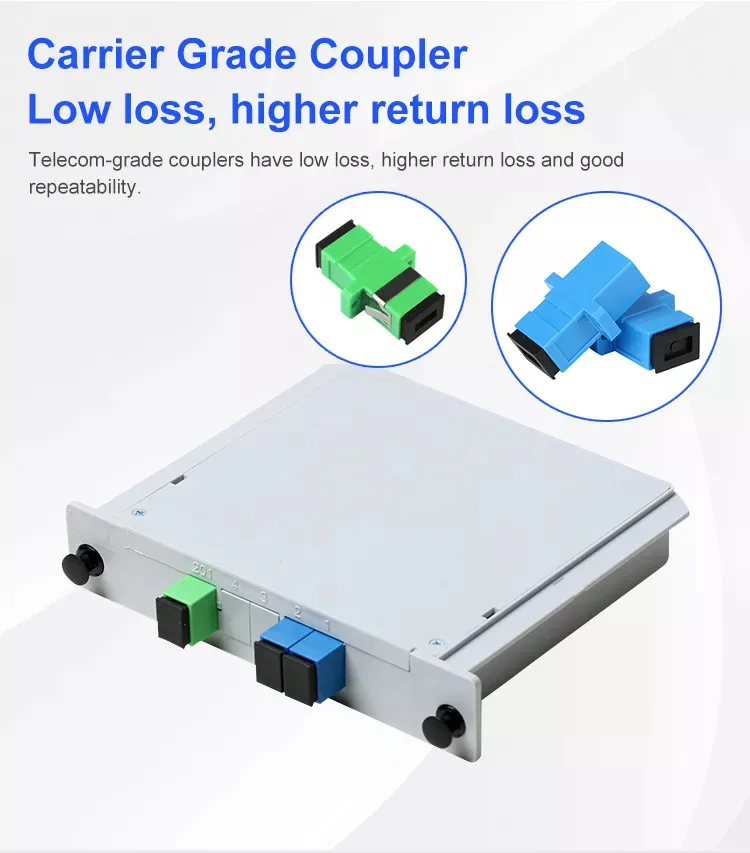

2)High return loss and Good repeatability
3)High stability
4)Wide wavelength range
2)High return loss and Good repeatability
3)High stability
4)Wide wavelength range
Specification
Parameter | Unit | Specification | ||||||||||||
Operating Wavelength | nm | 1260 ~ 1650 | ||||||||||||
Type | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | ||||||||
Insertion Loss | dB | ≤3.8 | ≤7.4 | ≤10.5 | ≤13.5 | ≤16.8 | ≤20.5 | |||||||
Uniformity | dB | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | |||||||
PDL | dB | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | |||||||
Directivity | dB | ≥55 | ||||||||||||
Return Loss | dB | ≥55 | ||||||||||||
Operating Temperature | °C | -10~ +75 | ||||||||||||
Storage Temperature | °C | -40 ~ +85 | ||||||||||||
Fiber length | m | 1m or custom length | ||||||||||||
Fiber Type | / | Corning G.657A1/G.657A2 | ||||||||||||
Power Handling | mW | 300 | ||||||||||||
Note：2xN，the IL plus 0.2dB. | ||||||||||||||
DIMENSION | ||||||||
TYPE | 1x2,1x4,1x8 | 1x16 | 1x32 | 1x64 | ||||
Slot/cassate(mm) | 130x100x25mm | 130x100x50mm | 130x100x102mm | 130x100x206mm | ||||
Product packaging
Type | Qty(pcs)/carton | Carton size(mm) | N.W(kg) | ||
Slot/cassate | 1x2(SU/SA) | 10 | 350x230x120 | 2.4 | |
80 | 575x275x270 | 19 | |||
1x4(SU/SA) | 10 | 420x270x210 | 2.5 | ||
80 | 570x430x460 | 20 | |||
1x8(SU/SA) | 10 | 420x270x210 | 2.6 | ||
80 | 570x430x460 | 20.8 | |||
1x16(SU/SA) | 5 | 420x270x210 | 1.2 | ||
40 | 570x430x460 | 9.5 | |||
1x32(SU/SA) | 10 | 420x270x210 | 3.0 | ||
40 | 570x430x460 | 12 | |||
1x64(SU/SA) | 20 | 570x430x460 | 8 | ||
Company profile
Qingdao Applied Photonic Technologies Co., Ltd. (APT for short) is a Sino-Canadian joint venture specialized in passive optical components, photoelectric transmission equipments, and CATV equipments that are in-phase with international advanced technology.
With headquarters in Qingdao Free Trade Zone, APT runs offices in North America, Beijing, Guangzhou, and Shenyang of China. With RMB20 million of registered capital, covering an area of 20,000 square meters, we own a 4500-square-meter Class 100,000 clean room. All production and inspection equipments are from the USA, Japan, Canada, and Taiwan.
APT is an ISO9000 certified company. (by both UKAS and CQC). In China our products have passed the test of quality certification process of the Ministry of Telecommunication and Information Industry, and the State Administration of Radio Film and Television. APT was also awarded as the enterprise funded by excellent homecoming people in 2002, and confirmed as one of 500 Experimental Units of Sincerity of Foreign Trade Corporations by the Ministry of Commerce.
APT aims to offer clients inside and abroad with high-quality products and perfect services, exerting great efforts to meet the ever-changing demands of markets and clients in the future, launching competitive products and providing reliable service to enrich the life of communication.
With headquarters in Qingdao Free Trade Zone, APT runs offices in North America, Beijing, Guangzhou, and Shenyang of China. With RMB20 million of registered capital, covering an area of 20,000 square meters, we own a 4500-square-meter Class 100,000 clean room. All production and inspection equipments are from the USA, Japan, Canada, and Taiwan.
APT is an ISO9000 certified company. (by both UKAS and CQC). In China our products have passed the test of quality certification process of the Ministry of Telecommunication and Information Industry, and the State Administration of Radio Film and Television. APT was also awarded as the enterprise funded by excellent homecoming people in 2002, and confirmed as one of 500 Experimental Units of Sincerity of Foreign Trade Corporations by the Ministry of Commerce.
APT aims to offer clients inside and abroad with high-quality products and perfect services, exerting great efforts to meet the ever-changing demands of markets and clients in the future, launching competitive products and providing reliable service to enrich the life of communication.
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-2 days, mass production time needs 1-2 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5. What about delivery time?
A: 1) Samples: Within one week. 2) Goods: 15-20 days usually.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-2 days, mass production time needs 1-2 weeks.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
Q5. What about delivery time?
A: 1) Samples: Within one week. 2) Goods: 15-20 days usually.
