rubber vulcanizing machine with piston plunger

Equipment use conditions and requirements:

• The machine has the functions of automatic control of rising, automatic constant temperature, automatic pressure holding, vulcanization timing, alarm when the time comes, manual mold opening and falling;


• The equipment pipes are connected by seamless steel pipes, pressure and oil resistant, and no noise is generated during work;


• The entire hydraulic oil circuit system adopts advanced welding technology and sealing measures, there will be no oil leakage, and there will be no crawling or jitter during the pressurization process;


• The equipment has automatic pressure compensation function during mold clamping to ensure that the pressure drop does not exceed 10% during the pressure holding process within one hour;


• High-pressure mold clamping is performed at a suitable speed,immediately after the mold clamping action of the equipment is completed. After the mold clamping, the air can be arbitrarily exhausted. The number of exhausts and the exhaust time are manually achieved. Immediately after the deflation action is completed, it is transferred to the state of holding pressure vulcanizer.


• The hydraulic control system of this machine is controlled by manual control valve, and the template can stay at any position during the mold clamping process.


• The equipment has process parameters that can be adjusted, such as: vulcanization time (99 minutes 59 seconds), vulcanization temperature (0-200 ° C) arbitrary adjustment settings.

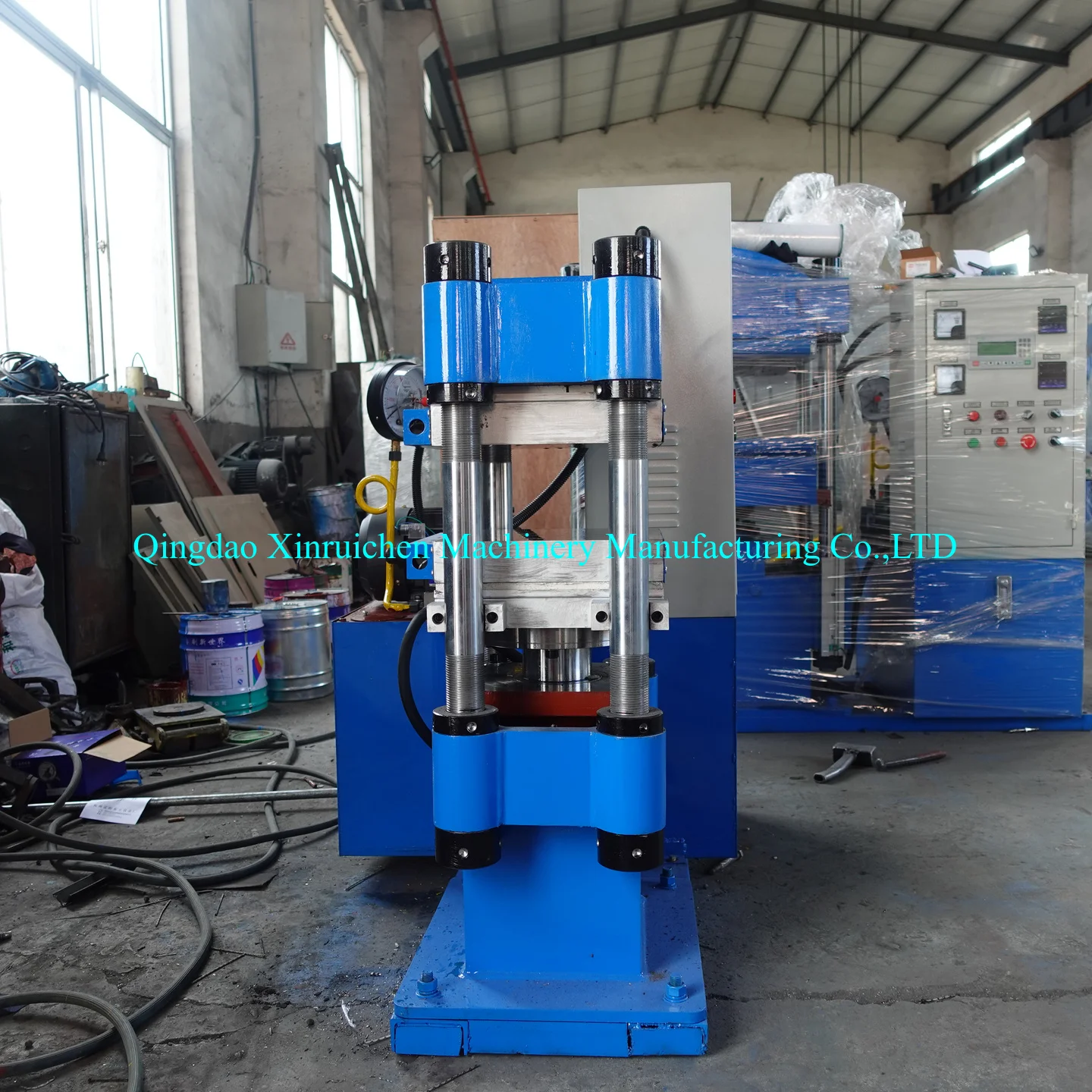

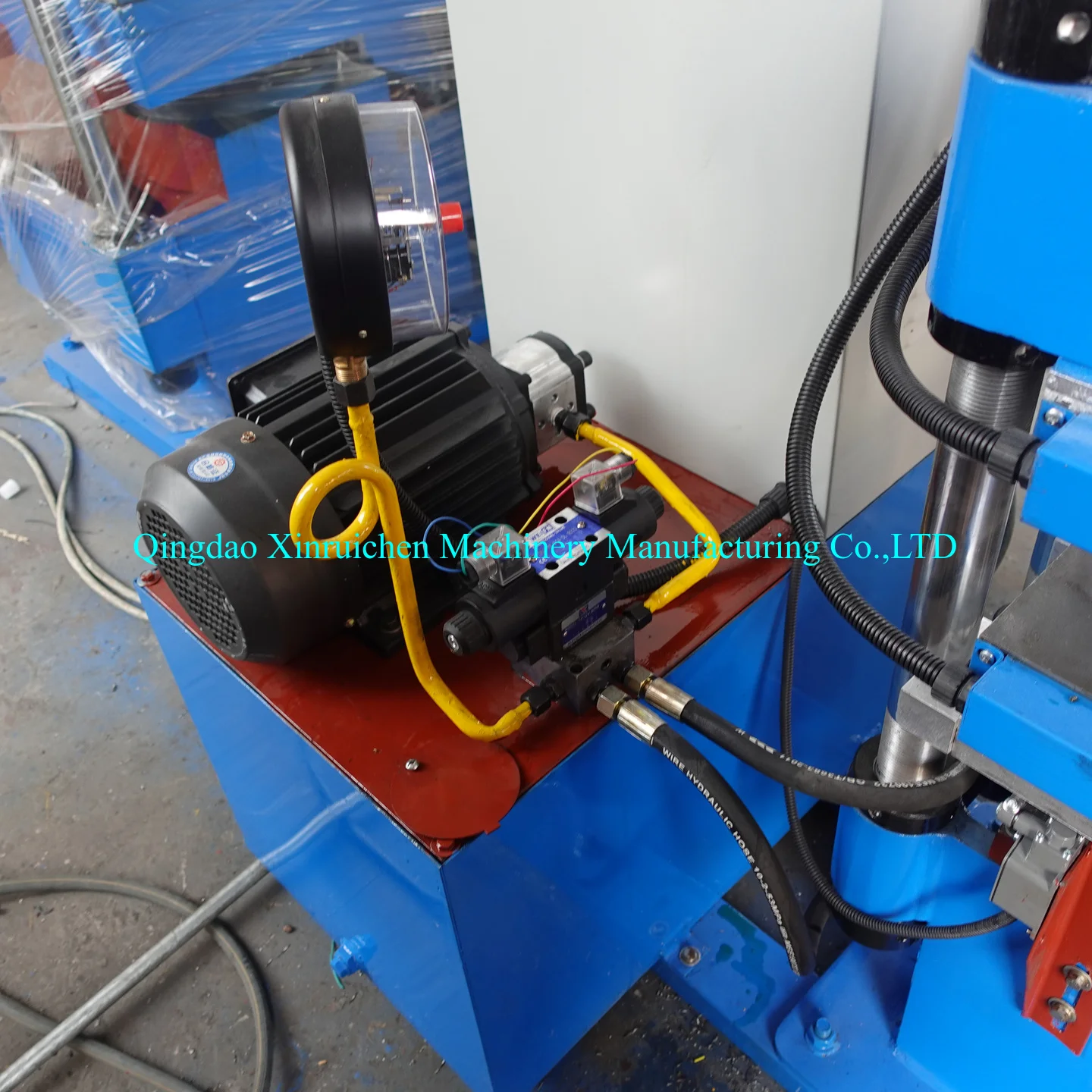

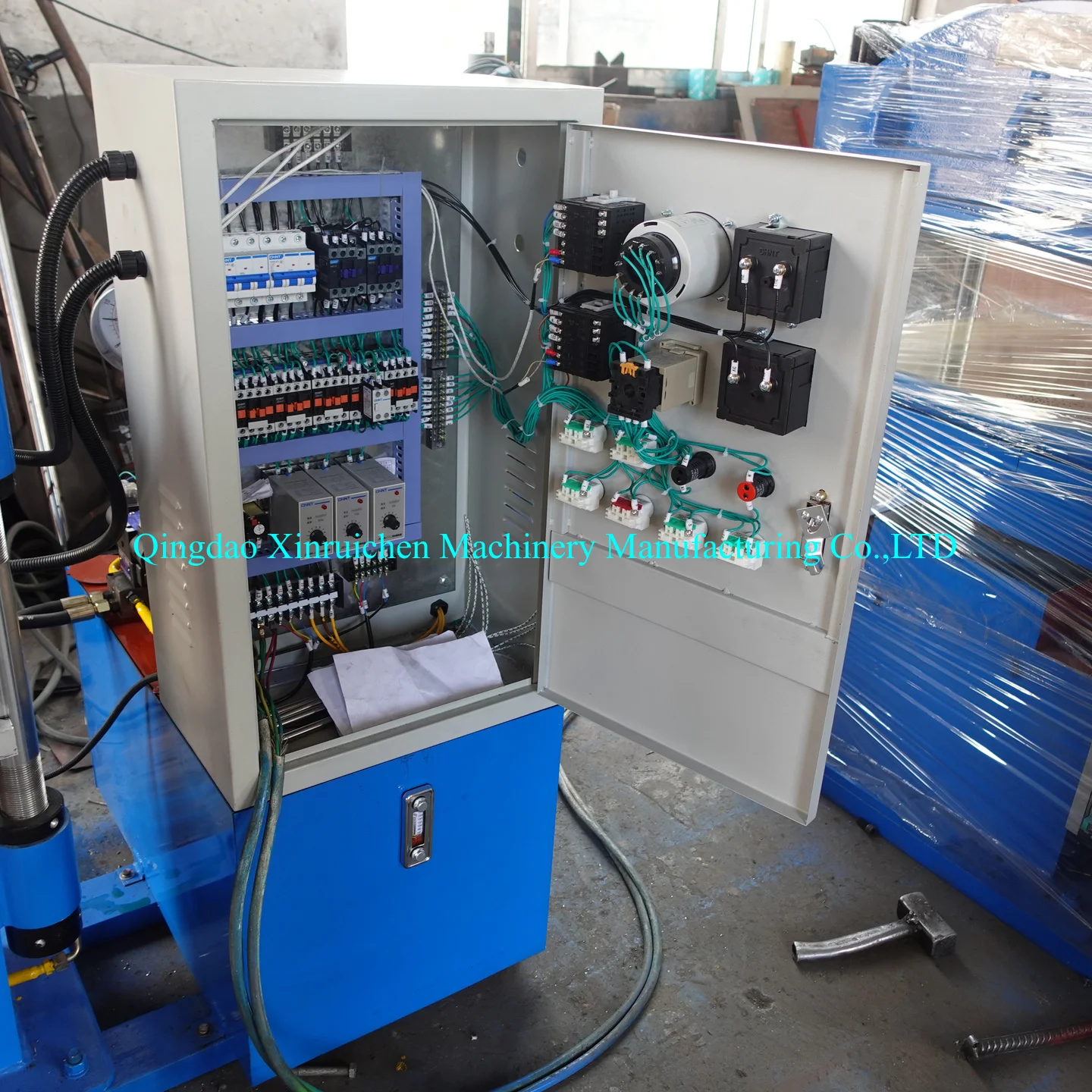

Detailed Pictures
