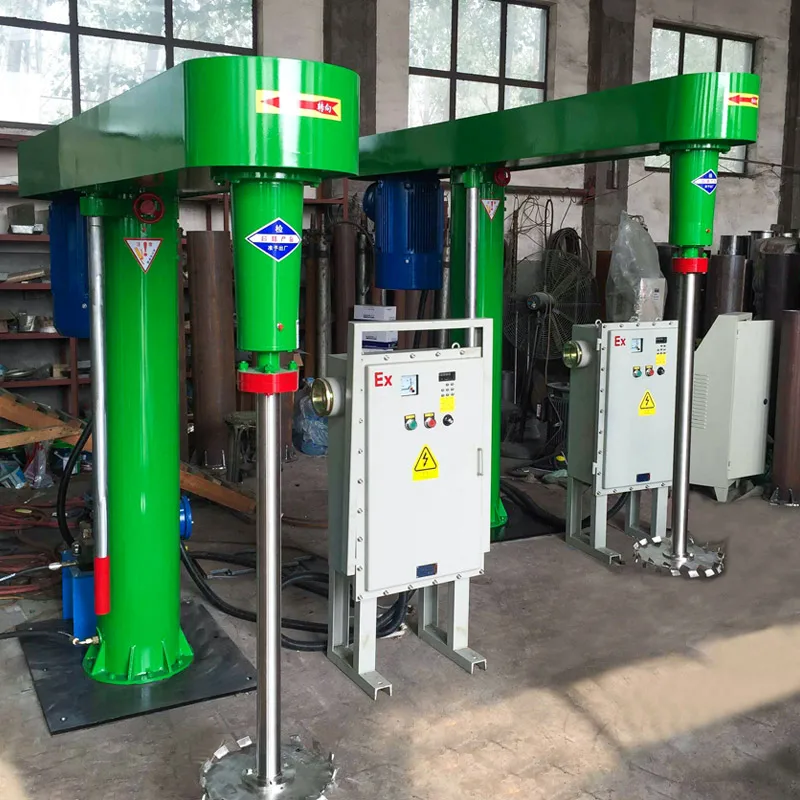

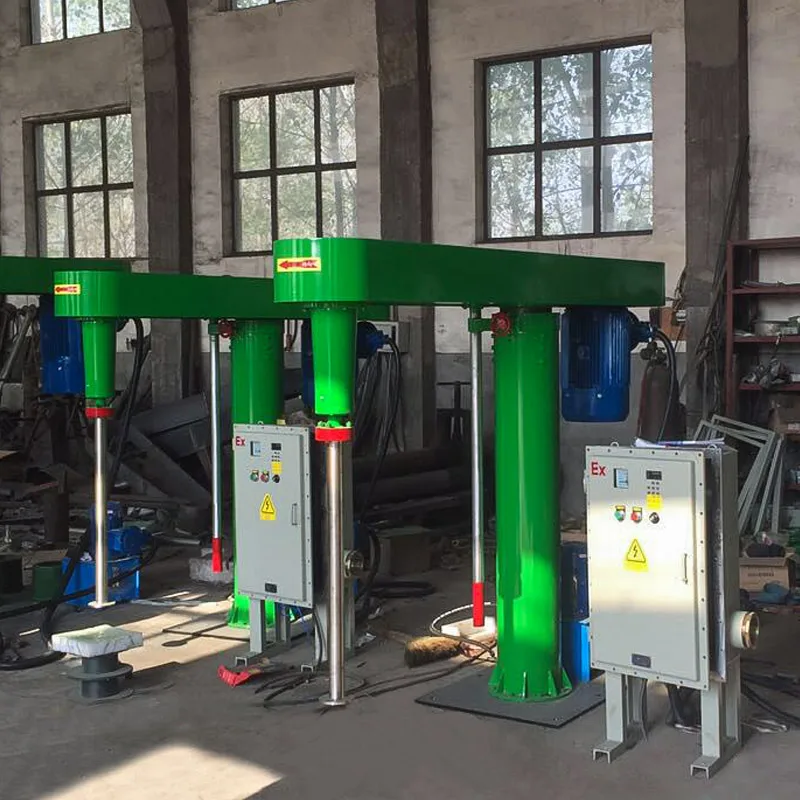

7.5kwKW ex proof High Speed Disperser Paint Mixer Ink Dissolver Acrylic Coatings Dispersion Mixer 500L Paint Mixing Machine
- Category: >>>
- Supplier: Laizhou Keda Chemical Machinery Co. Ltd.
Share on (1600523509371):
Product Overview
Description
Product Description
22KW High Speed Disperser Paint Mixer Ink Dissolver Acrylic Coatings Dispersion Homogenizer Mixer 1000L Paint Mixing Machine
Brief Introduction:
High speed Disperser, adopting high speed agitator (usually a disc sawtooth agitator) that can form a strong vortex locally,
reaching an excellent dispersing and emulsifying effect to the processed material.
High speed Disperser, adopting high speed agitator (usually a disc sawtooth agitator) that can form a strong vortex locally,
reaching an excellent dispersing and emulsifying effect to the processed material.
1. Mixing Capacity: 10-5000L.
2.Mixing shaft: single shaft & double shaft
3. Function: mixing and dispersering
4. Lifting Way: hydraulic lift,mechanical lift
5.Motor power: Customized
6. Contact Material: stainless steel
7. Speed: controlled by frequency converter.
2.Mixing shaft: single shaft & double shaft
3. Function: mixing and dispersering
4. Lifting Way: hydraulic lift,mechanical lift
5.Motor power: Customized
6. Contact Material: stainless steel
7. Speed: controlled by frequency converter.

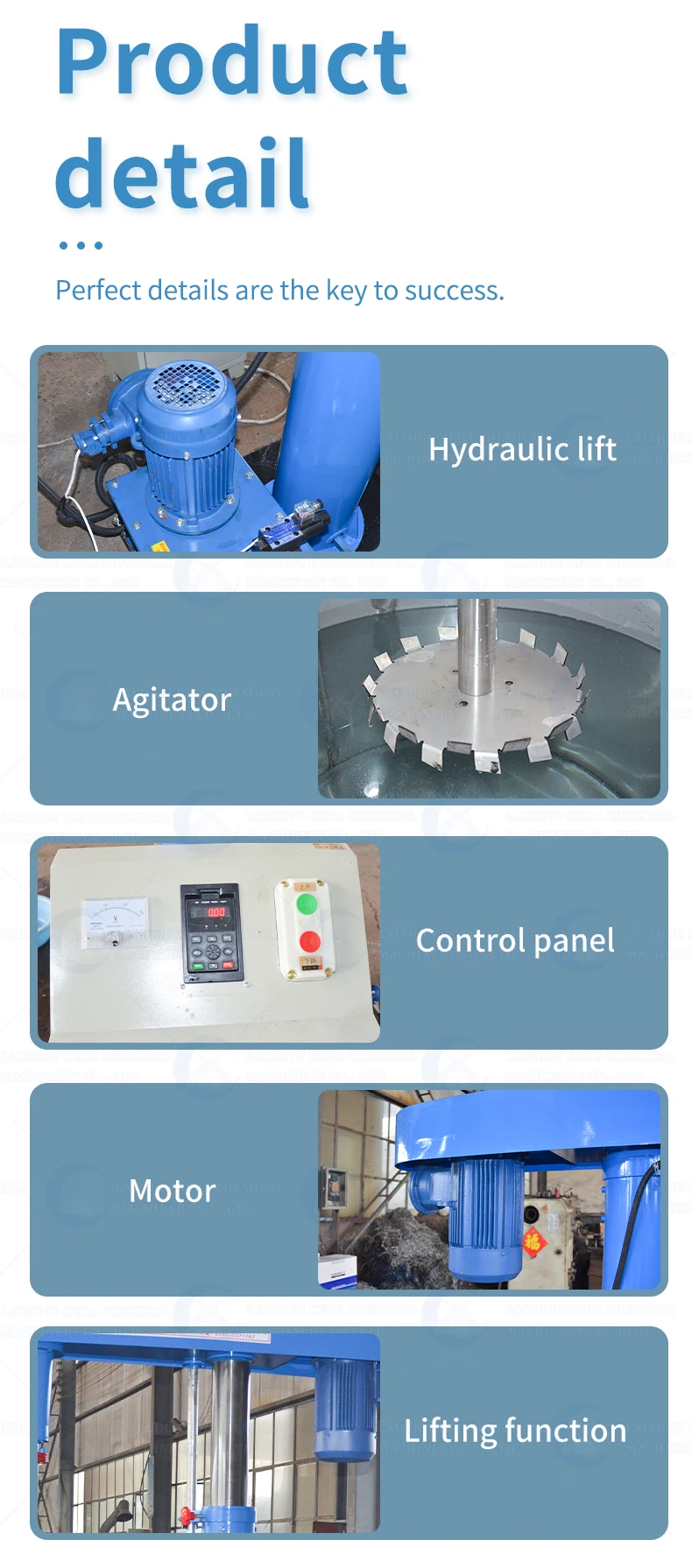

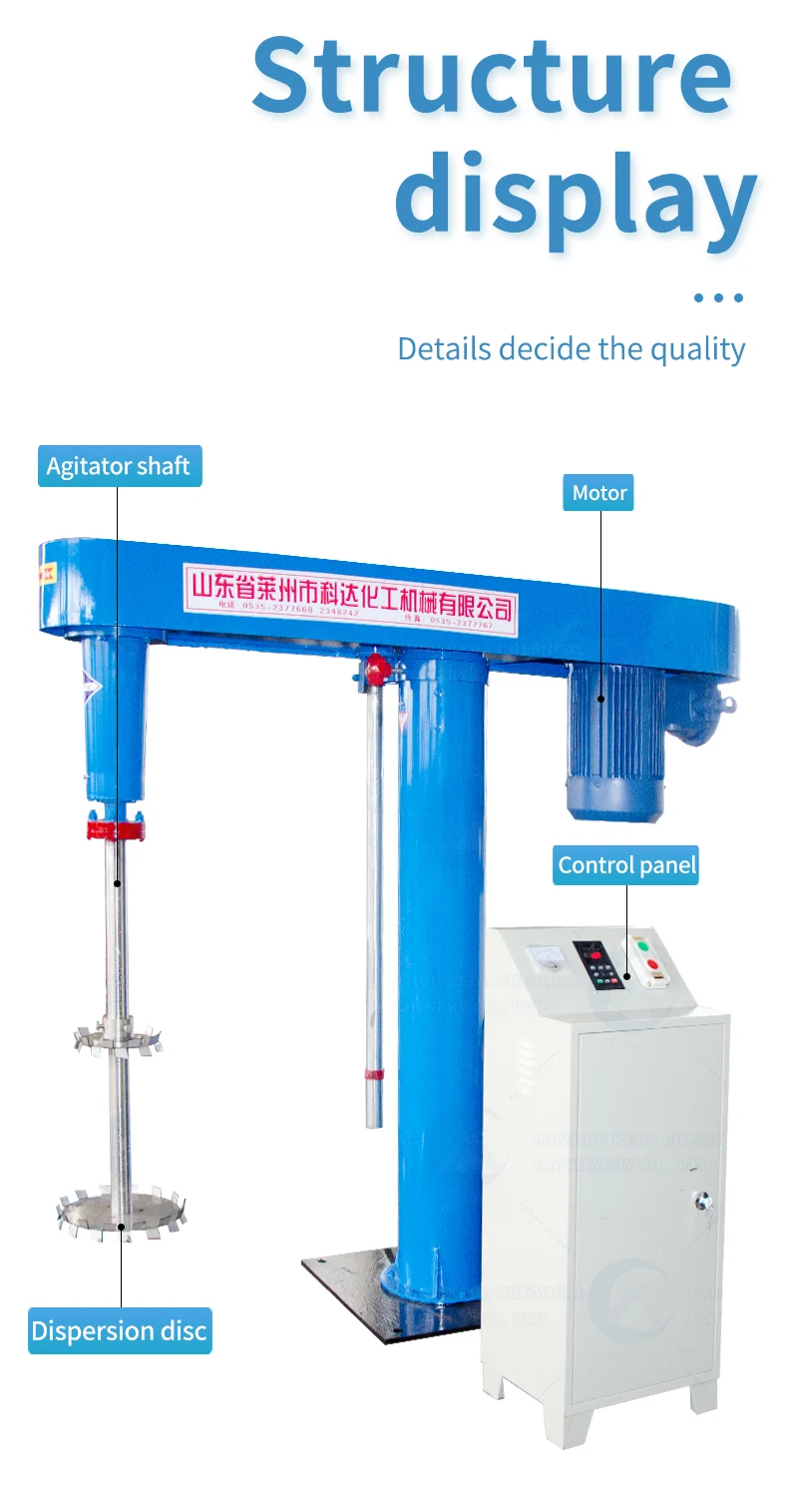

Structure Composition:
This is a "Hydraulic lifting" type, mainly consist of:
Mixing part: Shaft + Stirrer
Frame part: Machine frame
Hydraulic unit: hydraulic station + hydraulic motor
Driving system: Main motor + Invertre + Belt + Pulley

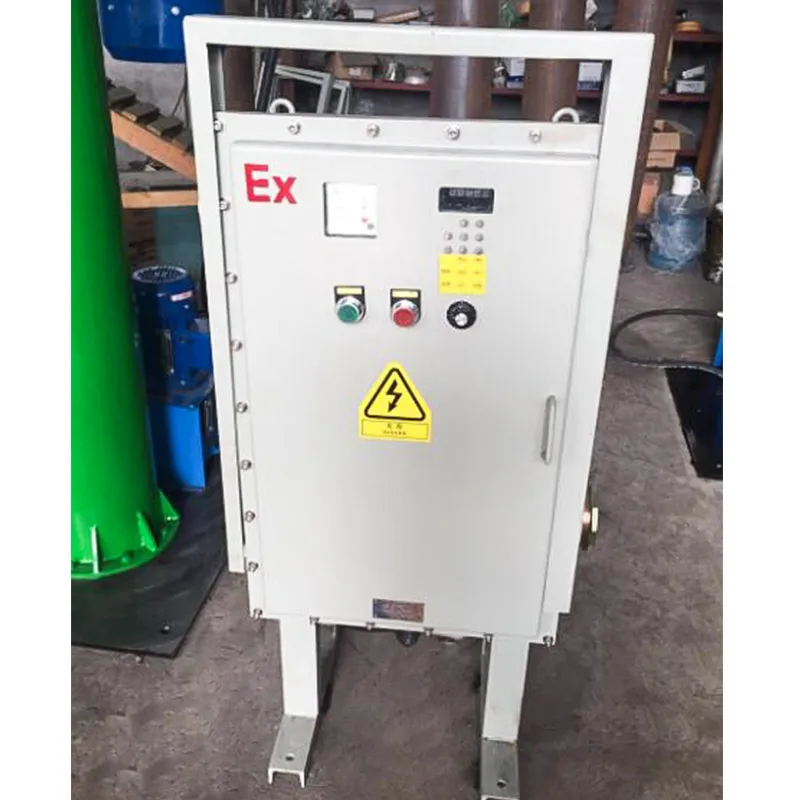

Electric control system: Control cabinet
This is a "Hydraulic lifting" type, mainly consist of:
Mixing part: Shaft + Stirrer
Frame part: Machine frame
Hydraulic unit: hydraulic station + hydraulic motor
Driving system: Main motor + Invertre + Belt + Pulley
Electric control system: Control cabinet
Working Principle:
Through the high-speed operation of the dispersing disc, the material flows in an annular shape, generating a vortex, and
descending to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between the particles.
Through the high-speed operation of the dispersing disc, the material flows in an annular shape, generating a vortex, and
descending to the bottom of the vortex in a spiral shape. Strong shear impact and friction are generated between the particles.
Achieve the function of rapid dispersion, dissolving and uniform mixing
Processed material: Various slurries with material viscosity below 25000 cps and solid content below 60%.
Applicable materials: Suitable for thousands of materials such as Latex paint, Industrial paint, Water-based ink, Adhesives, etc.
Processed material: Various slurries with material viscosity below 25000 cps and solid content below 60%.
Applicable materials: Suitable for thousands of materials such as Latex paint, Industrial paint, Water-based ink, Adhesives, etc.
Model（Power） | Speed/rpm （Alpha Inverter） | Disc head | Lifting distance/mm | Mixing ability |
400W | 0-8000 | 60 | 200 | 2L |
1.1KW | 0-8000 | 80 | 400 | 10L |
1.5KW | 0-3000 | 120 | 500 | 50L |
2.2KW | 0-3000 | 150 | 500 | 100L |
3KW | 0-1650 | 200 | 800 | 50-300L |
4KW | 0-1650 | 200 | 800 | 100-500L |
5.5KW | 0-1650 | 250 | 1100 | 200-1000L |
7.5KW | 0-1650 | 250 | 1100 | 200-1000L |
11KW | 0-1650 | 280 | 1150 | 500-1000L |
15KW | 0-1650 | 300 | 1150 | 500-1500L |
18.5KW | 0-1650 | 350 | 1150 | 500-1500L |
22KW | 0-1650 | 200-350 | 1200 | 500-1500L |
30KW | 0-1650 | 200-400 | 1300-1400 | 1000-2000L |
37KW | 0-1650 | 200-500 | 1400 | 1000-3000L |
45KW | 0-1650 | 200-500 | 1400 | 1500-3000L |
55KW | 0-1650 | 200-500 | 1400-1500 | 2000-5000L |

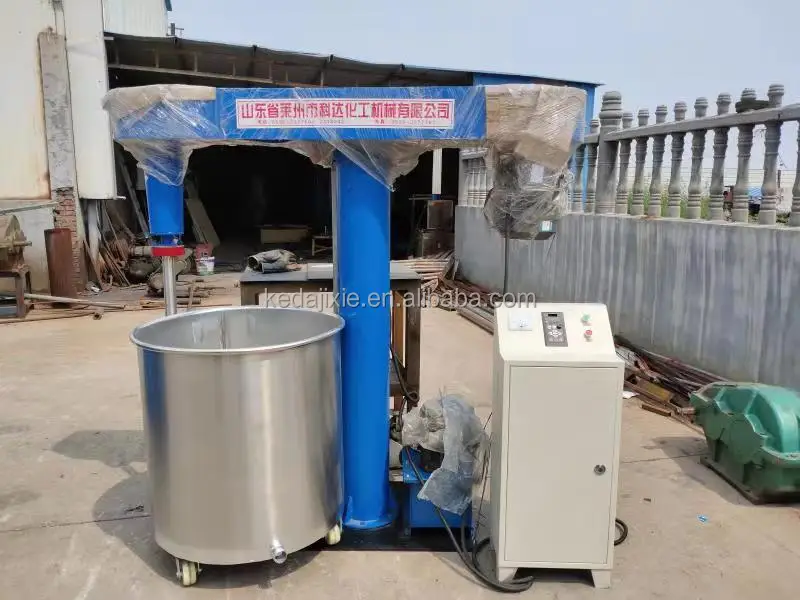

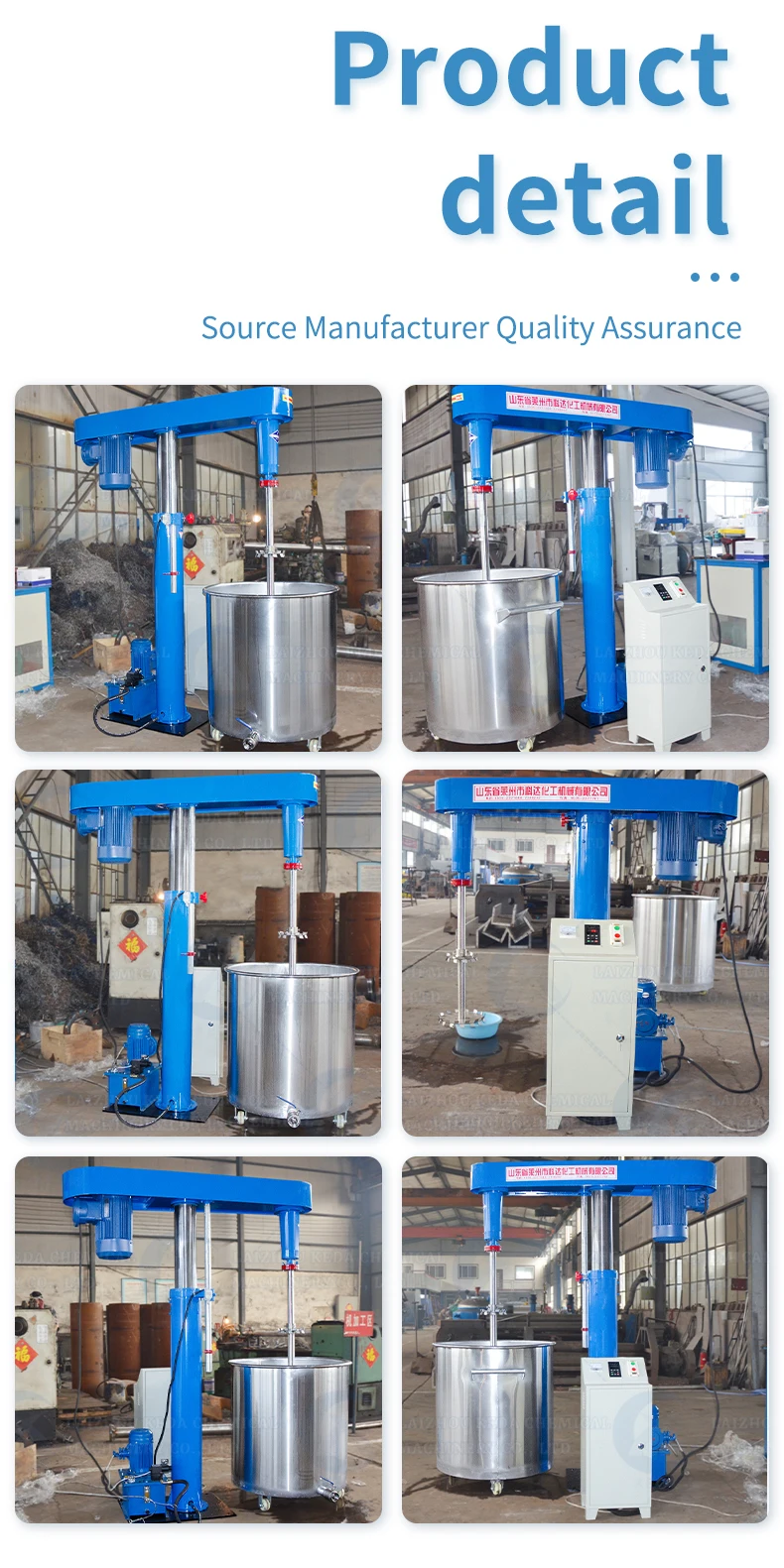

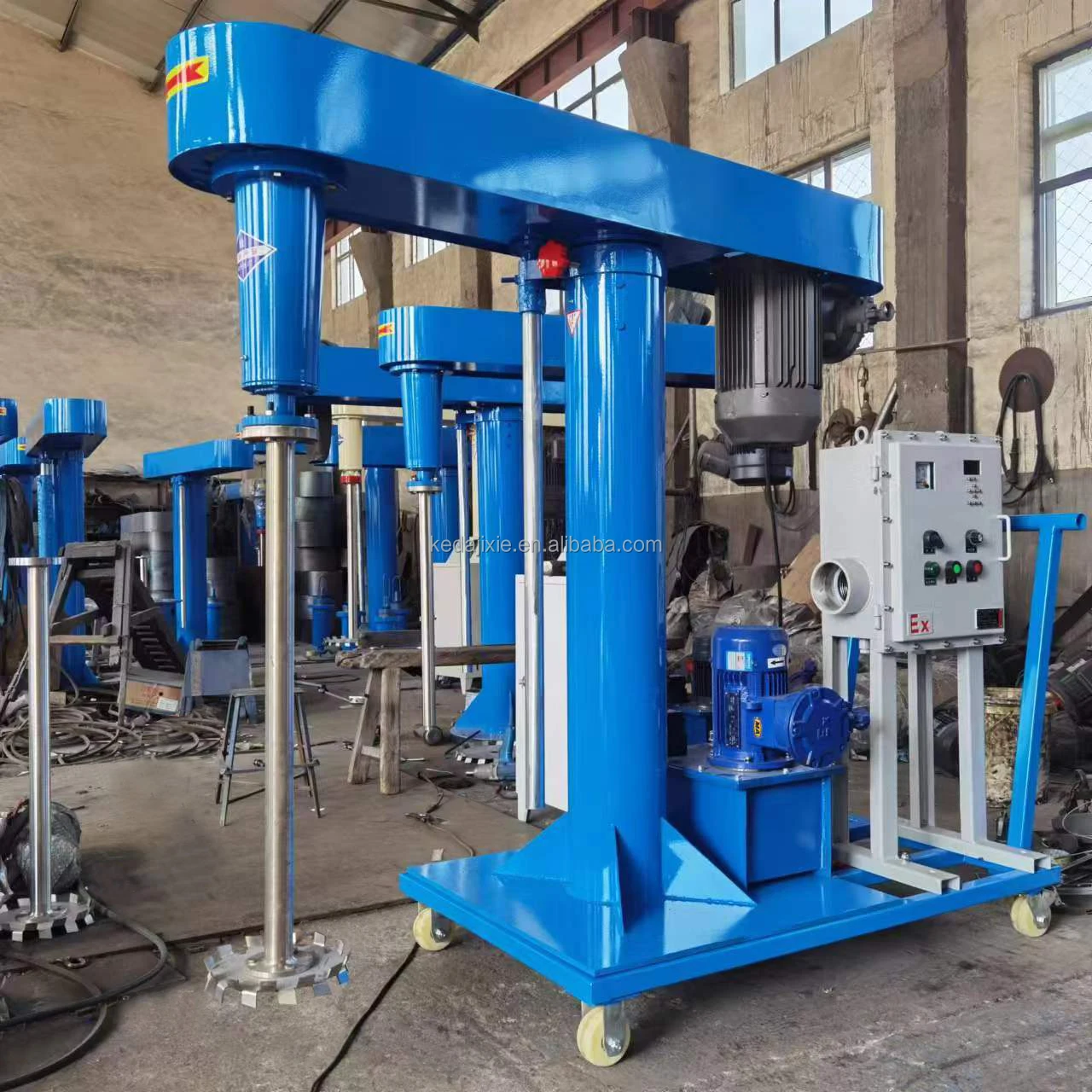

Detailed Images

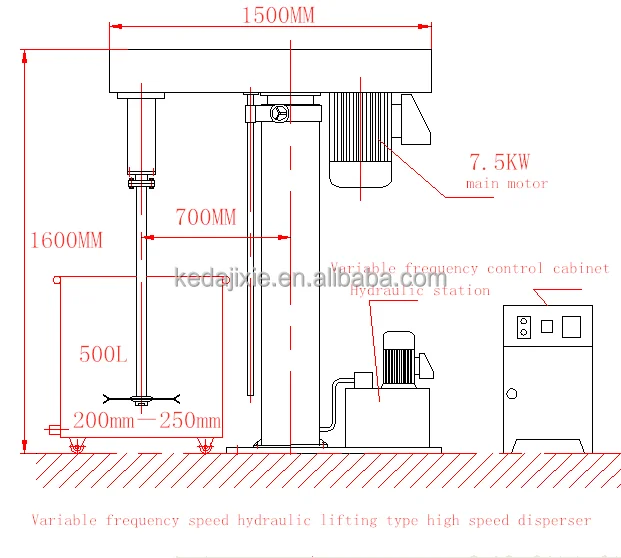

Before lifting: distance between stirrer and ground is 250 mm
Hydraulic lifting: 1200 mm lifting height, when it lift to the maximum, distance between the stirrer and ground is 1450 mm
