60w 80w 100w 130w 150w co2 1390 laser cutting machine
US $2400-$5500
Cnc Metal Aluminum Ms Ss Carbon/ Mild /stainless Steel Rectangular Square Round Fiber Tube Pipe Laser Cutting Machine
- Category: Industry Laser Equipment >>>
- Supplier: Foshan Longxin Laser Technology Co. Ltd.
Share on (1600523558671):
Product Overview
Description

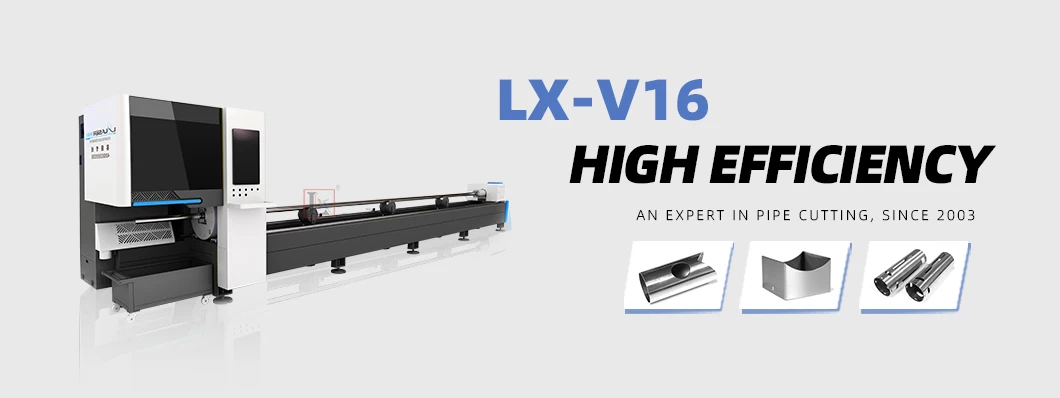

An Expert in Pipe Cutting, Since 2003
Super fast cutting speed, more precise cutting – LX-V16
Application:
furniture, auto parts, fitness equipment, medical treatment, sanitary ware, hardware accessories, etc.
Product Description

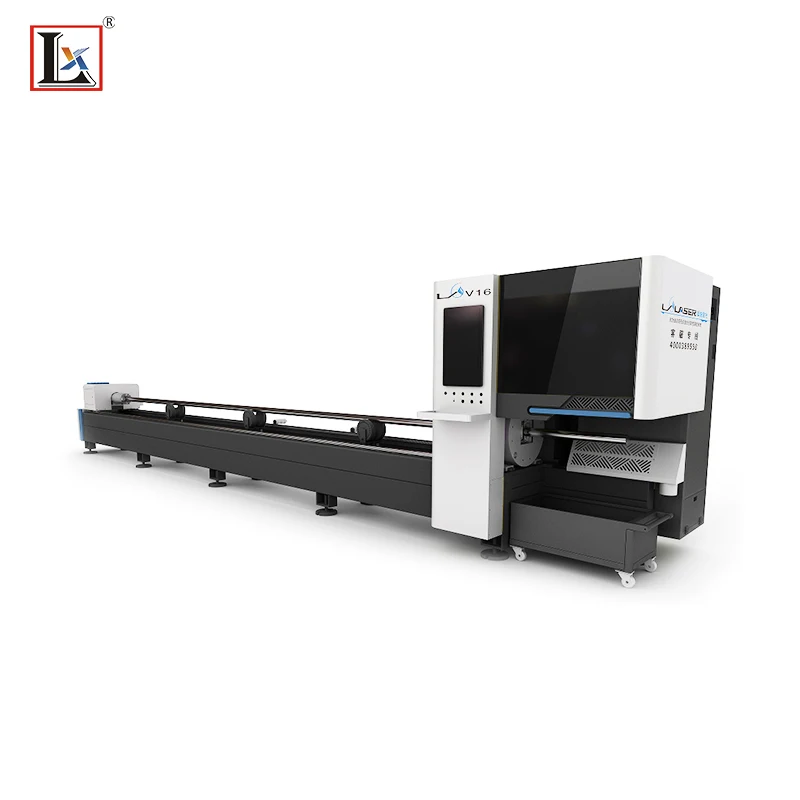

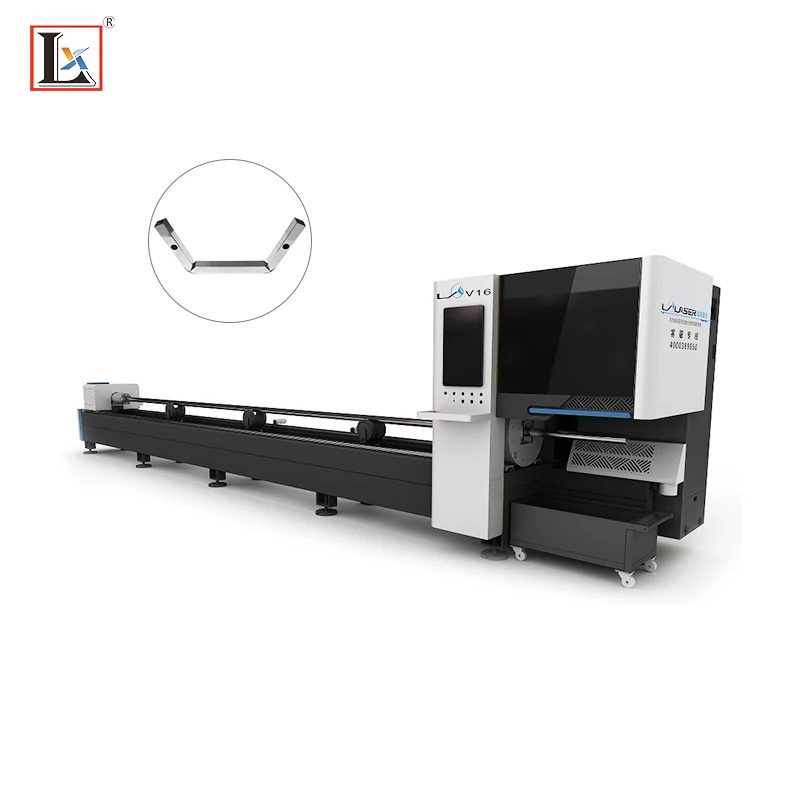

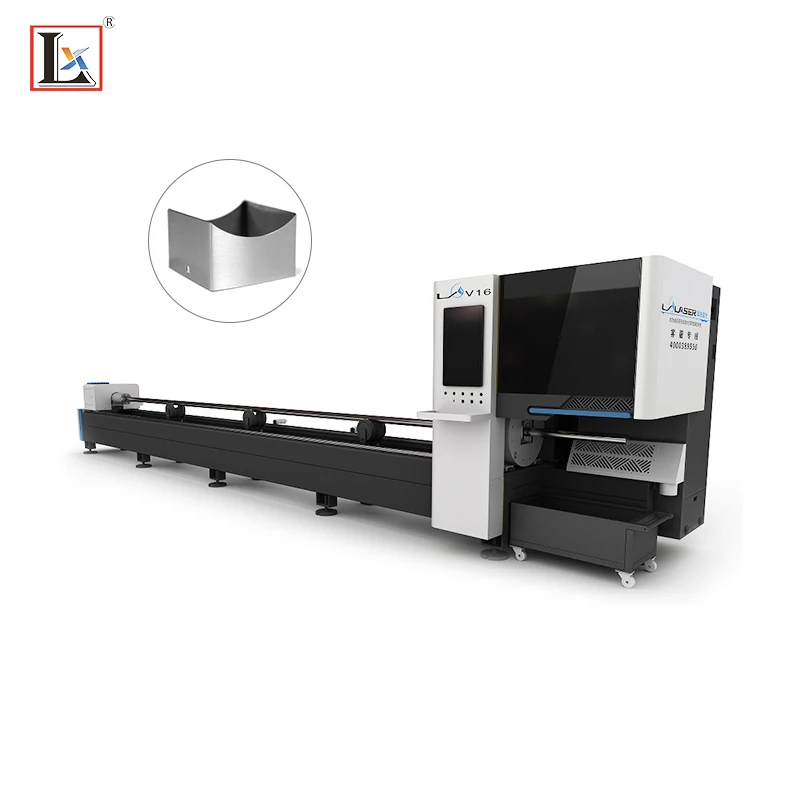

Cnc Metal Aluminum Ms Ss Carbon/ Mild /stainless Steel Rectangular Square Round Fiber Tube Pipe Laser Cutting Machine
Specifications
Model No. | LX-V16 |

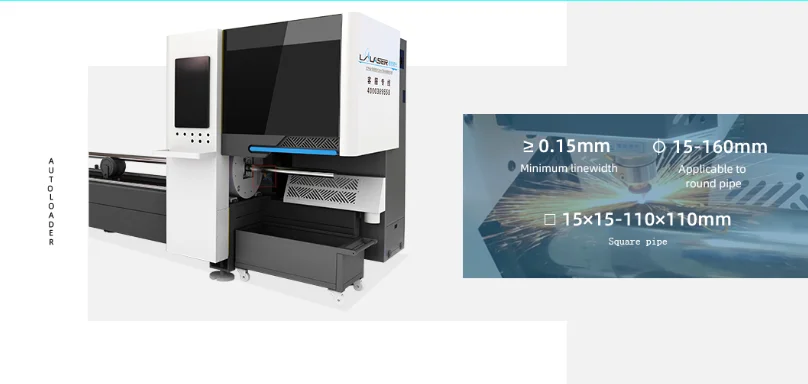

Outside Diameter | 15-159mm |
Square Diameter | 15*15-110*110mm |
Tube Length | 6200mm(can be costomized) |
Laser Power | 1000-3000W |
Laser Source | MAX / China |
Laser Head | OSPRI / China |
L*W*H (mm) | 9700*1700*2000 |
Machine weight | 3.2 Tons |
Pneumatic chuck | Lingman / China |
Voltage | 380V 50Hz 3Phase (can be customized) |
Control System | FSCUT / China |
Air pressure | 1.6 - 3.0 MPa |
Nesting Software | FSCUT / China |
Y-axis rack & pinion | FASTON / Taiwan |
X & Z-axis ball screw | TBI / Taiwan |
X, Y & Z-axis rail | China |
Servo motor & driver | INOVANCE / China |
Reducer | FASTON / Taiwan |
Pneumatic system | SNS / China |
Electrical proportional valve | SNS / China |
Air switch | SCHNEIDER / France |
Feature1
Cost effective machine, small footprint – LX-V16 series
The system responds quickly and improves production efficiency greatly.
It has strong anti-interference ability and realizes precise and stable cutting.
The system responds quickly and improves production efficiency greatly.
It has strong anti-interference ability and realizes precise and stable cutting.
Feature2

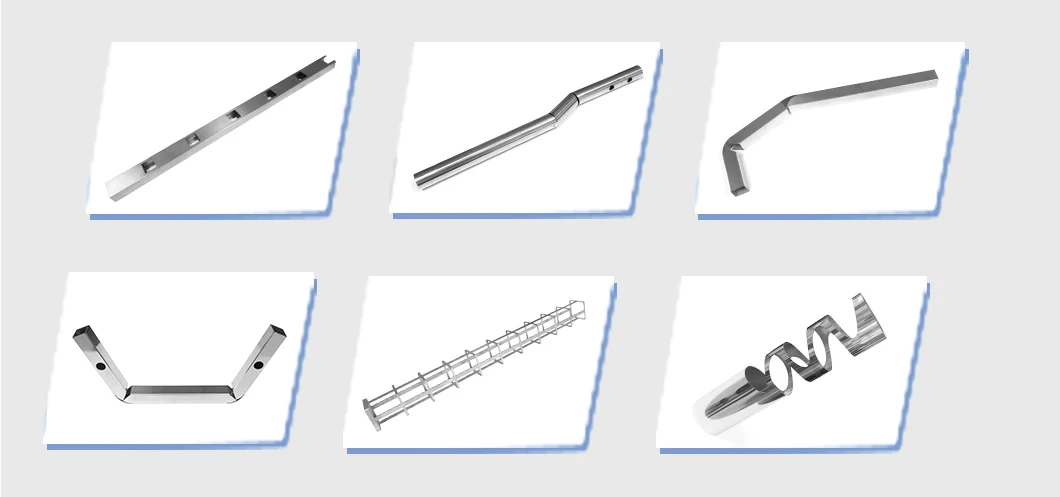

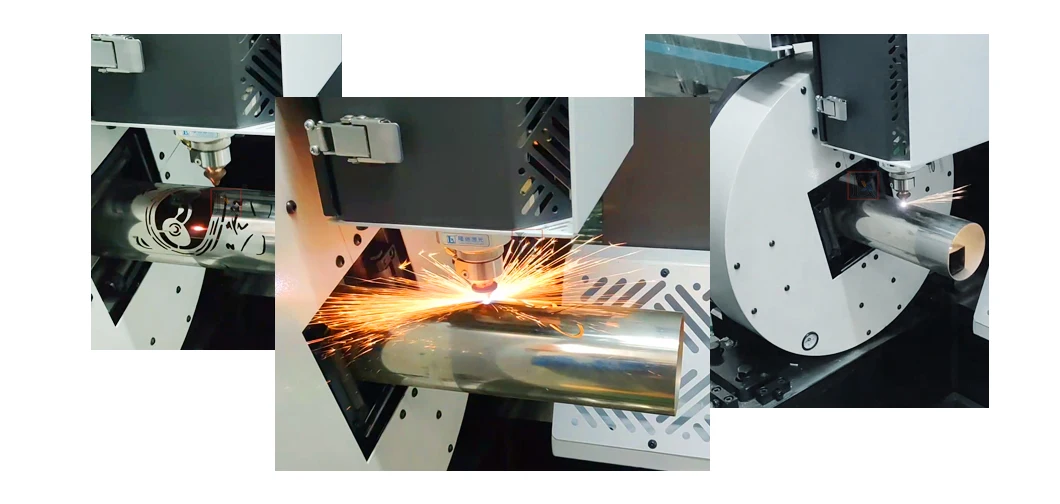

Multifunctional cutting
Applicable types of tubes: Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangle…
Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…
Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper
Applicable types of tubes: Round, Square, Rectangular, Oval, H steel, U steel, Angle steel, Triangle…
Applicable types of cutting: Holes cutting, Angle cutting, Arc cutting, Letters & patterns cutting…
Applicable types of material: Stainless steel, Carbon steel, Galvanized steel, Brass, Aluminum, Copper
Feature3

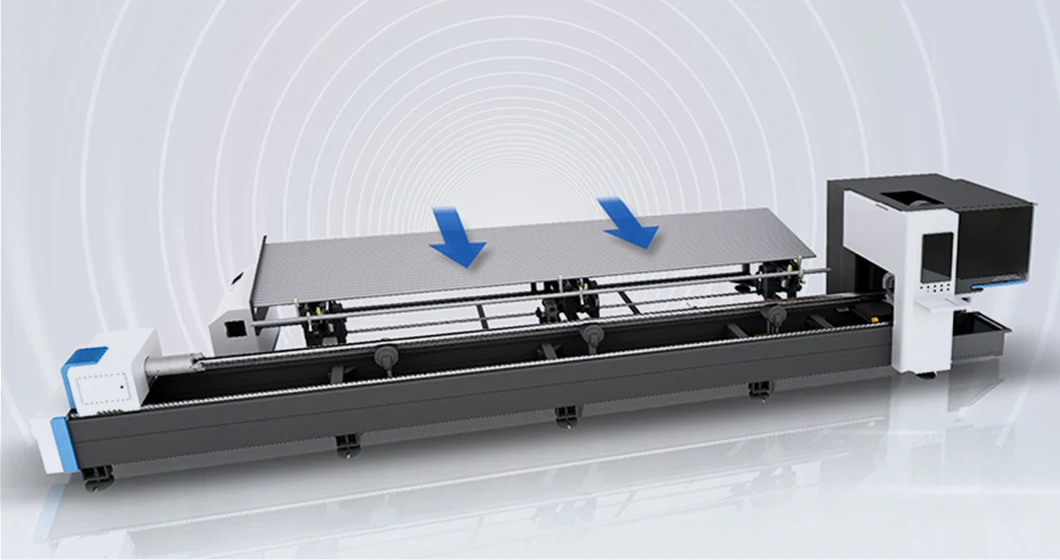

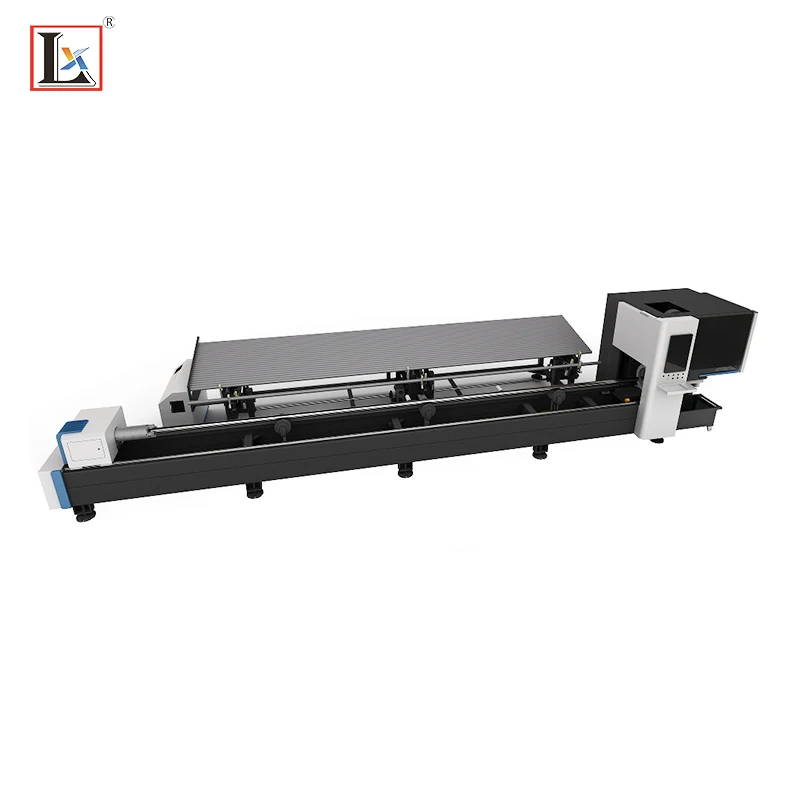

Semi automatic feeding system (optional)
1. The total weight of one-time loading of the device can reach 1t, and the supporting pipes are round pipe, square pipe, rectangular pipe, etc.
2. The maximum feeding size is 160mm (circumscribed circle size), and the maximum weight of a single pipe is 80kg;
3. Automatically adjust the feeding position according to different pipes to ensure that different pipes can be accurately sent to the chuck center of the host machine;
Semi automatic feeding system (optional)
1. The total weight of one-time loading of the device can reach 1t, and the supporting pipes are round pipe, square pipe, rectangular pipe, etc.
2. The maximum feeding size is 160mm (circumscribed circle size), and the maximum weight of a single pipe is 80kg;
3. Automatically adjust the feeding position according to different pipes to ensure that different pipes can be accurately sent to the chuck center of the host machine;
Feature4

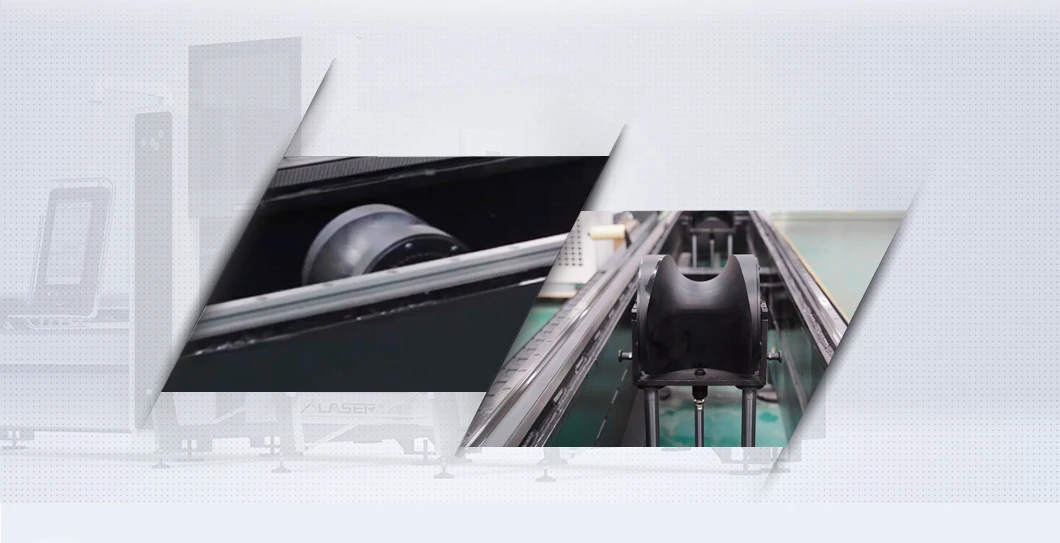

The floating support device will rise to keep the tube in a horizontal position.
Skip production processes and minimize the labor costs and consumables
Skip production processes and minimize the labor costs and consumables
Feature5

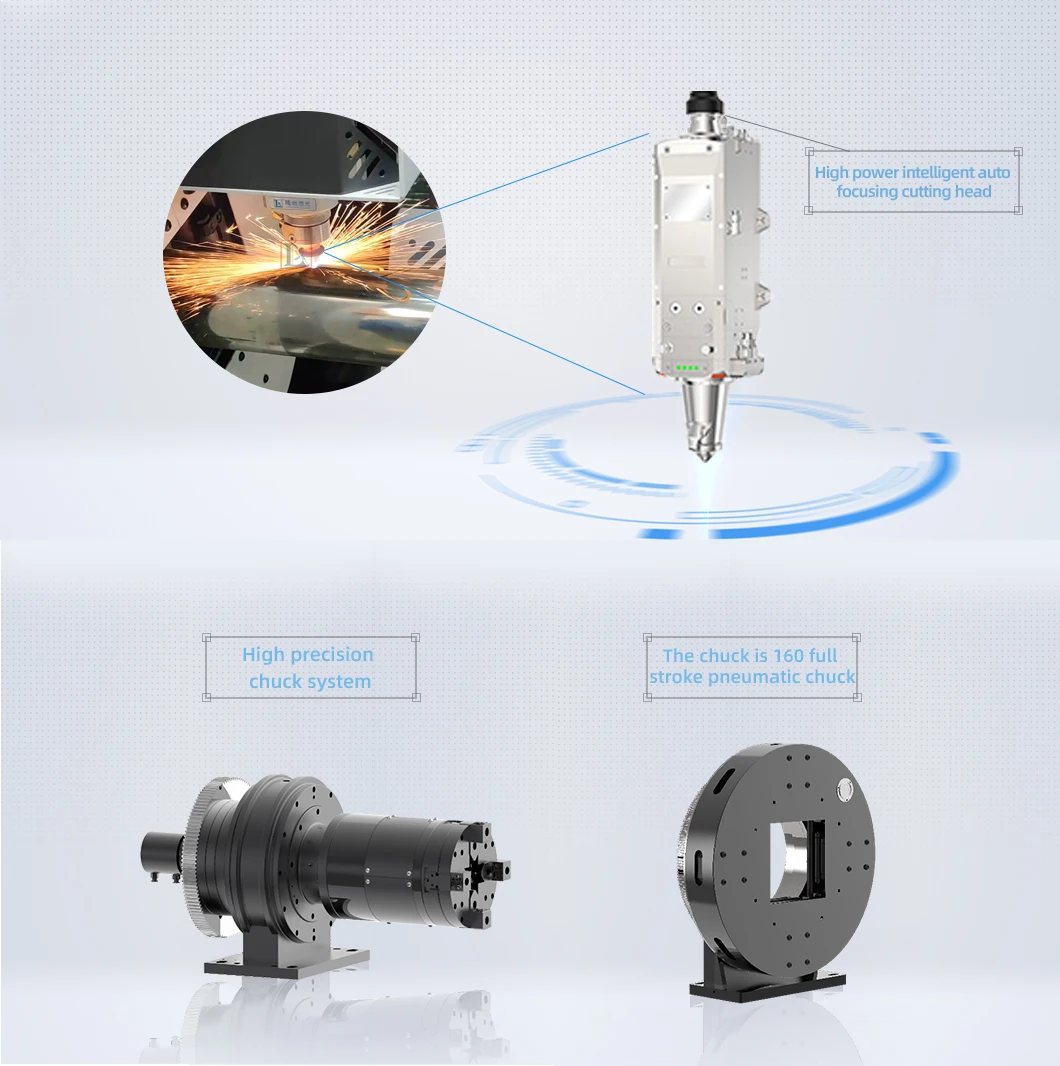

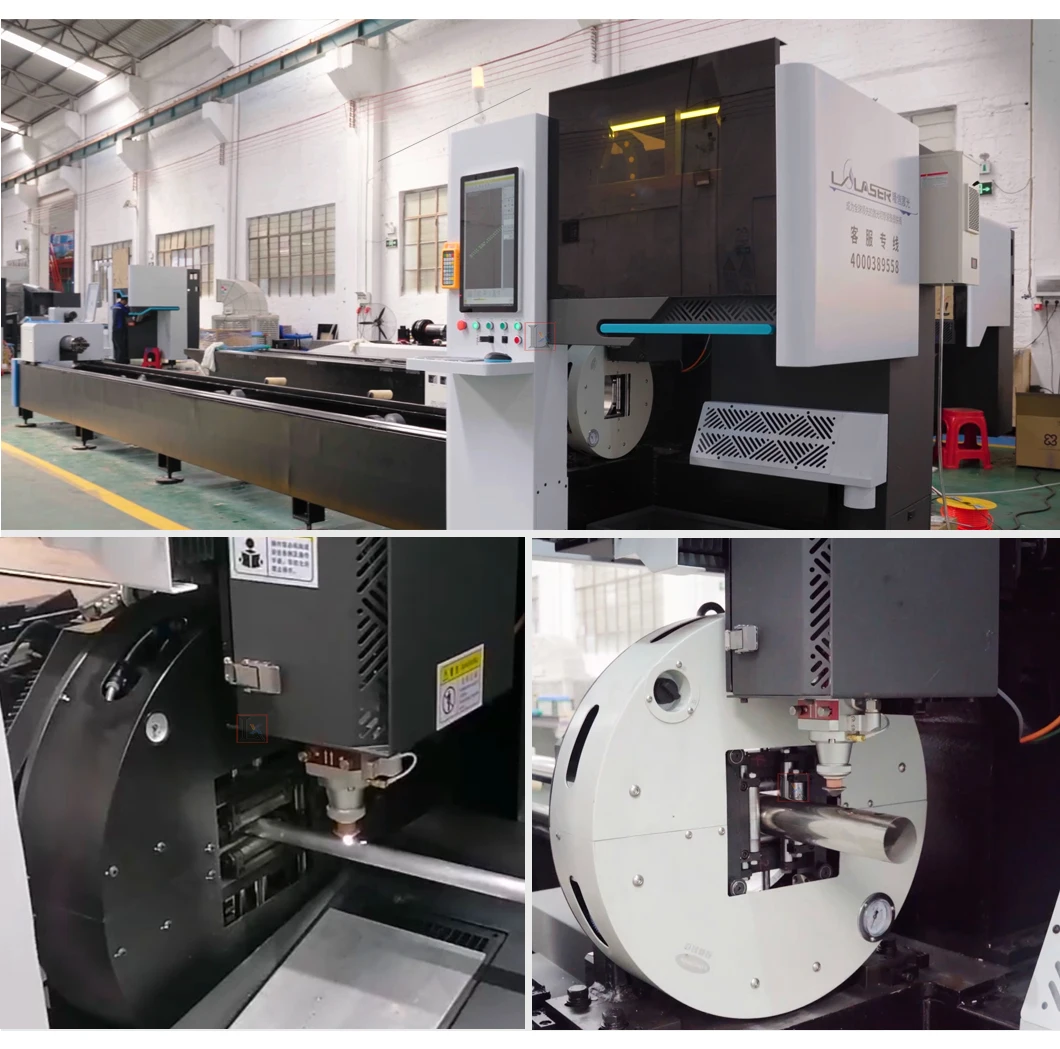

1.The equipment adopts OSPRI optical fiber special laser cutting head,combined with capacitive non-contact automatic tracking system, which can adjust the best focal length and ensure the best overall cutting effect
2.High precision chuck system The chuck is a 160 full stroke pneumatic chuck with built-in cylinder. It is
easy to install. The clamping and loosening action is realized by side air inlet. It can
clamp a full range of applicable pipe fittings and improve production efficiency.
2.High precision chuck system The chuck is a 160 full stroke pneumatic chuck with built-in cylinder. It is
easy to install. The clamping and loosening action is realized by side air inlet. It can
clamp a full range of applicable pipe fittings and improve production efficiency.
Feature6
The fiber laser cutting machines of our company adopt Chuangxin laser of the first-class level in the
industry, which has stable performance, the service life of key components can reach 100000 hours
and the overall quality of the equipment is guaranteed. The laser can produce excellent beam quality
finer cutting lines, higher work efficiency and better processing quality.
industry, which has stable performance, the service life of key components can reach 100000 hours
and the overall quality of the equipment is guaranteed. The laser can produce excellent beam quality
finer cutting lines, higher work efficiency and better processing quality.
Certifications
Related Products
Company information
Foshan Longxin Laser Technology Co., Ltd. Established in 2003, is a professional metal pipe cutting equipment enterprise
integrating design, research and development, manufacturing and sales. The current products include: multifunctional automatic laser pipe cutting machine, High speed round pipe automatic laser pipe cutting machine, multifunctional round pipe automatic laser cutting machine, special laser cutting machine for water pipe fittings, stainless steel welded pipe online laser cutting machine, etc.At present, Longxin laser’s machines been widely used in industries such as stainless steel compression fittings, auto-parts, sanitary ware, and furniture.
Longxin Laser has been adhering to the mission of making pipe cutting easier and the company’s vision of becoming the world's leading supplier of laser pipe cutting equipment. We Provide customers with a complete set of fully automatic metal pipe cutting equipment that is reliable, intelligent and labor-saving. Longxin Laser is not only popular in China, but the service also covers more than 50 countries and regions.
Cooperative client
FAQ
1. How many hours of working life has the laser? What is the spare part cost approximately?
Laser source life 100,000 hours (more than 20 years). Spare part is the protective lens and nozzle of the laser head. Each can use 2-5 months, we offer each 5pcs for spare and free of charge. For additional quantity, each cost 16USD/ pc.
3. Is there a difference between MAX / RAYCUS / IPG?
The quality of lasers made in China is gradually mature and stable. According to our testings, Max and Raycus are similar in performance. IPG is rarely used in the market within 6KW, unless customers concern on the brand and do not care about the cost.This is because IPG does not show obvious difference from the other two within 6KW power.The share of IPG lasers in China is also declining year by year, in 2018 was 48% and went down to 30% 2019. The share of Max and Raycus are similar, both about 20%.In addition, the laser source is only one part of the machine. Customers should pay more attention on the performance and efficiency of the whole equipment.
4. Regarding stabilizing electric transformer, for 220V 60hz e phase, how many KVA is required?
The transformer capacity is depends on the laser power. For laser power 1000W, it requires 40KVA.
5. PLC, has English or maybe Spanish language?
Our touch screen has both English and Chinese language. We can add Spanish or other language with your help for the translation.
6. Can we send you sample of our pipe in order for you to show us cutting of our material?
Yes, we always welcome customer send us their pipe for testing. Kindly send us pipe length ≥600mm, qty ≥ 3pcs for each size. The longer size and the more quantity the better.
7. What is the material loss every time laser cuts? I mean, when laser is cutting what is the length waste for every cut?
The laser cutting loss is very small, only 0.05-0.1mm/cut, while saw cutting loss would be about 2-5mm/cut.
8. After laser cuts, is the edge hardened by the laser temperature? Can we flare pipe easily without problem after cutting?
The hardening effects are different on different pipe materials. We suggest customers send us their tubes for testing and check the result.
9. Under what circumstances should I choose to use a laser machine?
If cutting quantity is more than thousand pieces per day, we suggest laser machine. As it has advantage on the cutting loss, operation cost(0.6USD/hour) and high efficiency(fast and no burr). In long term usage, laser machine can bring you more profits.
10. When can it cover the machine cost and gain profits for me?
According to our surveys, usually it would take about 0.5 to 1.5 years for our customers to cover the machine cost by the profits they obtained on the laser machine.
Welcome to visit our factory to view more details.
