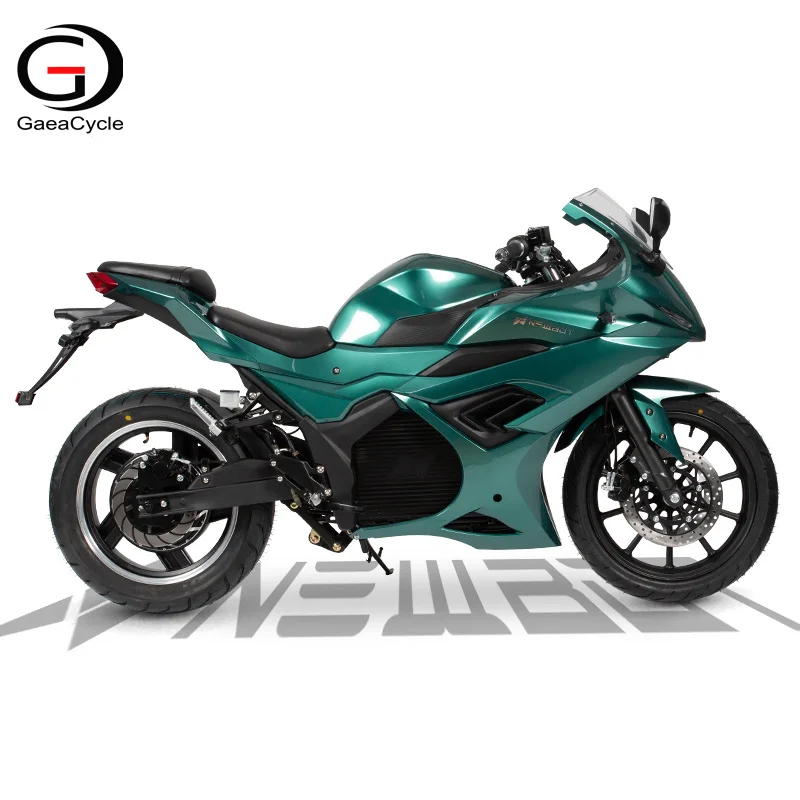

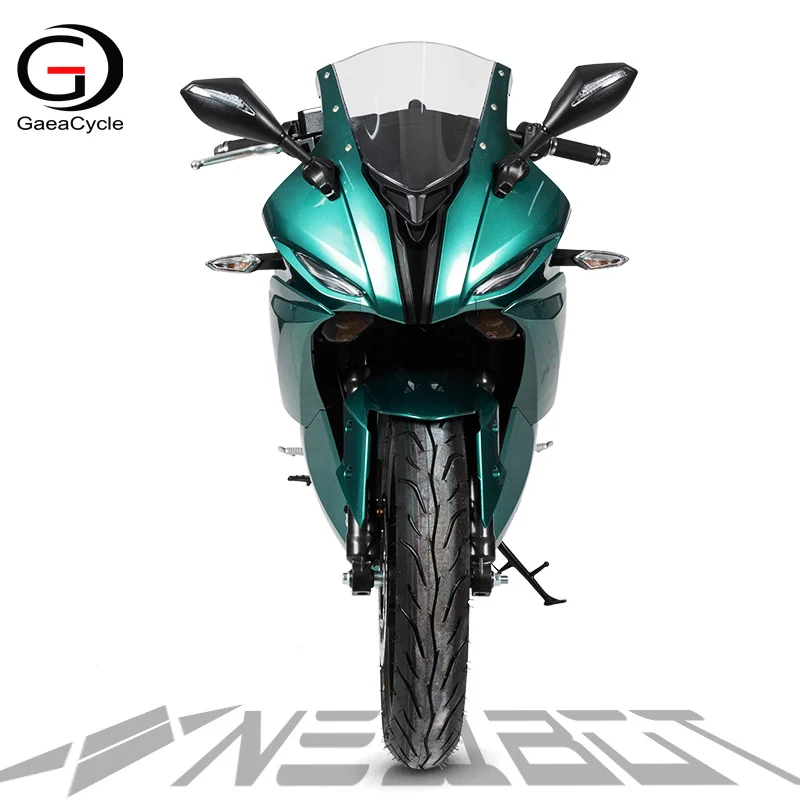

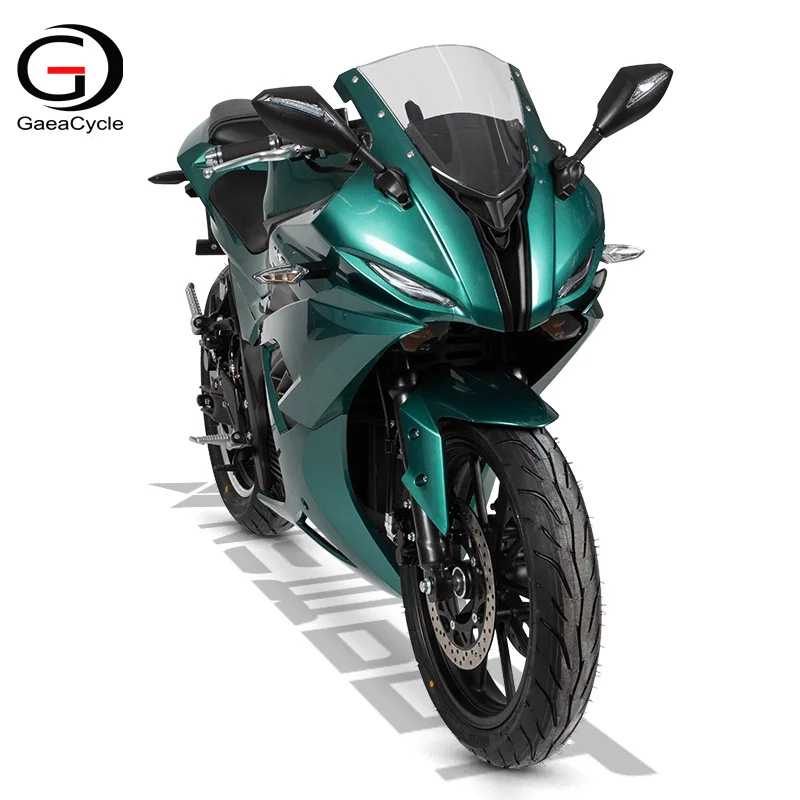

Technical Specifications | ||||||
Top speed (max) | 100 km/h (62 mph) | 120 km/h (75 mph) | 150 km/h (93 mph) | |||
Peak torque | 108 Nm | 118 Nm | 148 Nm | |||
Max capacity | 3.6 kWh (72V52Ah) | 6.2 kWh (72V86Ah) | 7.2 kWh (72V102Ah) | |||
Power pack warranty | 3 years/unlimited kms | 3 years/unlimited kms | 3 years/unlimited kms | |||
Range | ||||||
City | 120 km (75 miles) | 180 km (112 miles) | 200 km (124 miles) | |||
Highway, 80 km/h (50 mph) | 80 km (50 miles) | 120 km (75 miles) | 135 km (84 miles) | |||
Highway, 113 km/h (70 mph) | / | 90 km | 100 km (62 miles) | |||
Highway, 130 km/h (80 mph) | / | / | 85 km (53 miles) | |||
Motor | ||||||
Peak torque | 108 Nm | 118 Nm | 148 Nm | |||
Rated power | 3 kW | 5 kW | 8 kW | |||
Peak power | 4 kW | 6 kW | 11 kW | |||
Top speed (max) | 100 km/h (63 mph) | 120 km/h (75 mph) | 150 km/h (93 mph) | |||
Top speed (sustained) | 80 km/h (50 mph) | 100 km/h (62 mph) | 130 km/h (81 mph) | |||
Type | Brushless DC hub | Brushless DC hub | Brushless DC hub | |||
Controller | Sine wave | Sine wave | Sine wave | |||
Power system | ||||||
Max capacity | 3.6 kWh (72V52Ah) | 6.2 kWh (72V86Ah) | 7.2 kWh (72V102Ah) | |||
Charger type | 10A charger | 10A charger | 18A car quick charger | |||
Charge time (10A charger) | 5.5 hours | 9 hours | / | |||
Charge time (18A car quick charger) | 3 hours | 5 hours | 6 hours | |||
Input | Standard 110 V or 220 V | Standard 110 V or 220 V | Standard 110 V or 220 V | |||
Chassis / Suspension / Brakes | ||||||
Front suspension | hydraulic | inverted adjustable hydraulic | inverted adjustable hydraulic | |||
Rear suspension | adjustable hydraulic | adjustable nitrogen | adjustable nitrogen | |||
Front suspension travel | 120 mm | 120 mm | 120 mm | |||
Rear suspension travel | 45 mm | 45 mm | 45 mm | |||
Front brakes | 3 piston caliper, | 4 piston caliper, | 4 piston caliper, | |||
300 x 4 mm disc | 300 x 4 mm disc | 300 x 4 mm disc | ||||
Rear brakes | 2 piston caliper, | single piston caliper, 240 x 4 mm disc | single piston caliper, 240 x 4 mm disc | |||
240 x 4 mm disc | ||||||
Front tire | Kenda 110/70-17,SHMT | Kenda 110/70-17,SHMT | Kenda 110/70-17,SHMT | |||
Rear tire | Kenda 150/70-17,SHMT | Kenda 150/70-17,SHMT | Kenda 150/70-17,SHMT | |||
Front wheel | 3.00 x 17 | 3.00 x 17 | 3.00 x 17 | |||
Rear wheel | 3.50 x 17 | 3.50 x 17 | 3.50 x 17 | |||
ABS | Optional | Optional | Standard configuration | |||
Dimensions / Weight/Package/Loading | ||||||
Wheelbase | 1450 mm | 1450 mm | 1450 mm | |||
Ground clearance | 150mm | 150mm | 150mm | |||
Seat height | 820 mm | 820 mm | 820 mm | |||
Pillion height | 1000 mm | 1000 mm | 1000 mm | |||
Vehicle Size (L x W x H) | 2080 x 750 x 1160 mm | 2080 x 750 x 1160 mm | 2080 x 750 x 1160 mm | |||
Rake | 26.2° | 26.2° | 26.2° | |||
Curb weight | 150kg | 170kg | 175kg | |||
Carrying capacity | 150kg | 150kg | 150kg | |||
Package size SKD (L x W x H) | 2180 x 580 x 1100 mm | 2180 x 580 x 1100 mm | 2180 x 580 x 1100 mm | |||
Package size CBU (L x W x H) | 2180 x 820 x 1220 mm | 2180 x 820 x 1220 mm | 2180 x 820 x 1220 mm | |||
Loading SKD | 20 units/20GP, 40 units/40HC | 20 units/20GP, 40 units/40HC | 20 units/20GP, 40 units/40HC | |||
Loading CBU | 28 units/40HC | 28 units/40HC | 28 units/40HC | |||
Economy | ||||||
Equivalent fuel economy (city) | 0.45 l/100 km | 0.48 l/100 km | 0.52 l/100 km | |||
Equivalent fuel economy (highway) | 1.05 l/100 km | 1.13 l/100 km | 1.20 l/100 km | |||
Typical cost to recharge | $0.40 | $0.68 | $0.81 | |||
Warranty | ||||||
Standard motorcycle warranty | 2 years | 2 years | 2 years | |||
Power pack warranty | 3 years/unlimited kms | 3 years/unlimited kms | 3 years/unlimited kms | |||
