Product Overview
Description
Product Overview

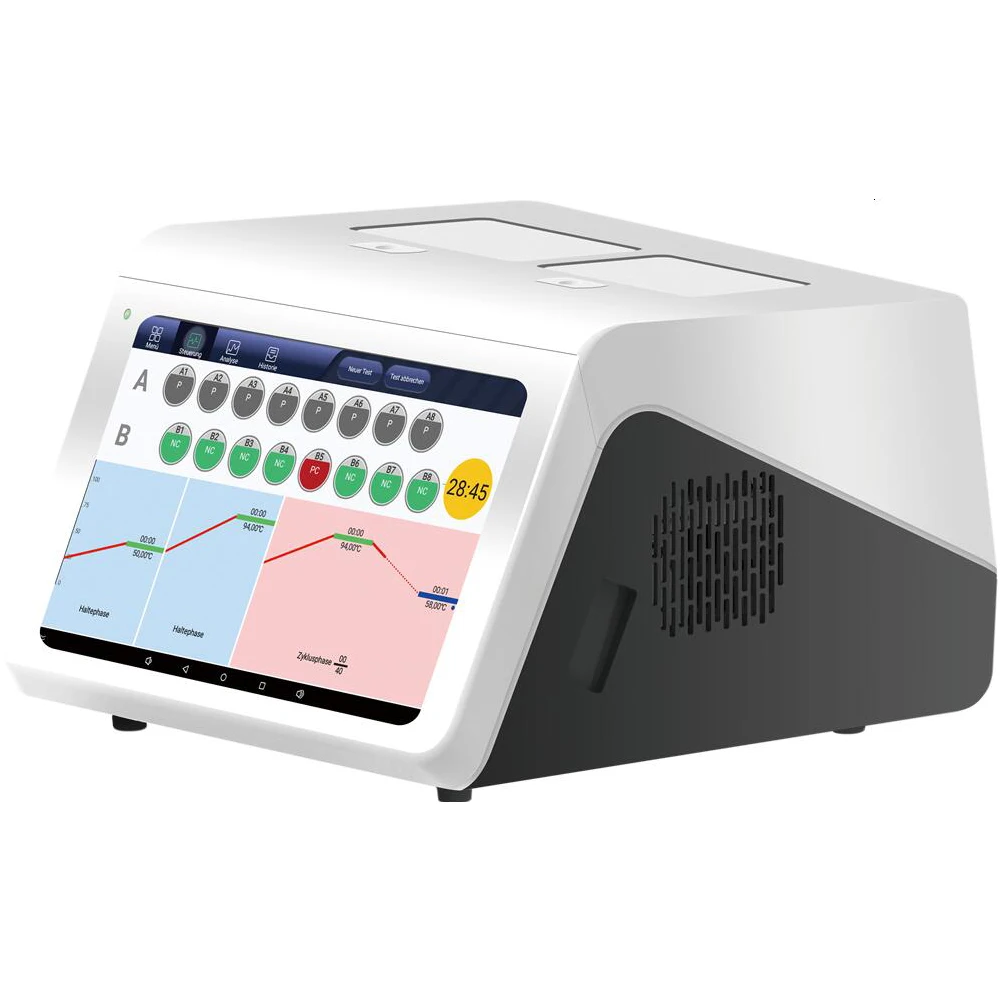

OP-qPCR1600C Real-time Fluorescence Quantitative PCR Instrument
OP-qPCR1600C is a high-performance real time quantitative PCR instrument. It is equipped with a 4-channel fluorescence optical system, powered by high power density Peltier. It is optimally suited for applications where minimal space, fast time-to-result is required. Its applications are: point-of-care molecular diagnostics test (POCT) , food safety and environment testing, agriculture, or research lab use where bench space is limited.
FEATURES AT A GLANCE
Fast Detection - Within 30 minutes
Consistent and Precise Detection Results
Simple Operation
POCT Application
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No. | Basic Performance | Parameter | ||||
1 | Sample capacity | Support 16 wells with 0.2mL | ||||
2 | Reaction system | 30-100μL | ||||
3 | F1：FAM, SYBR GreenI, etc F2: HEX, VIC, JOE, etc F3: ROX, TEXAS RED, etc F4: Cy5, etc | |||||
4 | Temperature range | 30-100℃ | ||||
5 | Temperature control | Heating rate | ≥3.5℃/s | |||
Cooling rate | ≥3.5℃/s | |||||
Temperature fluctuation | ≤0.2℃ | |||||
Temperature indicating value error | Difference absolute value ≤0.5℃ | |||||
Temperature uniformity | Temperature difference : ±0.1℃ | |||||
Temperature duration accuracy | Relative deviation: ±5% | |||||
6 | Fluorescence intense repeatability | Relative standard deviation≤2% | ||||
Fluorescence intense uniformity | Relative standard deviation≤5% | |||||
Fluorescence intense linearity | Linear regression coefficient r ≥0.990 | |||||
7 | Confidence level | ≥99.9% | ||||
Device linearity | Linear regression coefficient r ≥0.99 | |||||
Quantitative repeatability | Relative standard deviation≤3% | |||||
Quantitative indicating value error | Max. Value ≤ 15% | |||||
8 | Display screen | 10.1 inch LCD Touch screen | ||||
9 | Power | 100-240VAC 50/60Hz Max1200VA | ||||
10 | Interface | USB port, serial port | ||||
11 | Dimension | 530mm× 530mm×380mm (L*W*H) | ||||
12 | Weight | 10.8Kg | ||||
PRODUCT CONFIGURATION
Login Interface

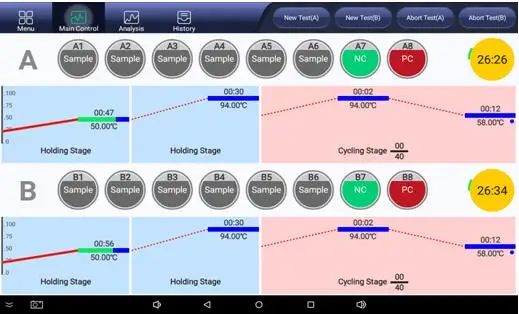

Main Control Interface
Running Interface
SIMILAR PRODUCTS
FAQ
Q1：How many detection channels does the instrument have?
A1：It has four channels.
Q2 : How long does the detection complete ?
A2 : 28 minutes
Q3 : How many samples does the instrument do at one time?
A3 : The product is equipped with a 16-well module and can make up to 16 samples at a time.
