Industrial Commercial Steak Cutting Bacon Ham Slicer Fresh Meat Slicing Machine
- Category: >>>
- Supplier: Zhaoqing Hexu Machinery Co. Ltd.
Share on (1600523588891):
Product Overview
Description

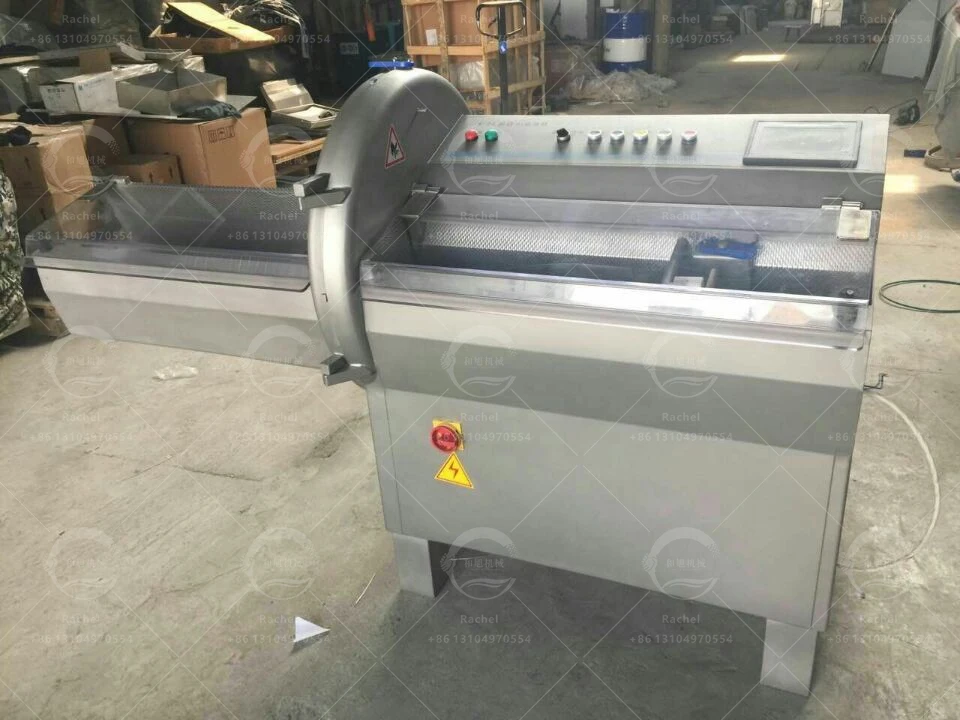

Industrial Commercial Steak Cutting Bacon Ham Slicer above -4 Degree Meat Slicing Machine

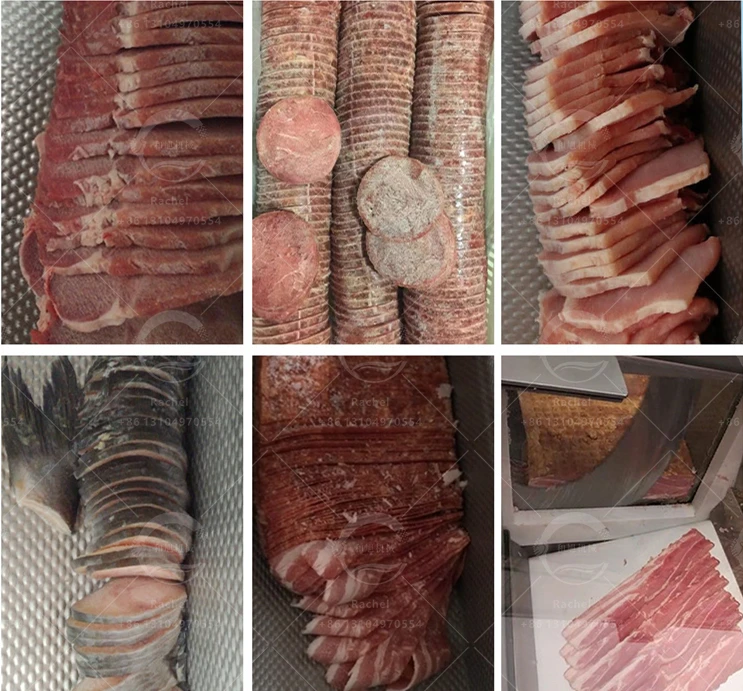

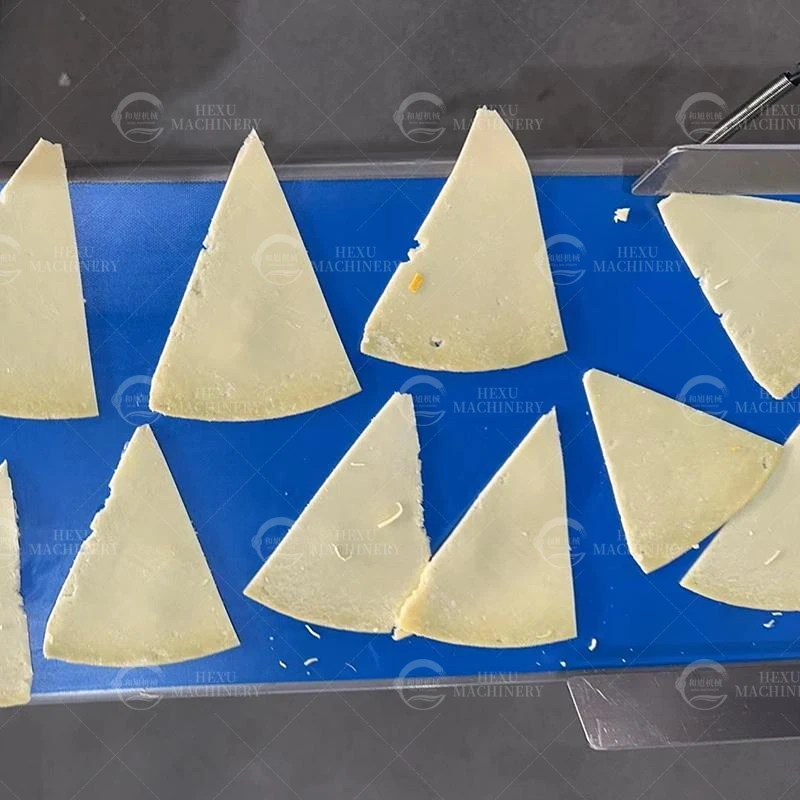

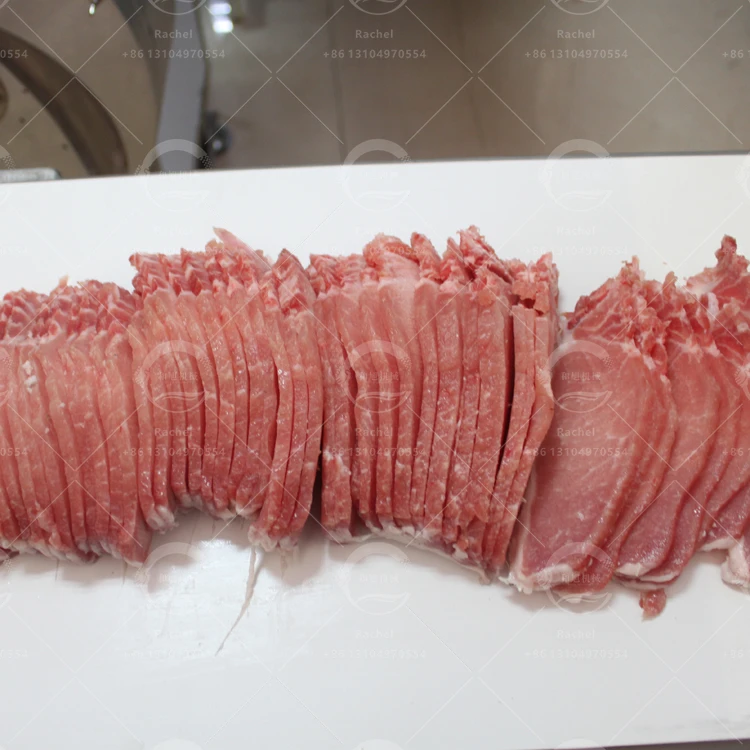

This machine is a cutting equipment for high demand and high precision meat products. It mainly cuts frozen meat, fish, cheese, bacon, sausage and other raw materials into slice with different thicknesses. Changing the serrated cutter can also cut frozen meat with bone into chunks or segments. Suitable for catering distribution companies, hotels, schools, central kitchens, meat processing plants, etc.
Manufacturing Technique
Model | RJ-618 Slicing Machine | ||
Dimension | 1880*950*1340mm | 1880*1050*1530mm | |
Power | 3.8kw | 4.8kw | |
Feeding Tank Dimension | 210*200mm | 210*200mm | |
Max. Feeding Length | 680mm | 680mm | |
Cutting Thickness | 1-30mm customized | 1-30mm customized | |
Cutting Temperature | above -4 degree | above -4 degree | |
Material | SUS 304 | SUS 304 | |

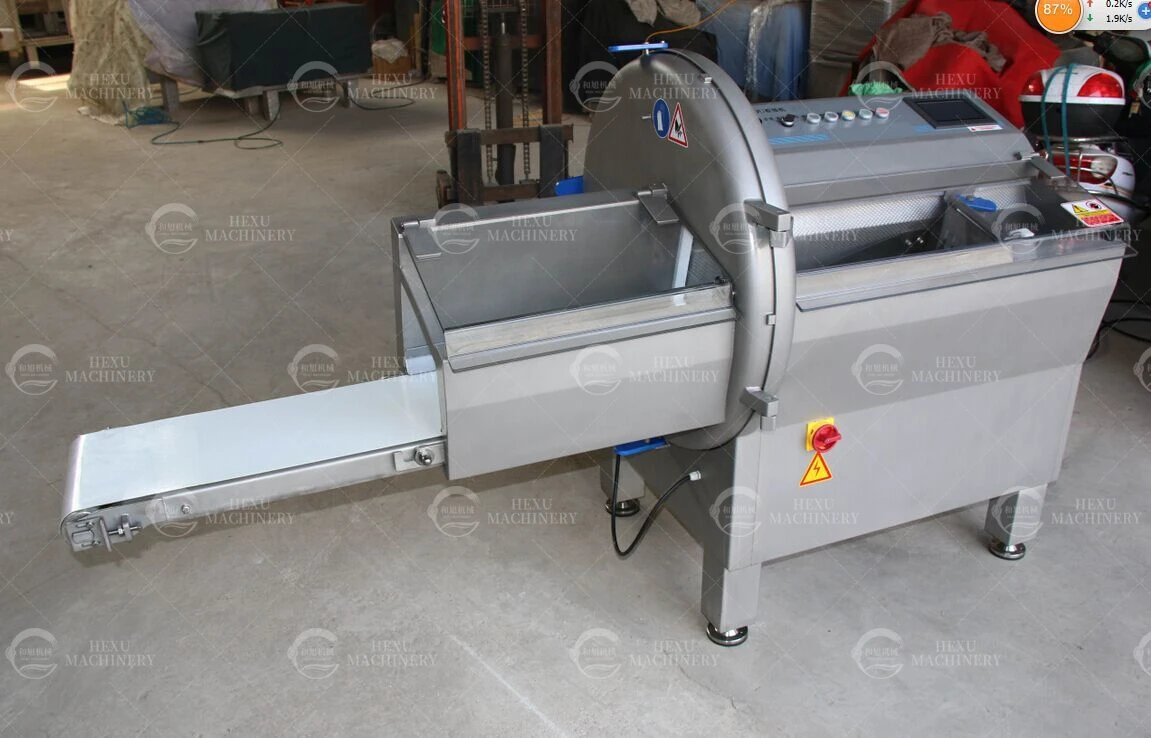

Front Conveyor Belt | No | Yes | |
Function | Slicing | Slicing and Portioning | |
Details Images
* The whole body is made of 304 stainless steel, using silver-white frosted spraying method, the internal sealing of the equipment is non-toxic and harmless, and it meets the requirements of food-grade hygiene.

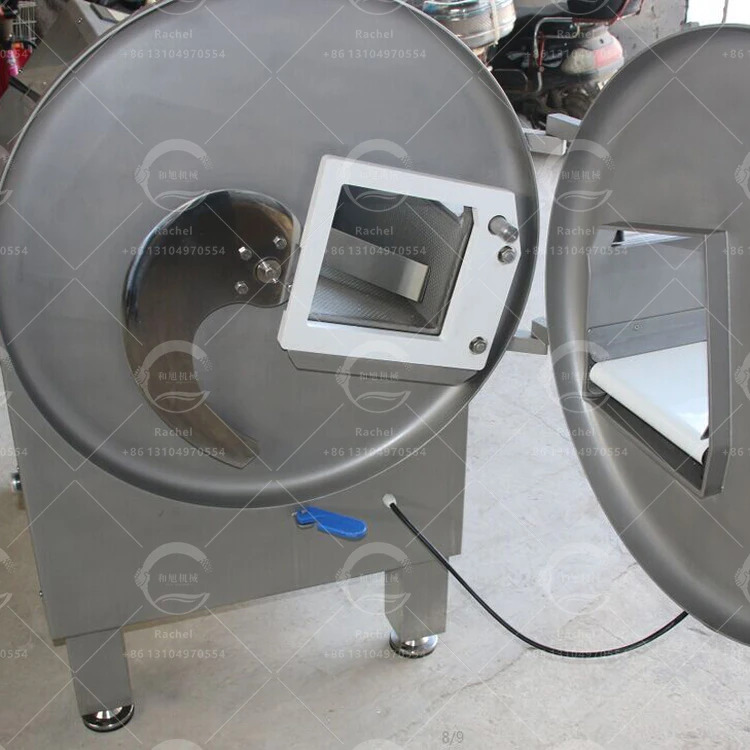

* The machine is equipped with three layers of protection (cutter brake device, cutting bin door sensor switch and material door sensor switch).
* Wrong circuit configuration/lack of phase overvoltage protector. When the power cord is connected in reverse or the phase sequence is wrong, the machine will not be powered on. And the overvoltage/undervoltage protection value can be freely set to activate automatic power-off protection.

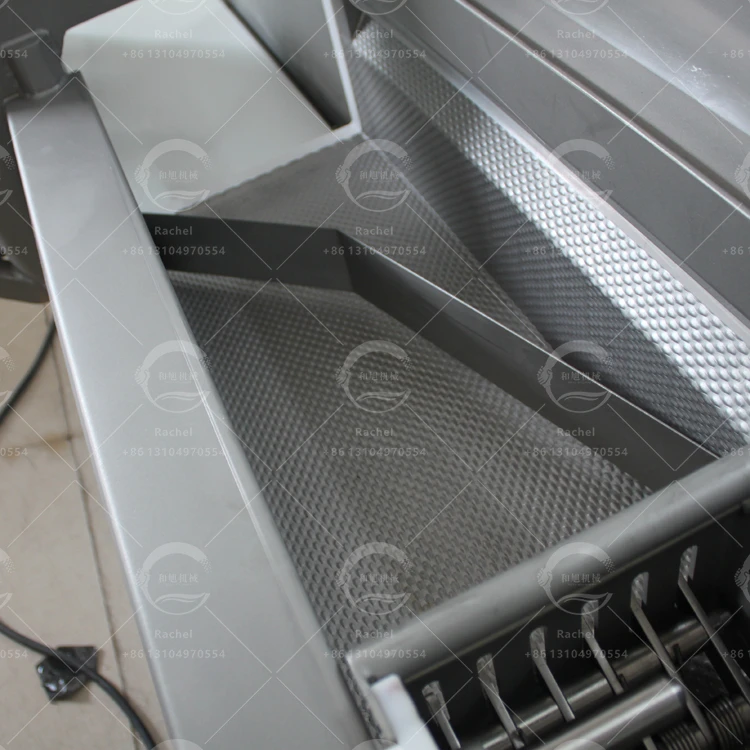

* The design of the propulsion screw structure reduces the stagnation rate of propulsion and improves production efficiency and production quality.

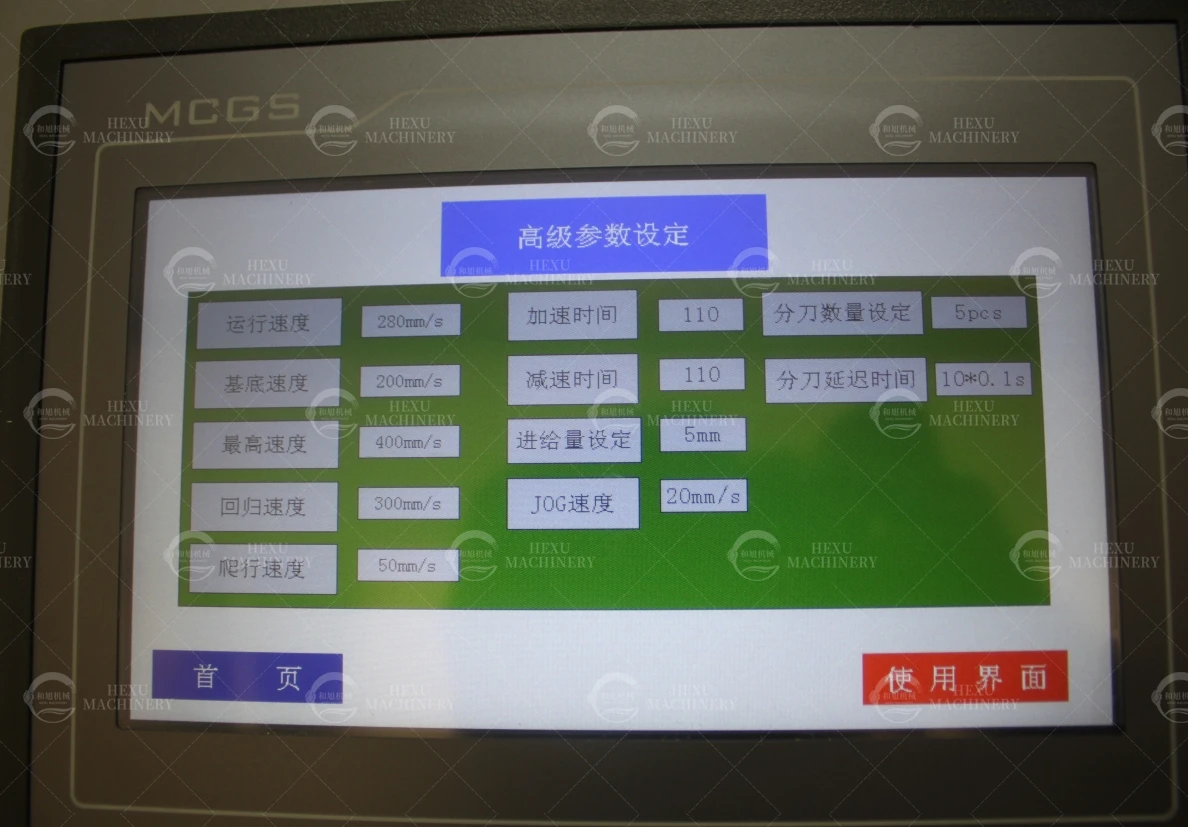

* Through the display screen, the advancing distance of the propulsion device can be controlled to adjust the thickness of the cutting material. The working status of the equipment and fault alarms can also be monitored.
* Wrong circuit configuration/lack of phase overvoltage protector. When the power cord is connected in reverse or the phase sequence is wrong, the machine will not be powered on. And the overvoltage/undervoltage protection value can be freely set to activate automatic power-off protection.
* The design of the propulsion screw structure reduces the stagnation rate of propulsion and improves production efficiency and production quality.
* Through the display screen, the advancing distance of the propulsion device can be controlled to adjust the thickness of the cutting material. The working status of the equipment and fault alarms can also be monitored.
* Equipped with servo motor, it is more accurate, stable and fast during the cutting process. The driver's automatic gain mode can automatically adjust the performance during material cutting and enhance stability.

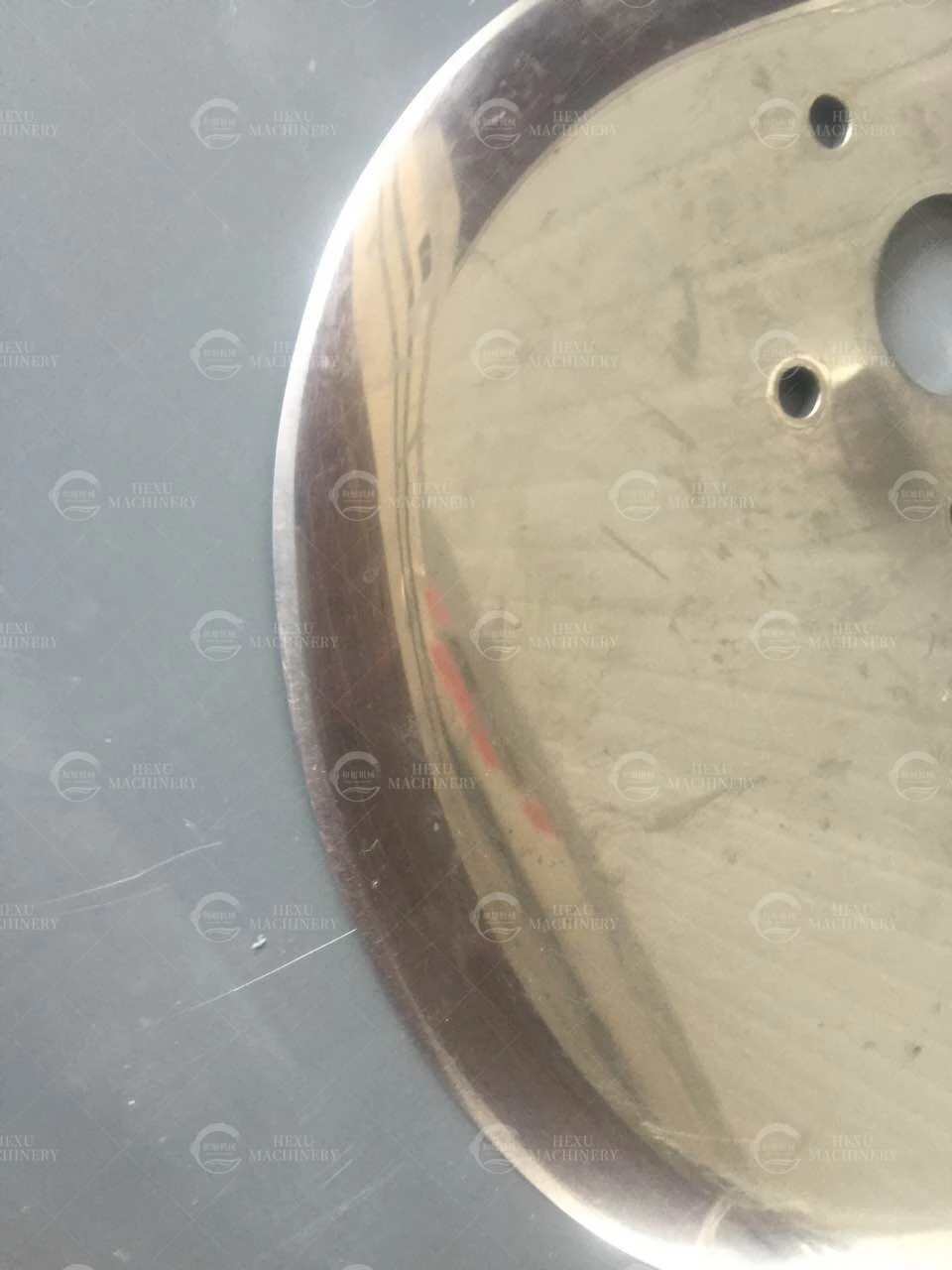

* Electrical components are all from well-known brands. Siemens circuit breakers, Siemens contactors, Omron relays, and reducer motors are from Nord (Germany), Delta servo motors (Taiwan), and Delta PLC controllers (Taiwan). Equipped with a cutting knife imported from Germany.

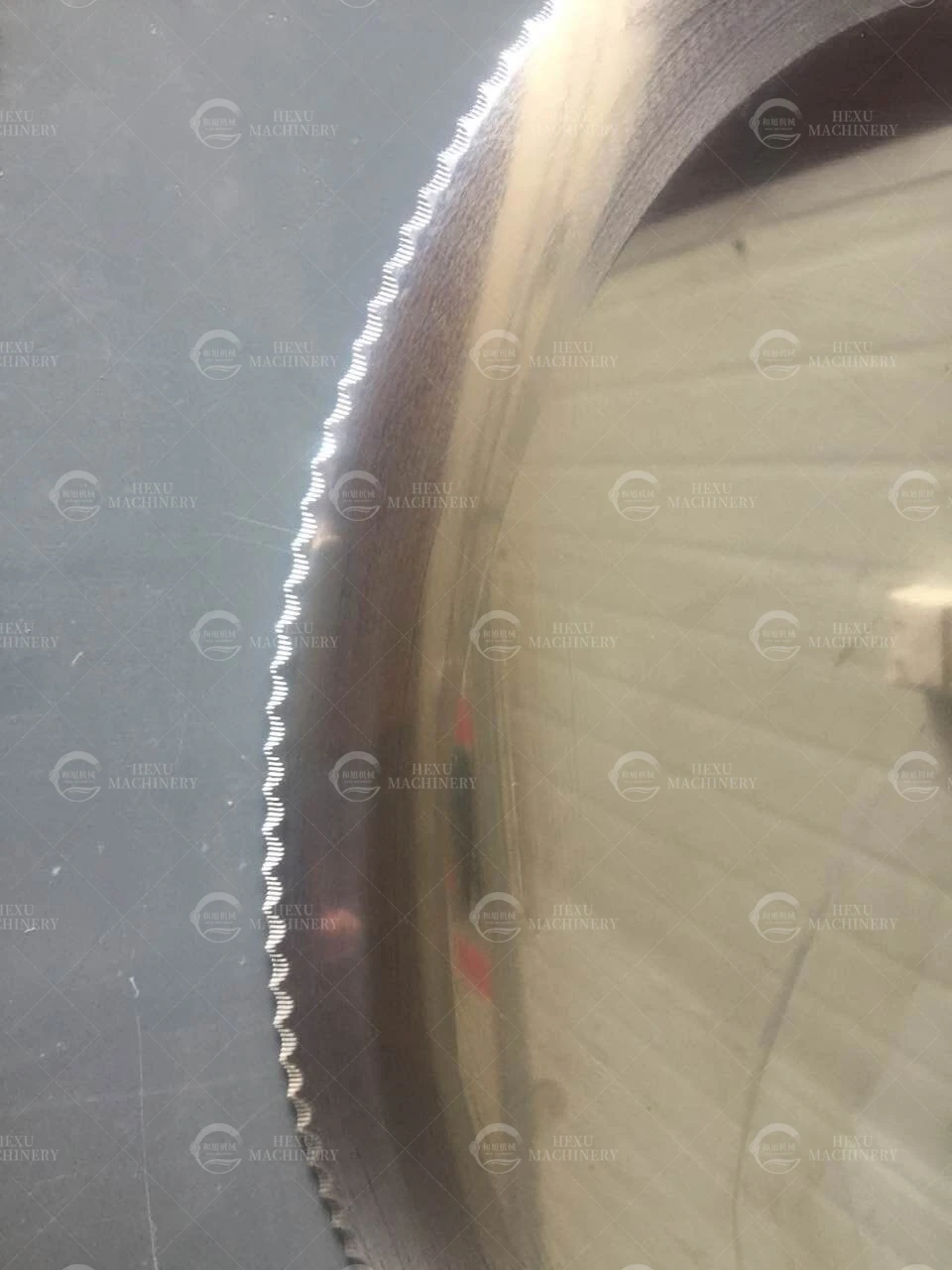

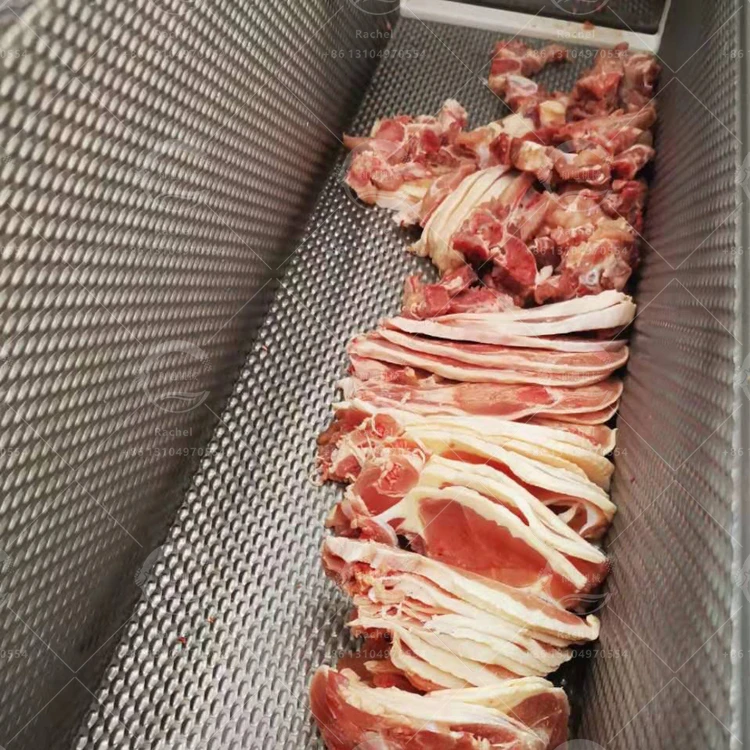

* It can change the blade to cut the meat with/without bones.
* Electrical components are all from well-known brands. Siemens circuit breakers, Siemens contactors, Omron relays, and reducer motors are from Nord (Germany), Delta servo motors (Taiwan), and Delta PLC controllers (Taiwan). Equipped with a cutting knife imported from Germany.
* It can change the blade to cut the meat with/without bones.
