MCR3516 PC/SC CCID Smart Card Reader Support ISO7816 ID 1 SIM CARD Micro SIM Nano SIM IDENTIV SCM cloud 4 in 1
- Category: >>>
- Supplier: MARKLAND TECHNOLOGY LIMITED
Share on (1600523598186):
Product Overview
Description
Product Description

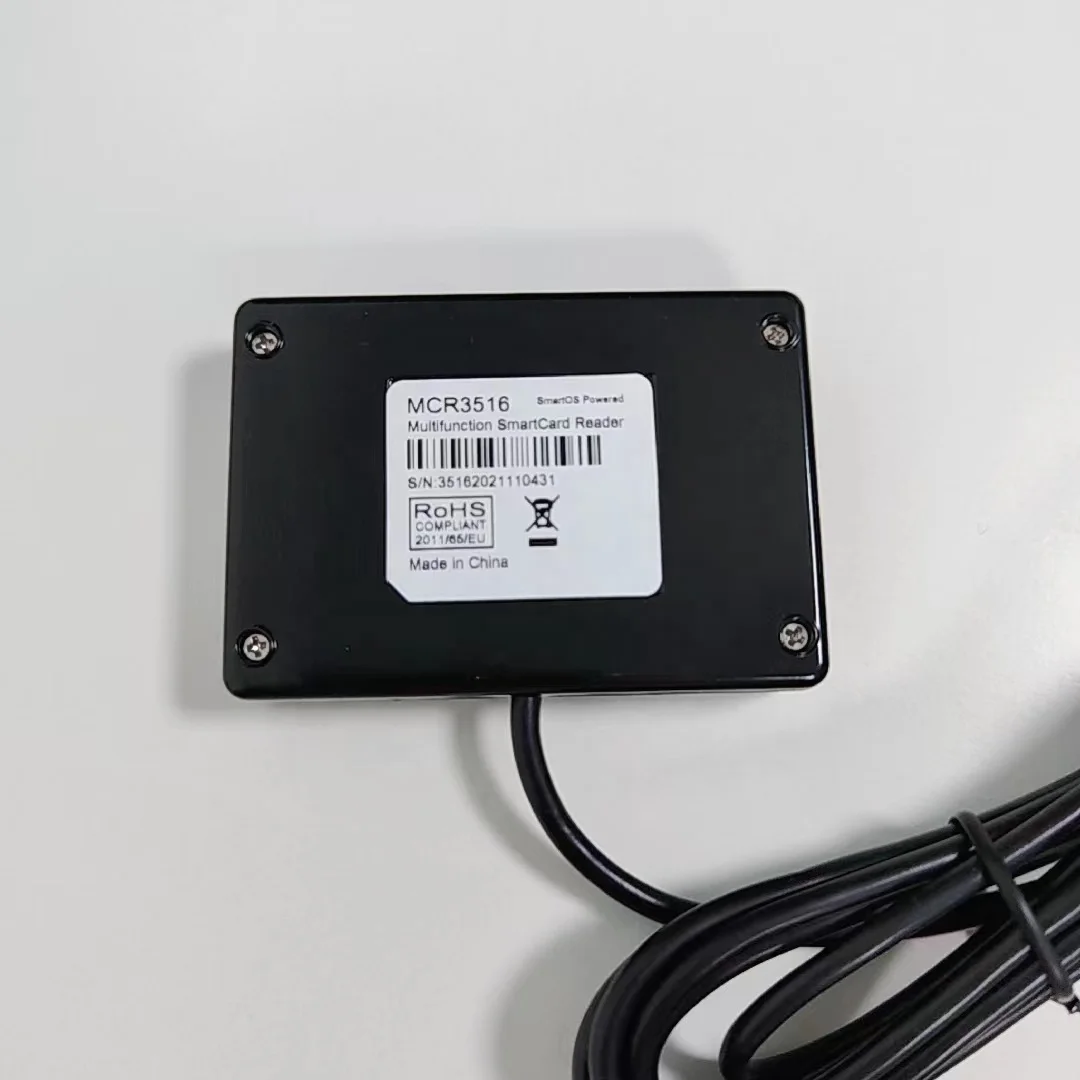

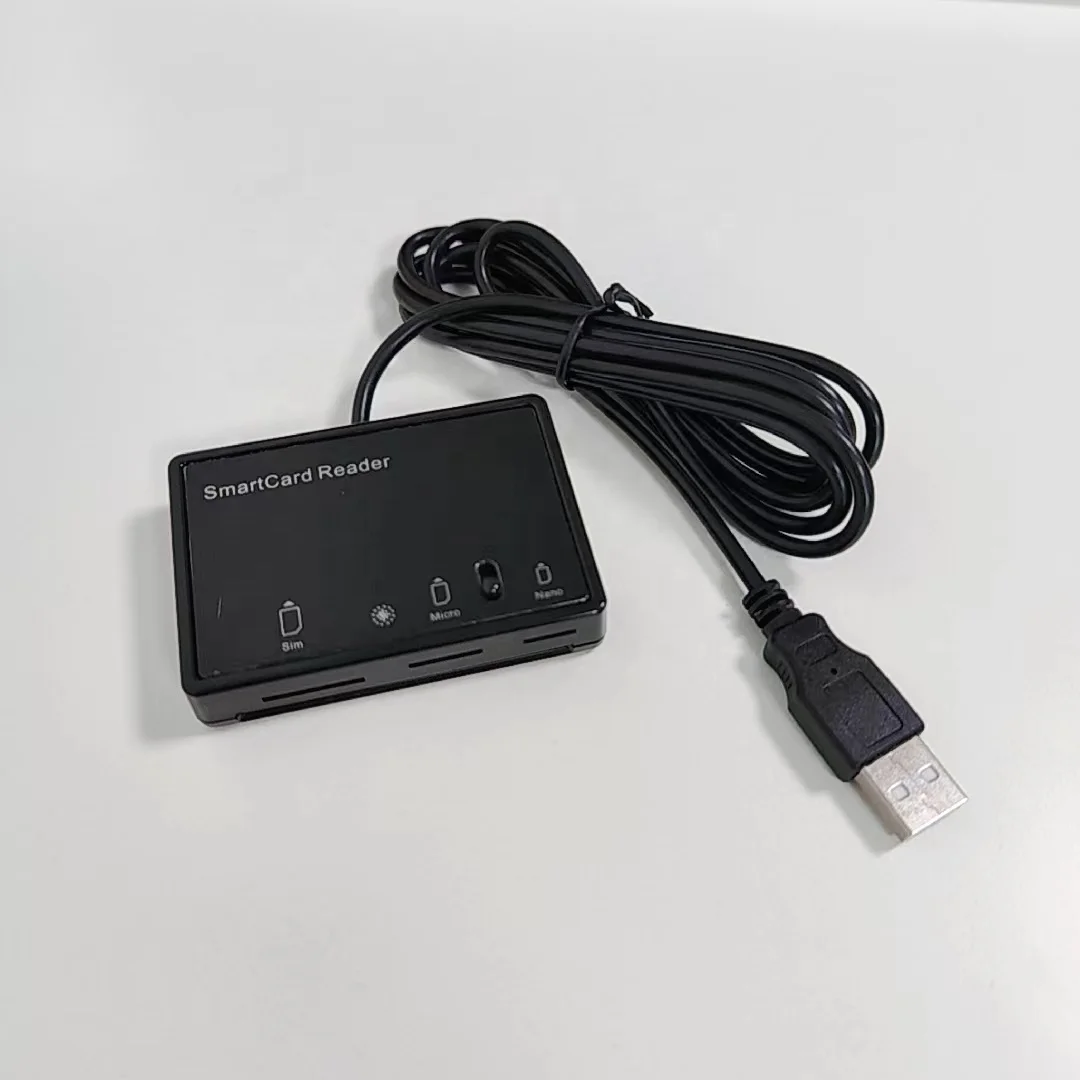

MCR3516 Multifunction Smart Card Reader
MCR3516 is a SIM card reader widely used by Chinese telecom operators (China Mobile, China Unicom, China Telecom). Its convenience greatly improves work efficiency; and the reader is widely used in taxation, online Banking, electronic signatures, email encryption, membership cards, digital TV, electronic gift certificates and games and other high-security fields;
Interface:
- Full speed USB (12Mbps) / USB 3.0 compatible
- Bus powered
- CCID-compliant
- Bus powered
- CCID-compliant
Chip Card Interface:
Supported standards
- ISO / IEC 7816 part 1 to 4
- Support of the protocols T = 0, T = 1
- Memory card support through SCM MCARD API
- Compatible with all currently used chip cards and relevant industry standards
- Support for ISO 7816 Class A, B, C cards (5V, 3.3V, 1.8V)
Interface speed
- Up to 600 kBit / s (depending on the card)
- TA1 = 97
Smartcard recognition
- "Card present" switch
- Automatic power on / off
- Short circuit protection
- ISO / IEC 7816 part 1 to 4
- Support of the protocols T = 0, T = 1
- Memory card support through SCM MCARD API
- Compatible with all currently used chip cards and relevant industry standards
- Support for ISO 7816 Class A, B, C cards (5V, 3.3V, 1.8V)
Interface speed
- Up to 600 kBit / s (depending on the card)
- TA1 = 97
Smartcard recognition
- "Card present" switch
- Automatic power on / off
- Short circuit protection
Contact Unit:
- 8 contacts - ISO arrangement
- 100,000 mating cycles
- sliding contacts
- 100,000 mating cycles
- sliding contacts
Card Size:
ID-1，SIM CARD，Micro SIM，Nano SIM
Physical Parameter & Work Environment:
Display: Red status LED
Cable / power supply: Cable: 1.5 m with USB type A connector, power supply via USB bus
Dimensions: LWH 68 x 47 x 13mm
Weight: 78 g
Temperature range: 0 ° C to + 50 ° C
Cable / power supply: Cable: 1.5 m with USB type A connector, power supply via USB bus
Dimensions: LWH 68 x 47 x 13mm
Weight: 78 g
Temperature range: 0 ° C to + 50 ° C
Operating Systems:
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/10 (32 and 64 bit)
• Windows® Server 2008/2012/2016
• Windows® CE 6.0, 7.0
• MacOS 10.9.x - 10.15.x
• Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit)
• Android 4.0 and higher
• Windows® 7/8/10 (32 and 64 bit)
• Windows® Server 2008/2012/2016
• Windows® CE 6.0, 7.0
• MacOS 10.9.x - 10.15.x
• Linux 2.6.x, and 3.x, 4.x, 5.x (32 and 64 bit)
• Android 4.0 and higher

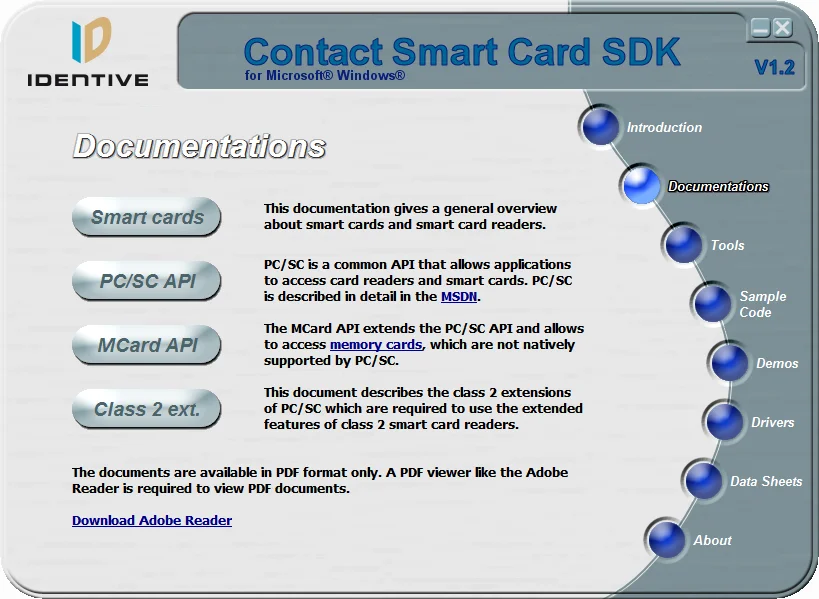

Software:
- PC / SC API
- CT-API (through wrapper on top of PC / SC)
- Synchronous-API (through wrapper on top of PC / SC)
- M-Card API (through wrapper on top of PC / SC)
- CT-API (through wrapper on top of PC / SC)
- Synchronous-API (through wrapper on top of PC / SC)
- M-Card API (through wrapper on top of PC / SC)

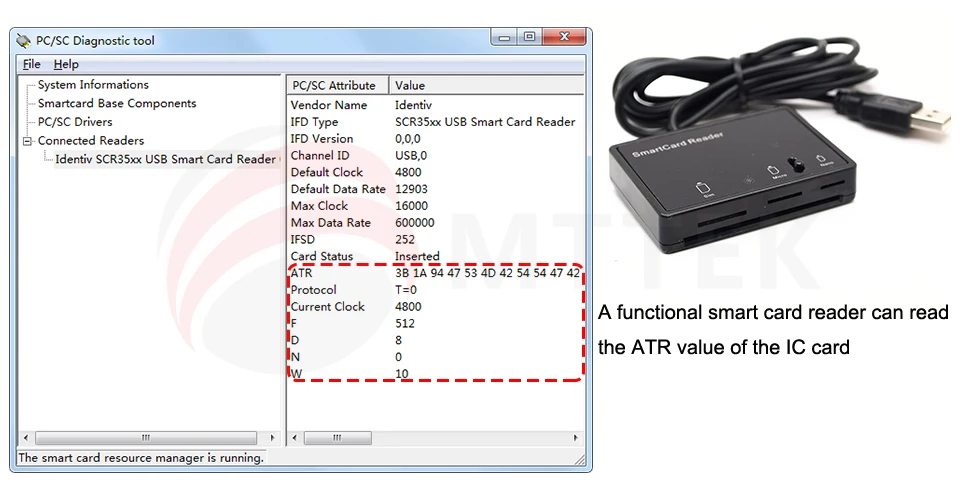

PC/SC Drivers:
Use Identiv's SCR33XX driver；
Software and functionality compatible with Identiv´s Contact Smart Card Reader
Software and functionality compatible with Identiv´s Contact Smart Card Reader
Company Profile
Markland(MTTEK) was established in 2009, headquartered in Hong Kong, and has branches in Shenzhen and Beijing. We are an innovative smart card solution provider, focusing on the fields of physical security and information security, and providing customers with high-end solutions and service.
We provide solutions from hardware to software:
- Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions;
- Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules；
Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.
We provide solutions from hardware to software:
- Solutions: e-ID/passport solutions, e-payment solutions, NFC solutions, Bluetooth read-write solutions, SIM card read-write solutions，Biometric Solutions;
- Hardware: Contact smart card readers and modules that follow the ISO/IEC 7816 protocol standard, Contactless smart card readers and modules based on 13.56MHz, E-passport reader and module that comply with ICAO 9303 standard, And optical identification based fingerprint readers and modules；
Markland is the important cooperation partner in Asia of Identiv Group which is the world’s security products manufacturer ,and we are the only agent of Identiv in mainland China.Through years of unremitting efforts, we have benefited from IDENTIV's technical support, customized and developed products and solutions that are more suitable for market needs, and cooperated with IDENTIV to customize products and solutions for its global customers.
OEM & ODM
Support customer customization and provide personalized smart card solutions
