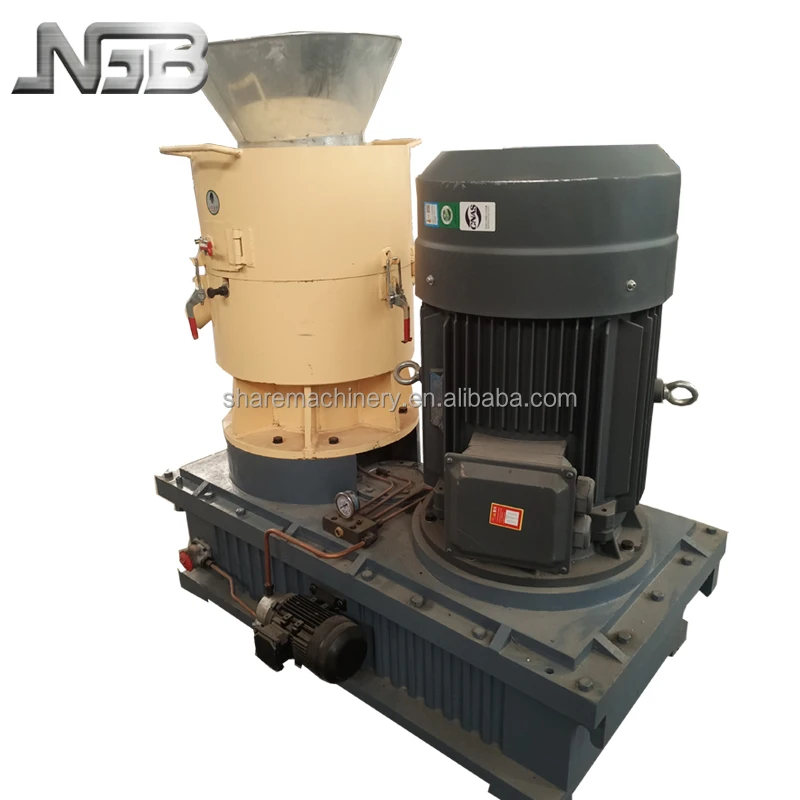

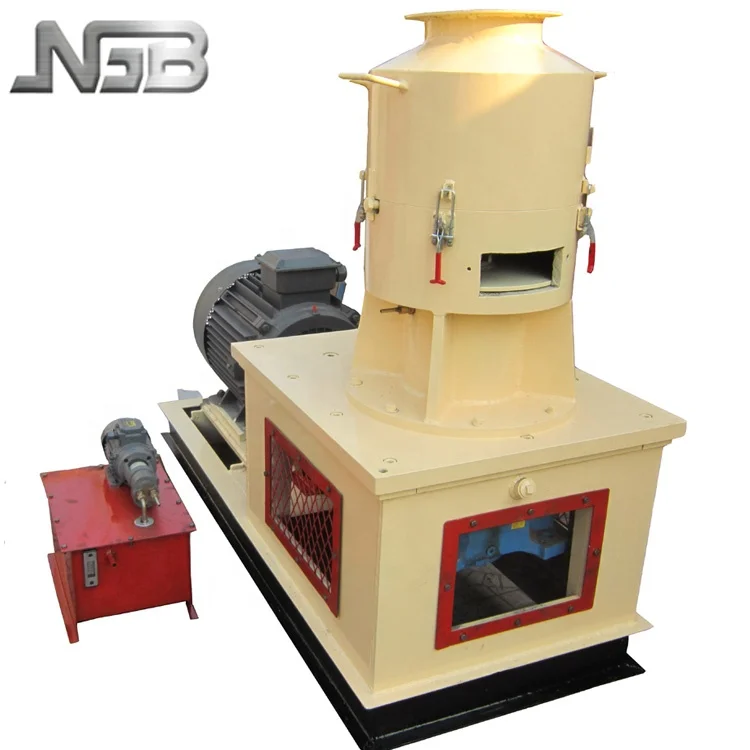

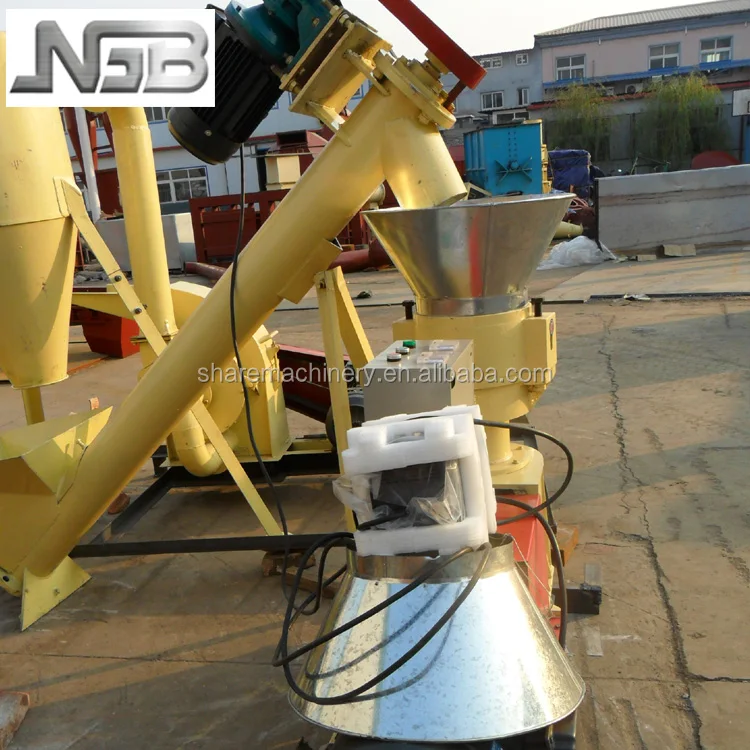

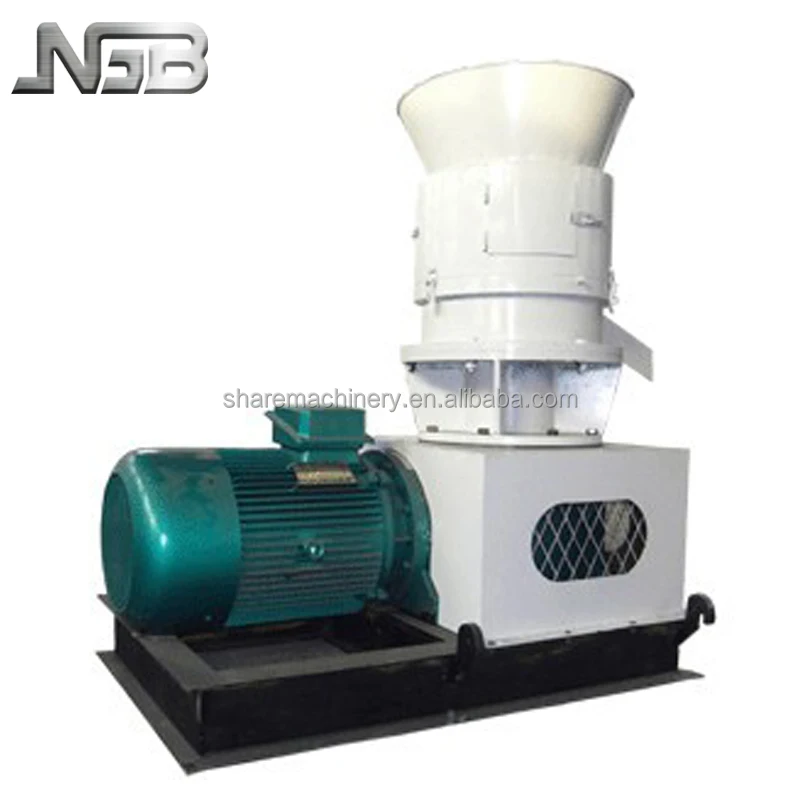

0.4 t/H CE Certification Wood Pellet Plant / Wood Pellet Production Line
- Category: >>>
- Supplier: Jinan Share Precision Machinery Co. Ltd.
Share on (1600523610675):
Product Overview
Description
Product Overview

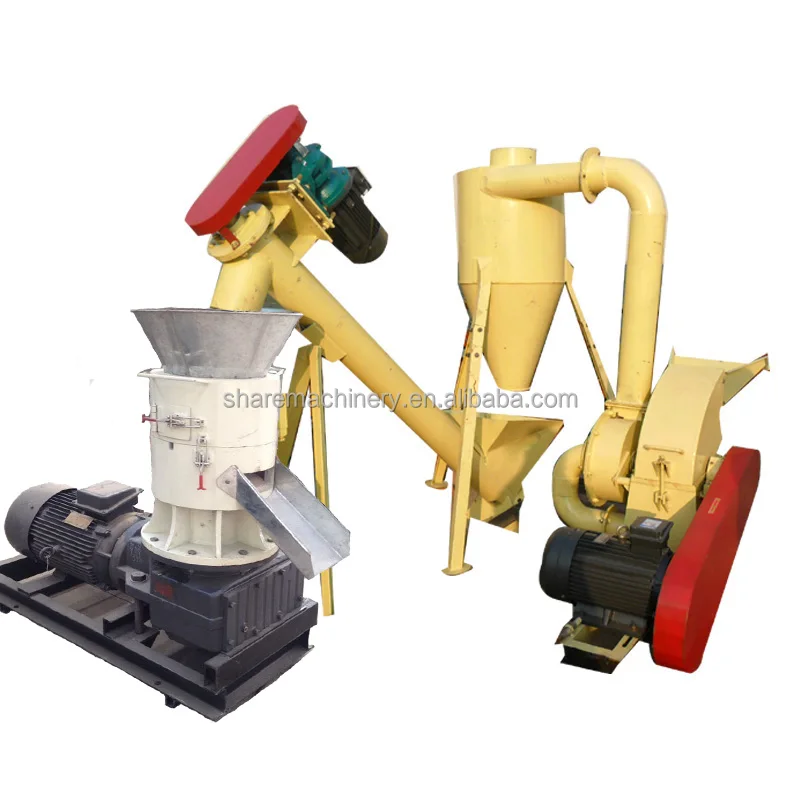

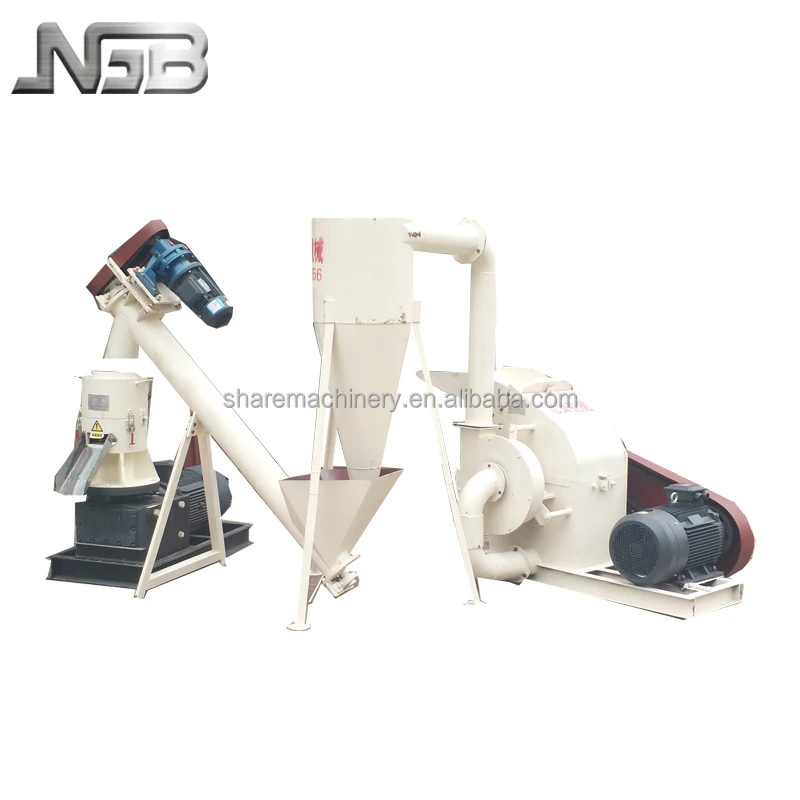

0.4 t/H CE Certification Wood Pellet Plant / Wood Pellet Production Line Introduction
This simple wood pellet making line is most fit for the home use or the small farm or the small factory, because the output is small, consumption is small and it is easy to operate.
The capacity can be designed according to different kind of raw material and material situations
The capacity can be 100 kg per hour, 200 kg per hour, 300 kg per hour, 500 kg per hour and more. So if you are interested, please send us emails for getting much more details
The capacity can be designed according to different kind of raw material and material situations
The capacity can be 100 kg per hour, 200 kg per hour, 300 kg per hour, 500 kg per hour and more. So if you are interested, please send us emails for getting much more details
FEATURES AT A GLANCE
Main Features of 0.4 t/H CE Certification Wood Pellet Plant / Wood Pellet Production Line
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
PRODUCT SPECIFICATIONS

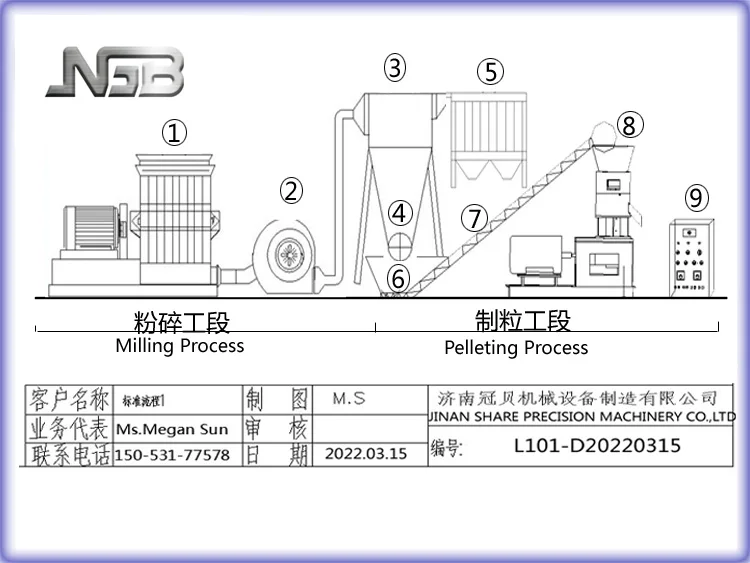

No | Model | 200-300 kg/h | 300-400 kg/h | 400-600 kg/h | 500-800kg/h | |
1 | Multifunctional Hammer Mill | Model: SG50 Power: 7.5 kW Rotor working diameter: 500 mm; Rotor rotary speed: 3100 rpm； Hammers QTY: 4×4=16 pcs Size: 1400×750×900 mm Weight: 200 kg | Model: SG50, Power：11 kw； Rotor working diameter: 500 mm； Rotor rotary speed: 3100 rpm； Hammers QTY: 4×4=16 pcs Size: 1400×750×900 mm Weight: 200 kg | Model: SG65*27 Power：15 kW Rotor working diameter: 600 mm； Rotor rotary speed: 2950 rpm； Hammers QTY: 4×6=24 pcs； Size: 1550×780×1130 mm Weight: 400 kg | Model: SG65*27 Power：22 kW Rotor working diameter: 600 mm； Rotor rotary speed: 2950 rpm； Hammers QTY: 4×6=24 pcs Size: 1550×780×1130 mm； Weight: 420 kg | |
2 | Fan | Centrifugal fan Power: 4 kw； | Centrifugal fan Power: 4 kw； | Centrifugal fan Power: 5.5 kw； | Centrifugal fan Power: 5.5 kw； | |
3 | Cyclone | diameter:600mm； | diameter:600 mm | diameter:800 mm； | diameter:800mm； | |
4 | Air lock | Air lock: 5 L， Power:1.5 kW； | Air lock: 5 L， Power:1.5 kW； | Air lock: 5 L， Power:1.5 kW； | Air lock: 5 L， Power:1.5 kW； | |
5 | Bag filter | Bag filter：9 holes | Bag filter：9 holes | Bag filter：9 holes | Bag filter：12 holes | |
6 | Buffer | Volume:0.3-0.5 m³ | Volume:0.3-0.5 m³ | Volume:0.3-0.5 m³ | Volume:0.3-0.5 m³ | |
7 | screw conveyor | Screw diameter: 165 mm； Power：0.75 kW | Screw diameter: 165 mm； Power：0.75 kW | Screw diameter: 219 mm； Power：1.5 kW | Screw diameter: 219 mm； Power：1.5 kW | |

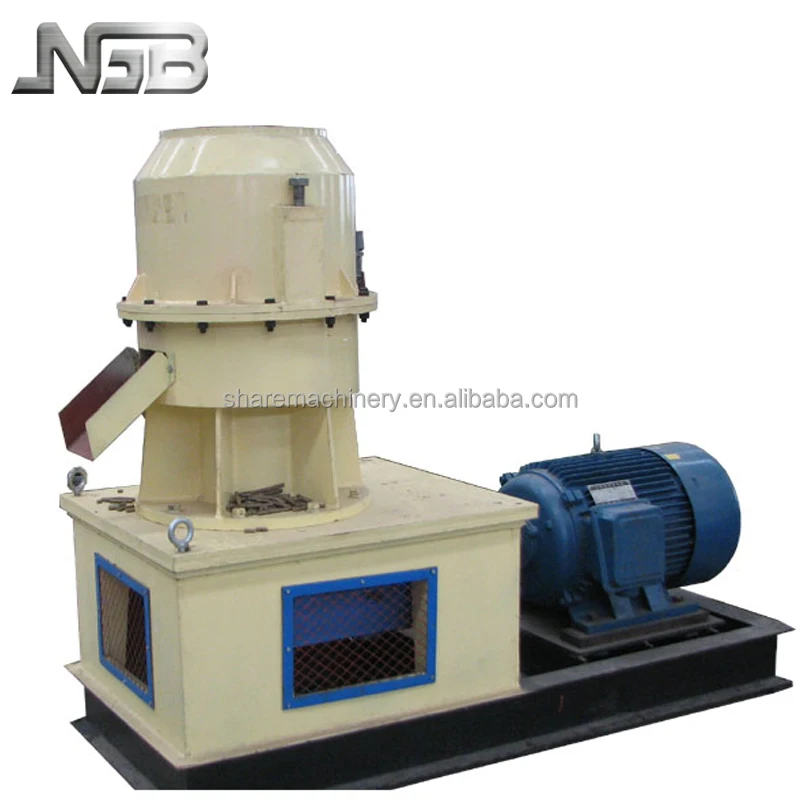

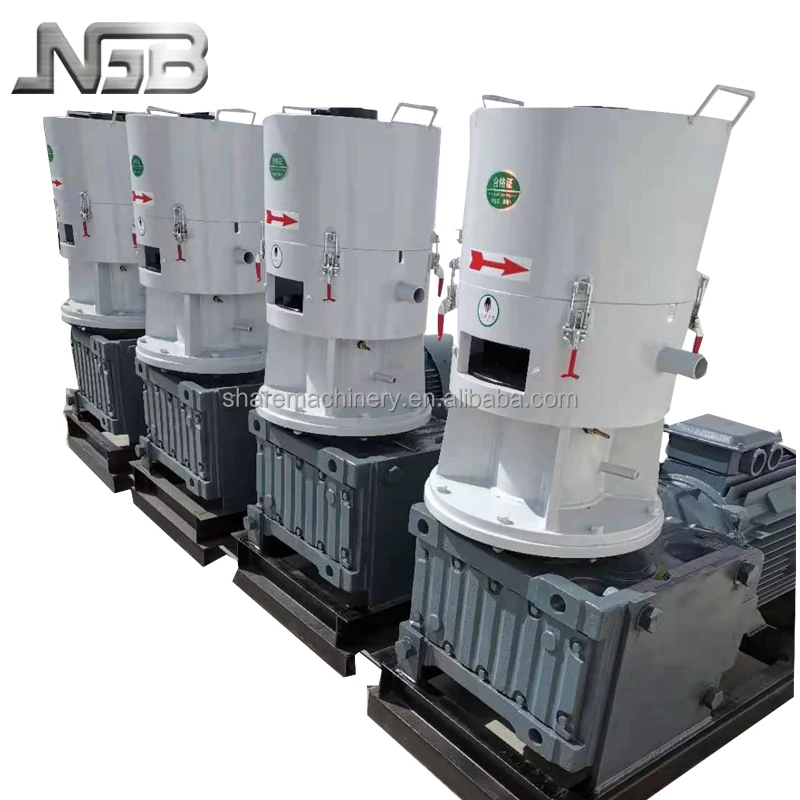

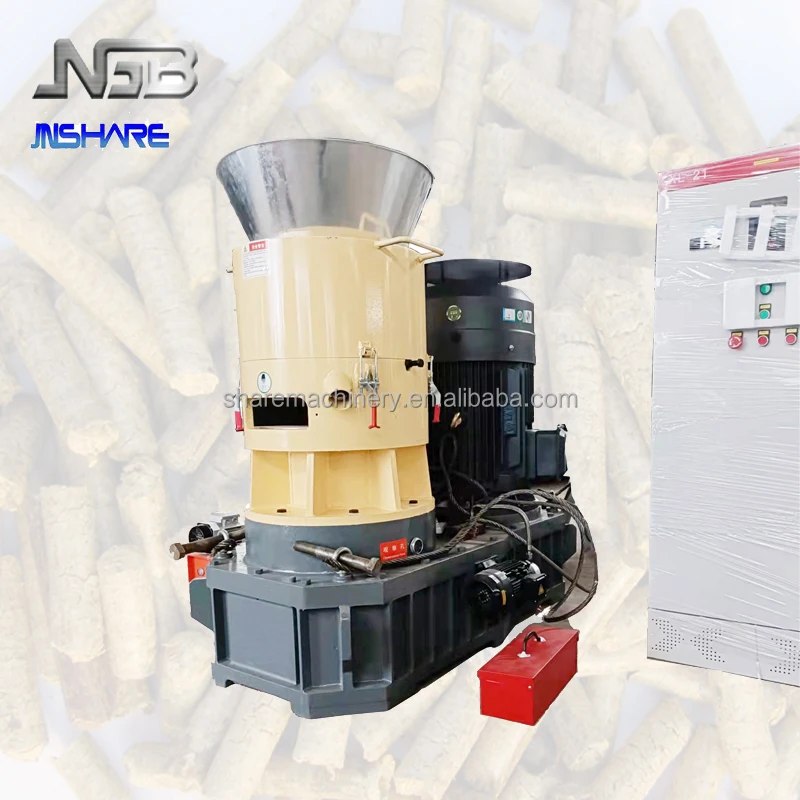

8 | Flat die Pellet Mill | Model : SKJ300R Power:22 KW Output: 200-300 kg/h Size： 1280*550*1200 mm; Weight：800 kg | Model：SKJ350R Power:30 KW Output: 300-400 kg/h Size： 1300*630*1300 mm; Weight：900 kg | Model：SKJ400R Power:37 KW Output:400-600 kg/h Size： 1400*650*1380 mm; Weight：1000 kg | Model：SKJ450R Power:45 KW Output:500-800 kg/h Size： 1620*690*1600 mm; Weight：1500 kg | |
9 | Electric control box | Adopts star-delta step-down start; Electrical parts use well-known brands | Adopts star-delta step-down start; Electrical parts use well-known brands | Adopts star-delta step-down start; Electrical parts use well-known brands | Adopts star-delta step-down start; Electrical parts use well-known brands | |
Total Power | 35.75 kW | 47.25 kW | 60.50 kW | 75.50 kW | ||
Capacity | 200-300 kg/h | 300-400 kg/h | 400-600 kg/h | 500-800 kg/h | ||
Advantages
1. The production line has less investment, less land occupation and low maintenance cost;
2. The line includes pulverizers, conveyors and granulators, which are widely used;
3. The granulator and pulverizer included in this production line are fixed products for many years, with low failure rate and high cost performance;
2. The line includes pulverizers, conveyors and granulators, which are widely used;
3. The granulator and pulverizer included in this production line are fixed products for many years, with low failure rate and high cost performance;
Our Certications
Company Profile
LINGBO (SHANDONG) CNC MACHINERY Co., Ltd is a professional manufacturer of glass further processing machines more than ten years, and now based on the strong technical support and strong after-sell services, we develop rapidly. We are focusing on the high quality machines producing and supplying includes the focuses on the design, R&D, manufacture and after-sell service.
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market.
Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
Our key machines is Insulating Glass Machine, Glass Filling Machine, Glass Sealing Machine, Glass Washing Machine, Glass Cutting Machine etc the complete glass deep processing machines. We have about 20 patent for our products, and now have Occupied one-third of the Chinese market.
Automatic Argon Gas Filling Machine Line is our patent products as well, we adopts the top technology of side filling way, which greatly improves the inflation effect and efficiency. Ensuring the double glazing glass argon gas concentration is kept at 90%, even reach 98% for small glasses.
We have developed two working methods for such argon gas filling line, one is suitable for all glass for filling, and the other is suitable for half of insulated glass. Strong technical support gives us a strong ability to serve customers. Now our argon gas filling machine is the most popular products, it adopts the side filling method as the special filling way to save energy. Filling result can get more than 90%. It is the ideal products for the old bottom filling ways.
In order to make sure the machine stability, we have specially make the machines structures and using the first-class electrical parts.
Our company develop slogan is Cooperate and Win-win, so we warm welcome to different zone customers to cooperate, and we will offer the best price with highest quality products.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
