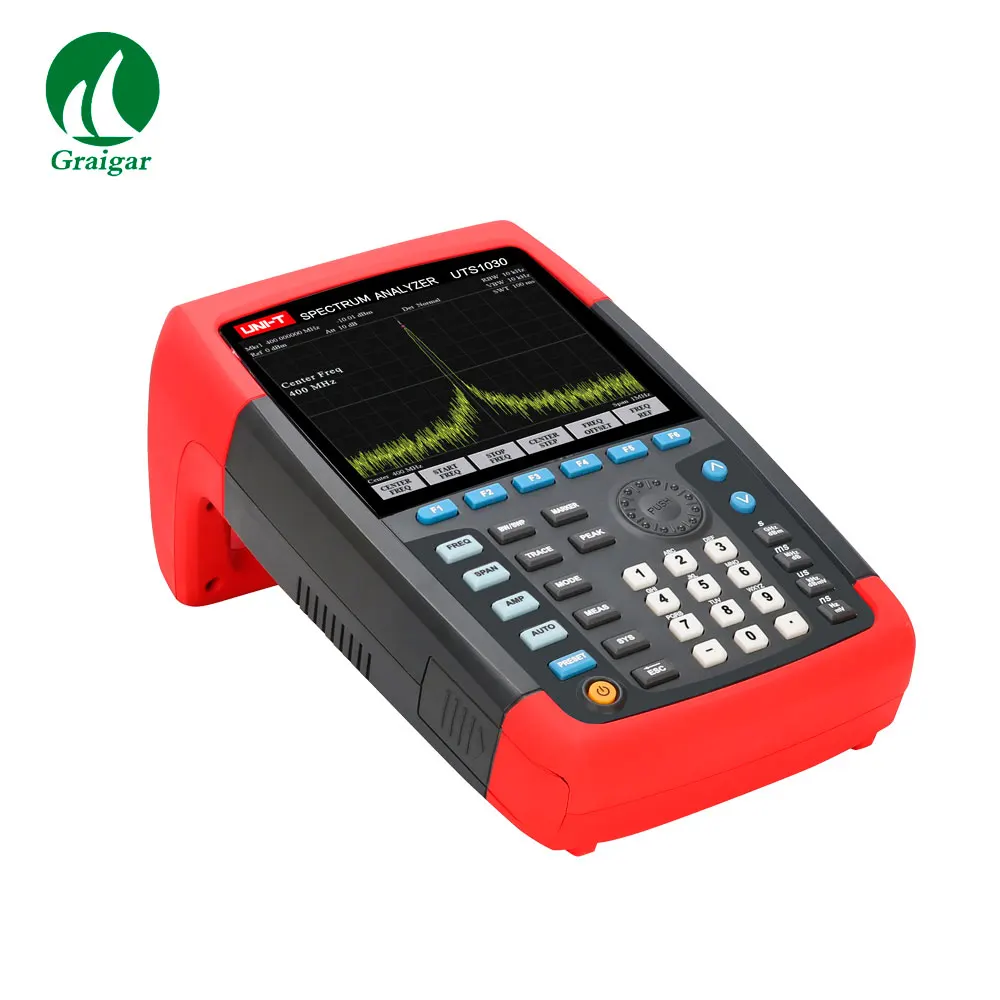

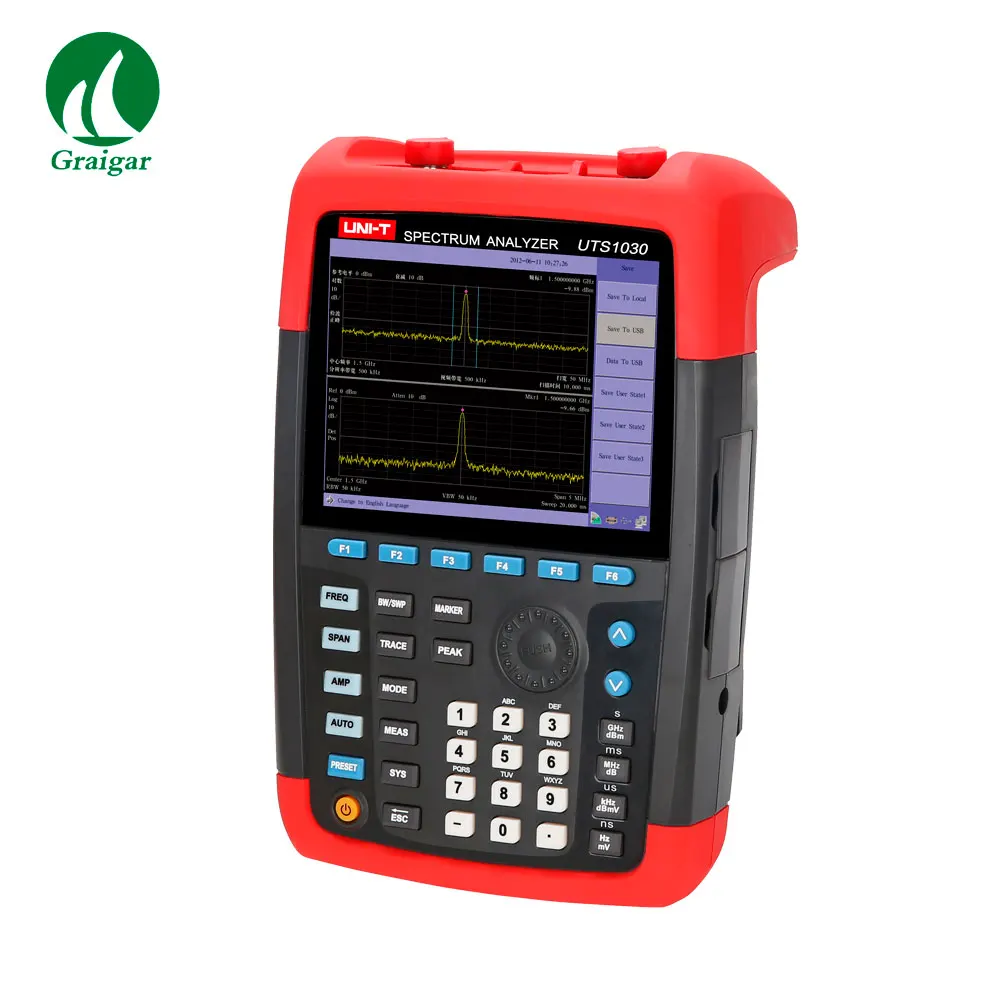

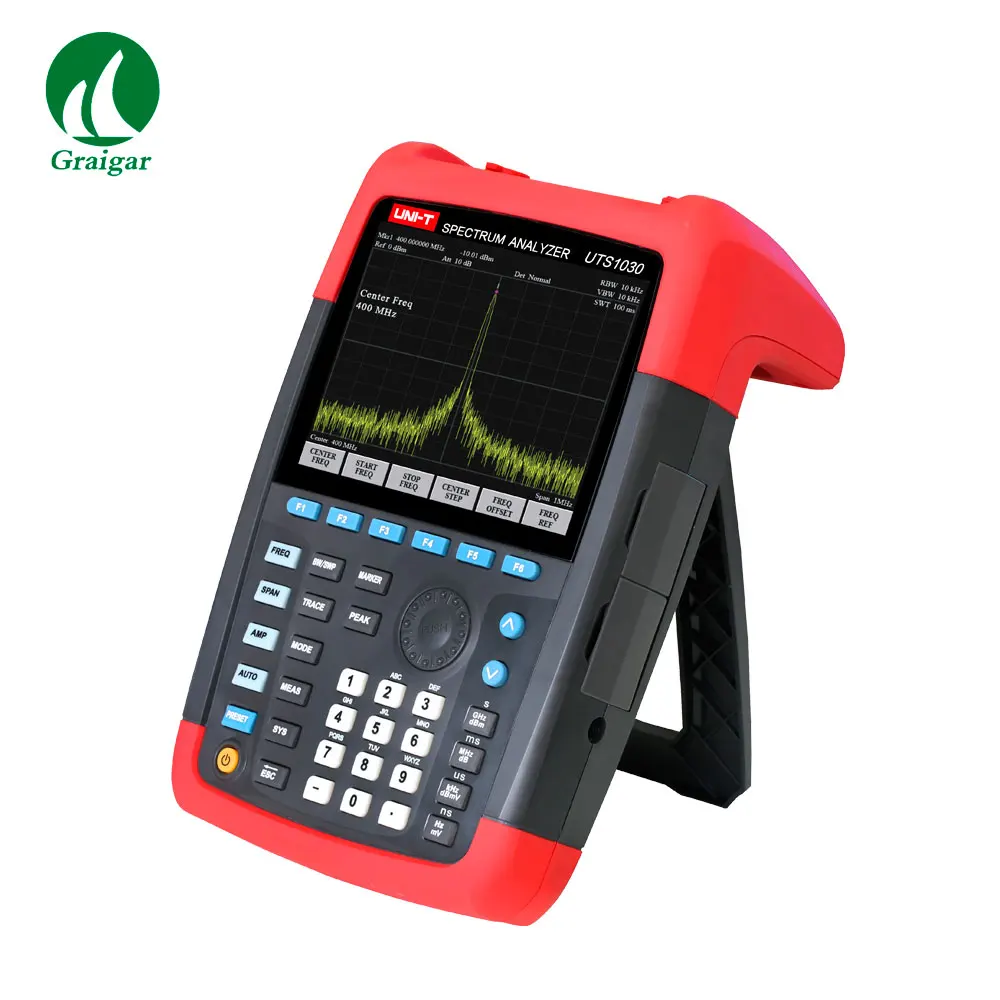

UNI T UTS1030 ручной Анализаторы спектра в пределах 9 кГц ~ 3,6 ГГц с 6,5 дюйма с большим экраном

Specification

UTS1030

Spectrum Measurement

Range

9kHz~3.6GHz

Resolution

1Hz

Accuracy

±(Frequency Marker Readout*Frequency    Reference Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz)

Internal Reference(10MHz)

Aging Rate <1ppm/year
     Stability Over Temperature  <0.5ppm(15℃ ~ 35℃)

Resolution Bandwidth (RBW)

Range

10Hz~3MHz, Customized down    to: 1Hz~10Hz

Electability(60dB/3dB)

RBW≤500kHz; <5:1 Typical (Digital implementation, next to    Gaussian shape);
     <5% Typical

Accuracy

RBW≤500kHz; <5% Typical

Video Bandwidth

10Hz~3MHz

Average Noise Level (1Hz RBW, 0dB RF Attenuator )

Preamplifier Off

100kHz~1MHz:<-100dBm-3×(f/100kHz)dB
     1MHz~10MHz:<-130dBm
     10MHz~1GHz:<-135dBm
     1GHz~3.6GHz:<-130dBm

Preamplifier On

100kHz~1MHz:<-120dBm-3×(f/100kHz)dB
     1MHz~10MHz:<-150dBm
     10MHz~1GHz:<-155dBm
     1GHz~3.6GHz:<-148dBm

Phase Noise(fc=500MHz)

Offset 30kHz

-90dBc/Hz

Offset 100kHz

-100dBc/Hz

Offset 1MHz

-110dBc/Hz

Sweep Time

Span (100Hz≤SPAN≤3.6GHz)

10ms to 3000s

Zero Span

1ms to 3000s

Sweep Modes

Continuous, Single

Trigger

Trigger Source

AUTO,Video,EXT

Offset 100kHz

5V TTL Level (Typical )

Frequency Counter

Resolution

1Hz,10Hz,100Hz,1kHz

Uncertainty

Frequency Readout x    Frequency Reference Progress +Counter Resolution

Amplitude Accuracy (20℃~30℃)

Overall Amplitude Accuracy (90%)

±1.5dB
     Input Signal Range:  -50dBm ~ 0dBm

Amplitude

Max. Safe Input     Level

Average Continuous Power:    +27dBm

Max. Input DC Voltage

50Vdc

Input Attenuator     Range

0~39dB, in 3dB step

1dB     Compression

+7dBm

Internal Memory

128MB

Residual Response

Third-Order Intercept(TOI)

>30MHz:+13dBm

Second Harmonic Intercept(SHI)

+30dBm

Input Related Spurious

<-60dBm

Residual Response

<-85dBm

Tracking Generator (Optional)

Frequency Range

100kHz to 1.5GHz

Output Power

-30dBm ~ 0dBm, in 1dB step

Output Flatness

±3dB

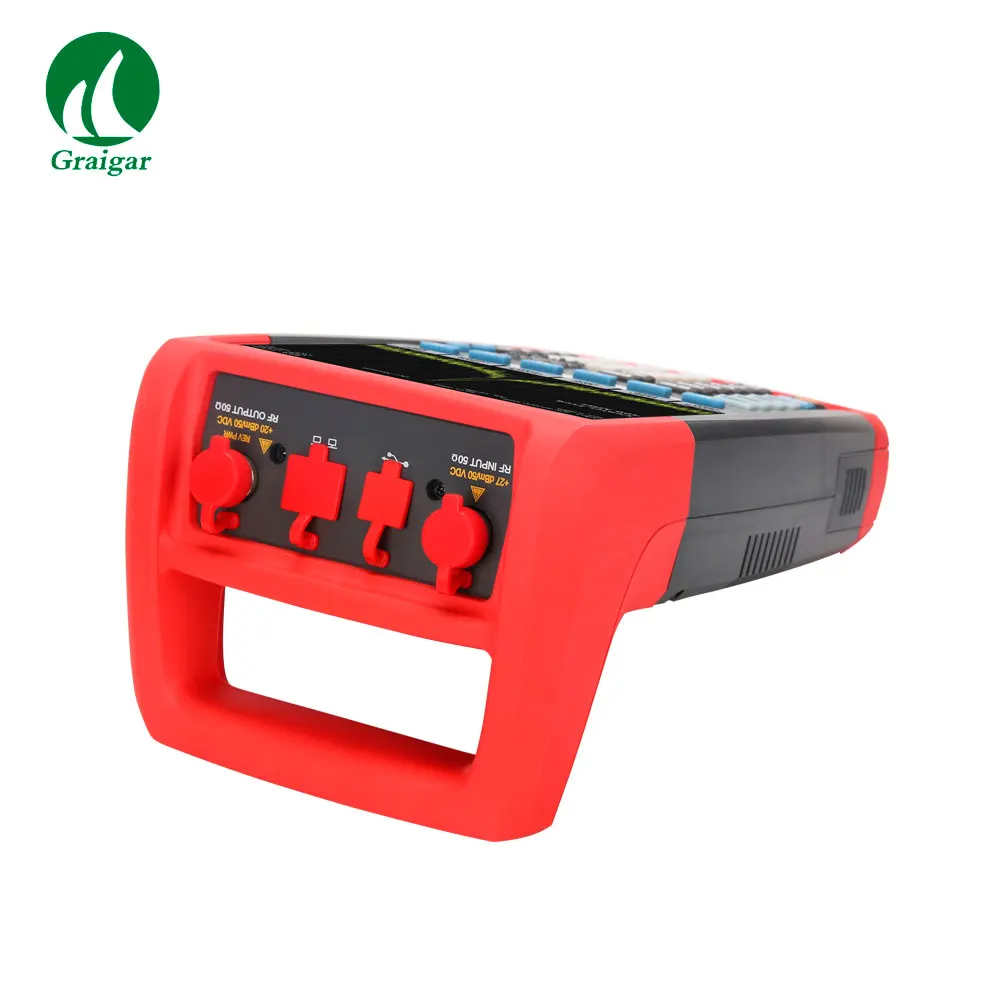

Input/Output

RF Input

N Type, Female (50Ω)

USB

USB Host,USB Device

LAN

10/100 Base-T, RJ-45    Connector

AM/FM Demodulation

Headset

Reference Input/Output

10MHz, BNC Female, Input: 0dBm ~  +10dBm;Output: 0dBm±2dB

General     Characteristics

Power

Li-ion Battery: 7.4V 6600mAh;
     DC Adapter: 100~240VAC    50/60Hz 1.5A

Display

6.5 Inches  TFT     LCD,  VGA (640×480)

Product Color

Red and Grey

Product Net Weight

3.0 Kg

Product Size (W×H×D)

182mm × 288mm ×142mm

Standard Accessories

DC Adapter,N/SMA Convertor,N/BNC Convertor, RF Cable,    Antenna

Standard Individual Packing

Gift Box,  English Manual, Warranty Card

Standard Quantity Per Carton

1 PC

Standard Carton Measurement
     (L×W×H)

400mm × 280mm × 220mm

Standard Carton Cross Weight

3.9 Kg
