High Efficiency Rolling Mill Forging Hammer Press Rolling Mill Prices
- Category: >>>
- Supplier: Sunrise Mechatronic Technology Co. Ltd
Share on (1600523636430):
Product Overview
Description

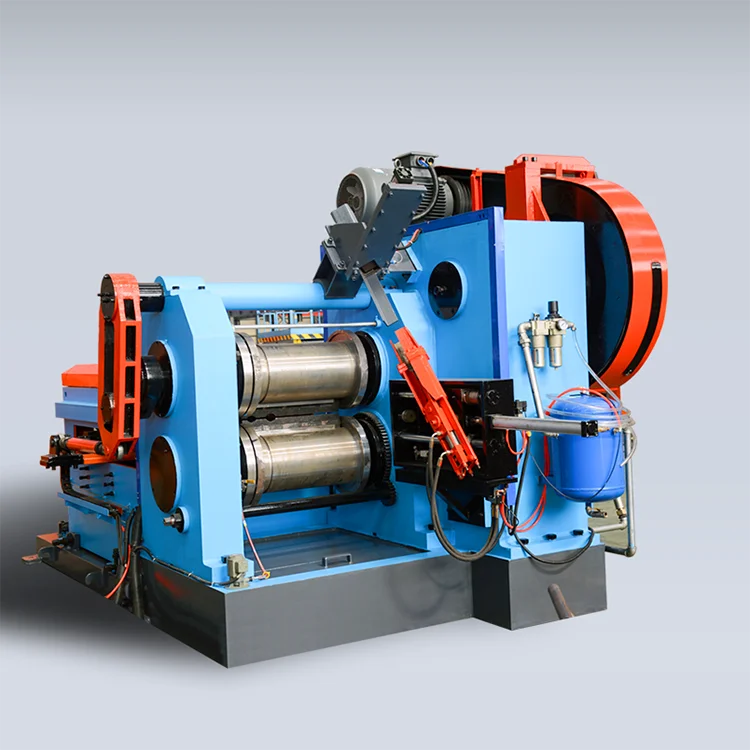

Product display
Roller forging machine is a kind of plastic change of billet by means of a pair of fan-shaped dies rotating in opposite direction
In order to obtain the forging technology of the required forgings or billets. During the deformation process of roll forging,
After the blank is compressed by the roller forging die in the height direction, in addition to a small part of the metal flows laterally,
Most of the metal flows along the length of the billet.
Therefore, the essence of roll forging deformation is billet
The extended deformation process of the material under pressure is applicable to the process of reducing the cross section of the billet, such as the shaft
Class parts of the drawing, the slab of the grinding.

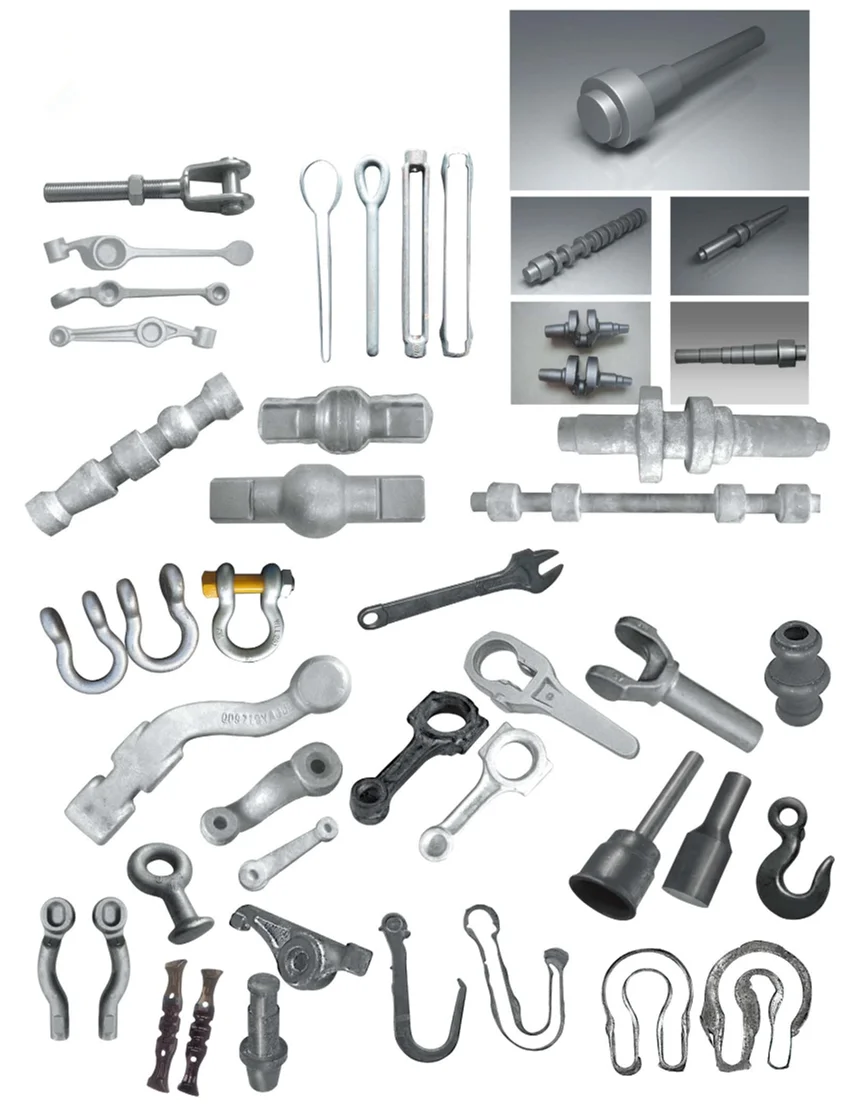

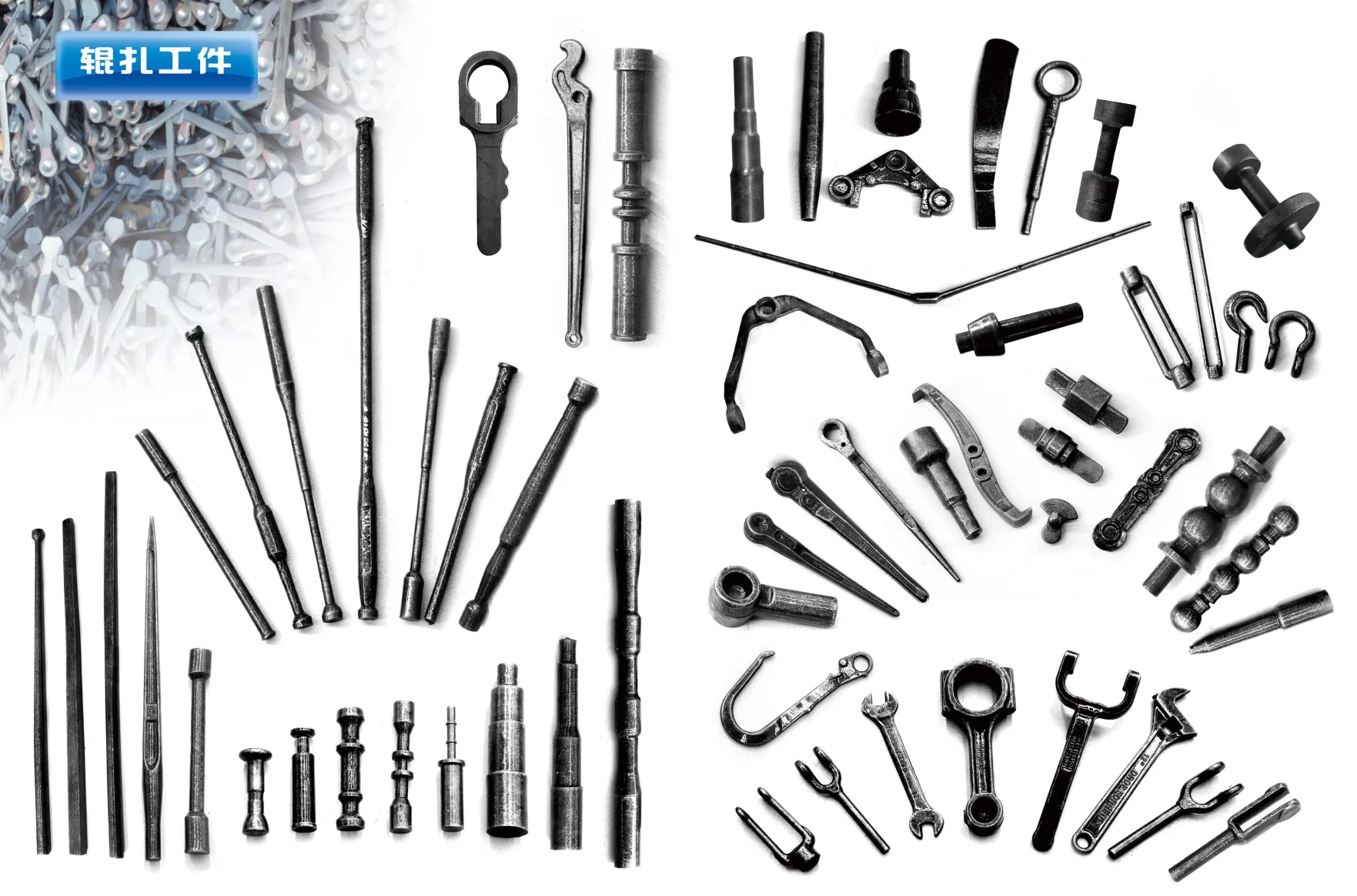

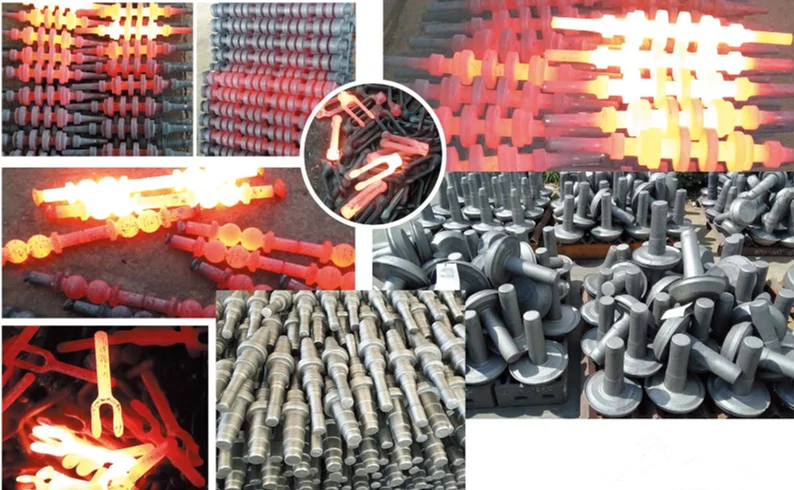

In industrial applications, roll forging can be used as die forging
The pre-blanks process provides blanks for long shaft forgings;
Also available on the roll forging machine
Realize the main forging forming process or direct roll forging.
In order to obtain the forging technology of the required forgings or billets. During the deformation process of roll forging,
After the blank is compressed by the roller forging die in the height direction, in addition to a small part of the metal flows laterally,
Most of the metal flows along the length of the billet.
Therefore, the essence of roll forging deformation is billet
The extended deformation process of the material under pressure is applicable to the process of reducing the cross section of the billet, such as the shaft
Class parts of the drawing, the slab of the grinding.
In industrial applications, roll forging can be used as die forging
The pre-blanks process provides blanks for long shaft forgings;
Also available on the roll forging machine
Realize the main forging forming process or direct roll forging.
Machine Feature:
1.Roller forging technology has the characteristics of both forging and rolling, with high precision, small surface roughness and good quality forgings.
2.Because the metal fiber tissue is distributed according to the outline of the forging during roll forging,
3.Not cut off, uniform structure, good mechanical properties, precision roll forging without processing, to avoid the flow line cut or exposure of the disadvantage;
4.Roll forging continuous rotation, high production efficiency, set
5.The preparation structure is simple, the requirements for workshop and foundation are low, the die service life is long, the static pressure process during roll forging, the relative sliding between the metal and the die is less;
6.Required equipment tonnage is small because of roll forging
7.The process is a gradual and continuous deformation process. At each moment of deformation, the mold is only in contact with a part of the blank, so only the equipment with small tonnage is needed.
8.The process is simple, no
9.Shock, vibration, good working conditions, easy to achieve automation
1.Roller forging technology has the characteristics of both forging and rolling, with high precision, small surface roughness and good quality forgings.
2.Because the metal fiber tissue is distributed according to the outline of the forging during roll forging,
3.Not cut off, uniform structure, good mechanical properties, precision roll forging without processing, to avoid the flow line cut or exposure of the disadvantage;
4.Roll forging continuous rotation, high production efficiency, set
5.The preparation structure is simple, the requirements for workshop and foundation are low, the die service life is long, the static pressure process during roll forging, the relative sliding between the metal and the die is less;
6.Required equipment tonnage is small because of roll forging
7.The process is a gradual and continuous deformation process. At each moment of deformation, the mold is only in contact with a part of the blank, so only the equipment with small tonnage is needed.
8.The process is simple, no
9.Shock, vibration, good working conditions, easy to achieve automation
Product Paramenters
Parameters | GD-300 | GD-370 | GD-460 | GD-560 | GD-680 | GD-1000 | GD-1250 |
Rolling die dia | 300 mm | 370 mm | 460 mm | 560 mm | 680 mm | 1000 mm | 1200 mm |
Working roll width | 390 mm | 510 mm | 550 mm | 610 mm | 800 mm | 1200 mm | 1400 mm |
Max dia of rolling workpiece | Φ35 mm | Φ55 mm | Φ75 mm | Φ100 mm | Φ125 mm | Φ160 mm | Φ220 mm |
25 mm | 50 mm | 65 mm | 90 mm | 110 mm | 140 mm | 200 mm | |
Adjustment for rollingcentral distance | ±8 mm | ±8 mm | ±8 mm | ±10 mm | ±10 mm | ±12 mm | ±15 mm |
Motor power | 22 KW | 22 KW | 30 KW | 55 KW | 132 KW | 250 KW | 355 KW |
Speed | 66 r/min | 66 r/min | 60 r/min | 52 r/min | 40 r/min | 15 r/min | 8 r/min |
Feeder roation angle | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° | 90 ° |
Adjustment of longitudinal position | 150 mm | 200 mm | 200 mm | 300 mm | Individual movement | Individual movement | Individual movement |
Single pass cross stroke | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
Vertical and horizontal adjustments | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
