Automatic Gate Opener Electric Lock
US $110.00-$156.00

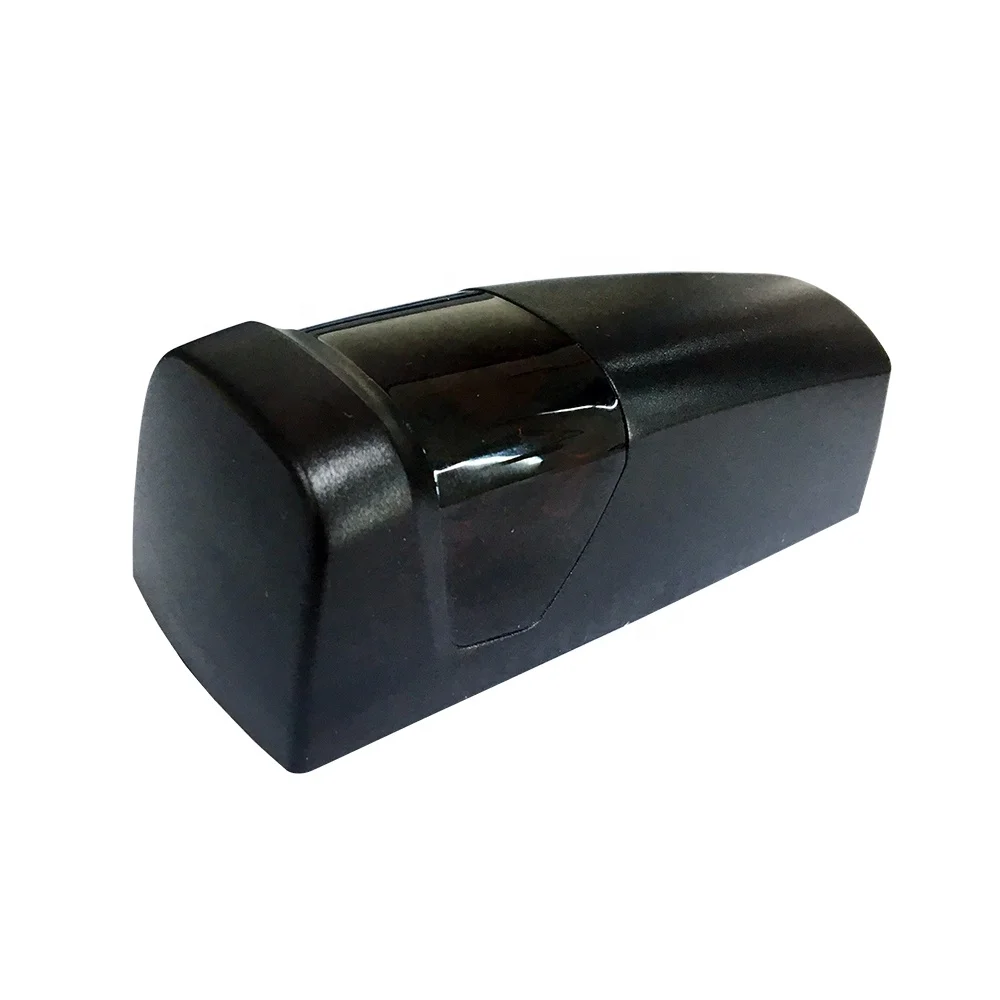

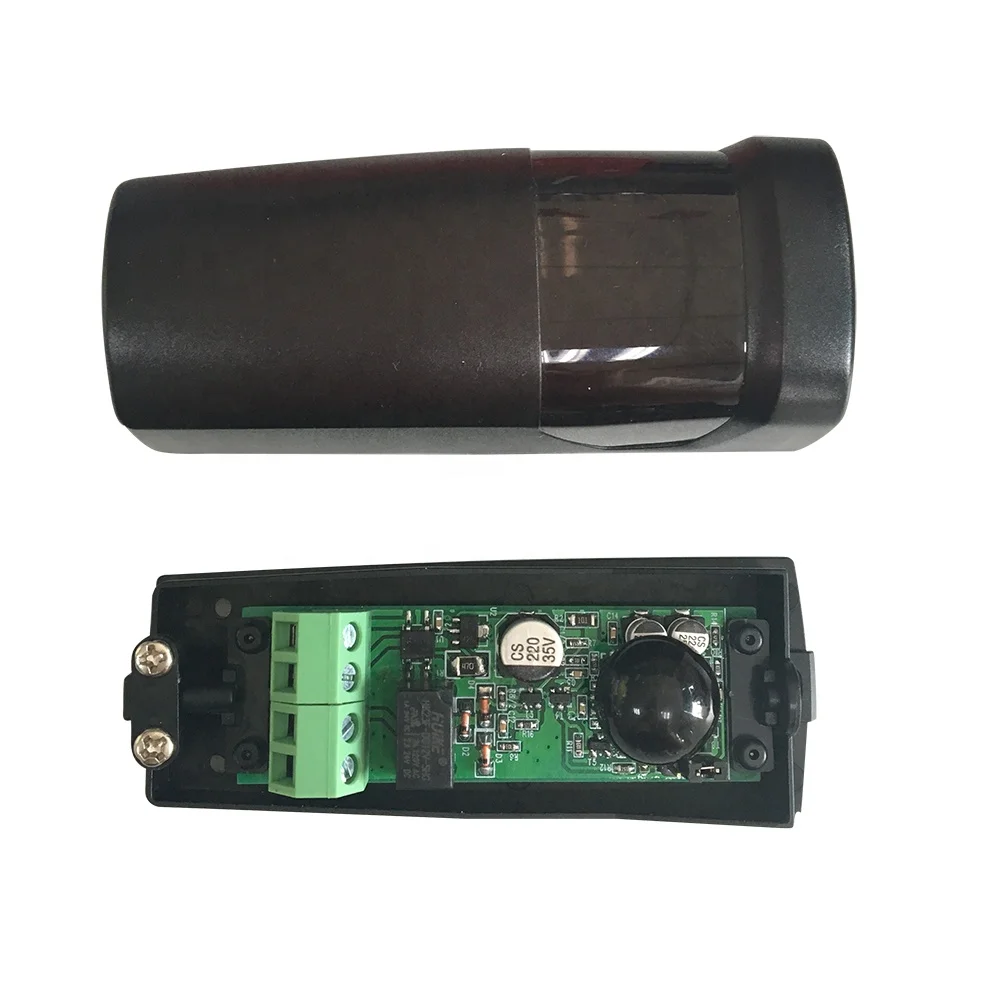

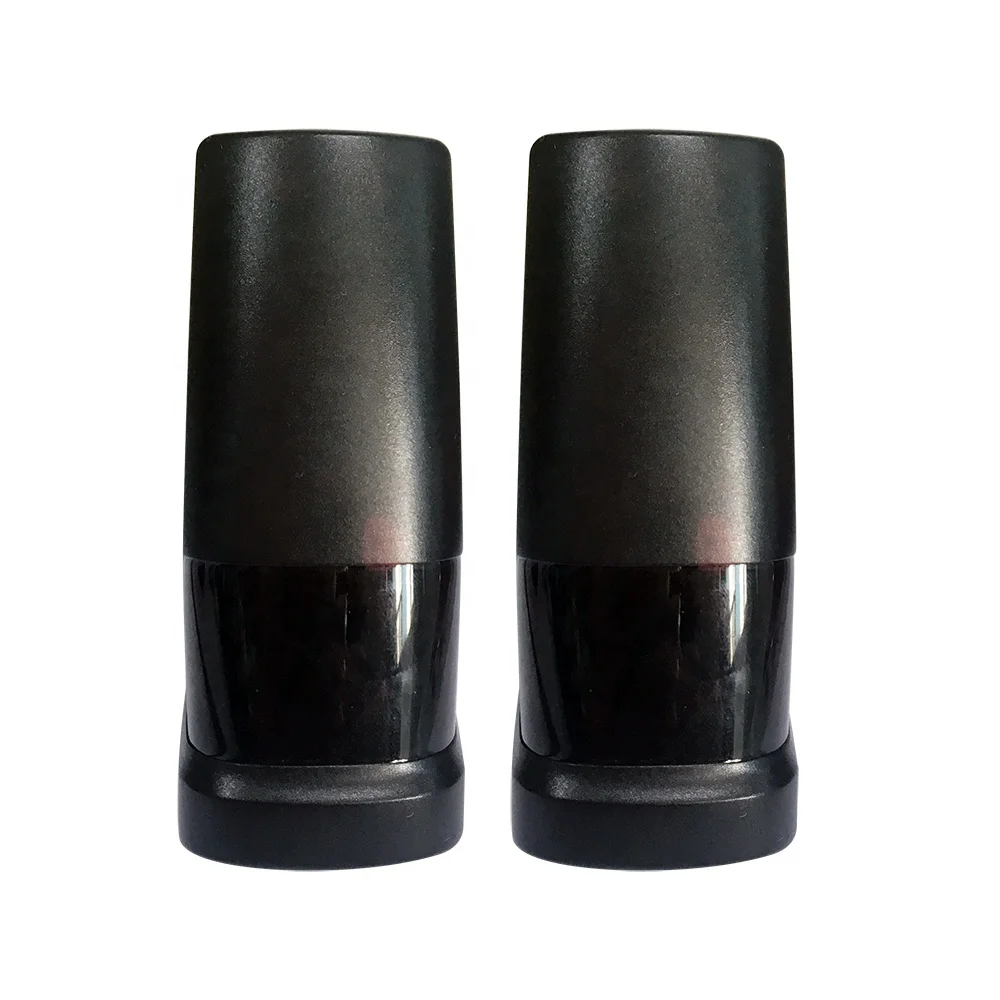

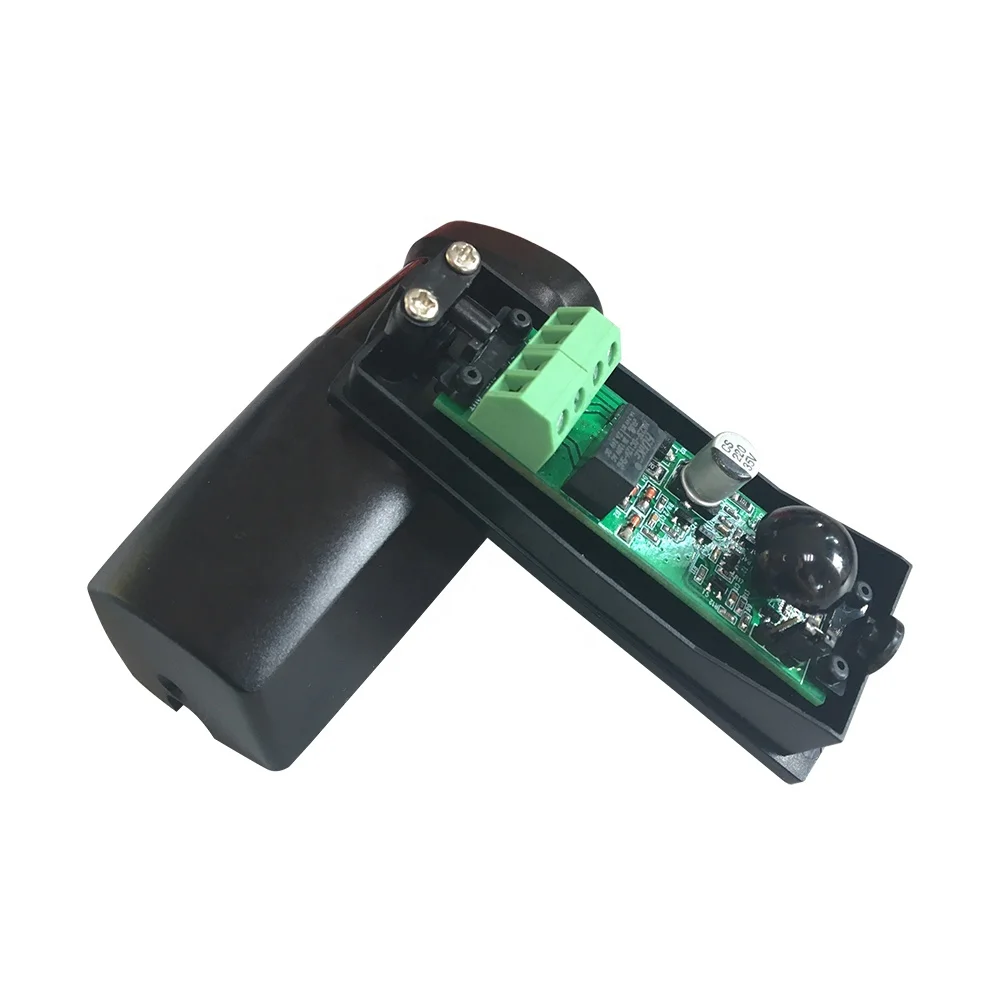

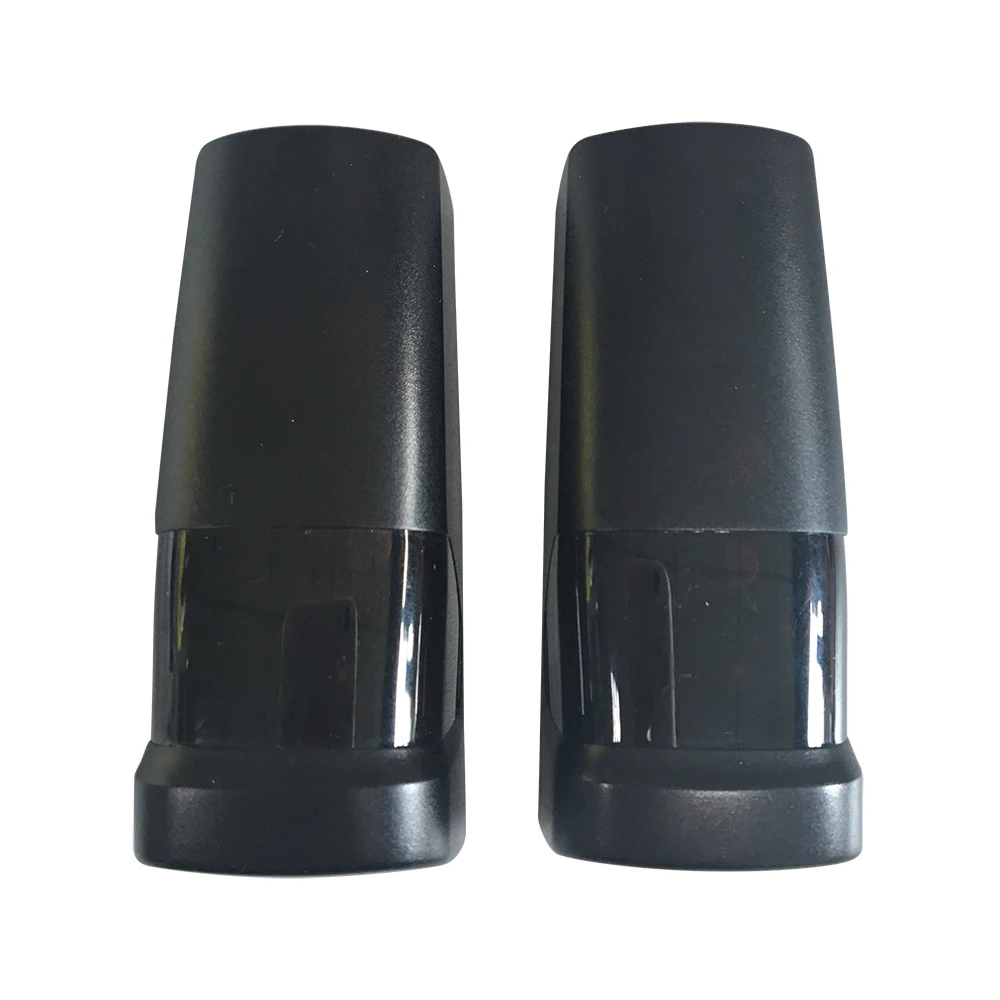

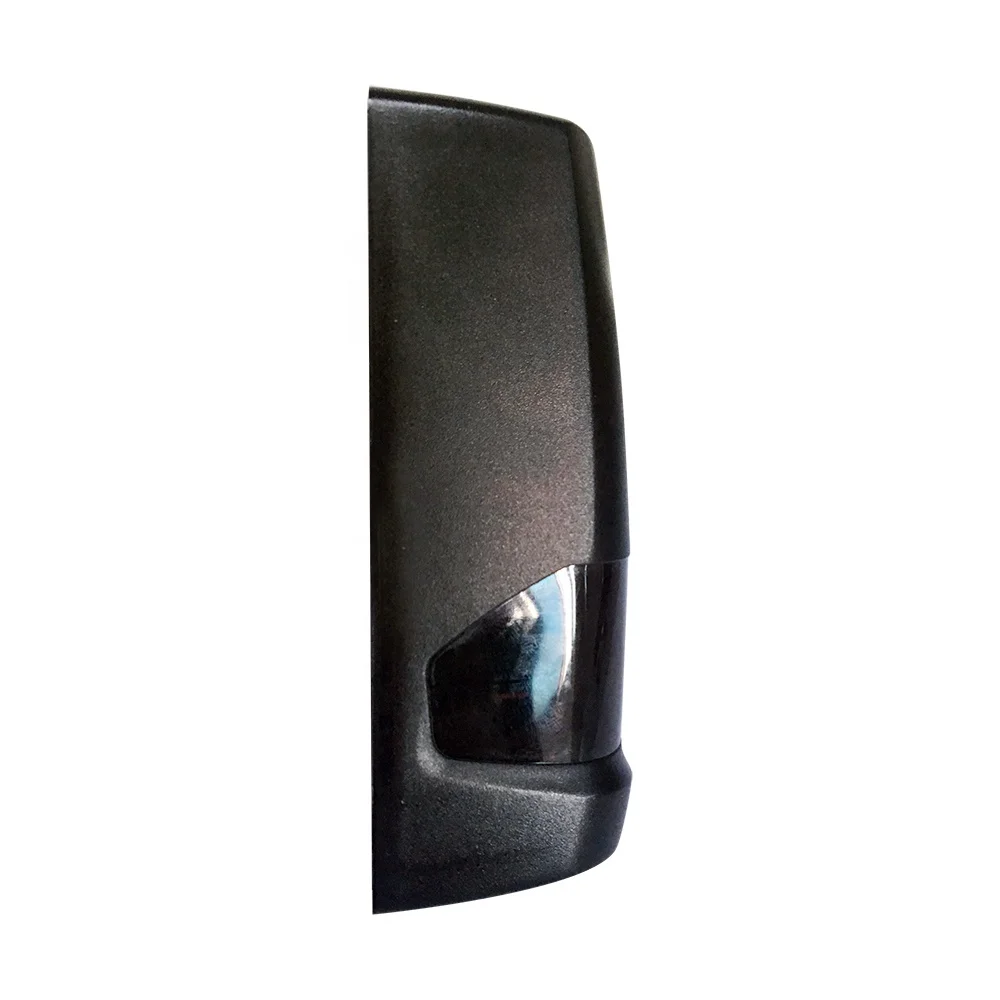

single beam motion Infrared sensor/Gate photocell single beam YET610
- Category: >>>
- Supplier: Hansi Technology (shenzhen) Co. Ltd.
Share on (1600523665988):
Product Overview
Description
Battery powered Infrared sensor/Gate photocel single beam YET610B
Features:
1.YET610-TX power supply by Solar,without wires connected to YET610-RX.
2.aslo with charging battery. Can use on any weather.
.
Quick Details
electric gate opener infrared photocell
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: YET
- Model Number: YET610
- Usage: Door sensor
- Theory: Door sensor
- Output: Switching Transducer
- Working current: 40mA
- Wave length: 940nm
- Input: r*15ma - t*30ma
- Operating temperature: -20 degrees to 50degrees
- Relay output: 1 a max *36 v
- ension: 49.2 x 76 x 21.6mm
- range: can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
- Size:: 49.2 x 76 x 21.6M
- Name: mini gate opener motor photocell sensor
Packaging & Delivery
| Packaging Details: | 80sets/ctn ctn size:48*38*25cm |
|---|---|
| Delivery Detail: | 15 days for 5000-10000pcs |
Specifications
mini gate opener motor photocell sensor
1.Indoor 20m, Outdoor 10m
2.12-24 VDC
3.waterproof
4.Size : 49.2 x 76 x 21.6M
Specification:
1.Infrared Frequancy : 1.92khz
2.Power supply : Solar
3.Wave length :940nm
4.Input : r*15ma - t*30ma
5.Operating temperature : --20 degrees to 50degrees
6.Relay output : 1 a max *36 v
7.Dimension: 49.2 x 76 x 21.6mm
8.Range : range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc
Features:
1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.
2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).
4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
