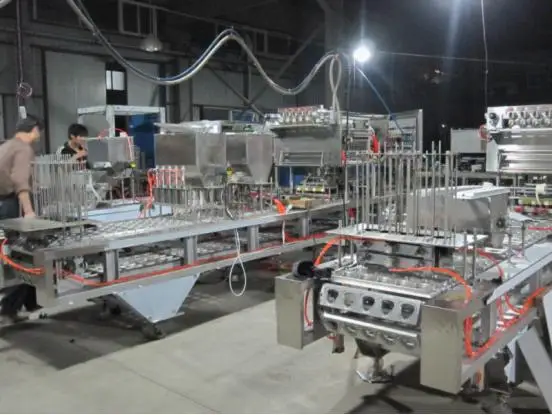

mineral water cup filling and sealing machine
mineral water cup filling and sealing machine
mineral water cup filling and sealing machine
mineral water cup filling and sealing machine
mineral water cup filling and sealing machine
mineral water cup filling and sealing machine
mineral water cup filling and sealing machine

mineral water cup filling and sealing machine

Share on (1600523669815):


Price:$9,000.00 - $9,200.00

Quantity:


Product Overview

Description



Product Overview


mineral water cup filling and sealing machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder, granule


FEATURES AT A GLANCE

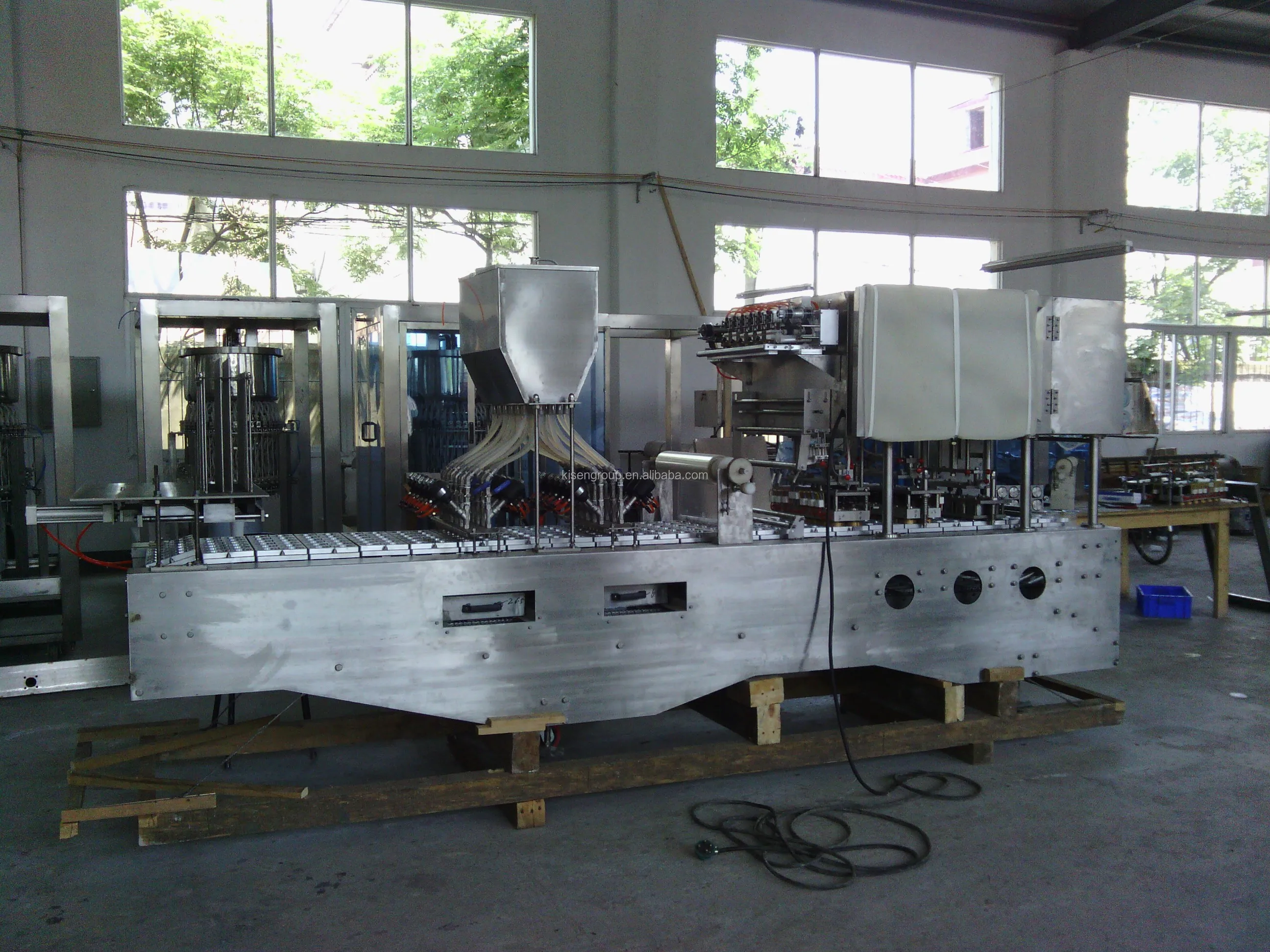

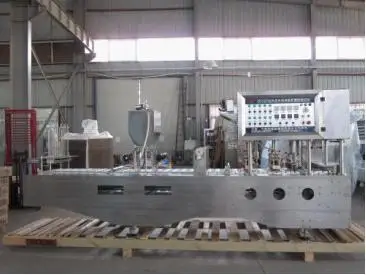

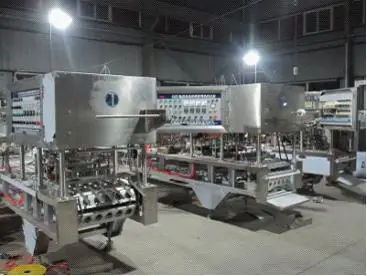

Mineral Water Cup Washing Filling Sealing Machine
KCUP-4000 Mineral Water Cup Washing Filling Sealing Machine is specially customized for water cup packing. The machine can be used in a
variety of applications for the beverage industry, such as pure water, mineral water, juice, milk, yogurt and more.
Depending on the output required, the GF Series Cup Washing Filling and Sealing Machine can be designed for 2 lines, 4 lines, 6
lines, 8 lines, 10 lines per time or more.

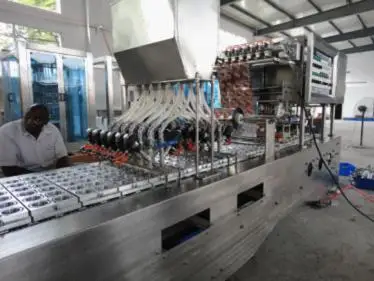

Panumatic Filling Part

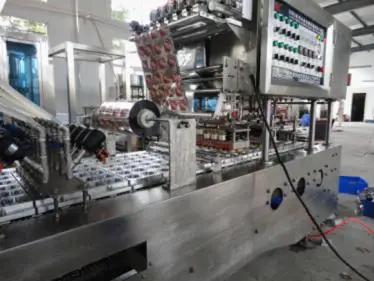

Cup sealing part
Product Finished




PRODUCT SPECIFICATIONS


Model
KCUP-2000
KCUP-4000
KCUP-6000
KCUP-6000
KCUP-10000
Production capacity
1600-2000 cups/h
3000-4000 cups/h
5000-6000 cups/h
7000-8000 cups/h
9000-10000 cups/h
Filling range
50-300ml or customized
Voltage
Single phase 220V, 3 phase 220V
3 phase 380V/400V/415V
50Hz/60Hz
Power
2KW
3.5Kw
5 Kw
6 Kw
7.5 Kw
Air consumption
0.6 mз/min
0.8 mз/min
1 mз/min
1.2 mз/min
1.6 mз/min
Dimension
2400×650×1750 mm
2800×710×1700 mm
2800×850×1700mm
3000×900×1700mm
3000×1000×1700mm
Weight
600Kg
700Kg
800Kg
1000Kg
1200Kg
