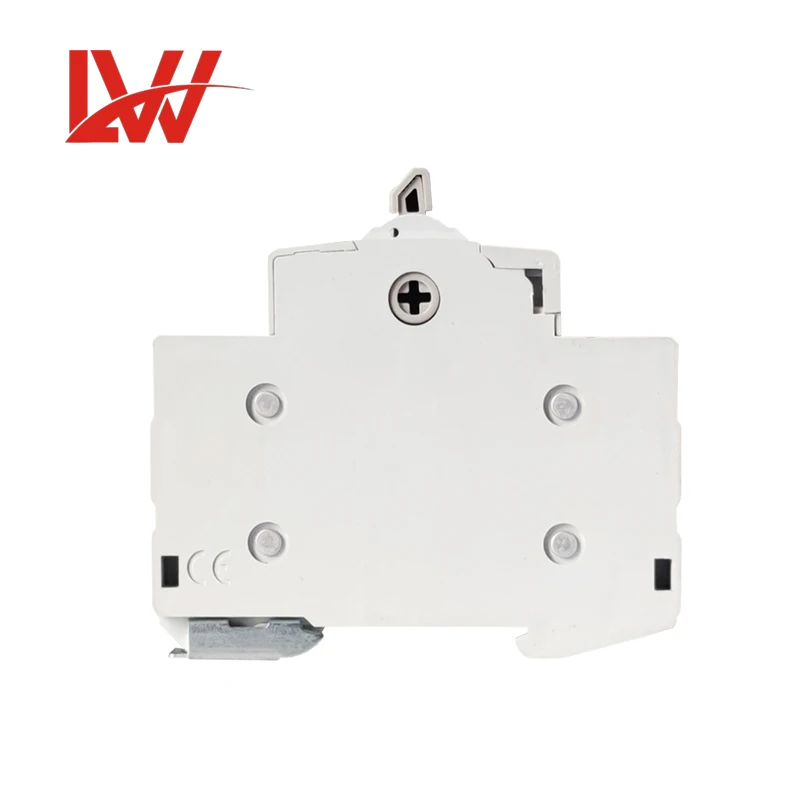

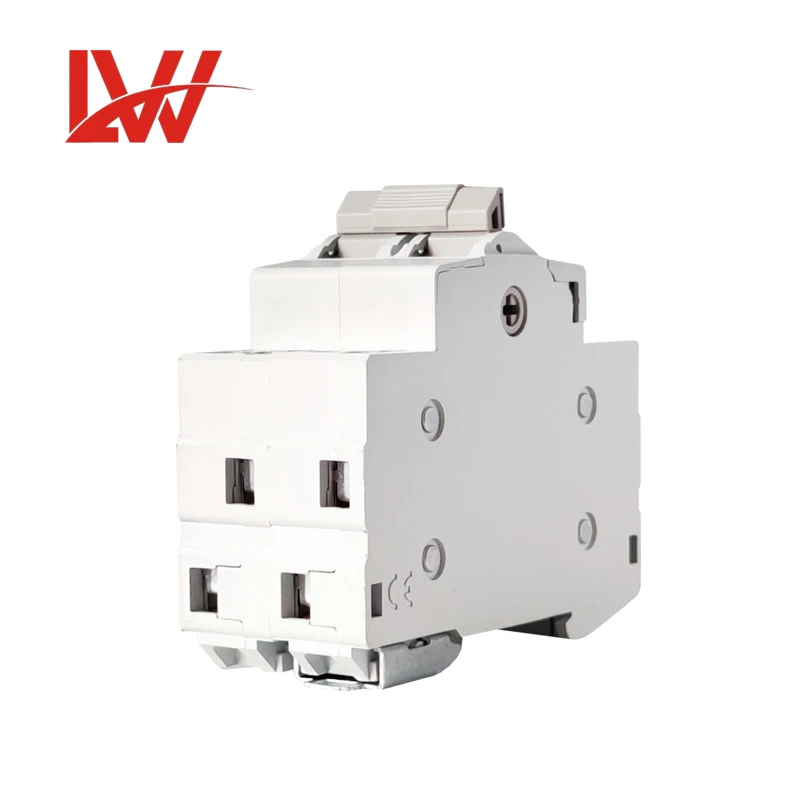

Модульный ручной переключатель SF модель 2P 32A 63А
- Category: Other Switches >>>
- Supplier: Wenzhou Lierwei Electrical Co. Ltd.
Share on (1600523678377):
Product Overview
Description

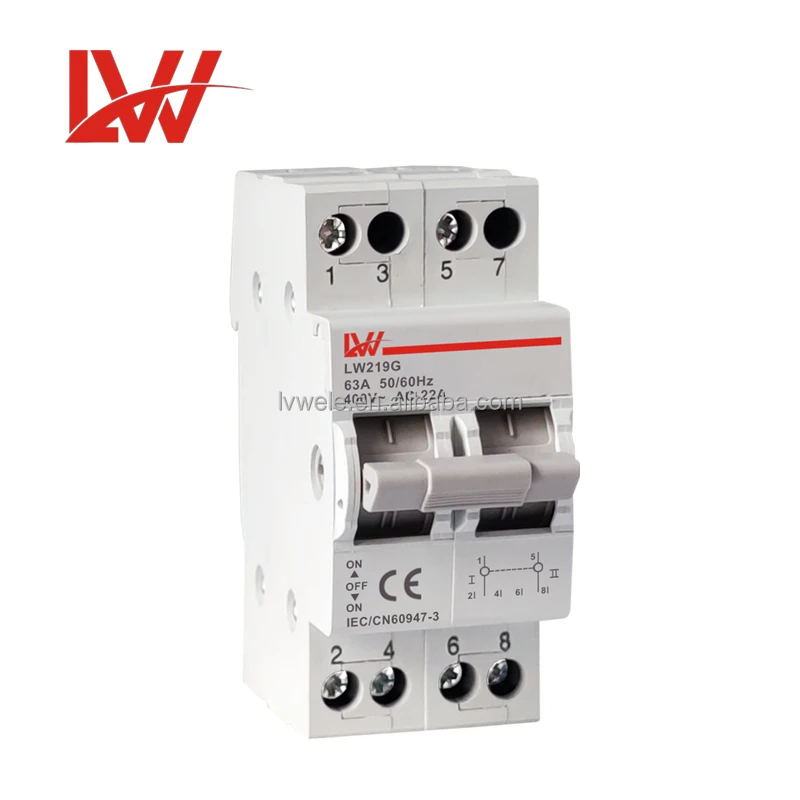

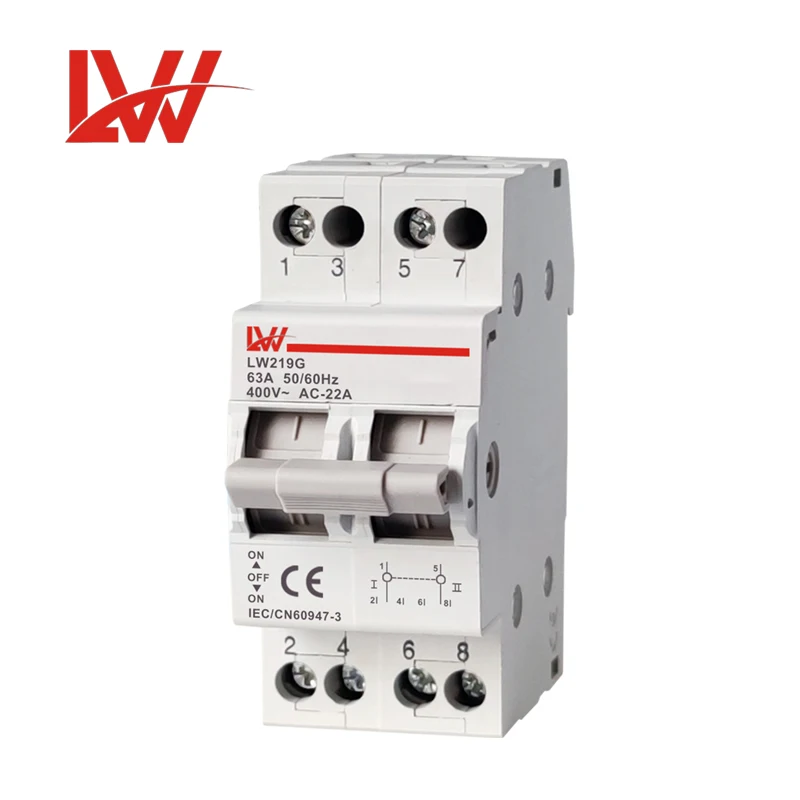

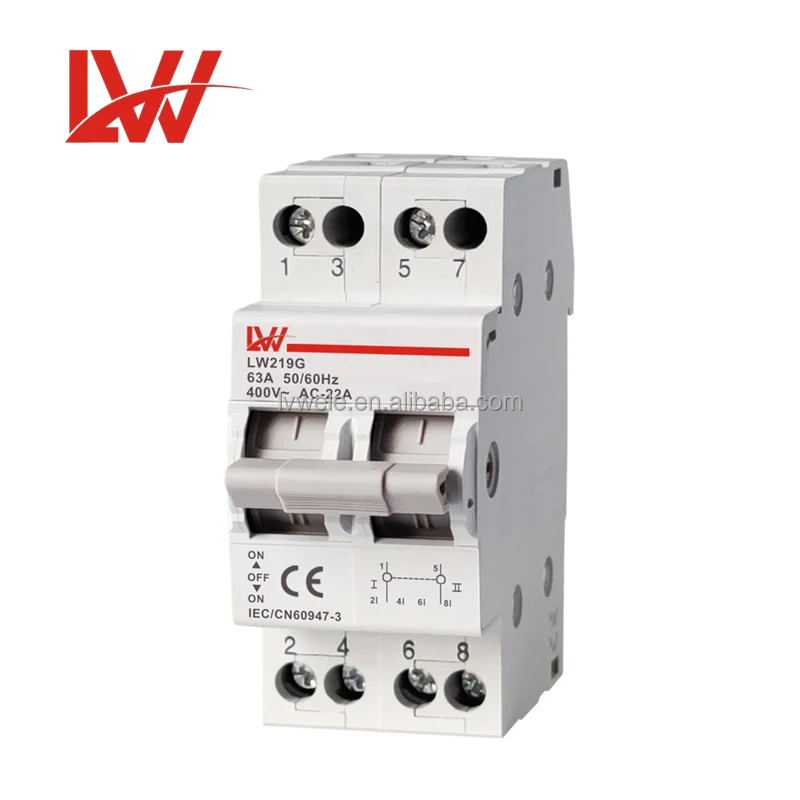

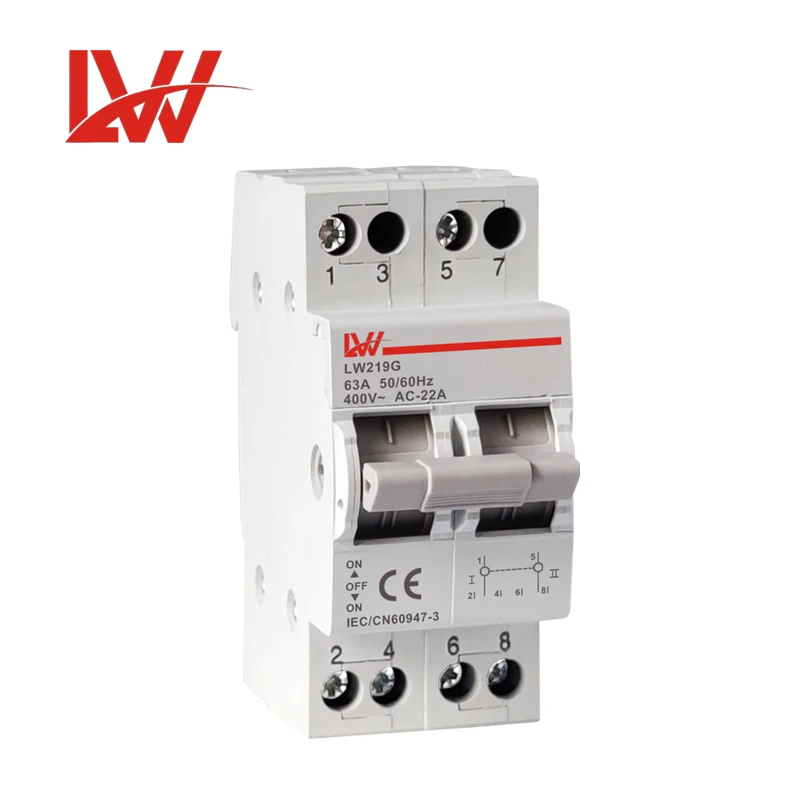

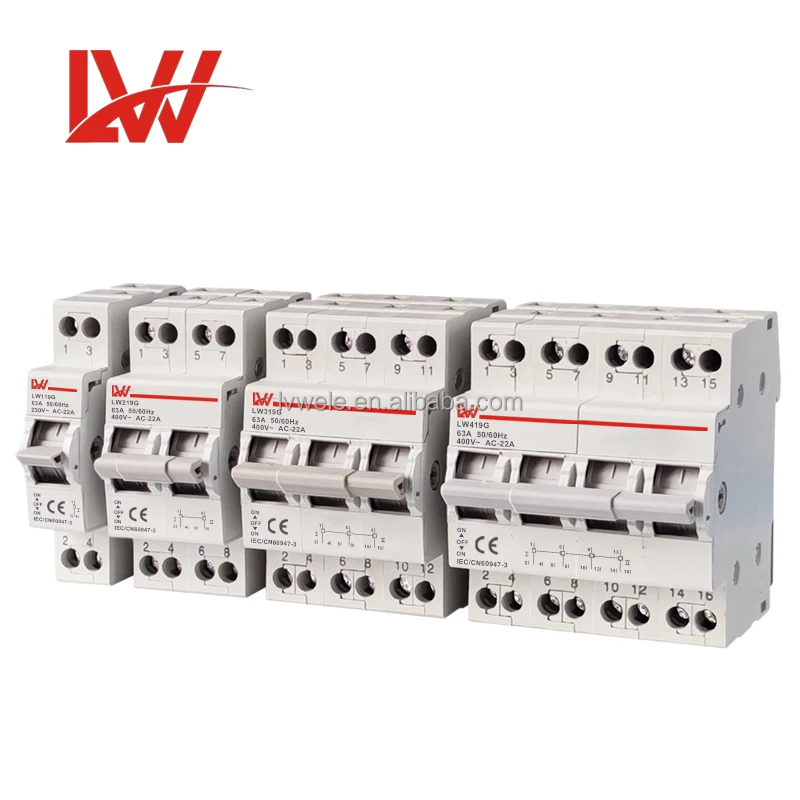

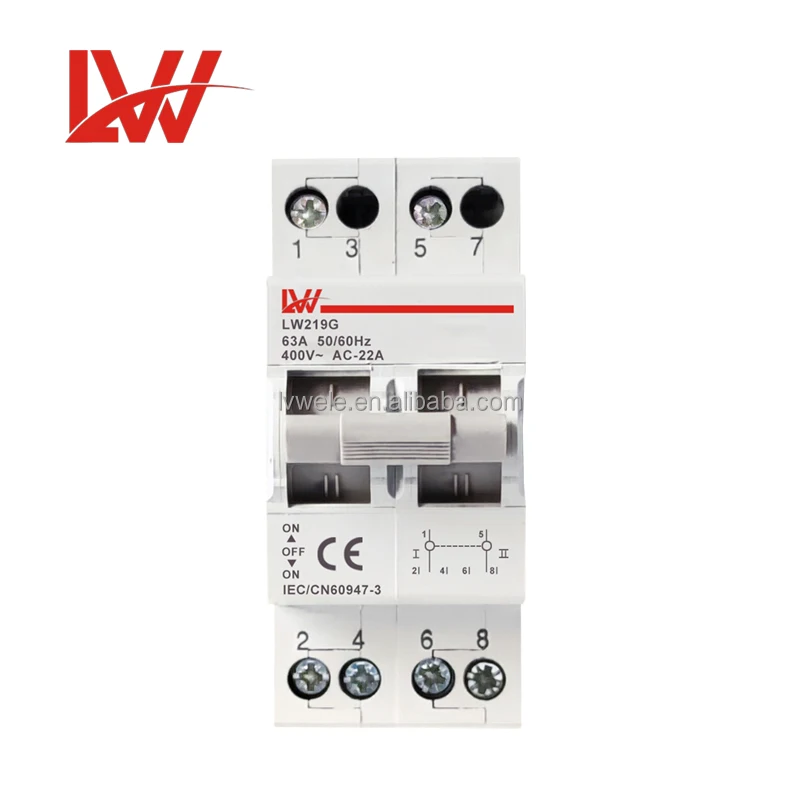

Rail mounted dual power isolation switch SF transfer switch
Modular switch is a three-block switch, control circuit current supply switch, the middle is neutral, up and down for conversion circuit operation . Its can switch on, load and break the circuit under normal conditions, using as switch disconnectors.

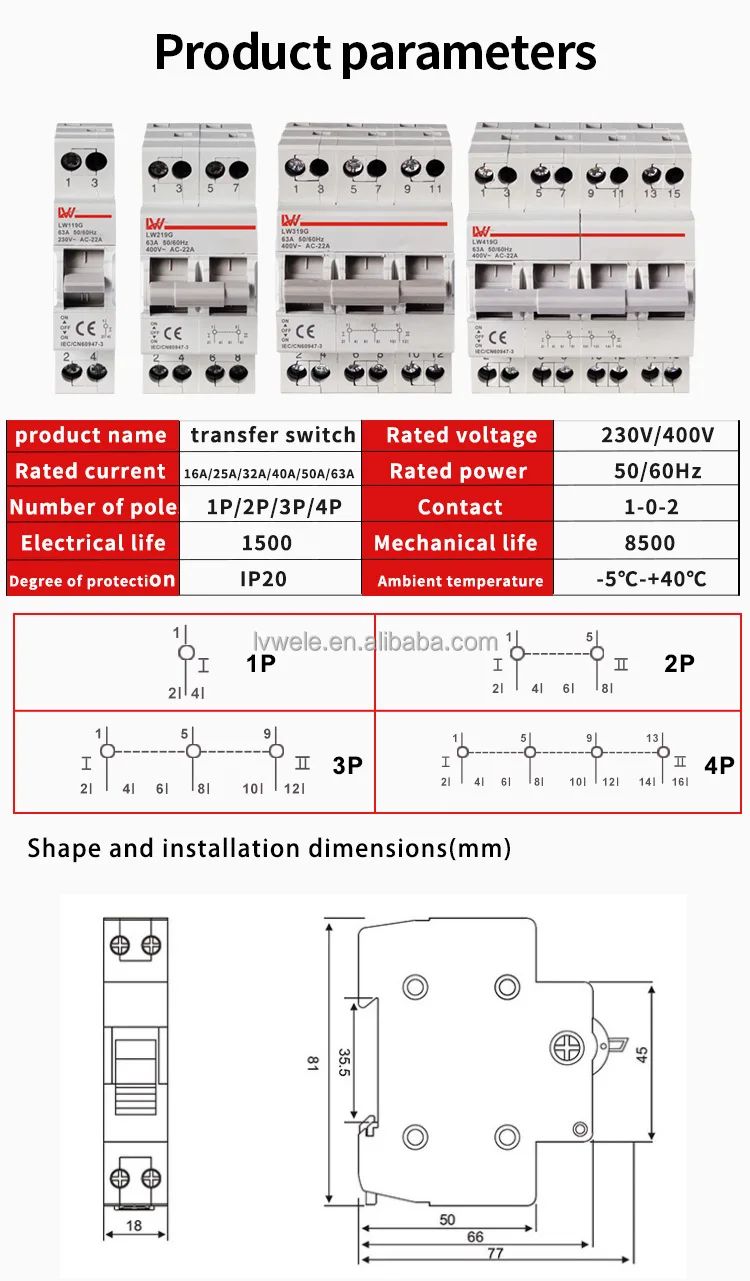

Specification
| Standard | IEC/EN60947-3 |
| Rated voltage | 240/415V |
| Rated current | 16A 20A 25A 32A 40A 63A |
| Rated frequency | 50/60Hz |
| Number of poles | 1, 2, 3, 4P |
| Contact form | 1-0-2 |
| Electrical Life | 1500 |
| Mechanical Life | 8500 |
| Protection degree | IP20 |
| Ambient Temperature | -5ºC…40ºC |
| Terminal/Cable size | 16 |

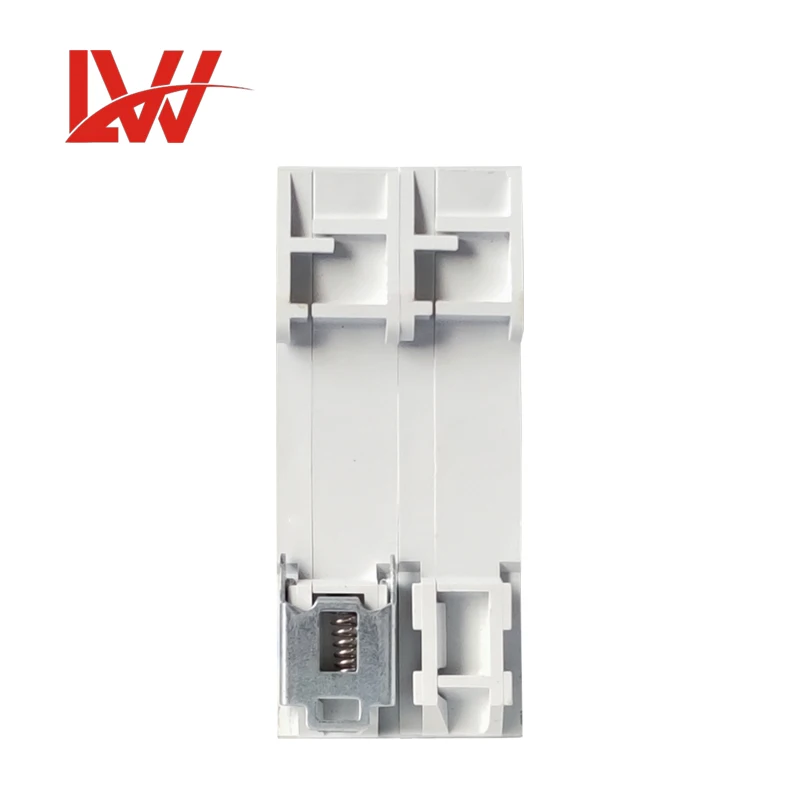

| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
Product Overviews
FAQ :
Q1: Can I print my logo on the products?
A: Yes, OEM available. ( MOQ : 200 Pieces )
Q2: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q3: How about delivery time of the order?
A: 3-5 days after getting deposit. ( We have stock )
