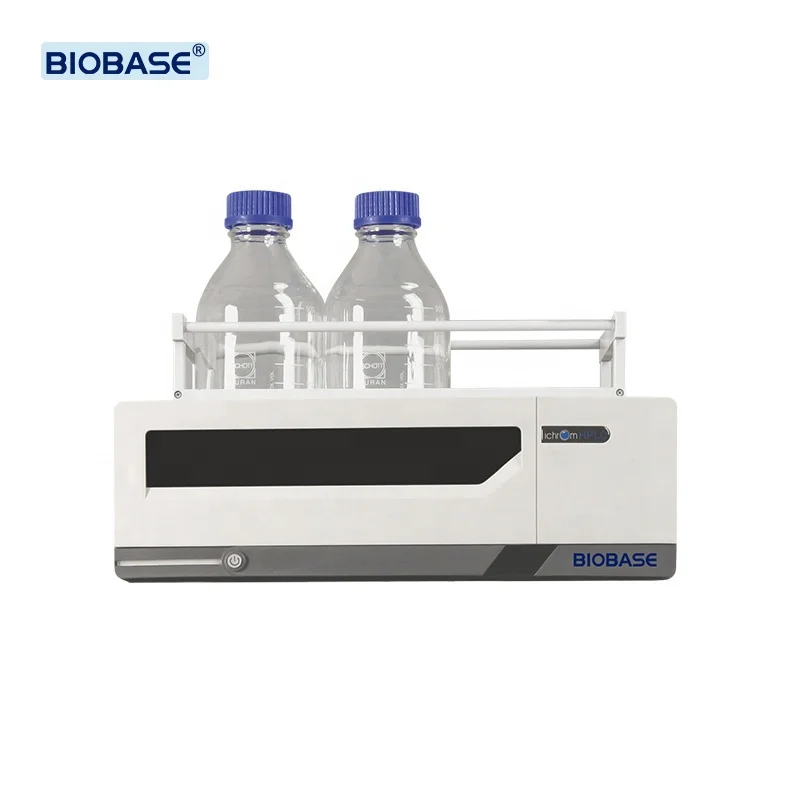

BIOBASE жидкий хроматограф DAD UV/Vis FL RI ELSD Isocratic бинарный кватерный градиентный жидкий хроматограф для лаборатории
- Category: Other Analysis Instruments >>>
- Supplier: Biobase Meihua Trading Co. Ltd.
Share on (1600523682596):
Product Overview
Description
Product Introduction
High Performance

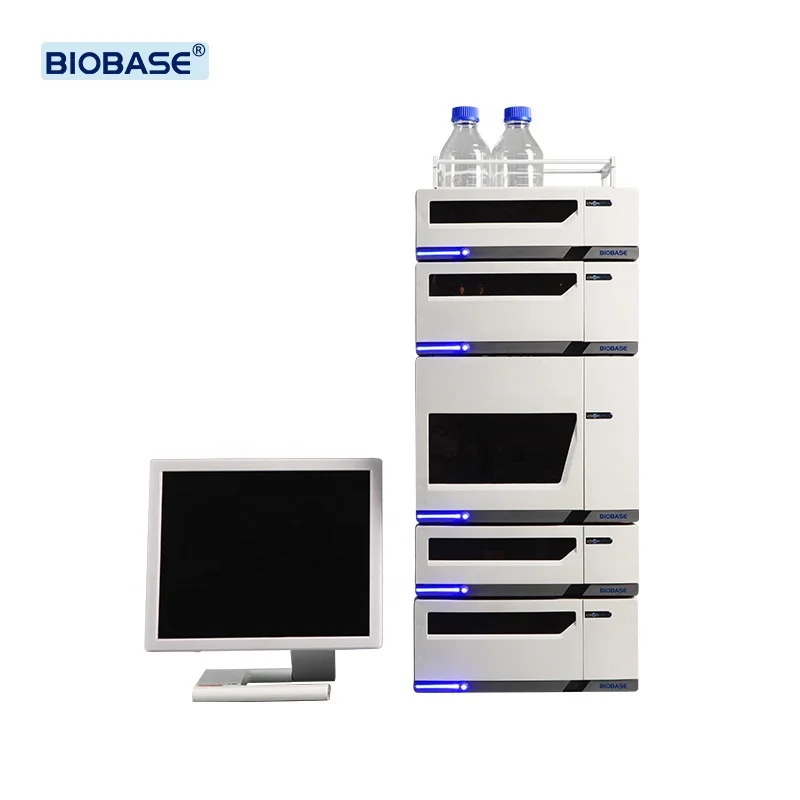

Liquid Chromatography System BK5100
1. High pressure constant flow pump with parallel pump heads and optimized 5mm stroke of plunger rod ensuring perfect pump
performance
2.The higher level of integration with binary or quarternary pumps integrated into one set of module
3.Specially designed column oven for GPC, which represents greater capacity of three columns, max ID10×250mm.
4.Adoption of advanced UDP communication protocol that is fast, stable and can be used for instrument remote control
5.The HPLC system being more integrated and intelligent
Technical Parameters
Model | BK-LCI5100 | BK-LCG5100 | BK-LCQL5100 | ||||
Pump | Type | Isocratic Pump | Gradient Pump | Quarternary Low Pressure Pump | |||
Flow Rate Range | 0.001-10.000mL/min, in 0.001mL increments | ||||||
Flow Accuracy | ≤±0.2% (1.00ml/min, H2O,R.T.,8.5MPa) | ||||||
Flow Precision | RSD≤0.06% (1.00ml/min, H2O,R.T.,8.5MPa) | ||||||
Maximum Pressure | 63MPa | ||||||
Pressure accuracy | ≤±3.0% | ||||||
Pressure pulsation | ≤0.1MPa | ||||||
Composition rang | / | 0-100% | 0-100% | ||||
Composition precision | / | ≤0.2%RSD | ≤0.3%RSD | ||||
UV/VIS Detector | Wavelength Range | 190-800nm | |||||
Wavelength Repeatability | ≤0.1nm | ||||||
Wavelength Accuracy | ≤±1.0nm | ||||||
Band Width | 6nm | ||||||
Response Time | 0.0s-5s | ||||||
Baseline Noise | ≤±0.25×10-5AU(empty cell, 254nm, 1.0s) | ||||||
Drift | ≤0.5×10-4AU/h(empty cell, 254nm, 60min) | ||||||
Path length | 10 mm(analytical cell) | ||||||
Light Source | Deuterium Lamp and Tungsten Lamp | ||||||
Data-processing Workstation | Sequence tables for any set of samples Internal and external standard calculation methods Automatically displays, prints, exports and starts other programs after the completion of a measurement. | ||||||
5100 System Kits | 1 Set | ||||||
5100 System Manager | Integrated A/D converters | Integrated A/D converters Integrated vacuum degasser, 4 channel | |||||
Power Supply | AC110/220V±10%, 50/60Hz | ||||||
Optional Accessory | Column Oven, Autosampler, Degasser, Diode Array Detector, Refractive Index Detector, Evaporative Light Scattering Detector, Fluorescence Detector | ||||||
One Stop Purchasing

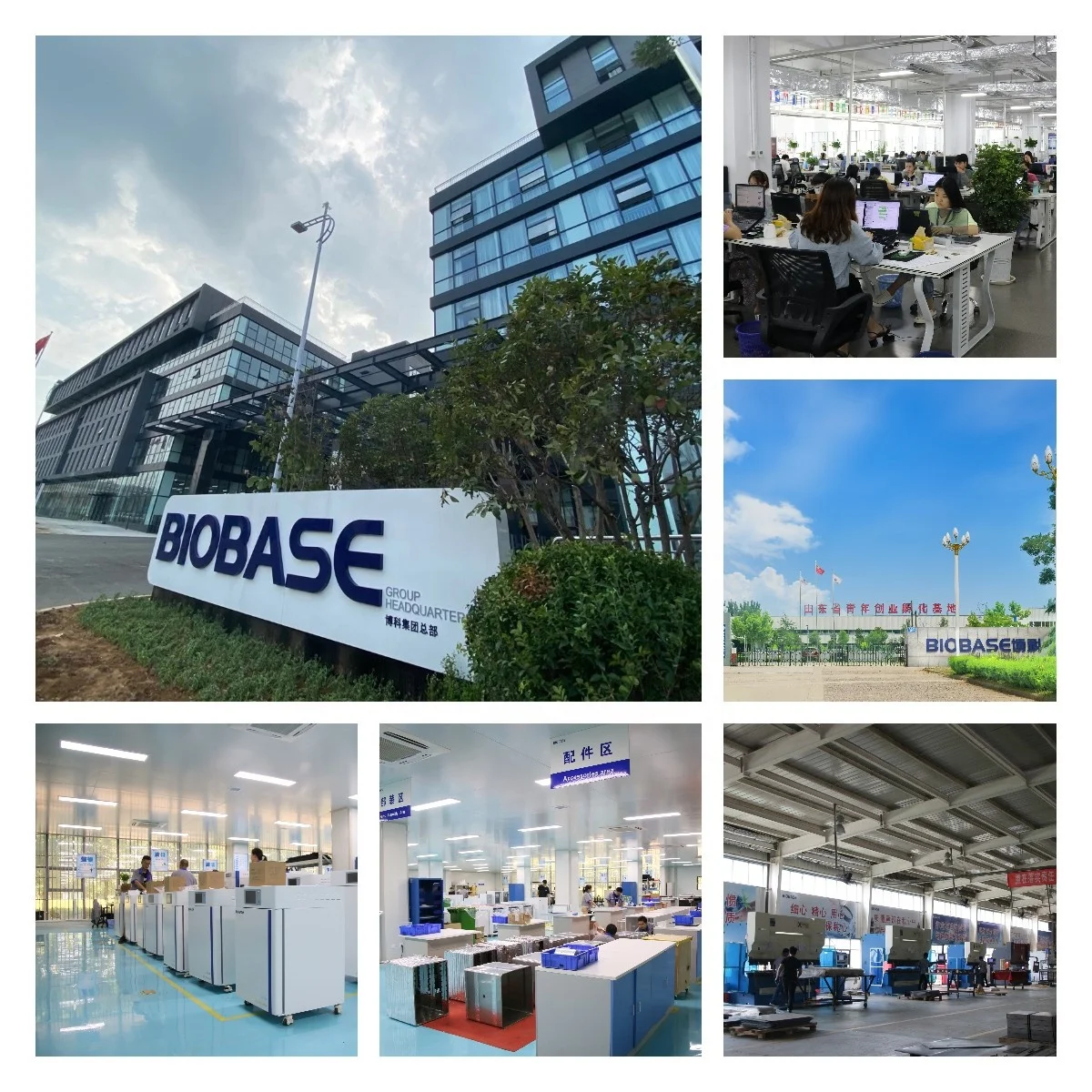

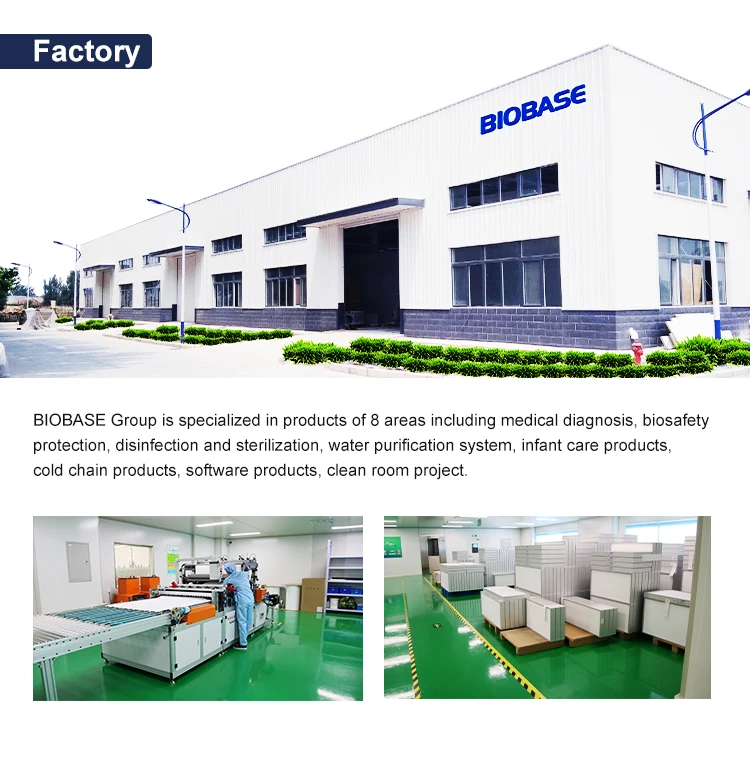

Company Profile
Service & Exhibitions

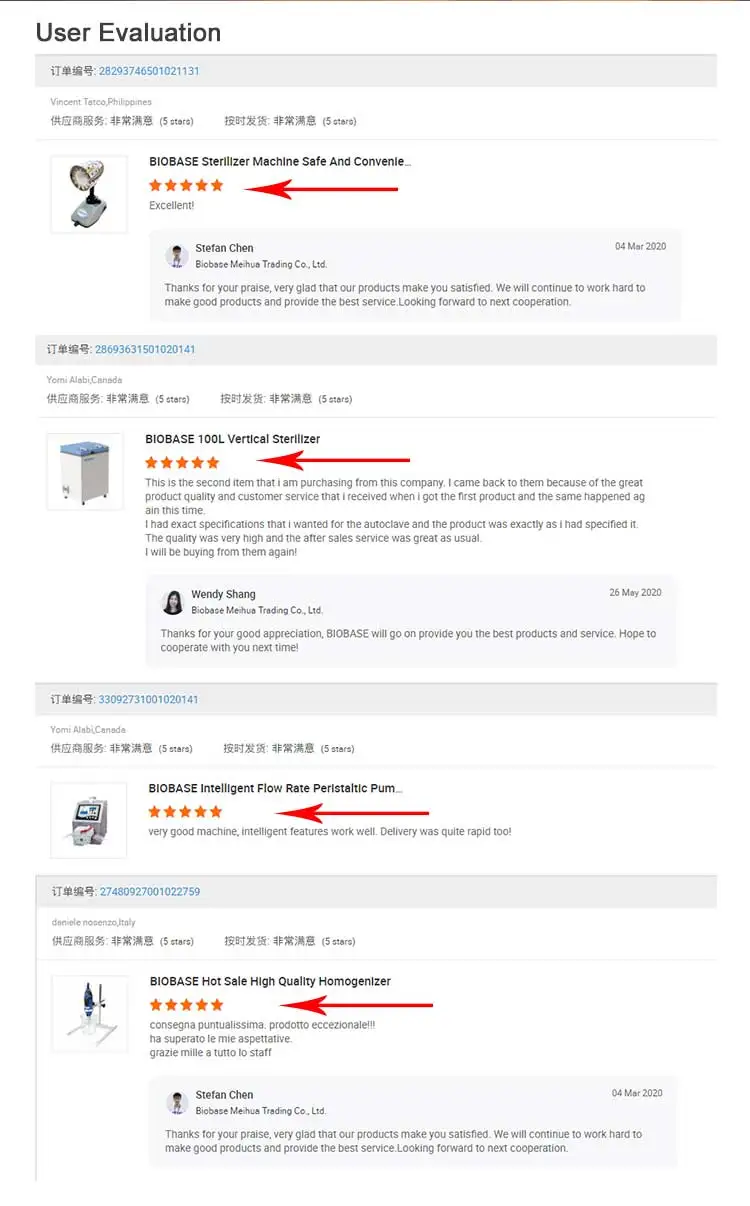

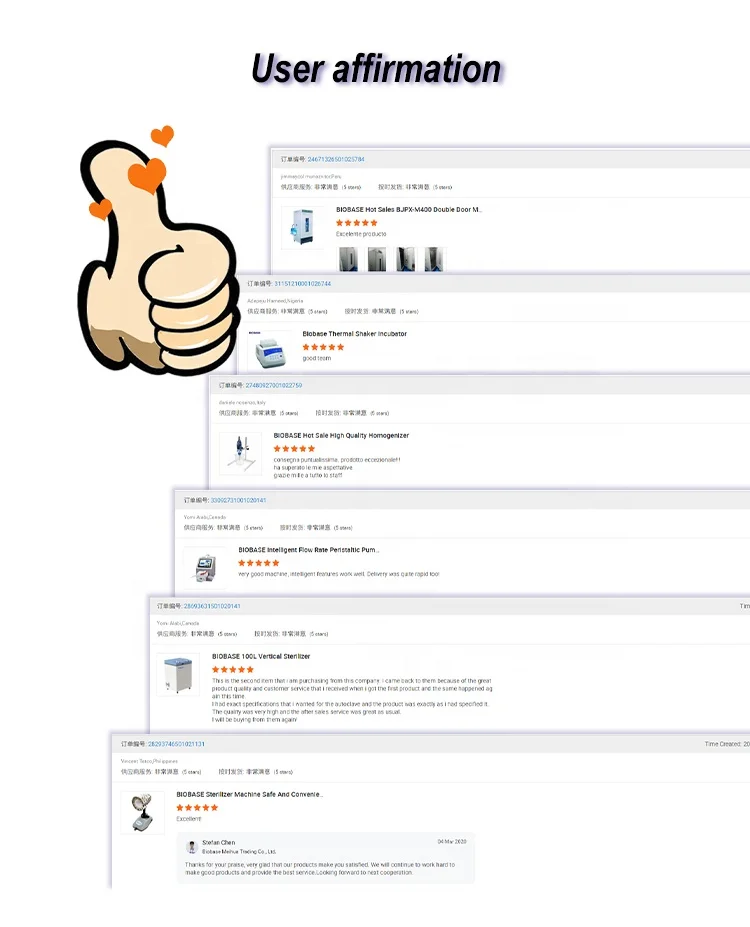

User Evaluation
