20 Inch 75W 12V 24V Slim Waterproof Straight LED Light Bar With Wiring Harness
- Category: >>>
- Supplier: Shenzhen Nova Technology Co. Ltd.
Share on (1600523722807):
Product Overview
Description

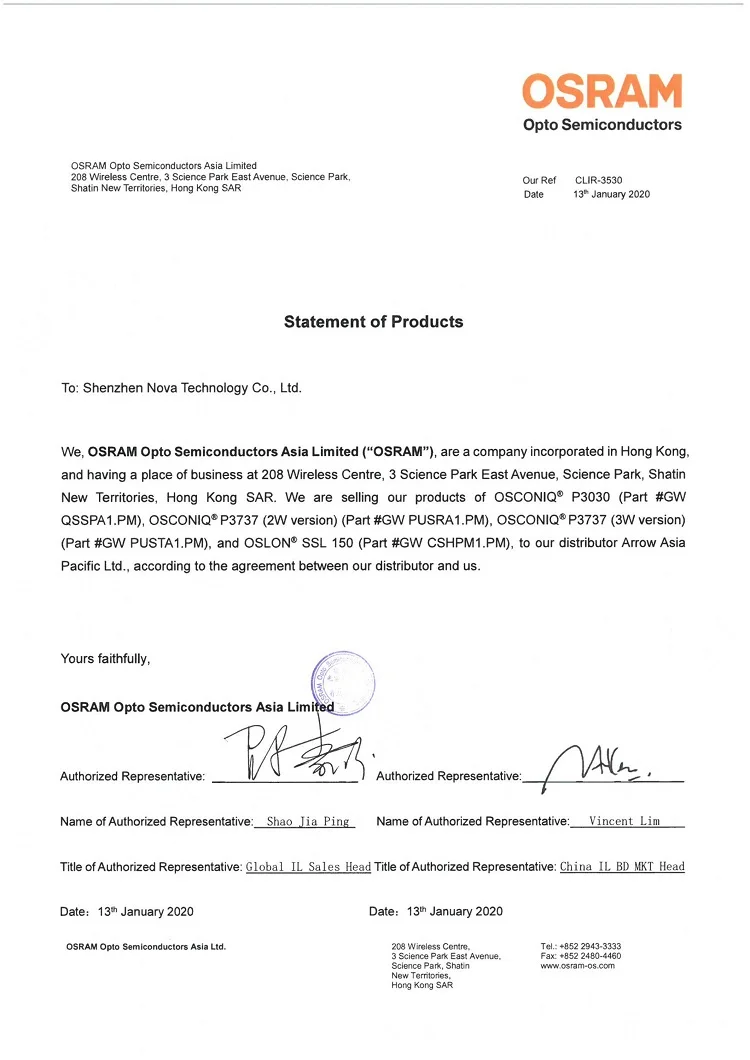

LED Chip Statement
Below statement is trying to emphasize that Shenzhen Nova is using the best LED chips for best performance of the LED light bar in this page!
Products Description

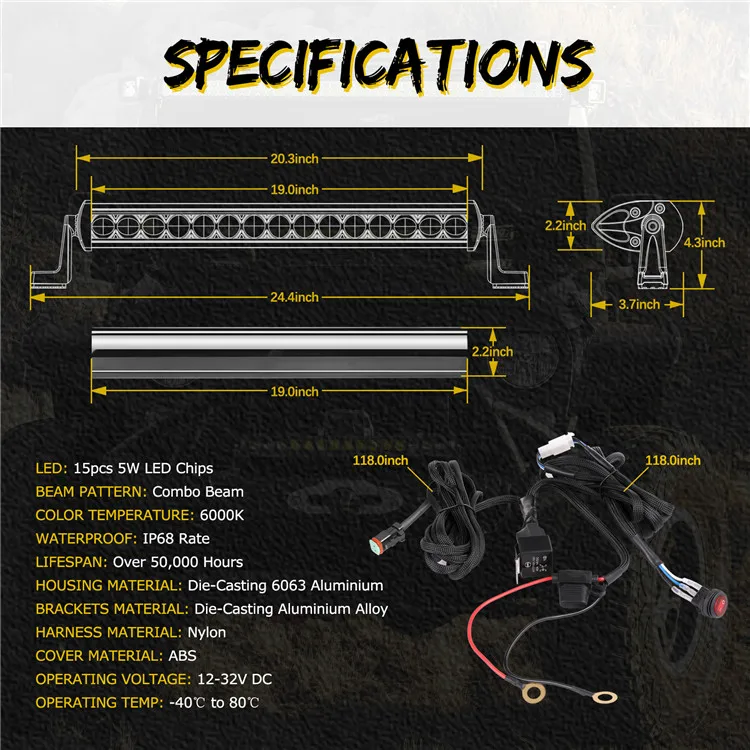

LED Light Bar Specification:
Model Number: XSR20
Product Name: LED light bar kit
Light Color: White
Theoratical Power: 75 watt
4.7 Amps at 12 Volt
Raw Lumens: 5,600 lumen per light bar
Beam Pattern: 8 Degree spot 90 degree flood
Dimension: Length 24.4 inch, width 3.7 inch, height 4.3 inch
Working Voltage: Fits 12V 24V vehicles
Color Temperature: 6000-6500K
Waterproof Rate: IP67, without military breather
LED Quantity: 15 LEDs per light bar
Light Span: About 50,000 hours
LED Body Housing Material: Die cast aluminum
Lens: Clear polycarbonate PC lens
Mounting Type: Side ends brackets
Connection Type: Plug and play connection

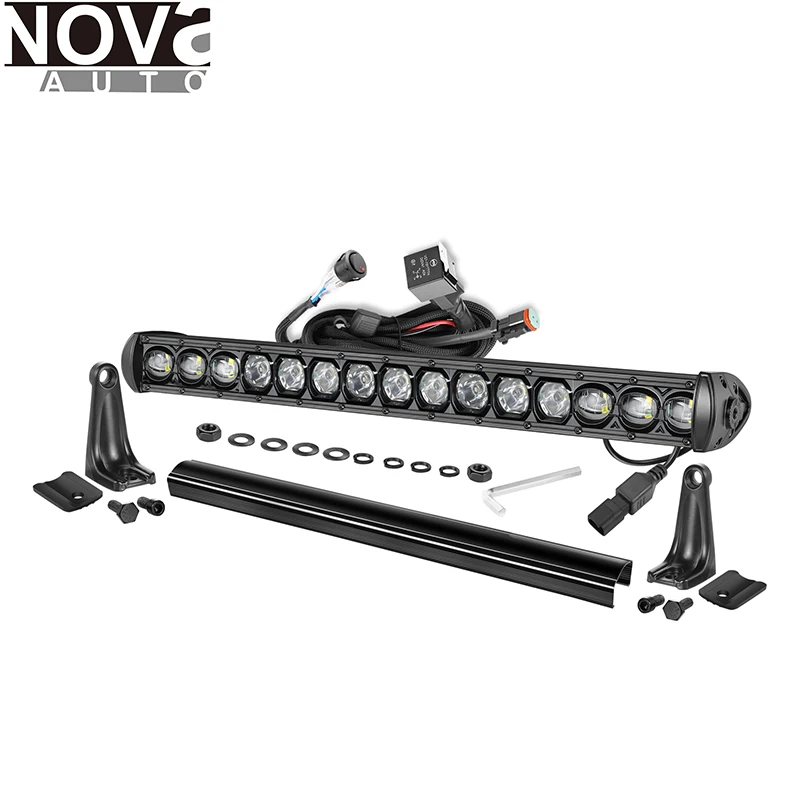

Each Package Includes:
One piece LED light bar
One piece light bar cover
Wire harness
One set of side ends mount bracket
On and Off instant toggle switch
Mounting hardware

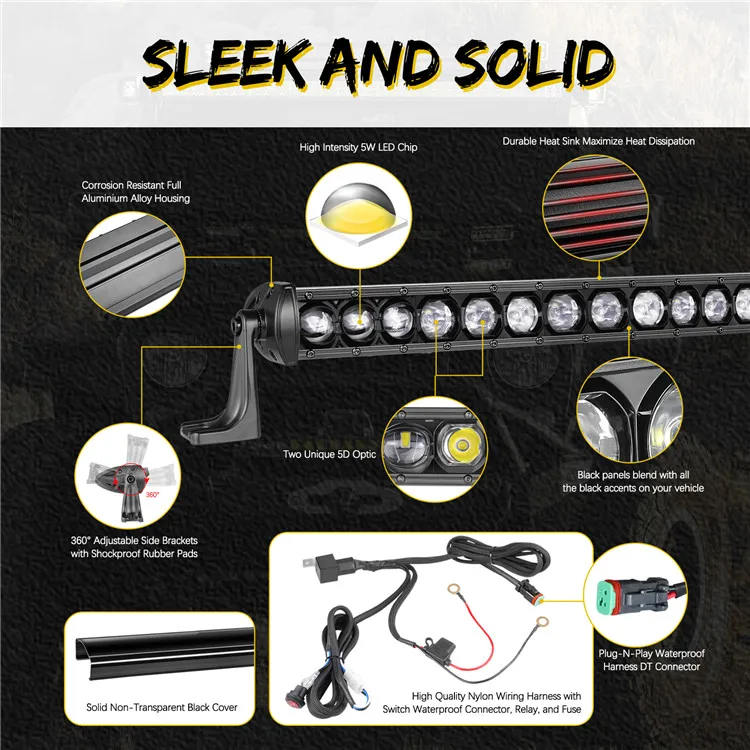

LED Bar Features:
Super Bright - Ultra bright 5W per LED chips enable longer illumination range and wider visibility.
High Performance - IP67 waterproof rate, dustproof, rustproof, shockproof and durable aluminum material makes it possible to withstand any harsh environments.
Heat Dissipation - Die-cast aluminum and effective cooling system provide excellent heat dissipation effect.
Adjustable Mount Bracket - Comes with angle adjustable side ends mount brackets.

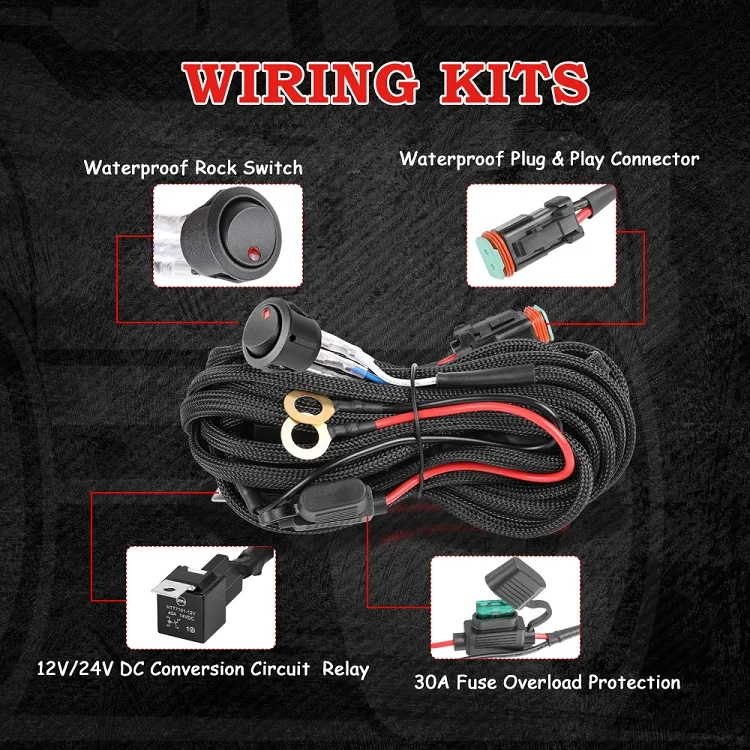

Light Harness Features:
This LED light bar kit comes with wire harness assembly. 2.5 meters in length, which is about 98 inches, is included in each package. Comes with on and off instant rocker switch and blue indicate light. 16 AWG black negative and red positive wire cable can hold up a maximum of 140 watts LED power. Furthermore, the 40 amps automotive relay and 30 amps waterproof blade fuse will provide you with excellent safety protection.
Plug and play design connection. Everything is ready for installation and reselling!

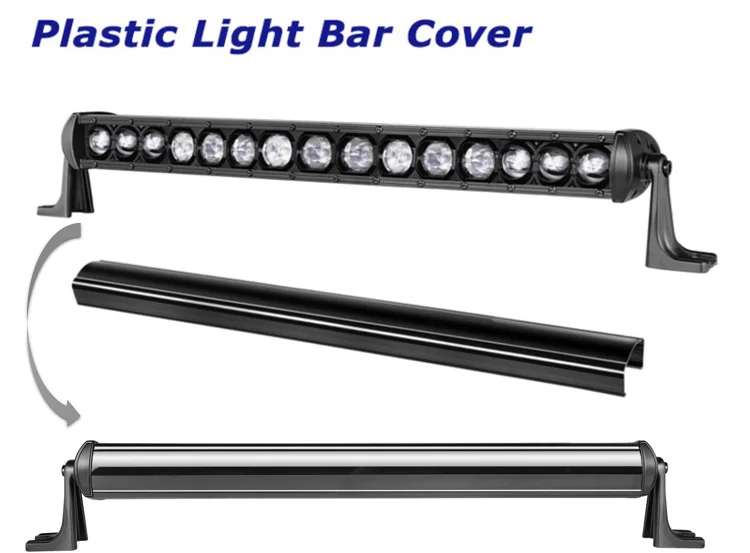

LED Bar Cover Features:
According to the California section 24411 Vehicle code, whenever the vehicle is operated or driven upon a highway, the LED light bar shall be covered or hooded with an opaque hood or cover, and turned off. This is the local law requirement of United States. Customers could check with the local laws and decide whether you need this LED light bar cover.
Secondly this all-in one design LED light bar cover will protect your investment of any off road LED light bar from 20 inch to 50 inch made by us. This cover could protect your led bar from flying debris and other highway hazards.
Lastly, made of the plastic material and with this specially all in one piece design, our led light bar cover is easy to snap on and off.
LED Light Bar Applications:
Perfect as auxiliary LED light bars, reversing light, fog light, daytime running light and working light.
Fitment - Off road, power sports, marine, heavy duty machines, etc.
Product Video
Check below product detailed video of this 20 Inch 75W 12V 24V Slim Waterproof Straight LED Light Bar With Wiring Harness
Product Q+A
Check below frequently asked questions about this 20 Inch 75W 12V 24V Slim Waterproof Straight LED Light Bar With Wiring Harness, if you have any further questions or needs more supports from us, please click Send Inquiry and chat with us online right now!
What is light beam pattern and which is best for me?
Flood - Wide spread light to illuminate the side and front of your vehicle.
Spot - Great for those who need piercing beam for light that seem to travel forward and further.
Combo - Best for both spot and flood, the floods on the side part of the LED light bar giving you the side blow out of light while still shooting far front with the spot LEDs in the middle part of the LED bar.
Why is this light bar much more expensive than the similar single row LED bar on the market?
Because the LED chip apply to this light bar is 5 watts each and actual power output is at least 70% of the theoretically power, which makes it super bright in illumination.
How do you pack my orders?
Take LED light bar as an example, there are 3 layer protection. The first layer is the PE foam or film wrap or air bubble bag, the second layer is small size inner box, and the last protection is one bigger size outside carton box.
Does sample order acceptable?
Yes, paid sample order for product quality testing is acceptable and welcomed. But after that, there will be small minimum order requirement to keep a long term business relationship.
What is your product warranty?
All of the LED light products made by Shenzhen Nova has a 12 month warranty since order received date. If there's any quality damaged products, Nova will send free replacement or full refund or credit.
Do you have same design but more size options of this LED light bar?

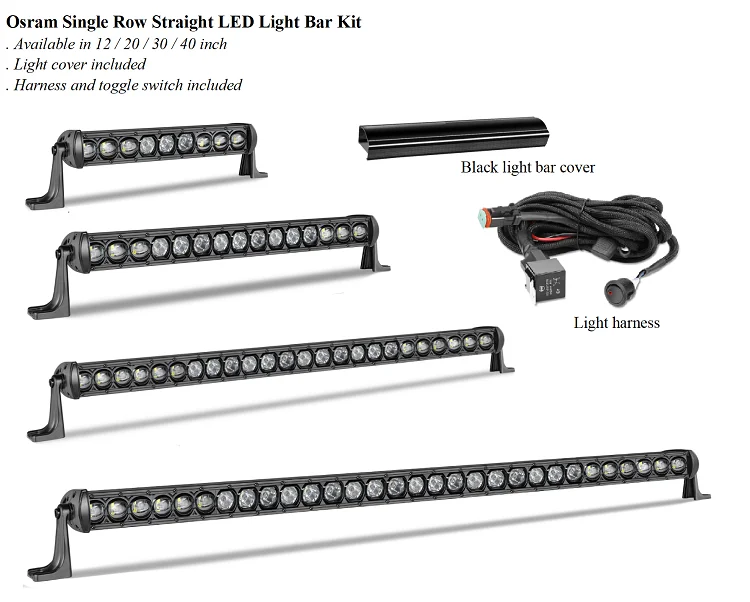

Yes, our light bars vary anywhere from 12 inch, 20 inch, 30 inch and 40 inch. All of our LED bars have been tested in house to ensure the highest quality and they are backed by product warranty.
Customize Service
Need to 20 Inch 75W 12V 24V Slim Waterproof Straight LED Light Bar With Wiring Harness? As a factory and manufacturer, Shenzhen Nova company offer you with different customize service including:
Below let's take the 20 inch LED bar for an example:
1, LOGO Laser Engraving Service.
Send us design file in AI or PSD or PDF format, and we can add your company name or LOGO on the left and right side end of the LED light bar.

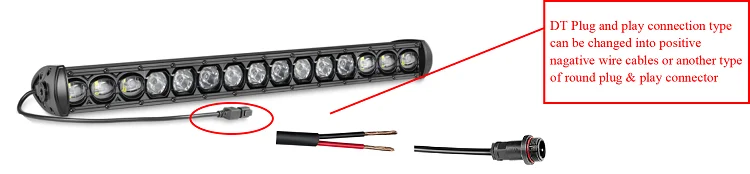

2, Wire Cable Or Light Harness.
By default, this LED light bar is coming in plug and play connection type and packing with automotive wiring harness. If customer wish to cut off the wire harness and need the negative positive wire cables only, this is also acceptable and product price will be reduced in accordingly.
3, Light Bar Cover LOGO Engraving
By default, this LED light bar cover is all in black color, made of plastic material and without any printing labels. Provide us with your LOGO design file and we can print it on the front area of the LED bar cover.

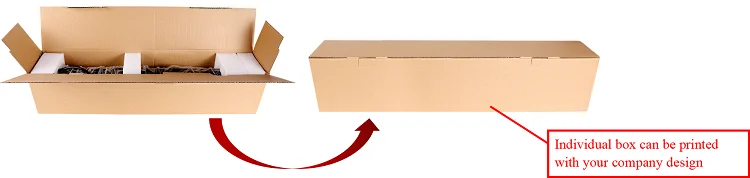

4, Color Box Printing.
Neutral packing is what we used during production. If customer hopes to print their company design on the package, this is also acceptable and welcome. Customer who will need to send us design file in AI or PSD or PDF format and agree to make a minimum order of 200 each size to get the order started.
Company Profile
Who Are We?
Shenzhen Nova has been dedicated into car interior and exterior LED light and accessories since 2007. We intergrate all advantages to continuous innovation, improvement and optimize industrial structure and product performance.Our business idea:
To offer a wide range of well-design, functional, value-for-money auto parts for drivers around the world.
What Partners Are We Looking For ?
Shenzhen Nova's business partners including agent, wholesaler, distributor, manufacturer, etc., they sell our products online or offline (such as online store, supermarket chain, auto parts store, repair shop, 4S shop, etc.). We do not sell for personal private purpose.
What We Sell?
Shenzhen Nova mainly focus on the industry of automotive & motorcycle LED lighting system, including:
. street legal LED light ( emark or SAE DOT compliant),
. laser LED light bar and driving light,
. LED light bar,
. LED work light,
. switch panel control system,
. RGB LED light such as LED whip light, LED rock lights, etc.
All of Shenzhen Nova's LED light products and accessories are widely used on off road vehicles, power sport vehicles, agriculture machines, marine, etc.
What About Our Factory?
Shenzhen Nova's factory base in located in Foshan city, mainland of China, with over 2,000 square meters modern factory area, fully equipped with first class production and testing euipments. 12 assemblying lines, at least 10 professionals of the R&D team, 500 more skillful workers. Our factory performs according to ISO 9001:2008 standards, with original c ree LED chip or o sram LED chip, most of our LED lighting products have passed CE, ROHS, IP68, IP69K.
Any further hesitation or need more supports? Please click Send Inquiry and chat with us online right now!
