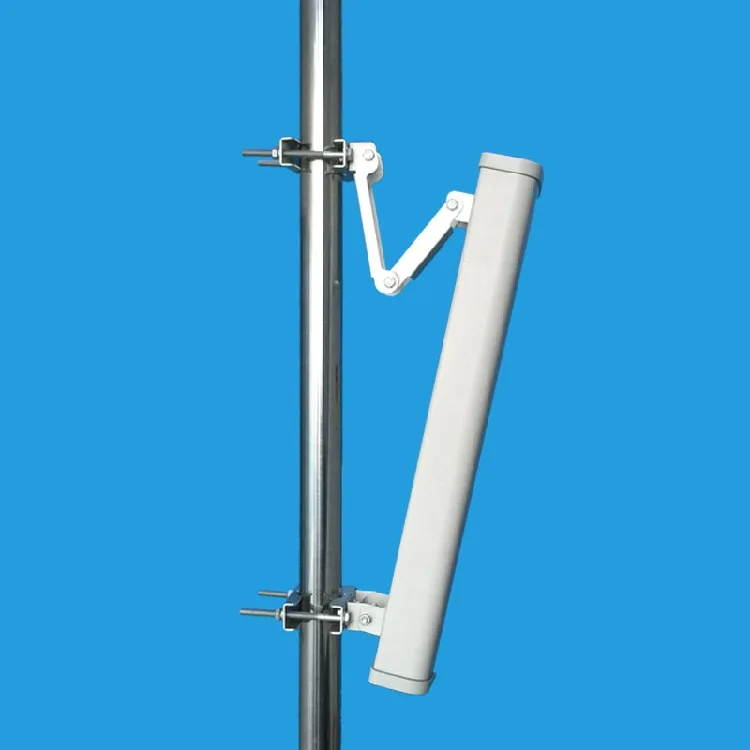

32dbi high gain 50kms 5G 4G LTE antenna Huaweis 5g CPE Pro router TS9 5g 4g 3g outdoor base station antenna directional repeater
- Category: >>>
- Supplier: Shenzhen Qifan Communication Equipment Co. Ltd.
Share on (1600523729098):
Product Overview
Description

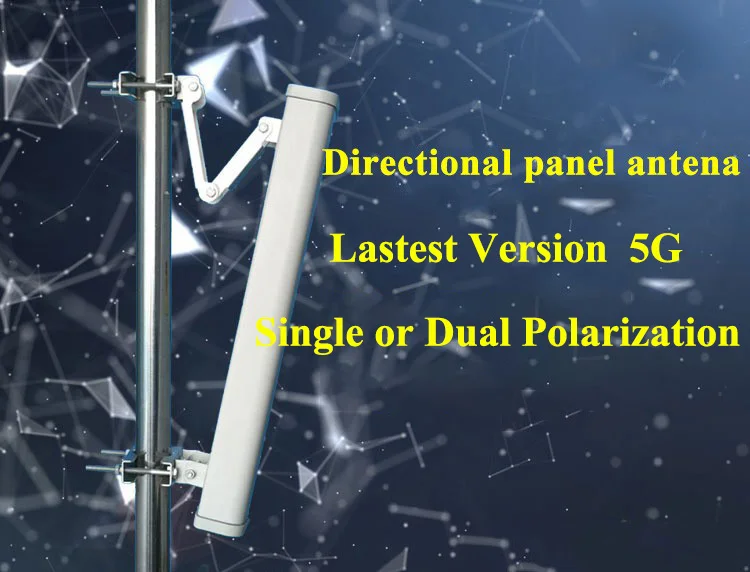

Product exhibition
Specifications
Electrical Specification | ||
Frequency Range | 698-960/1710-2700/3300-3800MHz | |
Gain | 12±1/15±1/15±1dBi | |
Polarization | Vertical / Vertial and Horizontal | |
Horizontal Half-power Beam width | 65±15º | |
Vertical Half-power Beam width | 35±3º/15±3º | |
Front to back ratio(dB) | ≥23 | |
VSWR | ≤1.5 | |
Input Impedance | 50Ω | |
Maximum input power | 100W | |
Lightning protection | DC Ground | |
Mechanical Specification | ||
Input connector type | N Female or Customized | |
Dimensions(Heigh/width/depth) | 650*280*125mm | |
Antenna weight | 5.0kg | |
Radome material | UPVC | |
Radome color | Gray | |
Mechanical tilt | 0°~10° | |
Operating temperature | -40℃~60℃ | |
Rated Wind Velocit | 60m/s | |
Mounting hardware | ￠35mm~￠90mm | |
Products Details
Radome Seal
The seal is made from high-molecular polymer silica gel that can form a seamless waterproof layer for all terrible conditions.

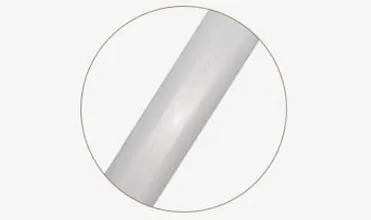

Redome
The antenna shell is made from PVC material which is nonflammable ,high-strength and excellent geometric stability.

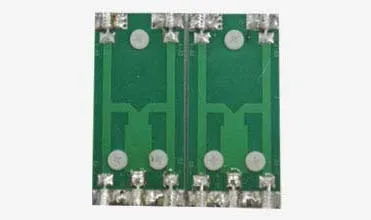

Heat-Resistant Circuit Board
Made from rogers material covered with anthracene dye that is effective to prevent external disturbance and increase the antenna gain.

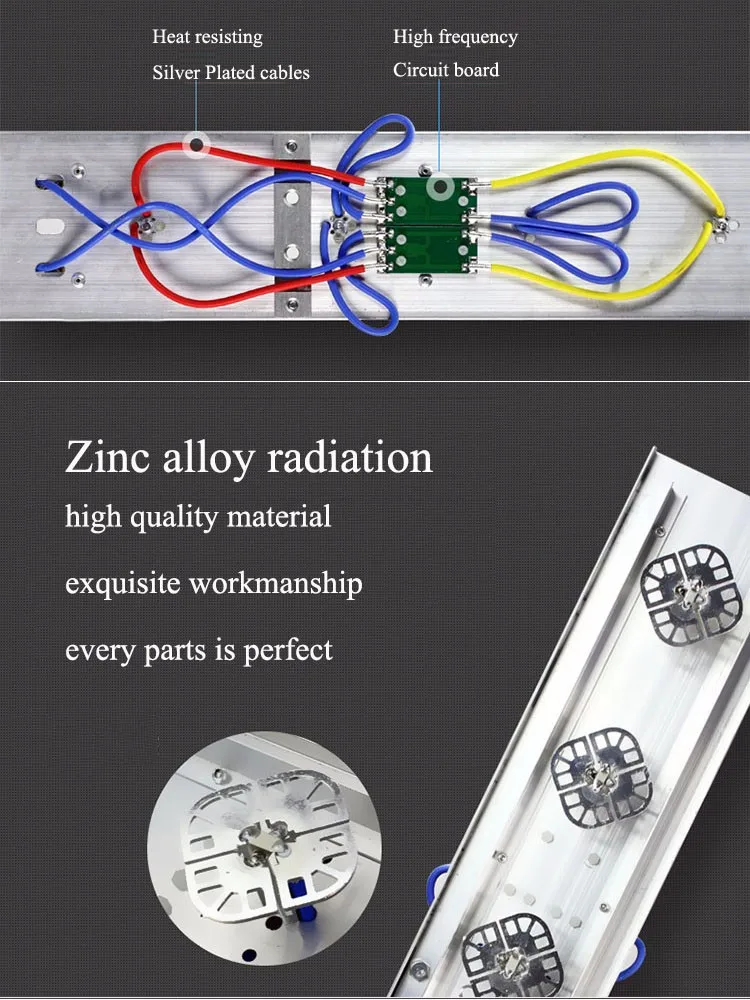

Zinc Alloy Vibrator/ Radiation
The vibrator is covered with tin plating which is effective to prevent deterioration and prolong life-span of antenna and reduce the loss and ensure the antenna gain.

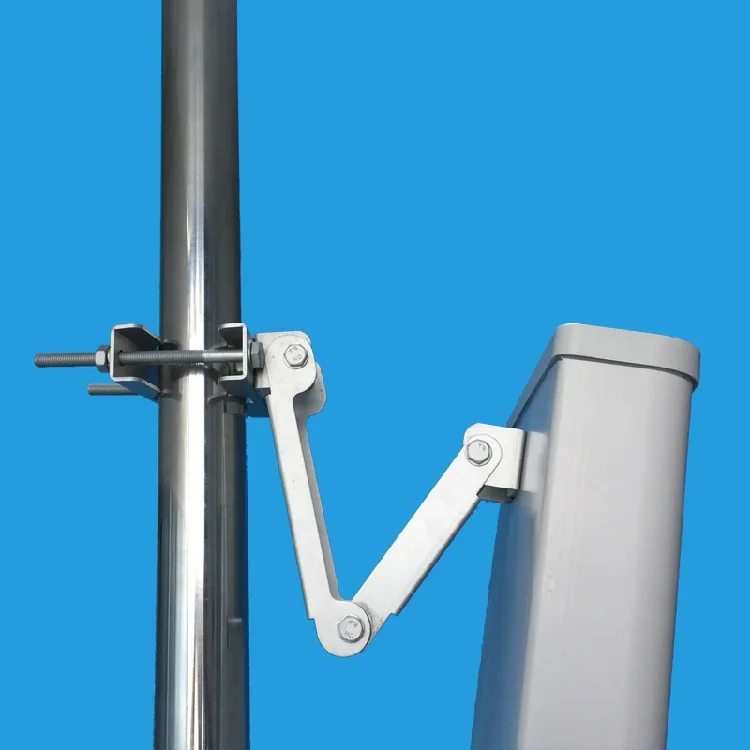

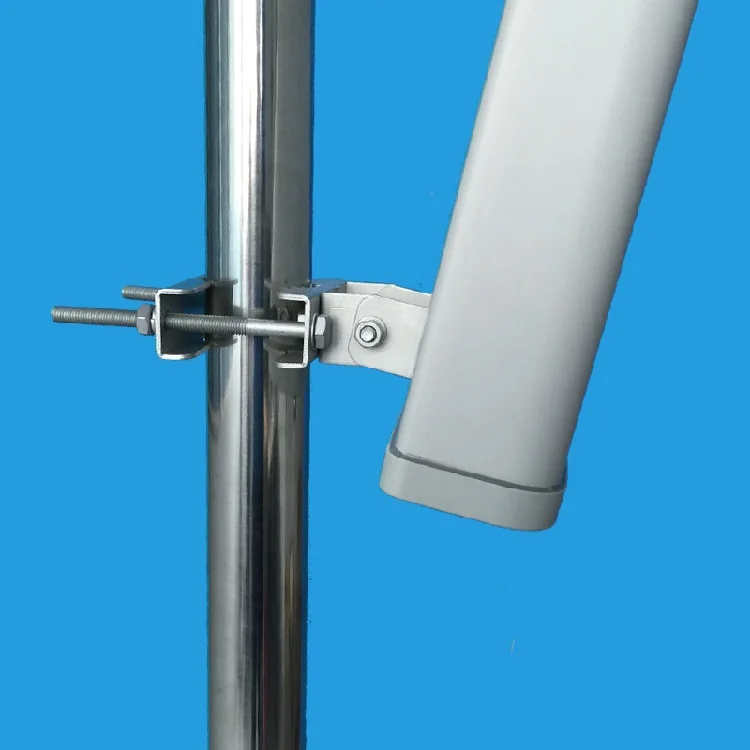

Multifunctional Adjustable Mounting kits:
Made from stainless steel material of removal hydrogen that is stable and durable. The mounting kits can be adjustable according to your specific situation in order to realize perfect coverage of signal.

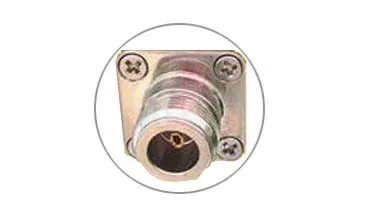

N-K connector
Known as N-Female connector, made from fine overgilded copper which is effective to reduce signal loss and help the antenna work more efficient.

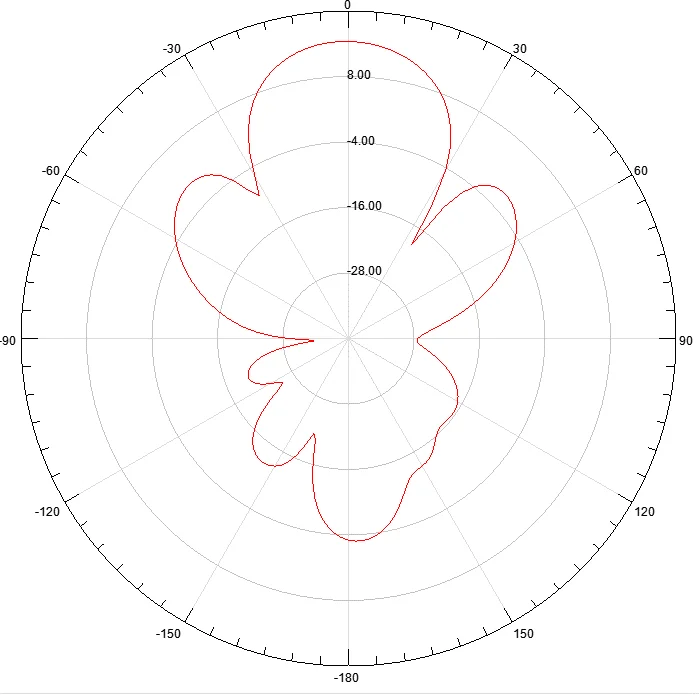

Test Report
Packing & Shipping
Packing
We have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.
Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.
Company Profile
About us
Shenzhen Qifan Communication Equipment Co.,Ltd. (Qifan) is specializing in the design & manufacture of wireless antenna within the 70 MHz to 6 GHz spectrum. Our extensive range of antennas include: yagi antenna, parabolic dish antenna, cell tower sector antenna, external wireless antenna, mobile antenna, broadband and ultra-wideband antennas for the wireless, public security. Our antennas have been widely used for applications including: WiMAX, LTE, WLAN; Wi-Fi, Cellular Telecoms, RFID, Surveillance ...
Production Workshop
We have a factory with 5000 square meters, 60 employees and a whole supplier chain. We can design and produce new antennas within 12 days.
R&D Ability
QIFAN put around 12% from sales amount used as R&D expense per year. To make sure proving stable technology support to customers and keep going on innovation.
Sample room
As a professional antenna manufacturer, QIFAN with 10 years of experience designing and producing antennas. Now we can produce more than 500 types of antennas.
Sales Team
heeeWe have a strong sales team willing to assist you with your needs. We will help you from choosing products to shipping.
Certifications and Licenses
Our mission is to provide high quality products.
Contact Us
Jeremy Lin
Tel: +86-15989344695
E-mail: signalplus@163.com
Skype: live:244135443
E-mail: signalplus@163.com
Skype: live:244135443
Louis Lin
Tel: +86-13760321993
E-mail: louis@signalplus.cn
Skype: live:signalplus_1
E-mail: louis@signalplus.cn
Skype: live:signalplus_1
FAQ
Q: How is your product quality?
A: All our products have strict QC process and will be 100% tested before shipping. And Our antenna engineers have more than 10-year experience.
Q: Can you customize antennas ?
A: Sure! We have a professional R&D team. The antennas can be customized to serve different purposes. OEM and ODM
Q: Could you offer free sample to test ?
A: We can provide free samples for some low-In general , for new customer you pay the sample fee first, but when you order required amount we refund the sample cost back to you.
Q: When can you ship the goods ?
A: It depends on the order quality and if we have the good in stock. The lead time usually is 2-12 days.
Q: What is your payment term?
A:50% payment should be paid when you make the order and the 50% should be paid when the products are ready for shipping.
