electric car lithium ion prismatic 24v 22.2v nmc 6s1p battery pack 100ah tafel battery module for Folklifts
- Category: >>>
- Supplier: Dongguan Youli Electronic Technology Limited
Share on (1600523755468):
Product Overview
Description
Details Images
Battery type | 22.2V NMC |
Nominal Voltage(V) | 22.2V |
Nominal Capacity | 100Ah |
Cell inside | Tafel 6S1P 100Ah module |
Configuration | 6S1P |
1Max charge current | 1C |
Max discharge current | 3C |
Standard Charge current | 0.2C-0.5C |
Full Charged Voltage | 25.2V |
Charge Cut-off Voltage | 25.2V |
Discharge Cut-off Voltage | 16.5V |
Net Weight | 11.7KG |
Dimensions | L355*W151*H108mm |
Cycle Life | 1500times(80% of initial capacity at 0.2C rate, IEC Standard) |
Operating Temperature | Charging: 0~55Centigrade |
Discharge Temperature(℃)： | -20~55Centigrade |
Storage Temperature | -20~45Centigrade |
Connector | Threaded terminals |
For newest prices or discount, please contact us. Click Here>>
Recommend Products

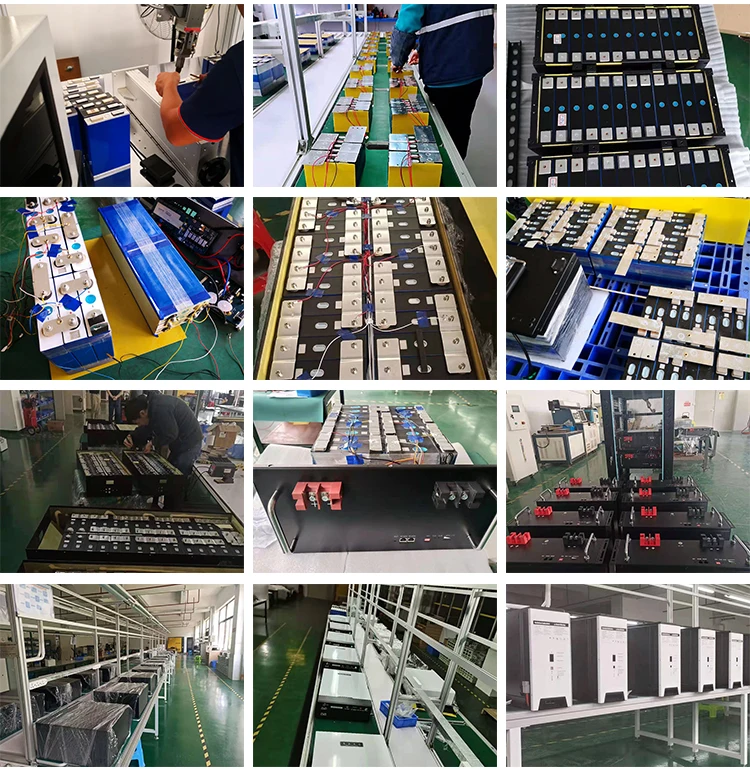

Our Factory
Dongguan Uli-power E-technology Ltd., which was established in March, 2012, is one of the fullest range battery cells and battery packs company.Providing complete primary battery,LiFePO4, Li-polymer, Lithium-ion, Ni-MH and Ni-CD rechargeable battery single cells and PCM system solutions.We mainly produce lifepo4 battery, which are widely used in New energy vehicle industry, Solar energy storage, UPS system,Utility grid, etc.
Want know more about us, please contact us. Click Here>>
