tyre changing machine / tyre changer wheel balancer tyre repair combo
- Category: >>>
- Supplier: Yantai Autenf Import & Export Trading Co. Ltd.
Share on (1600523790526):
Product Overview
Description

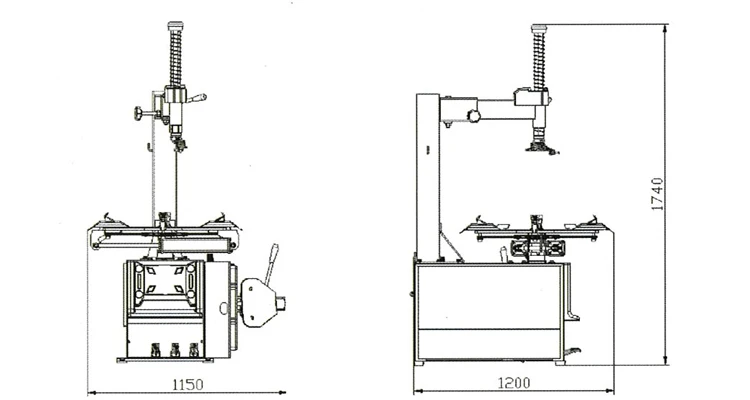

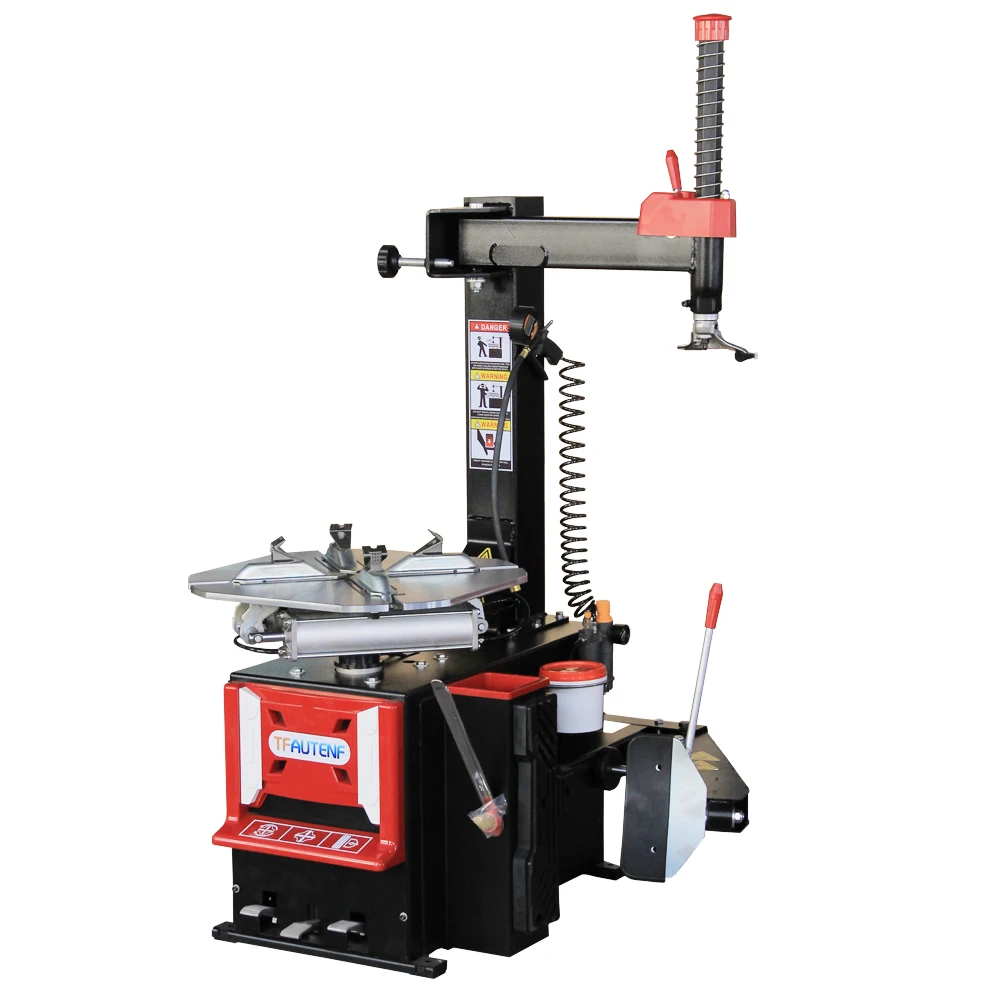

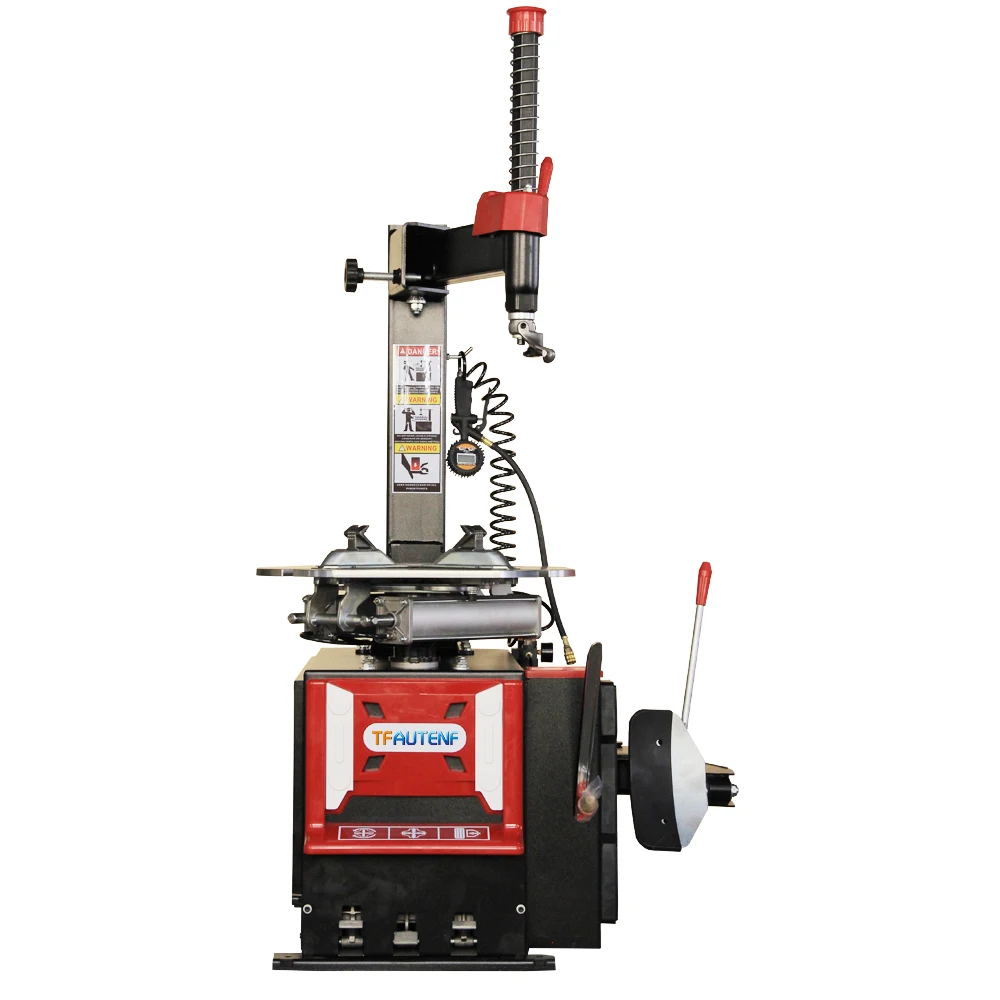

Tyre changer description
Product name & model | TC601 tyre changer |
Outer clamp | 10''-22'' |
Inter clamp | 12''-24'' |
Wheel width | 12'' |
Max wheel diameter | 980mm |
Working pressure | 8-10bar/0.8-1Mpa |
Shovel power | 24500N |
Voltage | 220V/380V |
Power | 1.1/0.75KW |
Gross weight | 225kgs |
Packing size | 980*800*890mm (0.7CBM) |
Operation plate
Jaws
Jaws
Mounting head
Mounting head
Cylinders
Foot pedals
Digital gauge
Oil & water separator

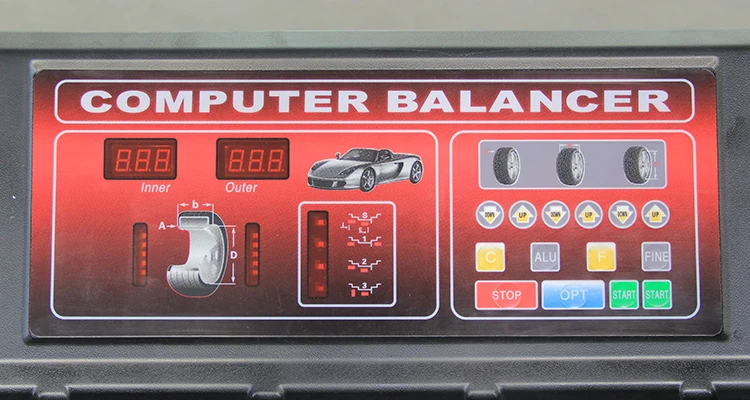

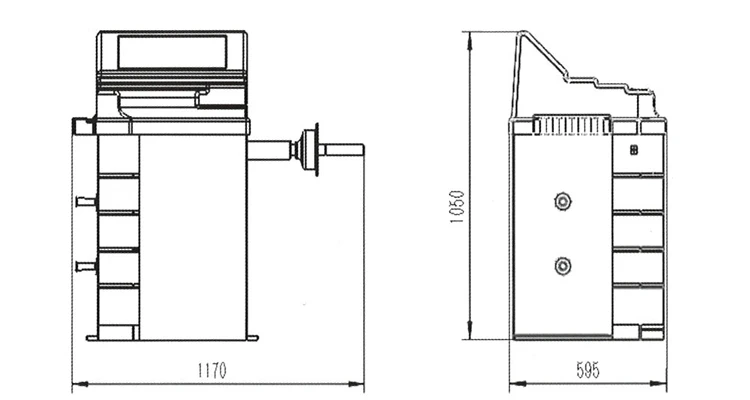

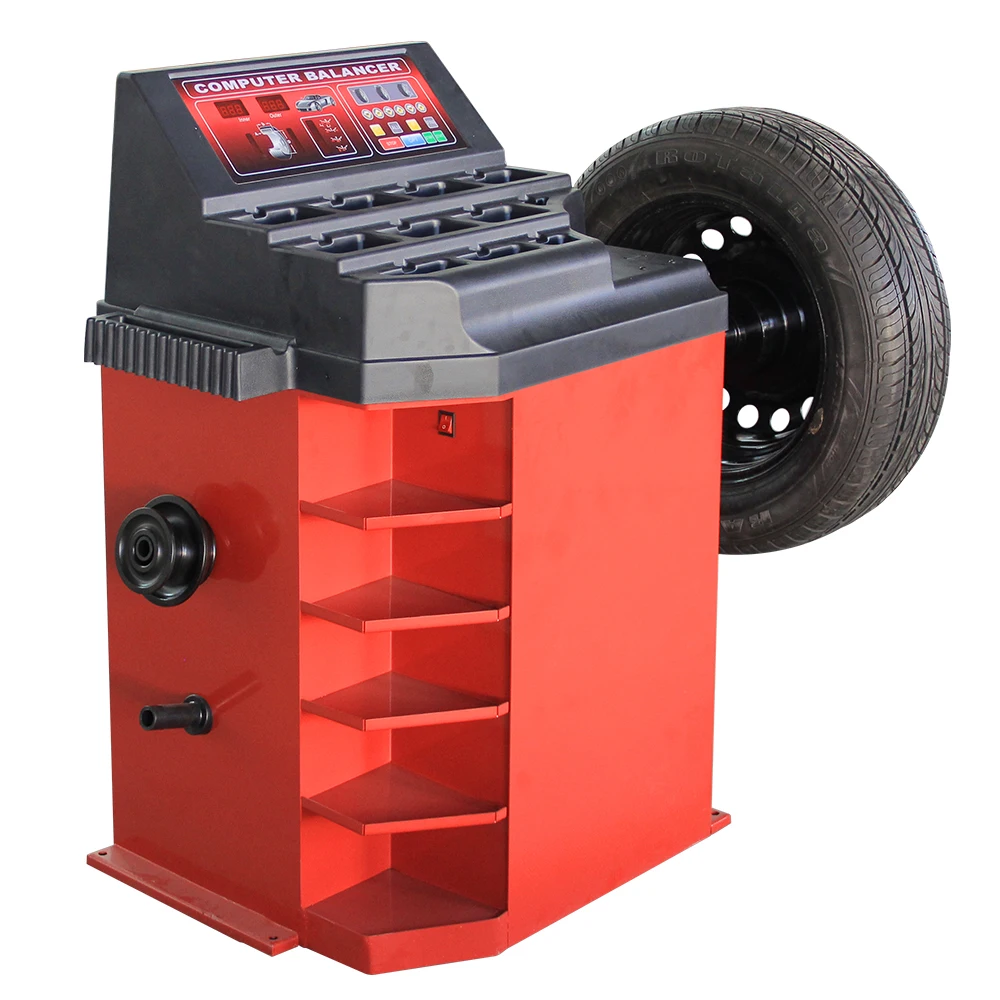

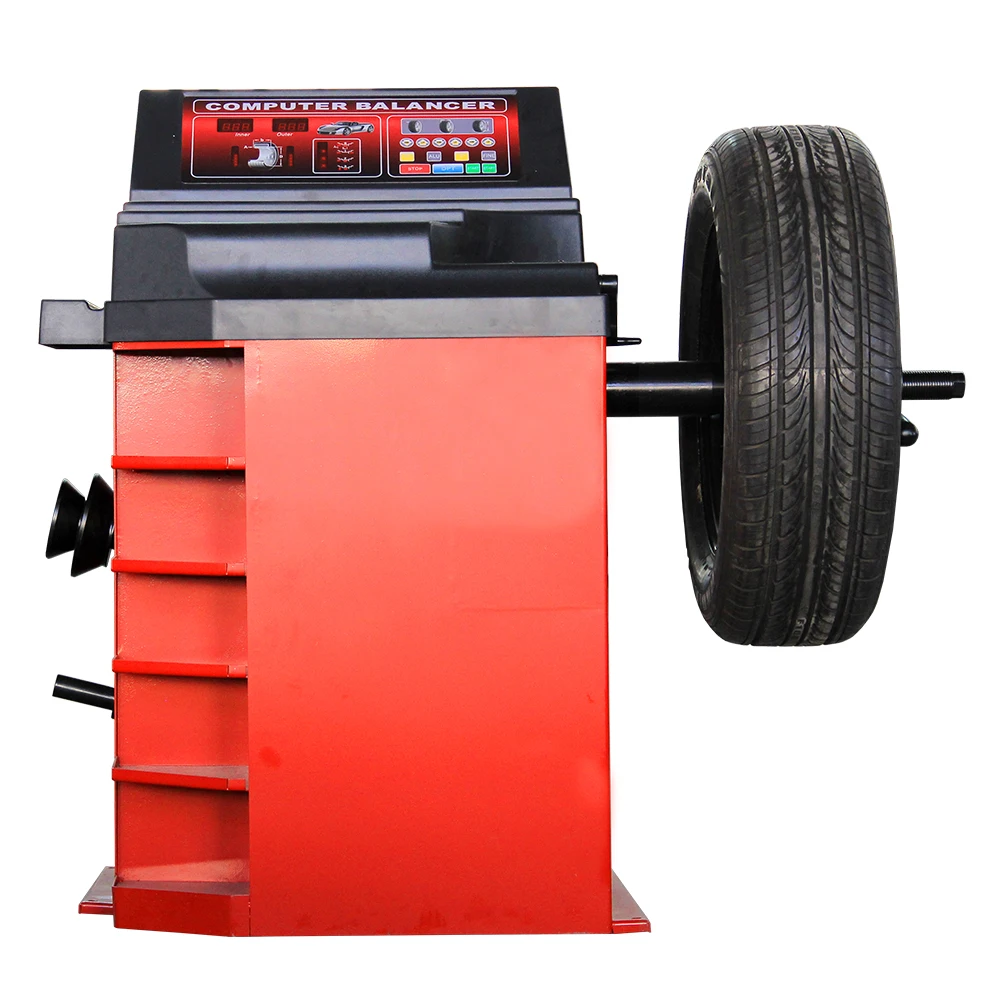

Wheel balancer description
Product name & model | WB518 wheel balancer |
Rim diameter | 10''-28'' |
Rim width | 1.5''-20'' |
Max wheel diameter | 950mm |
Max wheel weight | 70kgs |
Rotating speed | 200r/min |
Balancing precision | ±1g |
One balance time | 6-7s |
Power | 220V/0.25KW |
Gross weight | 158kgs |
Packing size | 1040*650*1180mm (0.8CBM) |
Puller
Standard accessories

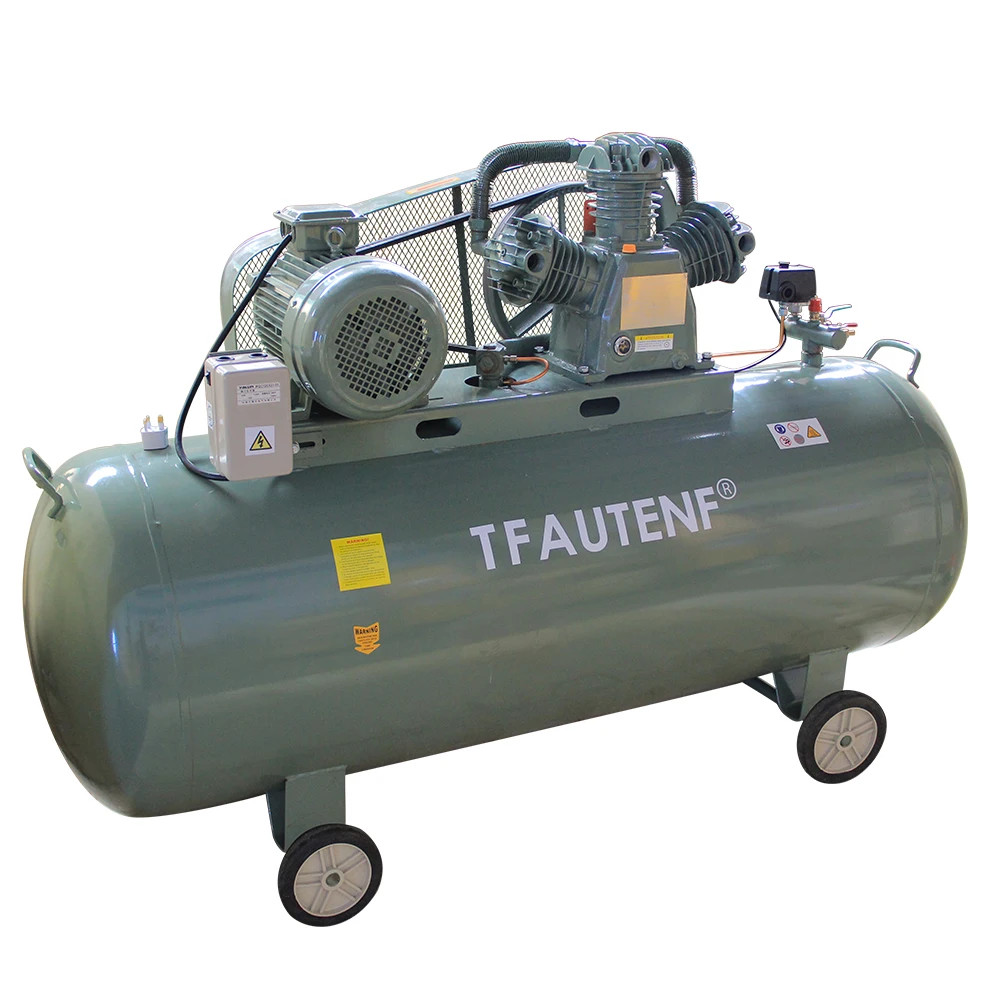

Air compressor description
Product name & model | TF-360/12.5-110L air compressor |
Power | 3KW/4HP |
Voltage | 220V |
Cylinder bore*QTY | φ65*2+φ51*1 |
Speed | 920rpm |
Discharge pressure | 12.5bar |
Air displacement | 360L/min |
Air tank capacity | 110L |
Gross weight | 120kgs |
Packing size | 1190*450*940mm (0.5CBM) |
Small items description

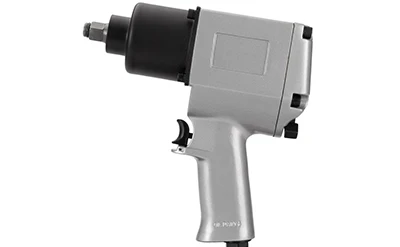

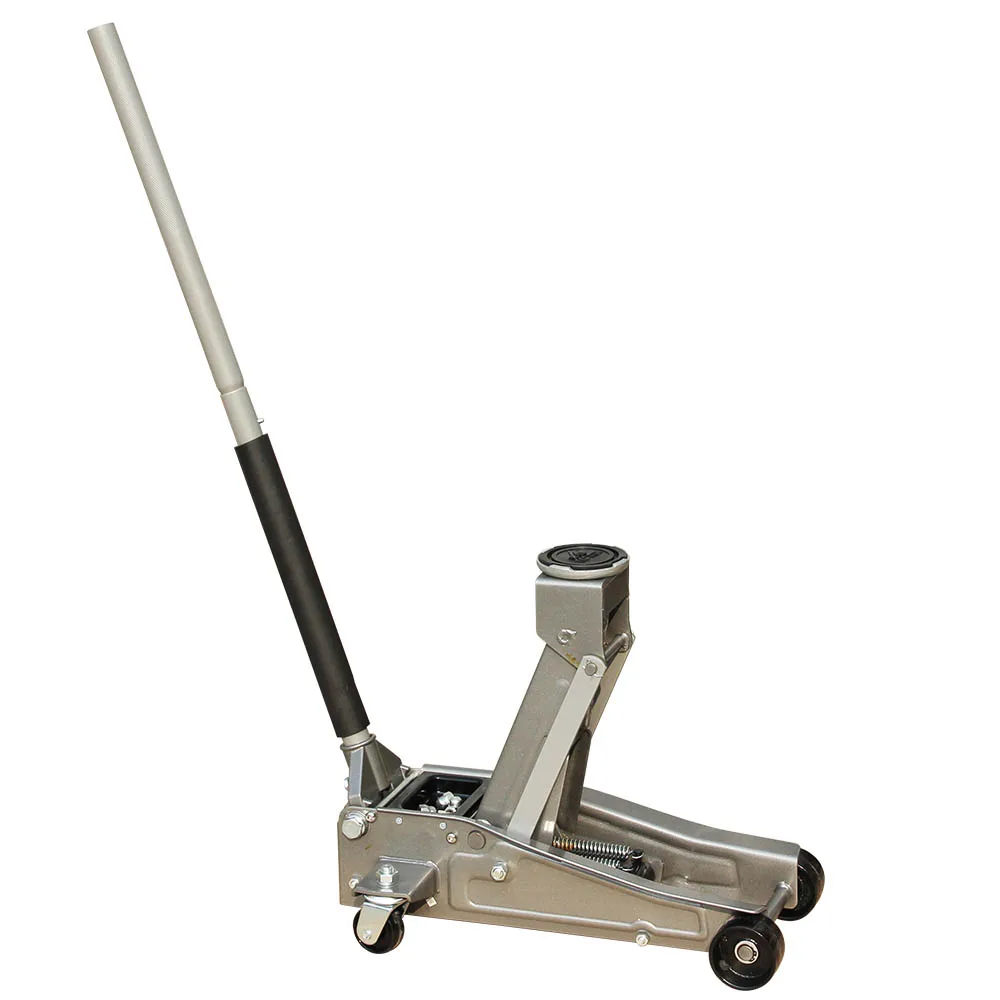

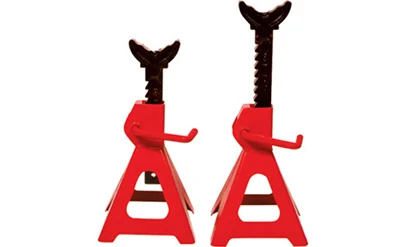

Stand jack | Hydraulic jack | Impact wrench | ||||||
Load capacity | 3 tons | Load capacity | 3 tons | Square head size | 1/2'' | |||
Min height | 400mm | Min height | 140mm | Max torque | 1280NM | |||
Max height | 610mm | Max height | 465mm | Speed | 8000rpm | |||
Packing & Shipping
Packages type | Plywood boxes |
Package quantity | 5 pieces |
Volume | 2.07 CBM |
Gross weight | 570 kgs |
