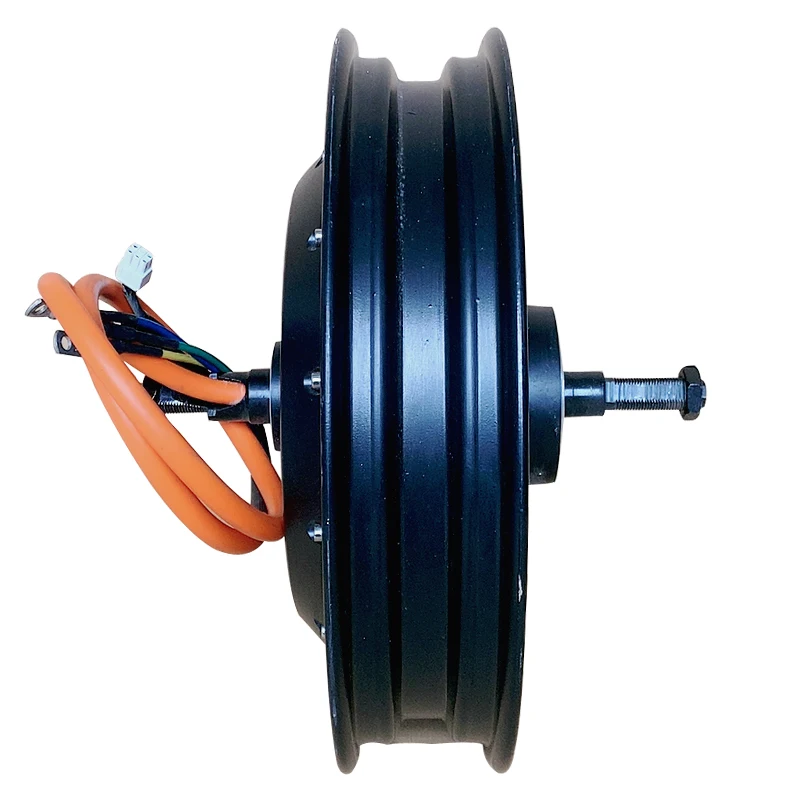

High Speed Brushless DC Electric Scooter Motorcycle Hub Motor Bldc Generator 13 Inch 1500W 3000W Waterproof Sine IE 2 30mm 35mm
- Category: >>>
- Supplier: Wuxi Tonglai Yuehao Trading Co. Ltd.
Share on (1600523800528):
Product Overview
Description
Motor Type | Brushless Direct Current Motor(BLDC Motor) | |||||
Axle Configuration | 16-18mm | |||||
Wheel Rim | 120-70-13 | |||||
Rated Speed | 60-75km/h | |||||
Voltage | 72v | |||||
Magnet Height | 30mm 35mm | |||||
RPM | 600-850 RPM | |||||
Brake System | Ancient brake/Disc brake | |||||
Hall Sensors | 3 | |||||
Hall Sensor Phasing | 120° | |||||
Number of motor phases | 3 | |||||
Efficiency | ≥93% | |||||
Rated Out Power | 1500W-3000w | |||||
Cross Section of Phase Wire | 4.0square | |||||
Waterproof Grade | IP54 | |||||
Color | Black | |||||
diameter | 420mm | |||||
Rim width | 86mm | |||||
Open file | 200mm | |||||
Custom order | Can be customized according to customer requirements | |||||
