Haohsat Dvb T2 Digital TV Tuner Terrestrial Receiver 1080P HD H.265 HEVC Youtube Italy Germany USA France Europe Set Top Box
Brand Name | Haohsat |
Model Number | T2HD-999 |
Features | 4K HDR |
Processor Core | Quad Core |
Support Resolution | 1920 x 1080 |
Ethernet | 1 x 10/100/1000MBps |
WiFi | 802.11n 2.4G/5GHz |
Private Mold | Yes |
Keywords | Dvb t2 set top box |
Warranty | 12 Months |
Channel | Free channels |
Function | DVB-T2 H.265 HEVC 10Bit |
Packing | One color box include: 1*DVB-T2 H.265 set top box 1* Remote Controler 1* AV Cable 1* User Manual 1* USB-5V cavo (35135X8MM) |
Language | English/French/German/Spanish/Italian Etc. 24 Languages |
CPU | National Core GX6702H5 |
USB wifi | MT7601 |
Product Description
DVB-T2HD-999 LAN SCART H.265/HEVC
Features:
CPU GX6702-S5
Flash 8M bytes
DDR-III 512M
Tuner Raphael R842
SCART TV
USB 2.0 Embedded Host,
Independent remote control head 4-digit LED display
Red LED Standby, Green LED Locked
network port
R323

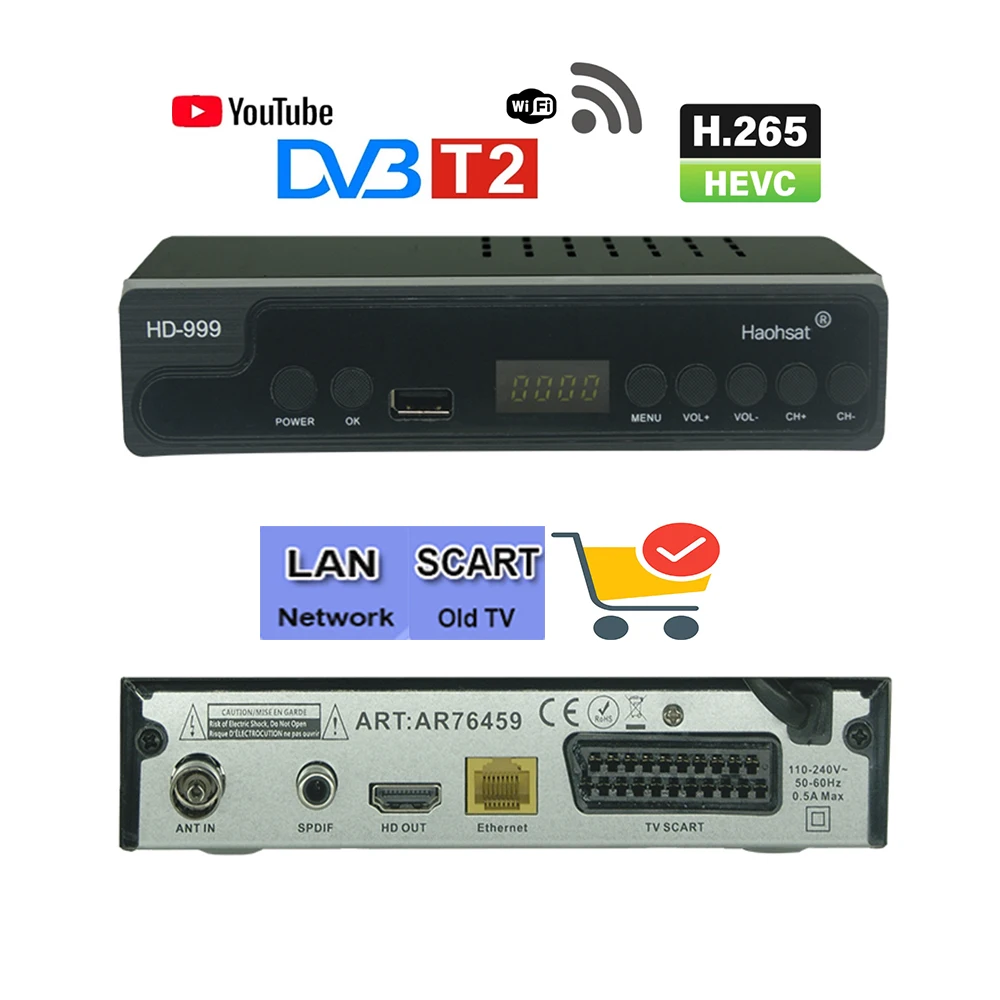

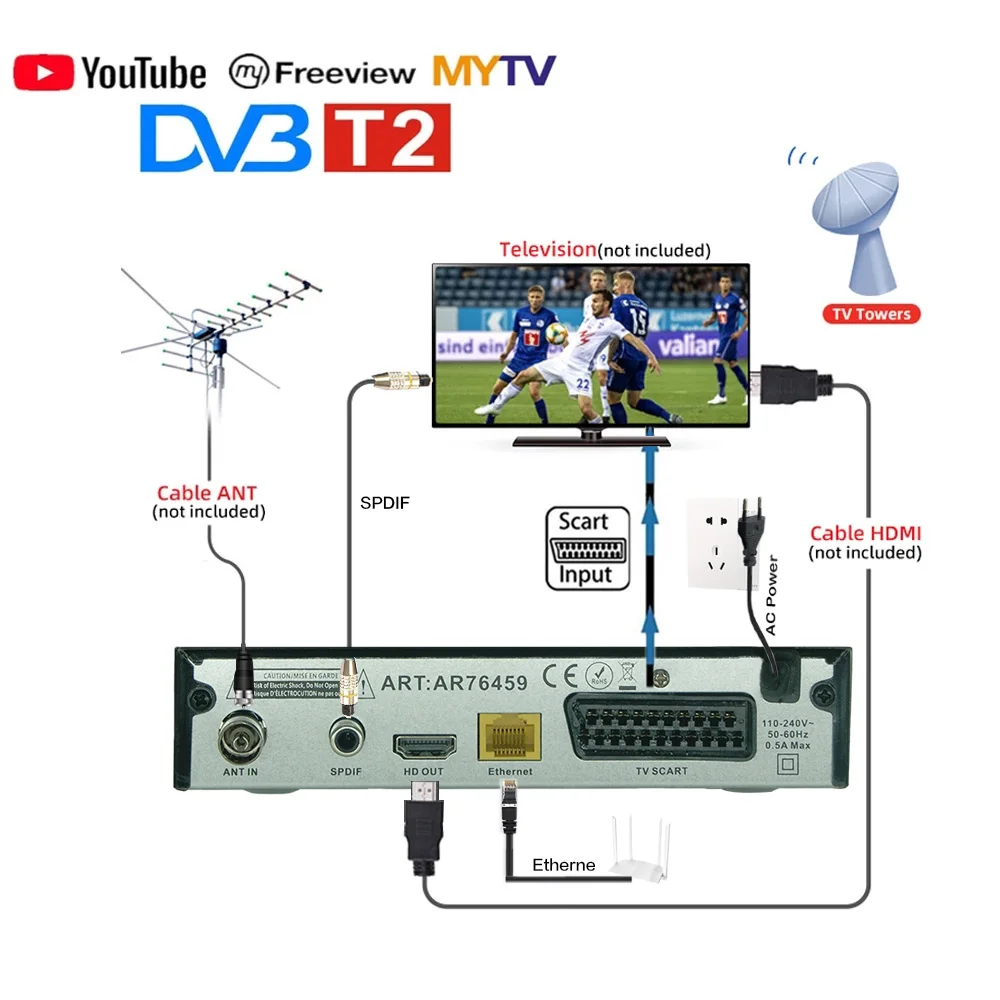

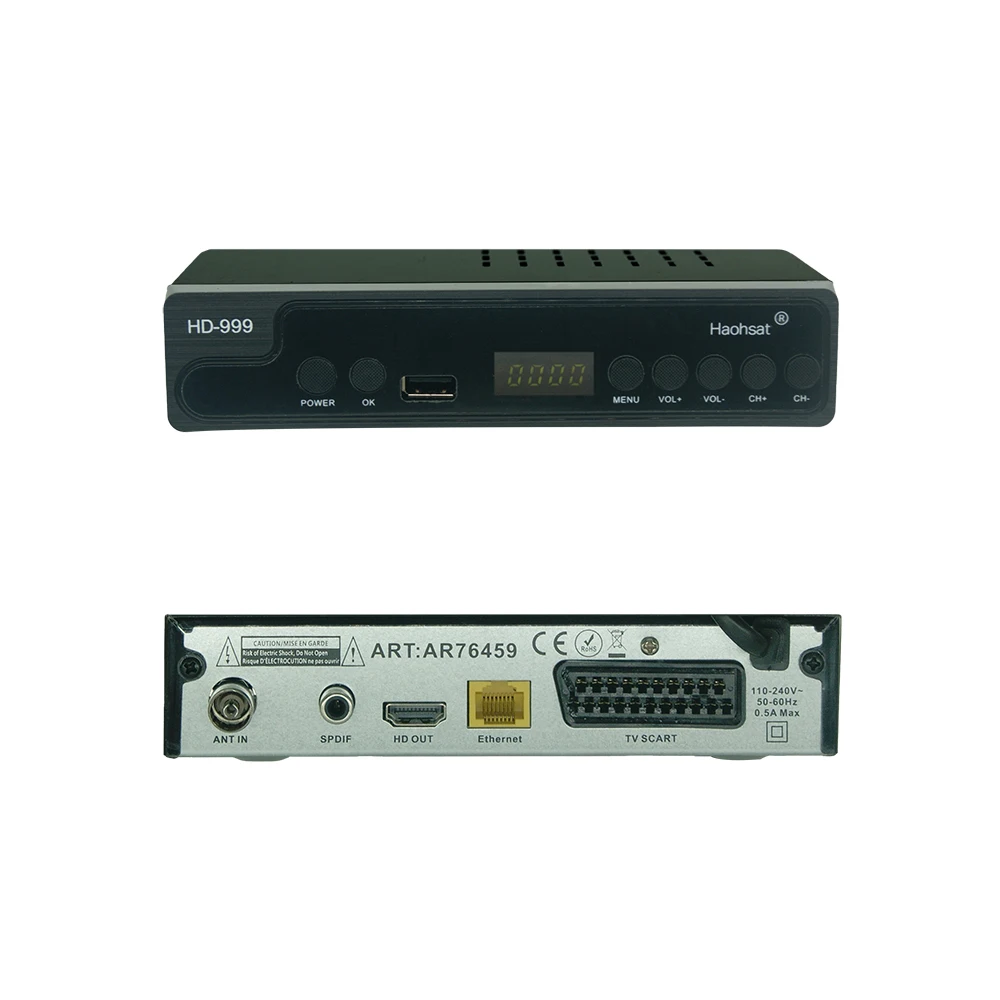

rear panel:
Tuner RF Input Connector IEC-162-2 (female)
Tuner RF Loop-Through Connector "IEC-162-2 (Male)
HDMI V1.4b
SCART connector x1
Power supply AC100~240V 50Hz/60Hz
demodulation:
Terrisal receiver standard DVB-T2/T (EN_302755 V1.3.1/EN 300744)
Input RF frequency 48~866MHZ
Bandwidth 6MHz, 7MHz, 8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/8K/32K
Support Supports single and multiple PLPS
Input level -83 - -5dBm
Classification software features:
• Fully compliant with DVB-T/T2 and H.264, MPEG-2/4 H.265/HEVC standards
• The maximum speed of the traffic is at least 50 Mbit/sec
• Support 3D interface
"• Sleep Timer
"•Support graphic/subtitle/multi-language
• Powerful and efficient 7-day EPG function
•Auto, 16:9 Mailbox, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full Screen, 16:9 Wide Screen
•USB 2.0 for PVR, TIMESHIFT, software upgrade and media file playback
• Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
The internet:
Network Application》Online Video, Weather, RSS
USB WiFi Dongle MT-7601
Video decoder:
MPEG-2/4 Video Decoder H.264 Decoder VC-1 Decoder
AVS/AVS+ decoder 10-bit
VP8 Decoder VP9 Decoder
HEVC (H.265) decoder
Audio codec:
Audio Sample Rate Conversion (SRC)
Digital audio decoding supported: − MPEG-1 (Layer I/II), MPEG-2 (Layer I/II), MP3
AAC-LC, WMA optional, WMA 10 Pro optional, E-AC-3 (Dolby Digital Plus) optional.
HE-AAC 5.1 multi-channel decoding
Powerful multimedia features:
Media codec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts, etc.
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
"Video Decoder
" JPEG, BMP, PNG

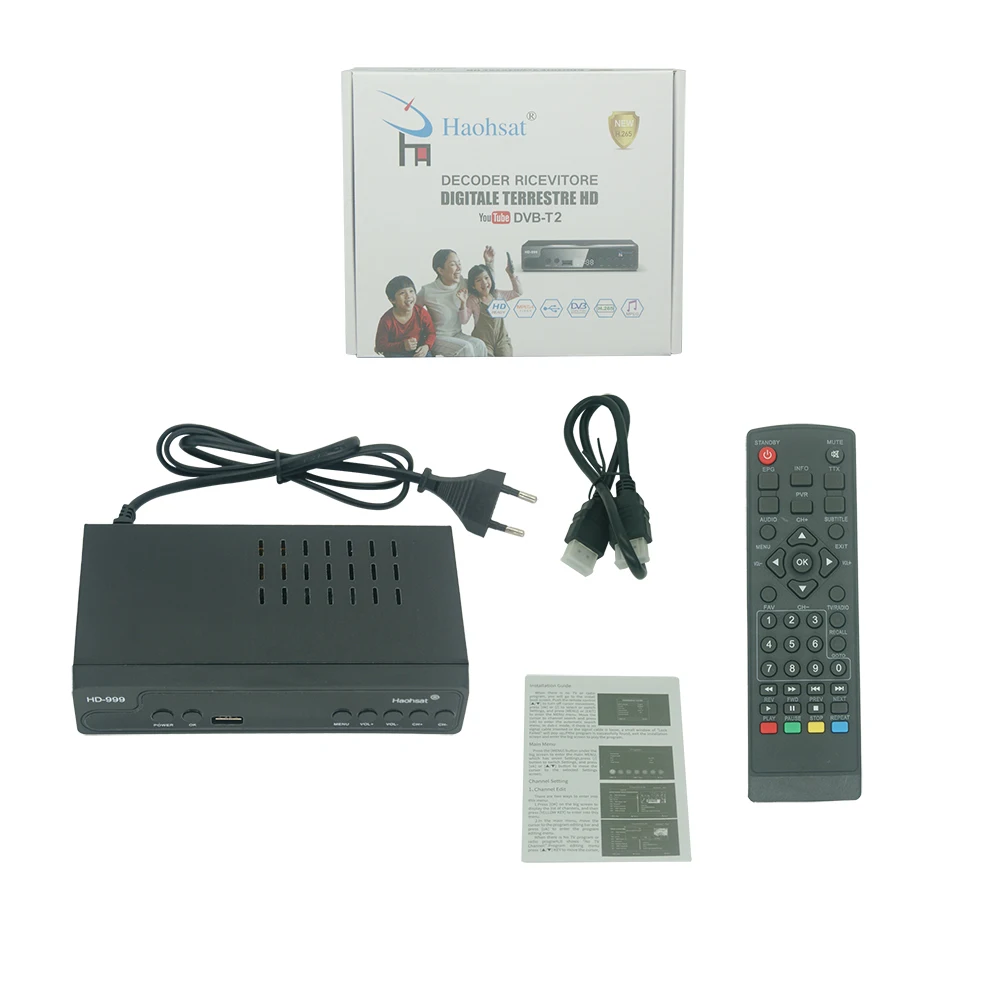

Accessories:
Gift box packaging X1
Remote control X1
Manual X1
HDMI cable X1
Weight: 0.43KG
Features:
CPU GX6702-S5
Flash 8M bytes
DDR-III 512M
Tuner Raphael R842
SCART TV
USB 2.0 Embedded Host,
Independent remote control head 4-digit LED display
Red LED Standby, Green LED Locked
network port
R323
rear panel:
Tuner RF Input Connector IEC-162-2 (female)
Tuner RF Loop-Through Connector "IEC-162-2 (Male)
HDMI V1.4b
SCART connector x1
Power supply AC100~240V 50Hz/60Hz
demodulation:
Terrisal receiver standard DVB-T2/T (EN_302755 V1.3.1/EN 300744)
Input RF frequency 48~866MHZ
Bandwidth 6MHz, 7MHz, 8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/8K/32K
Support Supports single and multiple PLPS
Input level -83 - -5dBm
Classification software features:
• Fully compliant with DVB-T/T2 and H.264, MPEG-2/4 H.265/HEVC standards
• The maximum speed of the traffic is at least 50 Mbit/sec
• Support 3D interface
"• Sleep Timer
"•Support graphic/subtitle/multi-language
• Powerful and efficient 7-day EPG function
•Auto, 16:9 Mailbox, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full Screen, 16:9 Wide Screen
•USB 2.0 for PVR, TIMESHIFT, software upgrade and media file playback
• Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P
The internet:
Network Application》Online Video, Weather, RSS
USB WiFi Dongle MT-7601
Video decoder:
MPEG-2/4 Video Decoder H.264 Decoder VC-1 Decoder
AVS/AVS+ decoder 10-bit
VP8 Decoder VP9 Decoder
HEVC (H.265) decoder
Audio codec:
Audio Sample Rate Conversion (SRC)
Digital audio decoding supported: − MPEG-1 (Layer I/II), MPEG-2 (Layer I/II), MP3
AAC-LC, WMA optional, WMA 10 Pro optional, E-AC-3 (Dolby Digital Plus) optional.
HE-AAC 5.1 multi-channel decoding
Powerful multimedia features:
Media codec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts, etc.
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
"Video Decoder
" JPEG, BMP, PNG
Accessories:
Gift box packaging X1
Remote control X1
Manual X1
HDMI cable X1
Weight: 0.43KG
