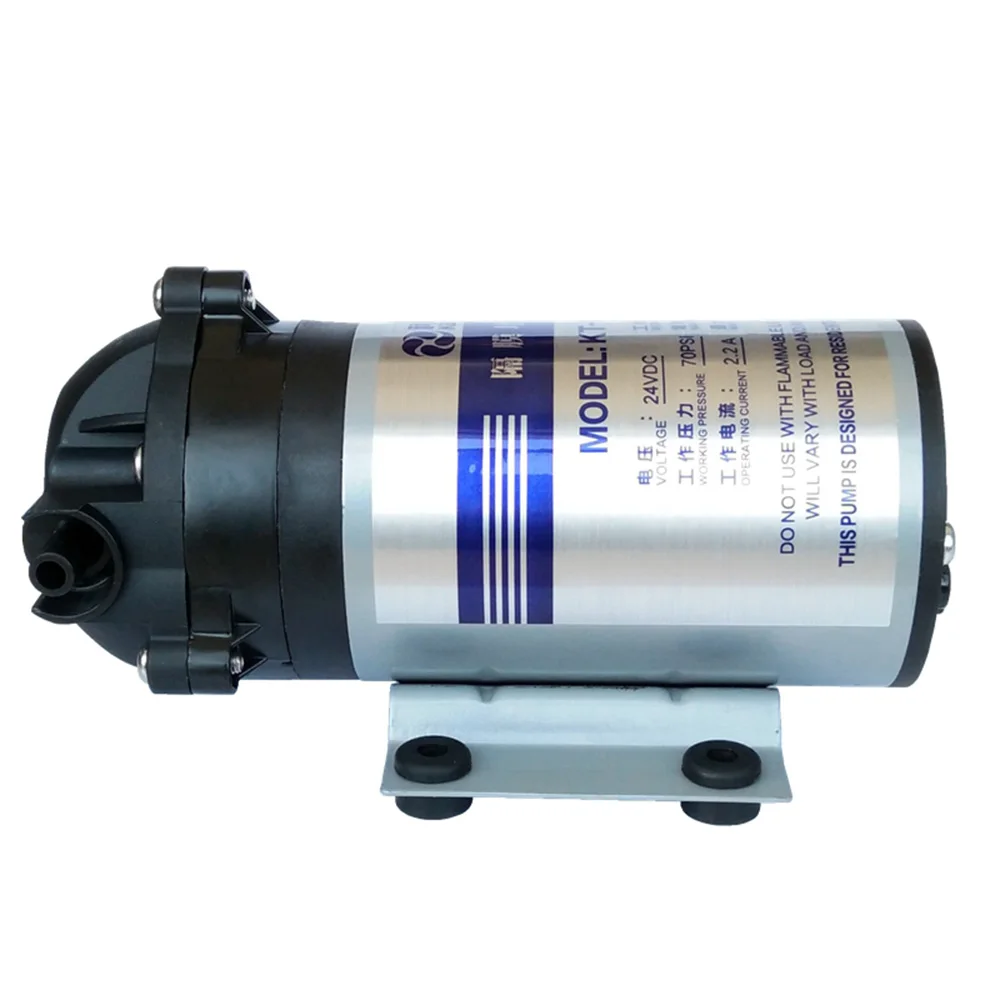

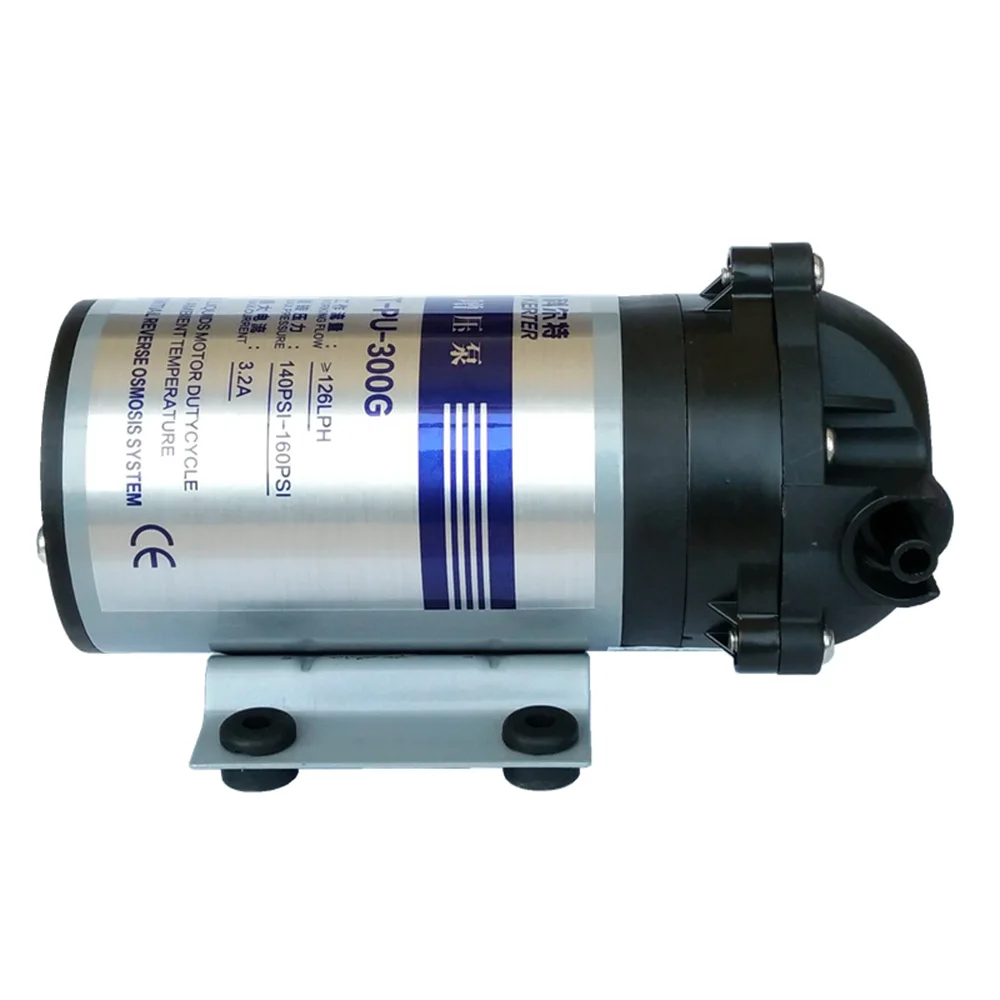

Hikins 300GPD Quick Fitting Diaphragm Booster Water Pump
- Category: >>>
- Supplier: GUANGDONG HIKINS ENVIROTECH CO. LTD
Share on (1600523807709):
Product Overview
Description
Hikins 300GPD Quick Fitting Diaphragm Booster Water Pump
Products Description
Working Theory
1. Diaphragm pump rely on, diaphragm leaf back and forth, then change volume to suction and output liquid. So it
1. Diaphragm pump rely on, diaphragm leaf back and forth, then change volume to suction and output liquid. So it
called Diaphragm Pump.
2. Motor consist of rotor, pump body, finished front cover and finished rear end cover.
3. Pump Head are assembled with driving head, pump cover, diaphragm leaf, piston, finished valve carrier, bypass
3. Pump Head are assembled with driving head, pump cover, diaphragm leaf, piston, finished valve carrier, bypass
spring and top bead.
4. Pump head and motor make a whole pump. Rotor in Motor driven back and forth, and drive eccentric gear moving.
5. Eccentric gear drives diaphragm leaf, and compress air to get energy. Energy transfer to pressure, and get effect of
5. Eccentric gear drives diaphragm leaf, and compress air to get energy. Energy transfer to pressure, and get effect of
booster water pressure.
6. Pumps divide into Booster series and Self suction series. Working time should be less than 6 hours per day.
Installation Instructions
1. In case of water leakage, pump head should be downwards or flat wise when install.
2. A filter, not less than 100um, should be install before pump, in case particle dust go into pump and effect its
6. Pumps divide into Booster series and Self suction series. Working time should be less than 6 hours per day.
Installation Instructions
1. In case of water leakage, pump head should be downwards or flat wise when install.
2. A filter, not less than 100um, should be install before pump, in case particle dust go into pump and effect its
function.
3. Pump already have passed many functional testing, please don't open it by yourselves.
4. This pump cannot be used for oil, chemical liquid or corrosive gas condition.
5. If don't comply with above rules and lead to products damage, we will not offer free warranty. Users should not tear
3. Pump already have passed many functional testing, please don't open it by yourselves.
4. This pump cannot be used for oil, chemical liquid or corrosive gas condition.
5. If don't comply with above rules and lead to products damage, we will not offer free warranty. Users should not tear
up the seal.
6. Warranty is 12 months from delivery month.
Direction for Use
1. Price quote don't include freight, extra tax, connector, wire connector, power adapter. 6PCS per small carton, 12 PCS
Direction for Use
1. Price quote don't include freight, extra tax, connector, wire connector, power adapter. 6PCS per small carton, 12 PCS
per big carton. Warranty one year.
2. Self suction pump is also booster pump, can work with zero PSI source water, suction height 2 meters.
3. For connect type, 50GPD and 75GPD have option of 1/4" quick and 3/8" screw, and 100GPD to 800GPD have option
3. For connect type, 50GPD and 75GPD have option of 1/4" quick and 3/8" screw, and 100GPD to 800GPD have option
of 3/8" quick and 3/8" screw.
4. 1/4" quick fitting pump should use pullover. Pullover should be put inside first, then put elbow connector. Or elbow
connector hard to pull out.
5. 3/8" screw pump should connect with 3/8"screw-1/4"quick or 3/8"screw to 3/8"quick elbow connectors.
6. All pumps should work under DC24V/DC36V, should connect with power adapter. Please don't connect with 220V
5. 3/8" screw pump should connect with 3/8"screw-1/4"quick or 3/8"screw to 3/8"quick elbow connectors.
6. All pumps should work under DC24V/DC36V, should connect with power adapter. Please don't connect with 220V
AC directly.
7. Rated current of adapter should not less than pump's max current. Or adapter will be burn out.
* "KERTER" is a sub-brand of "Hikins"
Specification | ||
Item | 300GPD Quick Fitting Booster Pump | |
Model NO. | KT-PU-300G BQ | |
Voltage(VDC) | 24 | |
Feed Water Pressure(PSI) | 20 | |
Rated Pressure(PSI) | 70 | |
Rated Current(A) | ≤2.5 | |
Rated Power(W) | 60 | |
Flow Rate(L/H) | ≥150 | |
Block Current(A) | ≤3.5 | |
Block Pressure(A) | 140±10 | |
Noise(dB) | ≤43 | |
Dimension(mm*mm*mm) | 186*102*100 | |
Weight(KG) | 2.1 | |
Power Adaptor | 24VDC 5A | |
PCS/CTN | 6 PCS/CTN | |
Packing Dimension | 390x320x120mm/6pcs | |
Packing Weight | 13.6KGS | |
Container Loading Qty: 20GP/40HC | 7500/16002pcs | |
Delivery | 30 days(20 working days) | |
MOQ | 1000pcs | |
8 PCS/CTN is available. | ||
Pallet is available. | ||

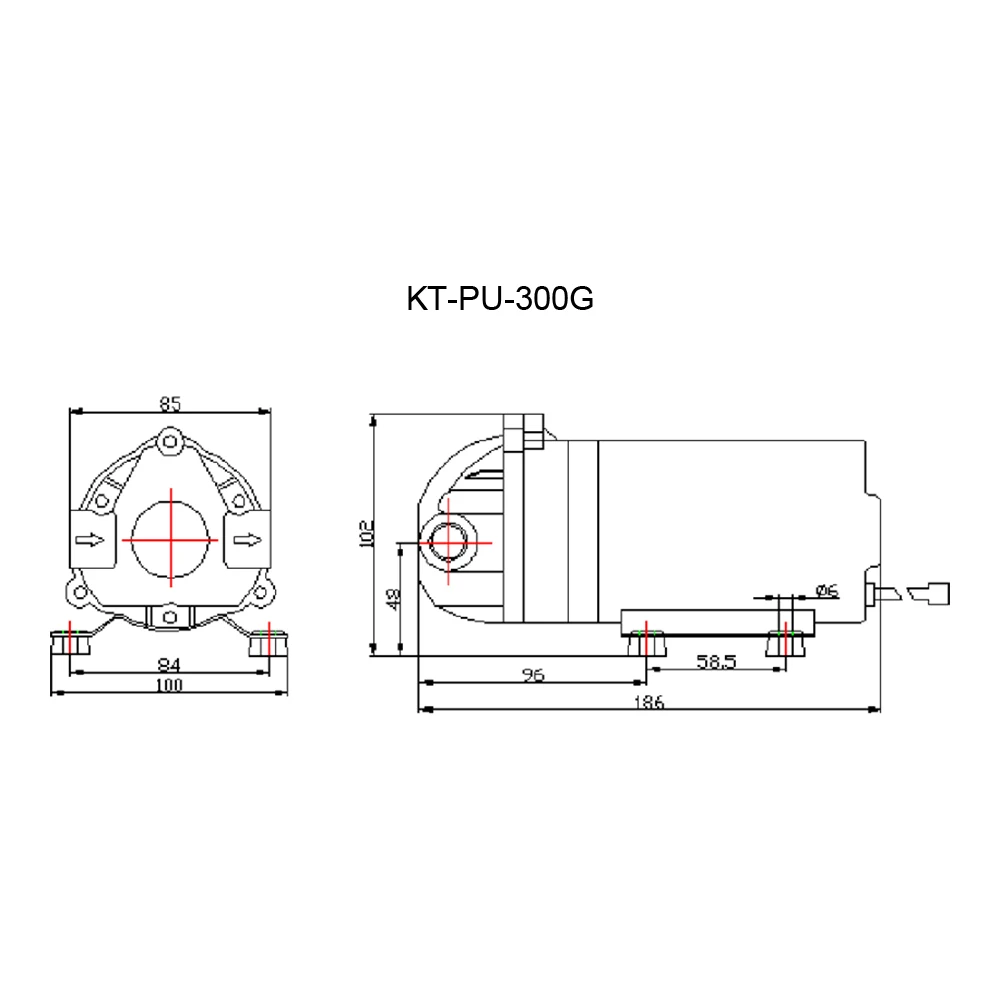

Unit: mm
Packaging &Shipping
Related Products
About Us
Guangdong Haiqingxin Environmental Technology Co.,Ltd is the top OEM/ODM Manufacturer for robot vacuum cleaner in South China, as well as the robot cleaner components manufactuer, its business field involves smart homes including robot cleaner, RO water purifier, domestic RO membrane, RO boost pump and water tank, POM fittings and Filter cartridges. Hikins has become a industry leader in supplying the household facilities in robot cleaners,RO Water Purifierindustrial and domestic RO products.
Our factory covers an area of 36,000 square meters and has mature injection molding, mold processing, SMT chip processing, productionline assembly, and specialized Industry's supporting service team, R & D and production teams have served OEM / ODM products in nearly 40 countries, Production and management experience of famous brand service.
Hikins has done lots of effort and investment in Robot vacuuming cleaner and Air purifier manufacturing, we are aiming to be your valuable China manufacturing partner and we are looking for distributor and agent worldwide.
Our factory covers an area of 36,000 square meters and has mature injection molding, mold processing, SMT chip processing, productionline assembly, and specialized Industry's supporting service team, R & D and production teams have served OEM / ODM products in nearly 40 countries, Production and management experience of famous brand service.
Hikins has done lots of effort and investment in Robot vacuuming cleaner and Air purifier manufacturing, we are aiming to be your valuable China manufacturing partner and we are looking for distributor and agent worldwide.
FAQ
FAQs on RO Diaphragm Pump
1. How long is pump's working life?
Answer: 5000 hours. If work 3 hours per day, work life is about 5 years.
2. How is noise of pump?
Answer: noise under 55DB, sound close to noise of computer operating.
3. How is pump's suction height and pumping head?
Answer: Self suction pump's suction height is about 2 meters. Pumping head is 1 to 2 meters.
4. How is pumps running speed?
Answer: Around 1200 turn per minute, every model's speed are different.
5. What material wire used in rotor?
Answer: 100% copper. Pumps need to stand high temperature. It will cannot stand high temperature if not 100% copper.
6. How long can your pump run when no-load?
Answer: When no-load, our pumps can run more than half month continues. We have do related testing.
1. How long is pump's working life?
Answer: 5000 hours. If work 3 hours per day, work life is about 5 years.
2. How is noise of pump?
Answer: noise under 55DB, sound close to noise of computer operating.
3. How is pump's suction height and pumping head?
Answer: Self suction pump's suction height is about 2 meters. Pumping head is 1 to 2 meters.
4. How is pumps running speed?
Answer: Around 1200 turn per minute, every model's speed are different.
5. What material wire used in rotor?
Answer: 100% copper. Pumps need to stand high temperature. It will cannot stand high temperature if not 100% copper.
6. How long can your pump run when no-load?
Answer: When no-load, our pumps can run more than half month continues. We have do related testing.
