YT 6800 Stack type 6 colors middle speed plastic roll to roll flexographic printer press machine

Product Overview

Description

YT-6800 Stack type 6 colors middle speed plastic roll to roll flexographic printer press machine

1.Feature:

1.1Easy operation, flexible starting, accurate color register.

1.2The meter counter can set printing quantity according to the requirements, stop the machine automatically at the quantity or when the material is cut off.

1.3 Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.

1.4The printing ink is spread by the anilox cylinder with even ink color.

1.5 Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.360continuous and adjustable longitudinal register device.

1.6 The frequency control of motor speed adapts to different printing speeds.

1.7 Suitable for printing the packing material as PE and PP plastic bags, glass papers rolling papers, etc.

2. Main Technical Specification

Model	YT-6600	YT-6800	YT-61000
Feed width	600mm	800mm	100mm
Printing Width	560mm	760mm	960mm
Print length	191-990mm	191-1000mm	191-1000mm
Unwind diameter	φ450mm	φ450mm	φ450mm
Printing Speed	5-80m/min	5-50m/min	5-50m/min
Thickness	2.3mm	2.38mm	2.38mm
Total Power	10.87kw	12kw	15kw
Overall Dimension	4.6×1.6×2.7m	4.6×1.8×2.7m	4.6×2×2.7m
Weight	3500kg	3800kg	4000kg



3. picture showroom

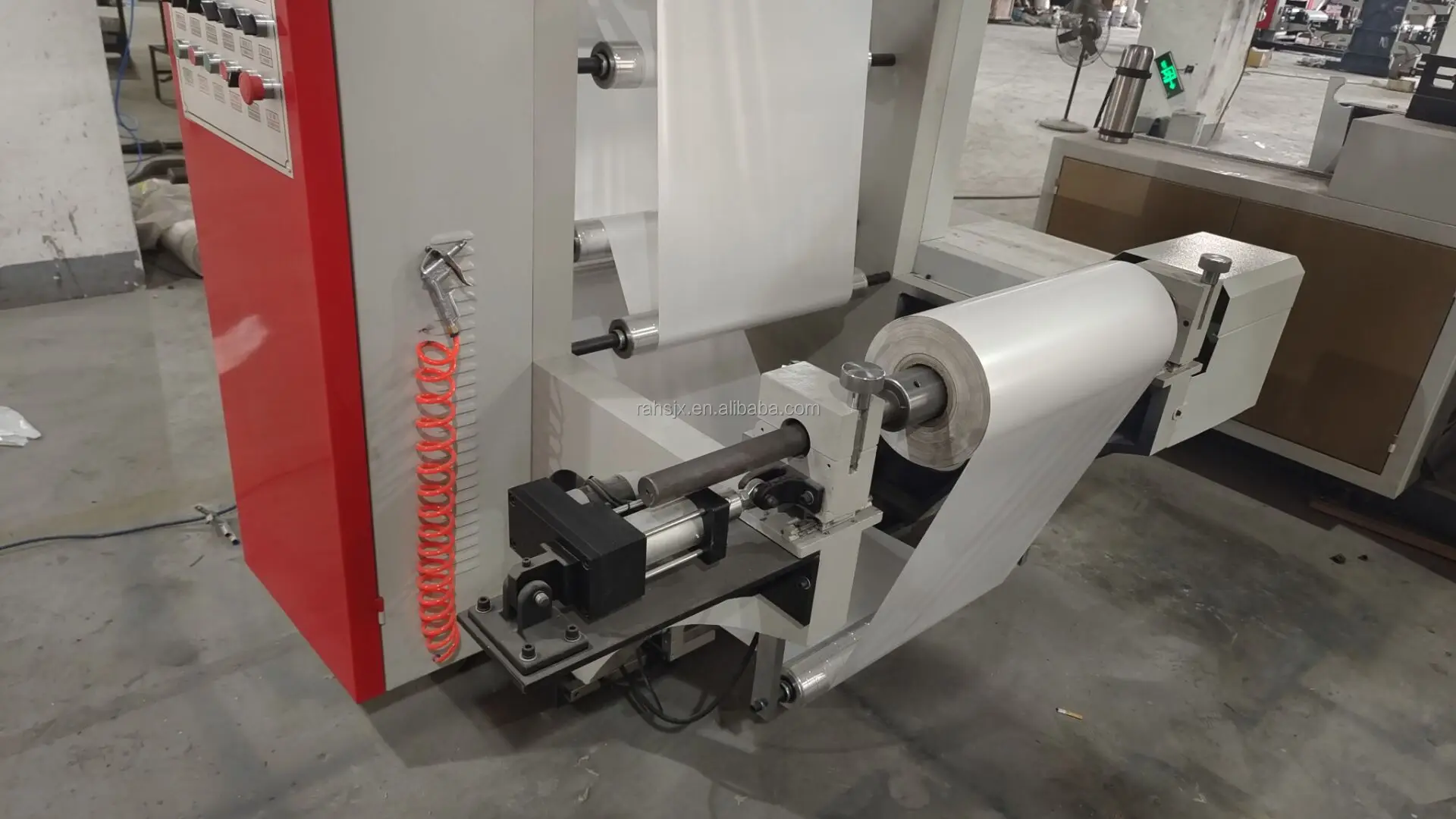

1)unwind with EPC

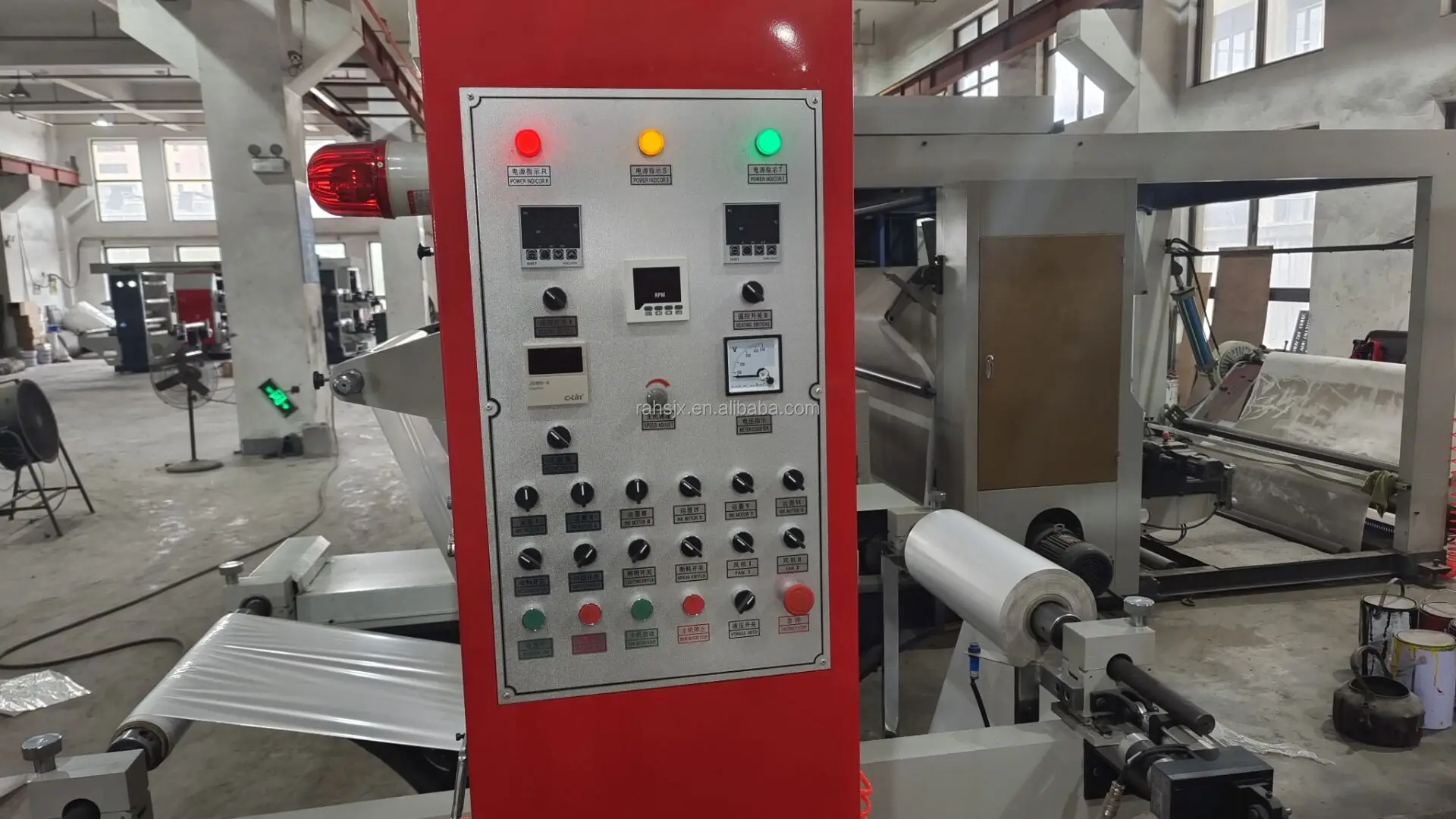

2)panel controller

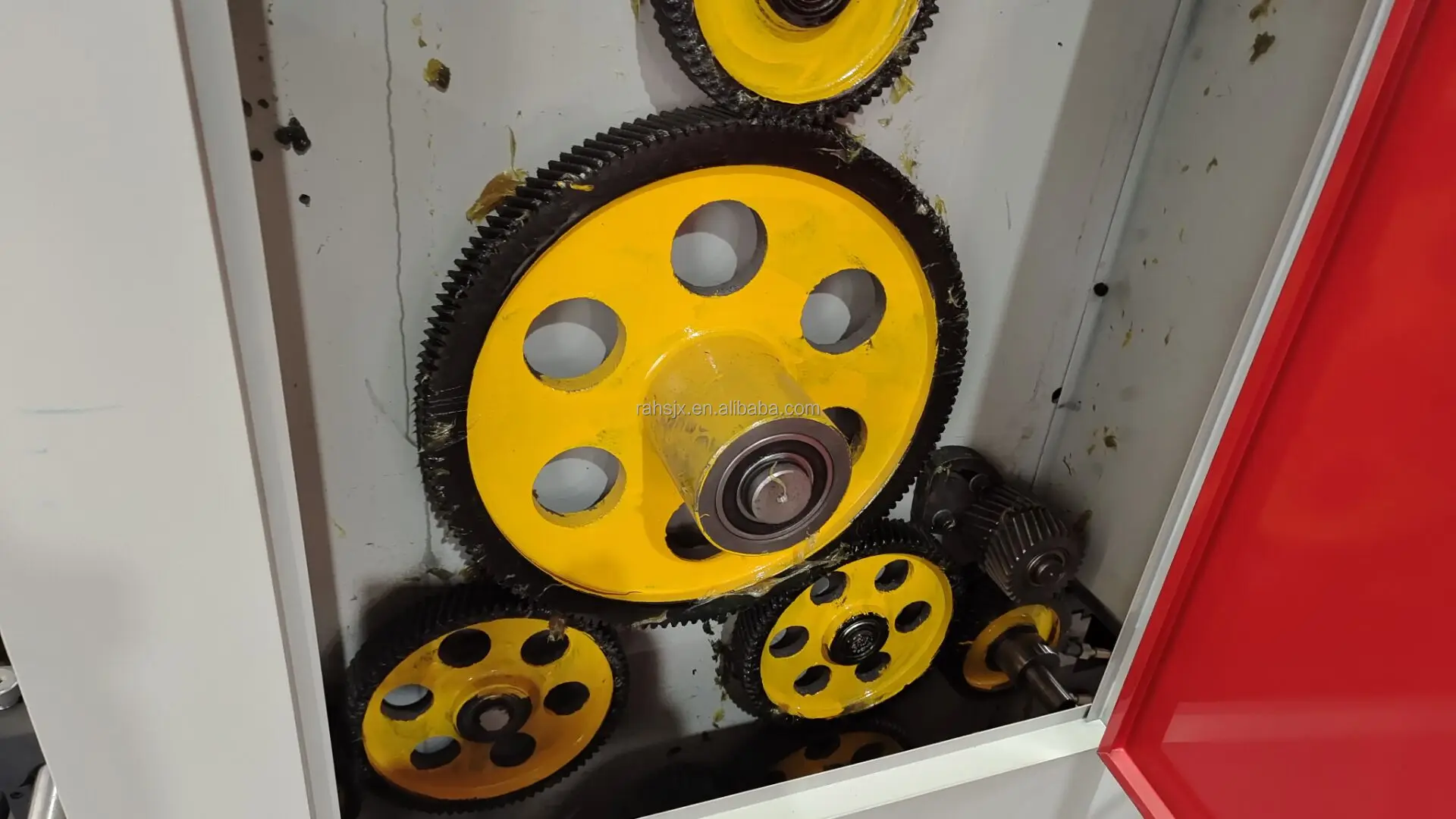

3)helical gear transmit

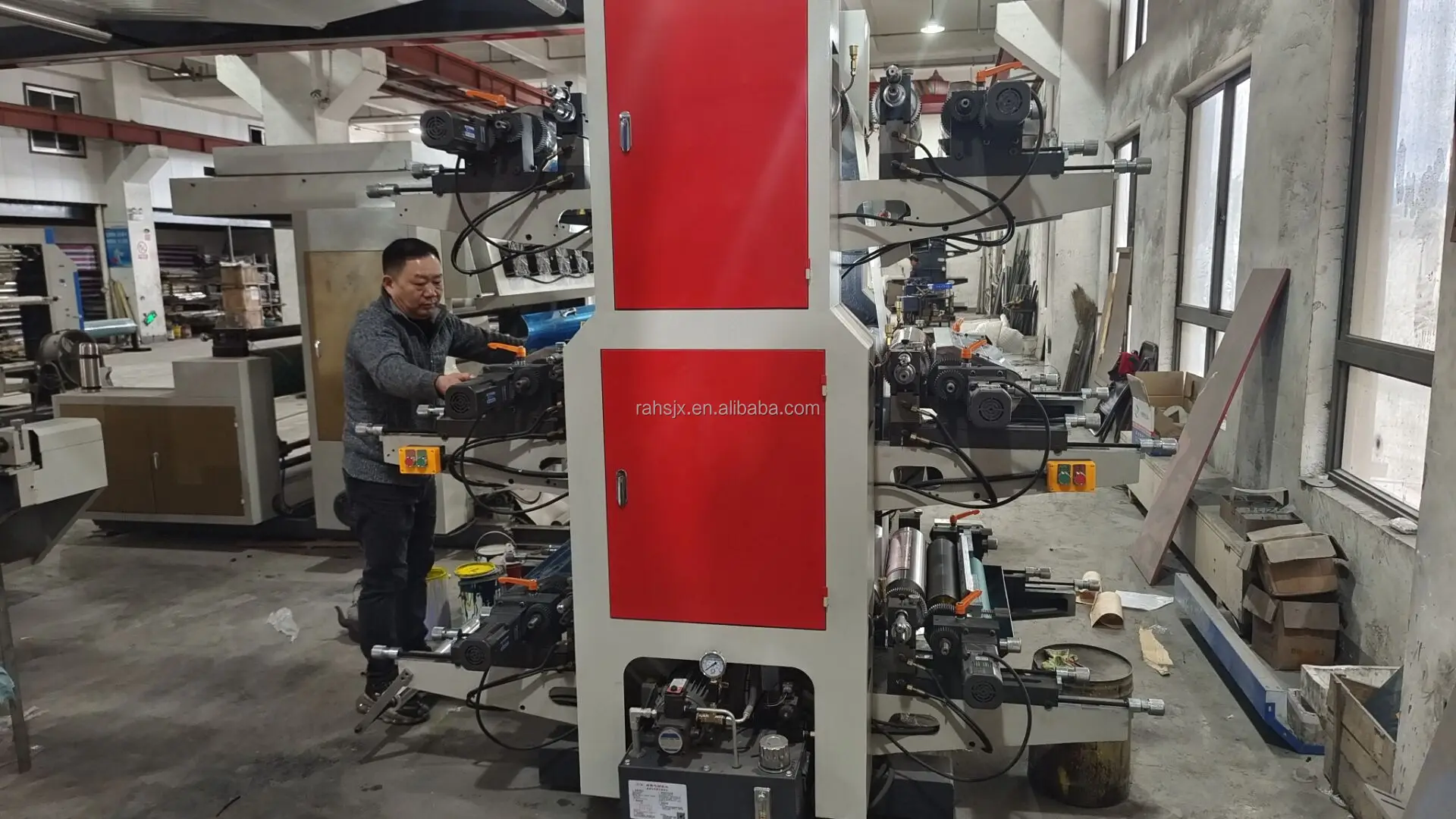

4)6 colors printing unit

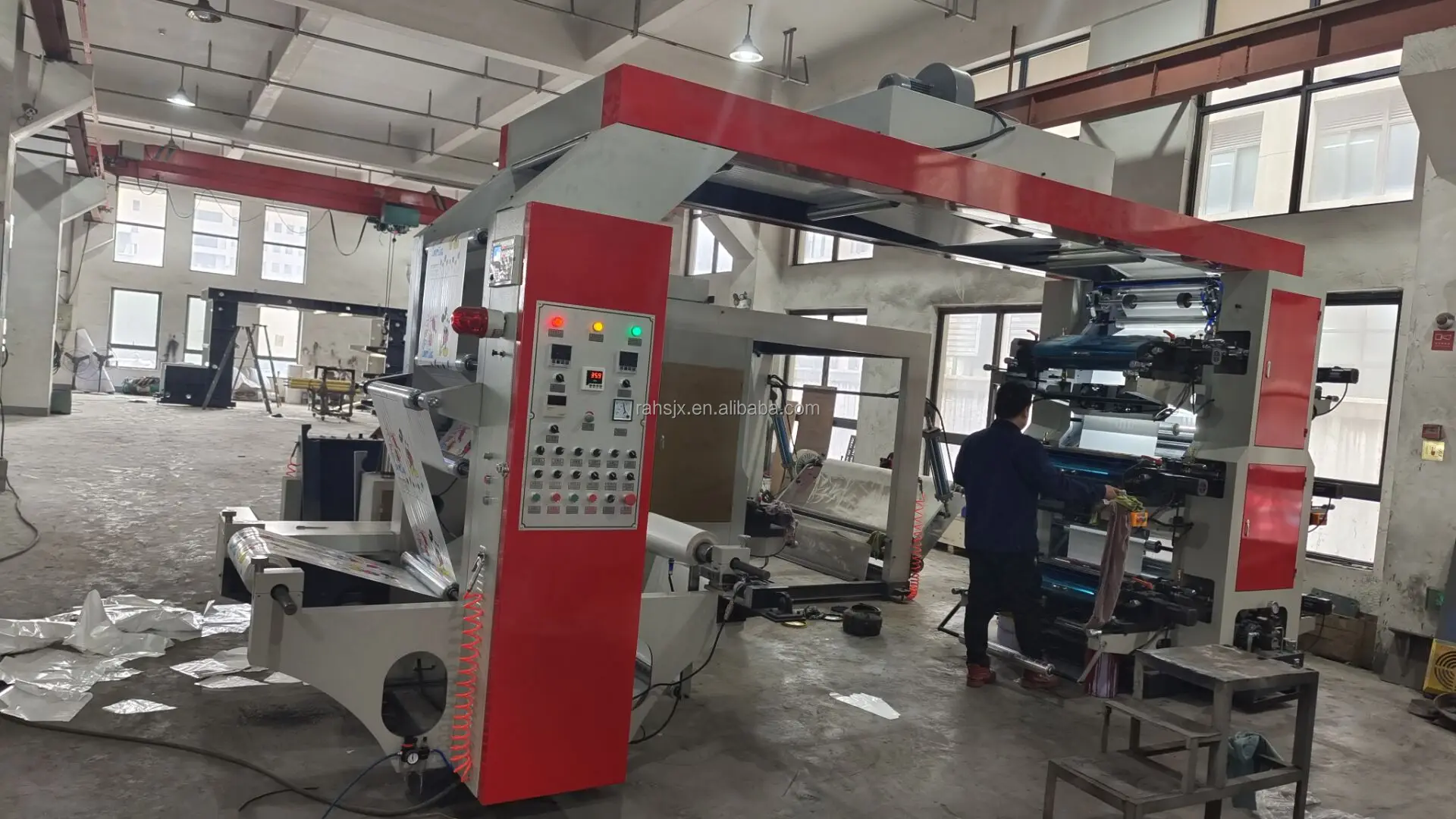

5)machine left side view

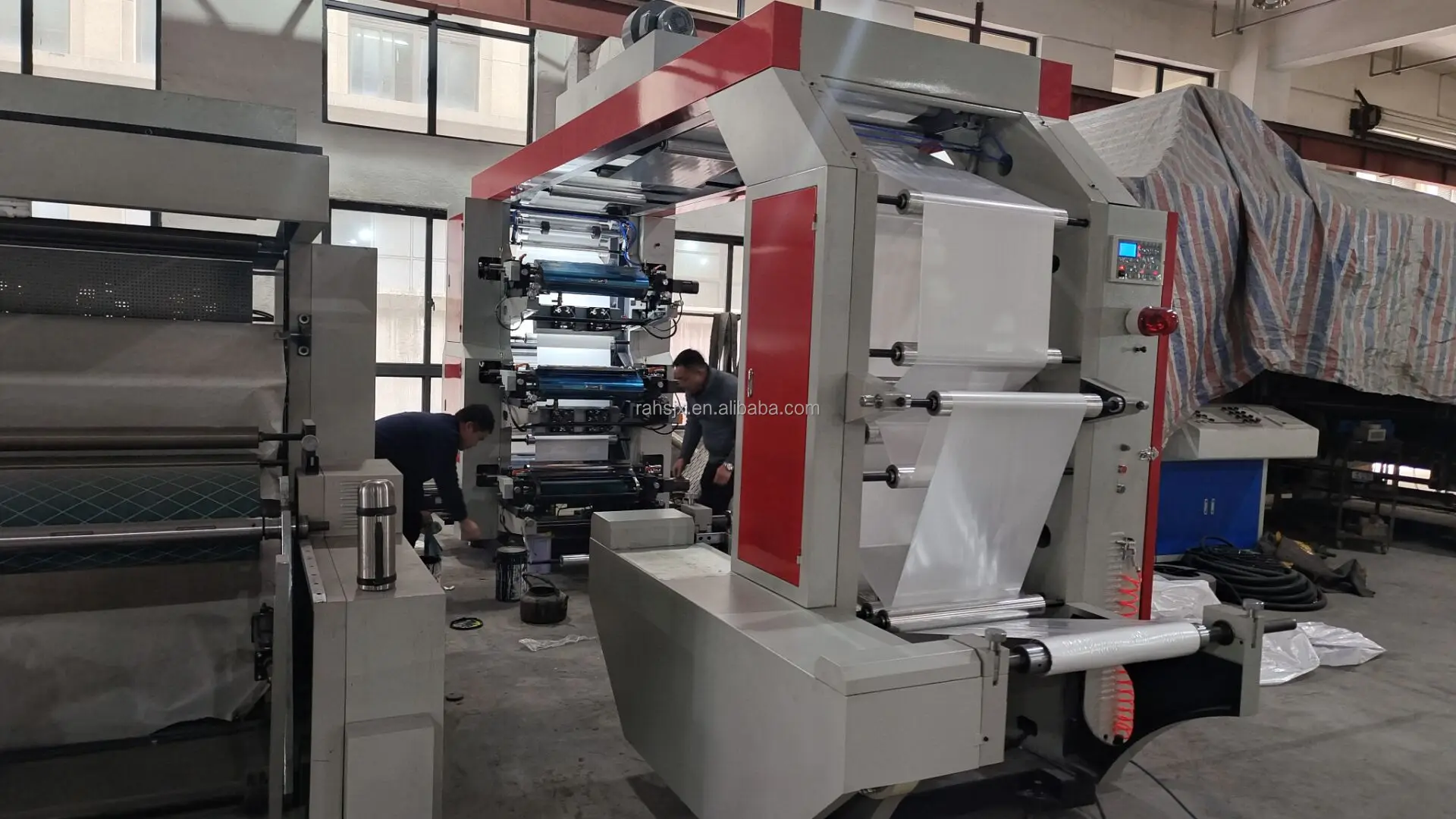

6)machine right side view

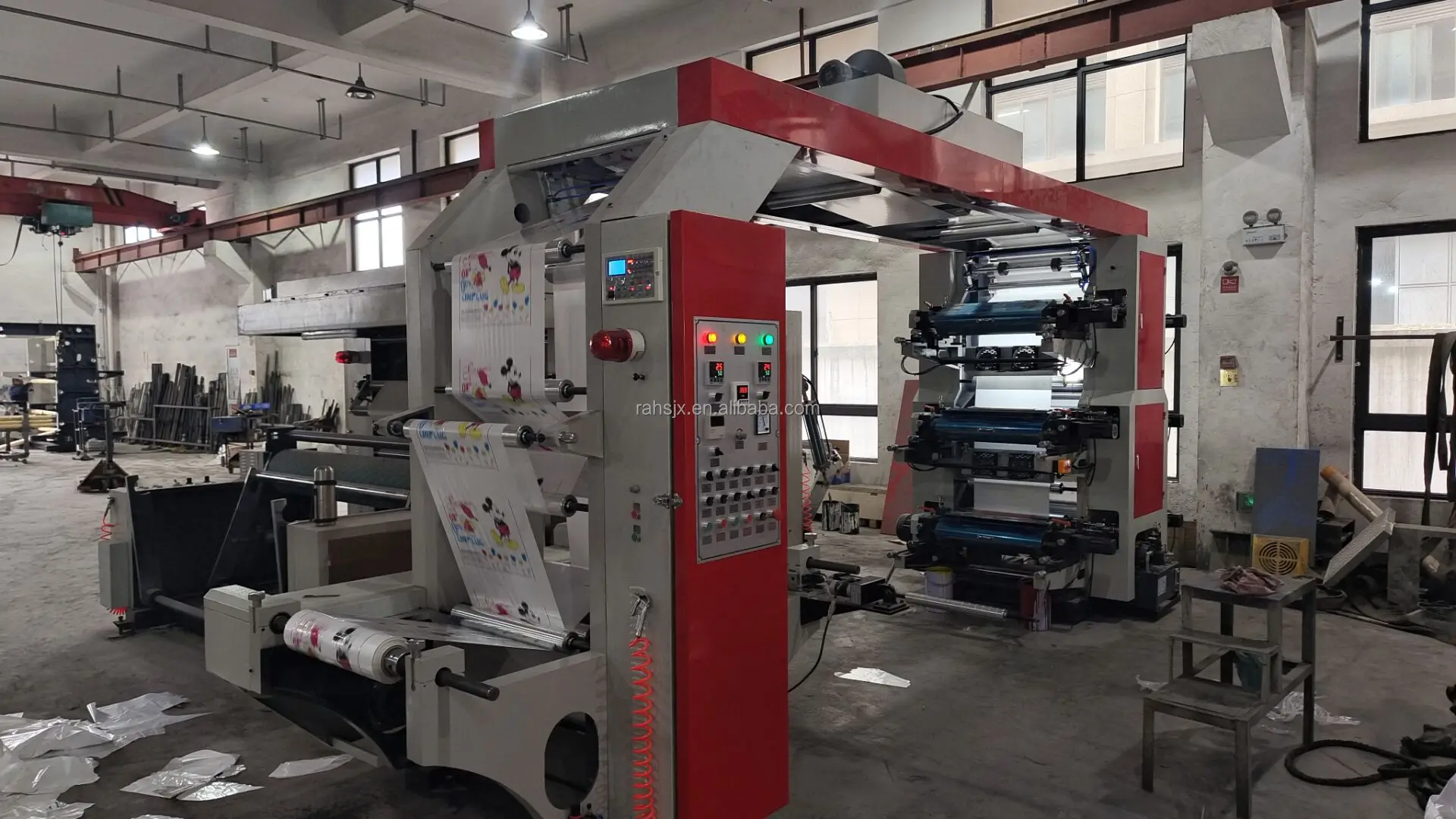

7)whole machine view



8)printing quality show
