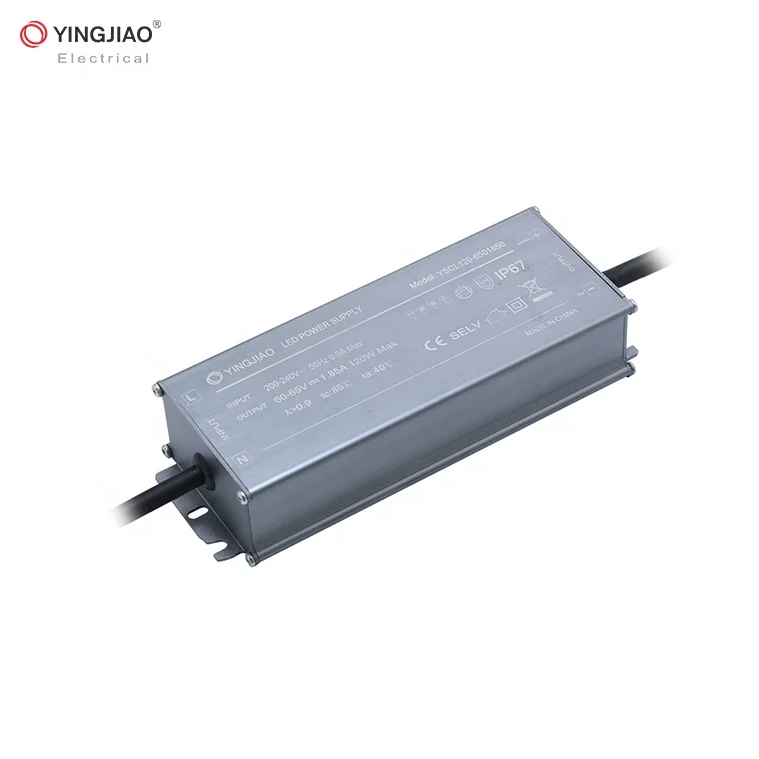

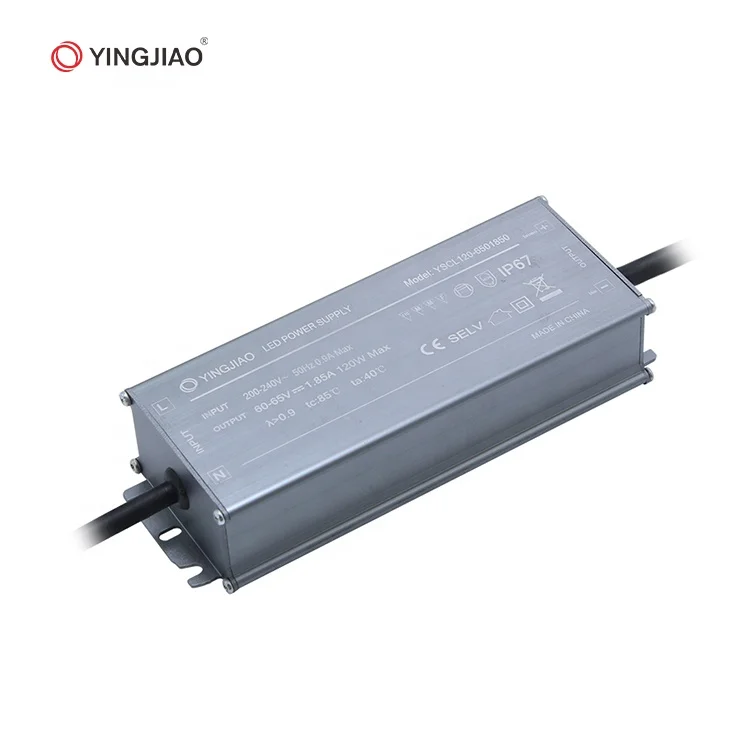

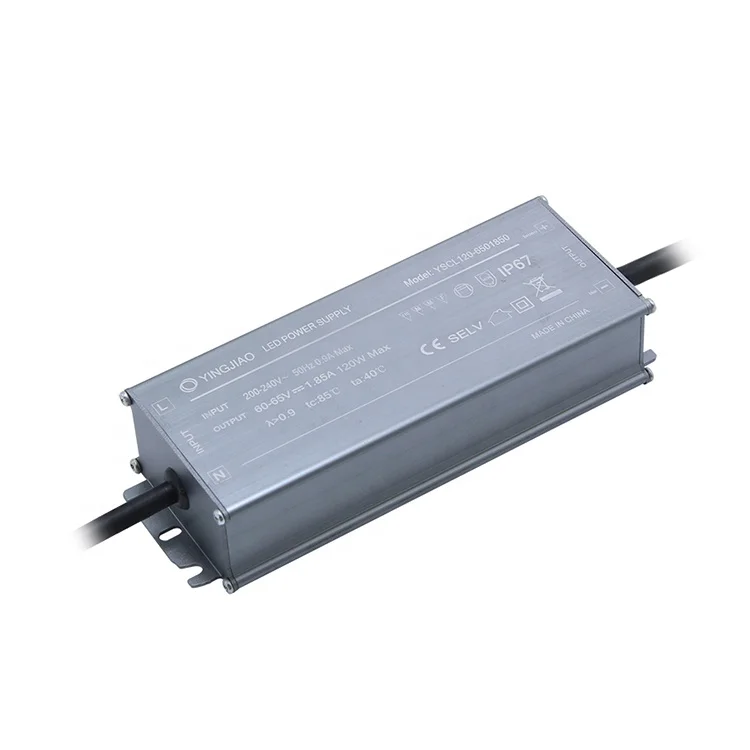

Professional LED Smps Supplier 12V 24V 36V 48V LED Transformer Power Supply for Strips Lights Street Lights
- Category: >>>
- Supplier: Ninghai Yingjiao Electrical Co. Ltd.
Share on (1600523817168):
Product Overview
Description
Professional LED Smps Supplier 12V 24V 36V 48V LED Transformer Power Supply for Strips Lights Street Lights
Product Description
Input:100-240VAC 50/60Hz
Output Voltage: 12V-48V DC
Rated Power: 250W max
Approvals: CE/CB/FCC/TUV
Features :
1. Univeral AC input/ Full range
2. Energy efficiency level VI
3. Leakage Current: <2.5mA
4. Extremely low leakage current
5. Protection:Over load/Over voltage/Short circuit
6. Life Warranty: 3 years
Applications:
- LED Street Light
- LED Grow light
- Outdoor lighting
| Model: | YSCL250-1202080 | YSCL250-2401040 | YSCL250-3601090 | YSCL250-4800520 | ||||
| Power: | 250W Max | |||||||
| Input: | AC90-265V | |||||||
| Rated Voltage: | 12V | 24V | 36V | 48V | ||||
| Current Range: | 0-20.8A | 0-10.4A | 0-10.9A | 0-5.2A | ||||
| Inrush Current: | 65 Amps max. at 230VAC/50Hz | |||||||
| Leakage Current: | <2.5mA | |||||||
| No Load Power Consumption : | <0.5W | |||||||
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection | |||||||
| Working TEMP.: | -20°C-50°C | |||||||
| EMC standards: | ESD Test:IEC 61000-4-2 magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 | |||||||
| Dimension: | 210*70*44mm | |||||||
| Packing: | 1PC/PE BAG+INNER BOX, 50PCS/CTN, CAN BE CUSTOM | |||||||
