MY1016 24V 250W Brushed Motor for Electric bike

Category: Other Electric Bicycle Parts >>>
Supplier: Yiwu,Yibai,Intelligent,Technology,Co.,Ltd.

Price:$20.00 - $28.00

Price in USD:Details

Quantity:

Product Overview

Description

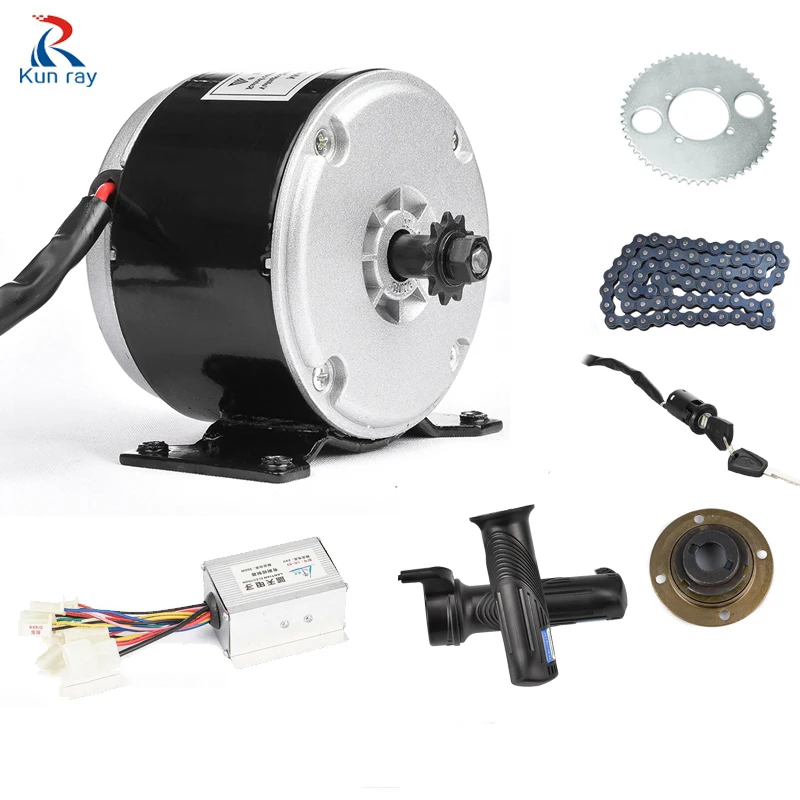

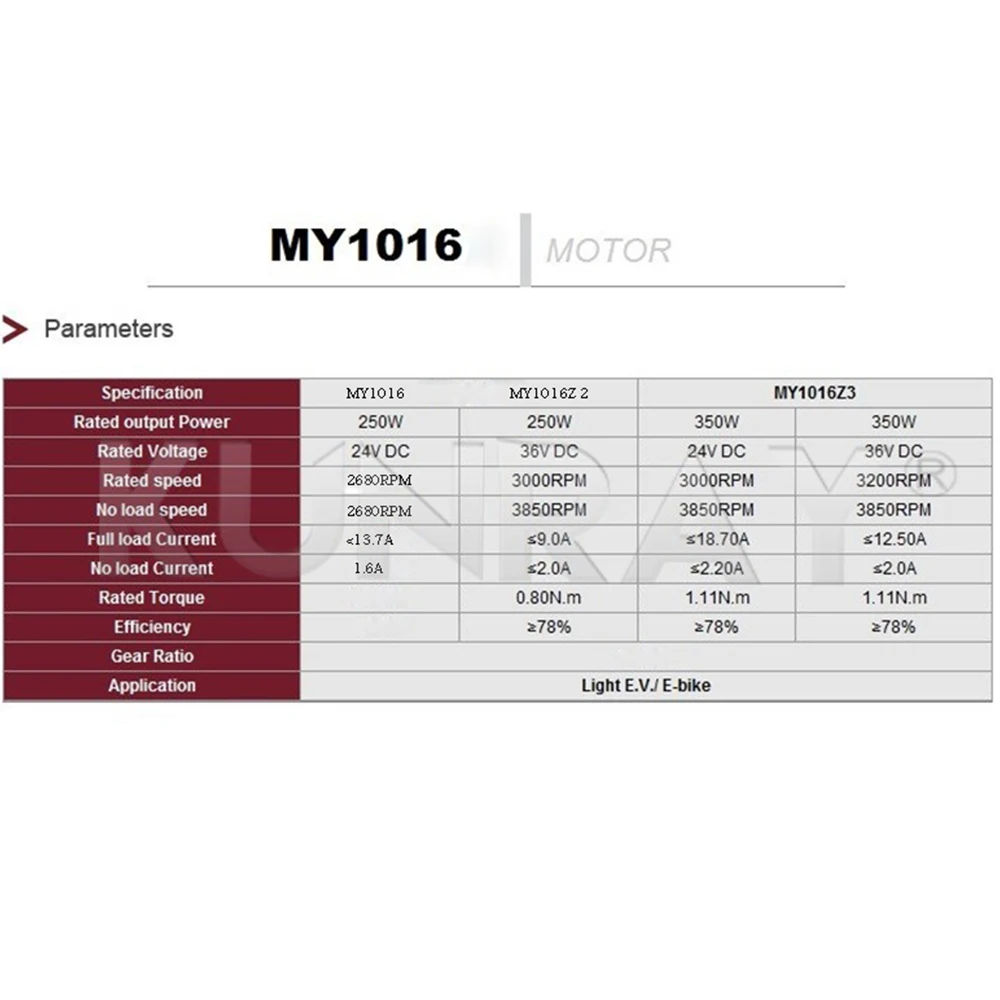

MY1016 24V 250W

* his motor is high speed motor brush DC motor, Rate voltage is 24V DC, Power is 250 watt, Rate current is 13.7 Amp, rate speed
is 2650 RPM and torque is 0.87N.m.
* Permanent magnet brushed DC motor respond very quickly to voltage changes.
* The sprocket of the brushed motor is 25H 11T, Suitable for 25H chain.
* With a mounting bracket, it can be easily adapted to various applications. The bolt uses M6.
* This electric brush motor kit can be used for scooters, Mini Bike quad.

Item	Electric Scooter Motor
Type	MY1016
Rated voltage	24V
Material	aluminum
Rated speed	2650 (RPM)
Current	17A
Main application scope	Electrci Tricycle, ebike, e-scooter, e-car, e-golf car etc

According to your Requirment

1.A:Frame dropout?
B:rear hub motor is 135mm,front hub motor is 100mm

2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.

3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.

4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.

5.A:speed?
B: 25km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.

6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.

7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.

8.A:ODM,OEM?
B:it is possible.
