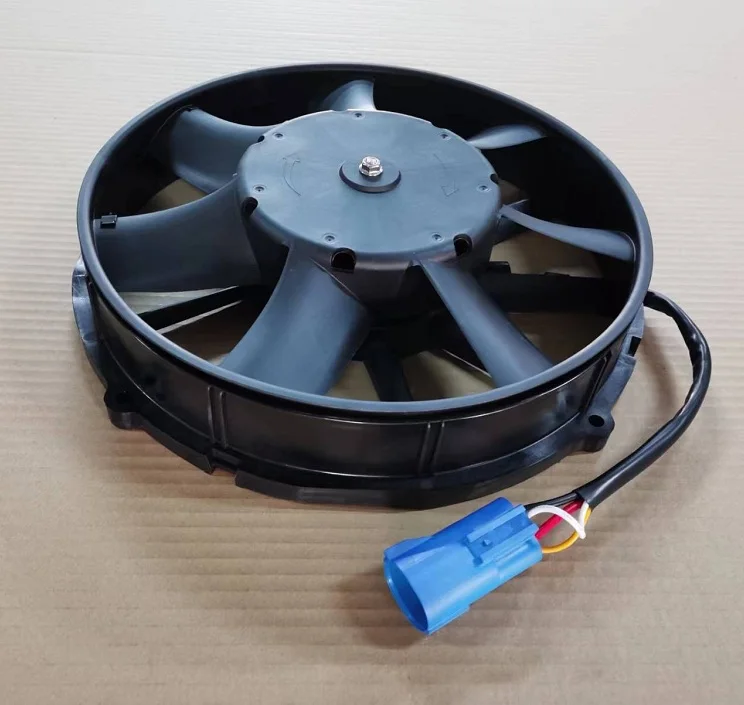

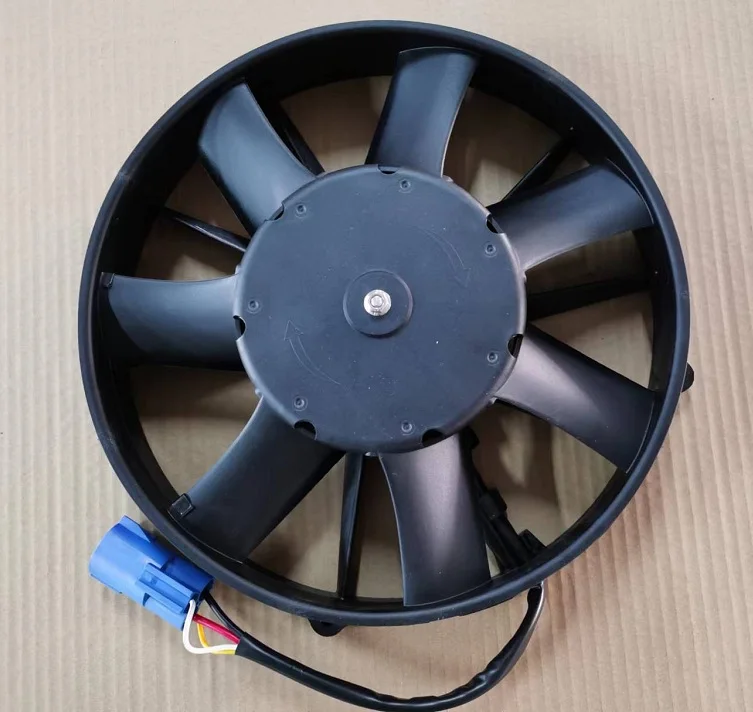

305mm 12IN ABL510 Spal Original Condenser Fan vll brushless dc fan
- Category: >>>
- Supplier: Changzhou Sunlight Electrical Appliance Co. Ltd.
Share on (1600523837092):
Product Overview
Description
Specification
Model | WBLF-1251-BS4950 |
Voltage | 24V |
Airflow | 4450m3h |
Dimension | 12inch(305mm) |
Load speed | 4400rpm |
Current | 25A |
Power | 950W |
Voltage Range | 16-32V |
Control | PWM |
Waterproof | IP68 |
Product Description

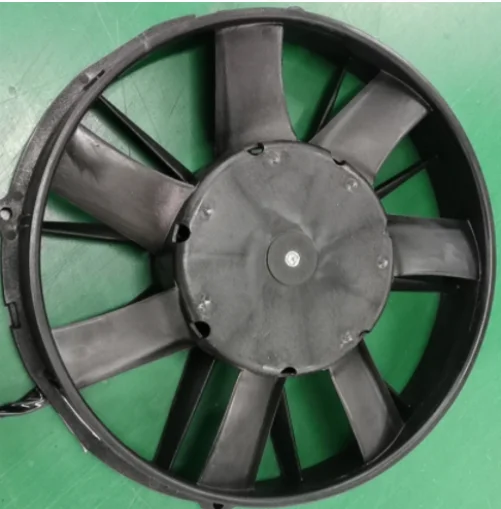

Fan blade(Independent research and development of high-power density motors, school-enterprise cooperation to develop high-volume fan blades)
A new type of magnetic circuit structure design is adopted, which solves the shortcomings of conventional brushed fans, such as low power density, high noise, and low protection level. It adopts no Hall design, software algorithm calculates and locates the rotor position, and embeds the high-power drive into the motor. The aluminum casing of the motor is used as a heat dissipation component, and the air volume generated by the fan is used for self-cooling. The whole machine is highly sealed and meets the requirements of IP68 protection level. Relying on the advantages of electronic drive, the fan can realize stepless speed regulation. The working environment is -40℃~+ 80℃, reaching the domestic leading level.
The fan blade and motor structure have applied for domestic and international invention patents.
The fan blade and motor structure have applied for domestic and international invention patents.

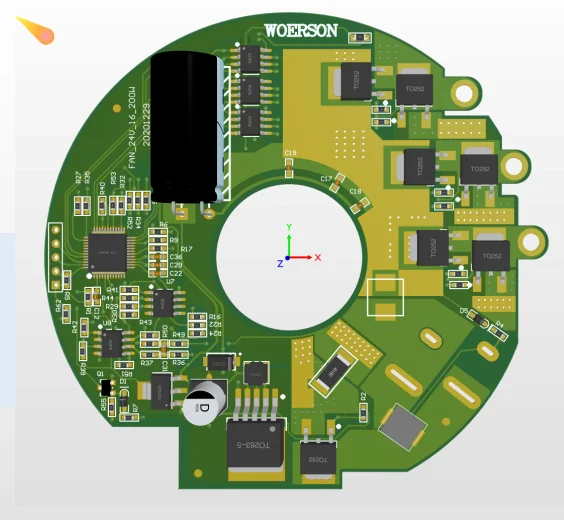

Driver(Independent research and development of high-power brushless motor without Hall drive)
The driving high current passing part adopts copper wiring, which reduces the internal resistance by 90% (W=I²*R) compared with the original use of PCB copper layer conduction, thereby reducing the heat generation by about 95%, and the temperature rise of the whole machine is reduced from 50 degrees Celsius to 35 degrees Celsius ,, the whole machine meets the requirements of vehicle-grade components, meets EMC standards, meets ISO 16750:2010 standards, reaches IP68 protection standards, and the use environment is -45°C~+100°C (maximum), reaching the international leading level, and is ready to be patented in Europe Office and the United States Patent Office to apply for international patent protection.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Since 1990
Specializing in: Condenser fan, Radiator Fan, Blower Fan, Motor Fan,DC Motor,Brushless Motor,Linear actuator ,Auto Parts(Die casting and plastic parts).We can design the solutions for our clients, or produce the products by your requirements.
Our principle: Quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills.Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
Manufacturing Technique
Certifications
Exhibition
FAQ
1.Q:Before place a order,how can i choose ?
A:Please specify the specs of the motor fan,such as diameter size,voltage,power and no-load speed of the required motor.
2.Q:Could I take samples to test quality and market in advance?
A:Yes, welcome to take samples to test our quality and service.
3.Q:What's the total cost for samples?
A:Total sample cost= sample cost + freight
We will give u the best shipping cost after knowing your requirements .
4.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by DHL,UPS,TNT or Fedex , fast and less damages.
5.Q:What's your minimum order quantity?
A:10sets, one or two samples are ok .
6.Q:Could I use my own forwarder?
A:Yes
7.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.
8.Q:Is the sample same with formal orders?
A:Yes, sample's specification, performance, quality are totally same with formal orders.
9.Q:What's your delivery time?
A:For samples: within 7days; For orders: within 25days.
A:Please specify the specs of the motor fan,such as diameter size,voltage,power and no-load speed of the required motor.
2.Q:Could I take samples to test quality and market in advance?
A:Yes, welcome to take samples to test our quality and service.
3.Q:What's the total cost for samples?
A:Total sample cost= sample cost + freight
We will give u the best shipping cost after knowing your requirements .
4.Q:How do you ship samples?
A:Considering sample quantity is not big, we support ship samples by DHL,UPS,TNT or Fedex , fast and less damages.
5.Q:What's your minimum order quantity?
A:10sets, one or two samples are ok .
6.Q:Could I use my own forwarder?
A:Yes
7.Q:I am new to international business,could you find an experienced forwarder to organize shipment for us?
A:Yes, we will assist and guild you to work out the shipping and import process.
8.Q:Is the sample same with formal orders?
A:Yes, sample's specification, performance, quality are totally same with formal orders.
9.Q:What's your delivery time?
A:For samples: within 7days; For orders: within 25days.
