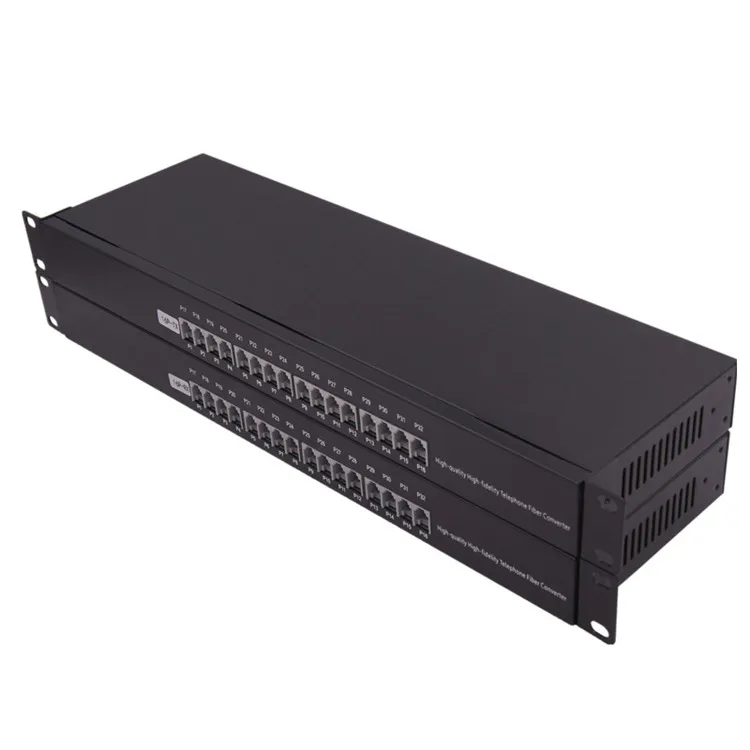

PCM 16CH Telephone and Ethernet transmitter To Fiber optic media Converter Extender 20km
- Category: >>>
- Supplier: Shenzhen Atongda Technology Co. Ltd.
Share on (1600523858252):
Product Overview
Description
Product Description
Product Name | 16CH Telephone and Ethernet To Fiber Converter |
Product features | Provides 1/2/4/8/16/24/32/64/128 channel telephone interface,standard RJ11 (telephone mouth wrote a few selected few) |
Function | Optical interface supports single fiber or dual fiber |
Package | Uncompressed, good voice quality |
Support for caller ID and voice interface provides reverse polarity signal | |
Small size, attractive appearance, easy installation Perfect status display function, easy maintenance and management Support PBX end (or operator outside) end to end transmission mode phone |
Product description
Telephone Optical Video Multiplexer through fiber long-distance transmission phone with optical transmission equipment. The device uses a VLSI design, appearance and concise, with easy installation and commissioning, maintenance-free, stable performance, etc., applicable to major telecommunications operators, government and enterprises. 1-128 can be directly transmitted through the cable-way or more to128 Tel solve the edge of the customer's phone transmission problems. Powerful dedicated digital multiplexing function of the apparatus used in the chip, the device will function in almost all integrated digital logic, and thus significantly improve product performance and reduce costs.

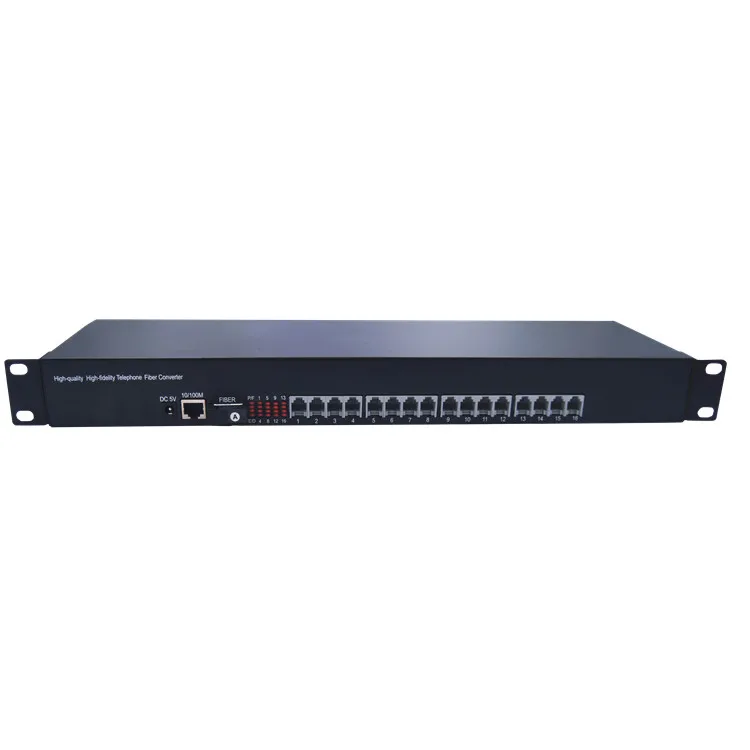

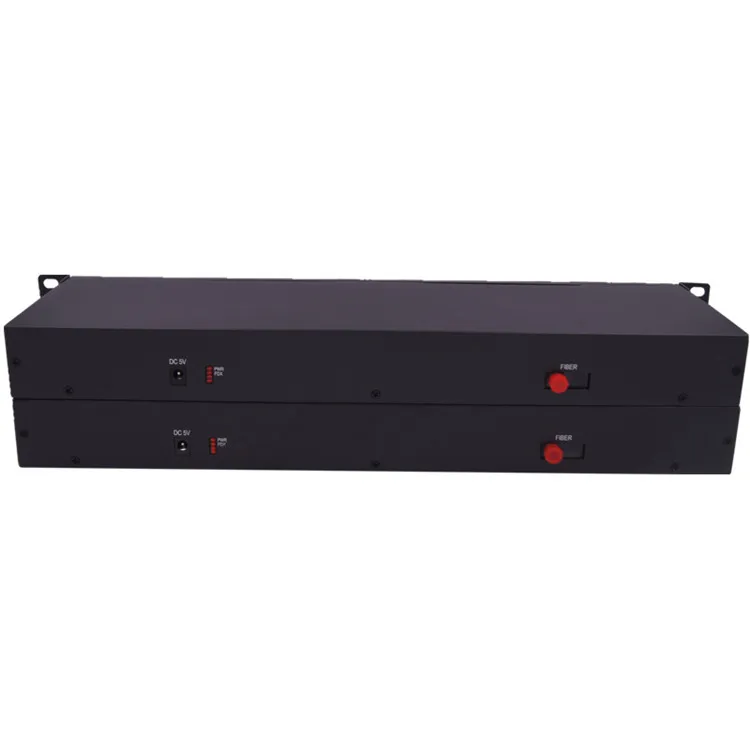

Details Images
Technical Parameters
FXS (telephone interface)
Ringing voltage: 75V
Ringing frequency: 25HZ
Second-line input impedance: 600Ω (off-hook)
Return loss: 40 dB
Ringing voltage: 75V
Ringing frequency: 25HZ
Second-line input impedance: 600Ω (off-hook)
Return loss: 40 dB
FXO (PBX Interface)
Ring detection voltage: 35V
Ring detection frequency: 17HZ-60HZ
Second-line input impedance: 600Ω (off-hook)
Return loss: 40 dB
Ring detection voltage: 35V
Ring detection frequency: 17HZ-60HZ
Second-line input impedance: 600Ω (off-hook)
Return loss: 40 dB
Optical interface:
Physical interface: FC / PC
Fiber types: single-fiber single-mode
Transmission distance: General 20KM
Light emission wavelength: 1310/1550nm
Physical interface: FC / PC
Fiber types: single-fiber single-mode
Transmission distance: General 20KM
Light emission wavelength: 1310/1550nm
Environmental conditions:
Working temperature: -25 °C - +65 °C
Storage temperature: -35 °C - +75 °C
Operating humidity :0-95% (non-condensing)
Working temperature: -25 °C - +65 °C
Storage temperature: -35 °C - +75 °C
Operating humidity :0-95% (non-condensing)
Electrical Specifications:
Power Input: AC switch DC5V Power output: DC 5V2A
Ripple: ≤ 20mV
Noise: ≤ 50mV
Power Protection: overvoltage, overcurrent
Power consumption: ≤ 5W
Power Input: AC switch DC5V Power output: DC 5V2A
Ripple: ≤ 20mV
Noise: ≤ 50mV
Power Protection: overvoltage, overcurrent
Power consumption: ≤ 5W

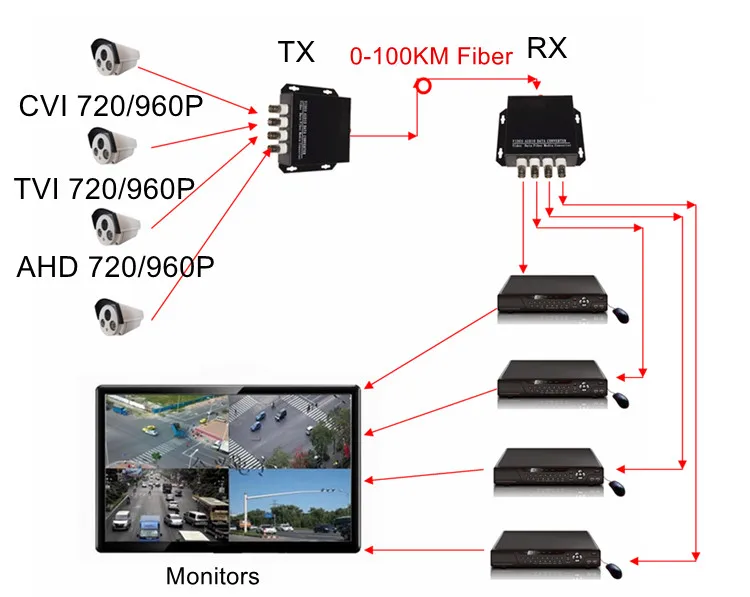

Product Usage

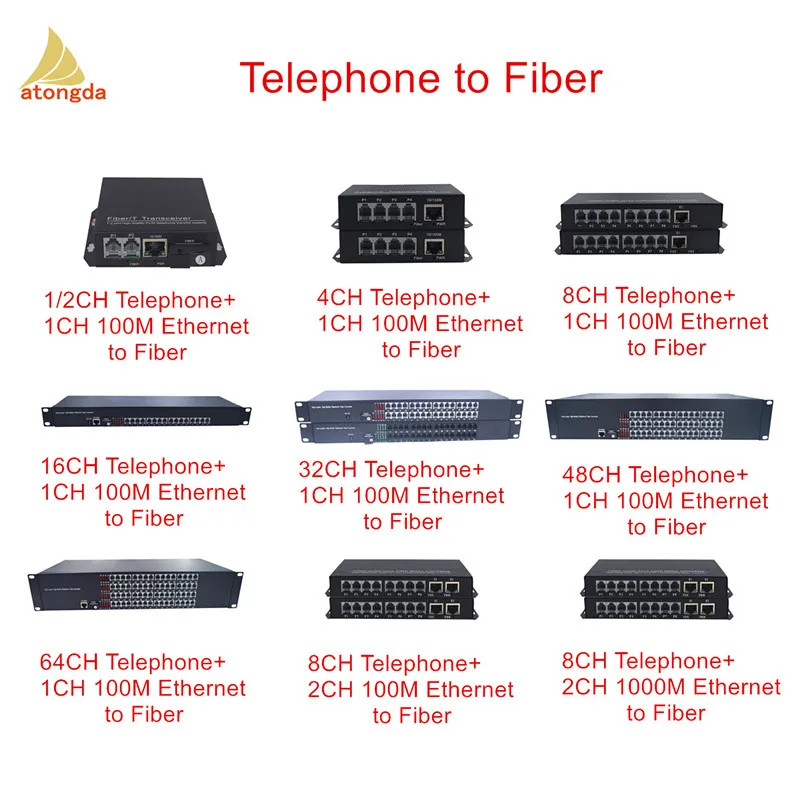

Related Products
Packing&Shipping
1 Pair per Box, Then put Box into Outer Carton
Packing list: 1. One pair HDMI converter

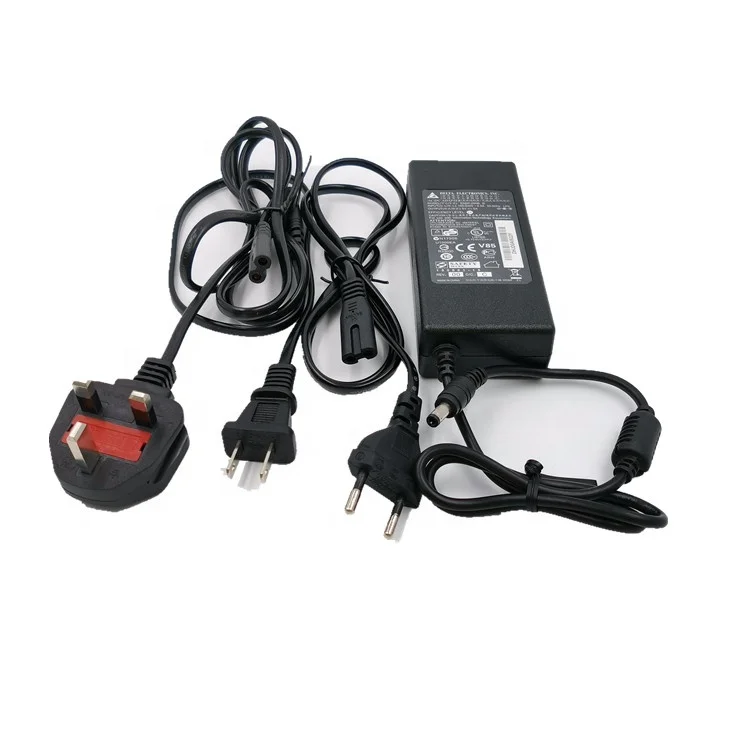

2. Power Supply
3. Use's Manual
Company Introduction
Shenzhen Atongda Technology Co., Ltd. is a high-tech privately owned enterprise specialized in the research, development and manufacture of fiber optical products. We mainly manufacture Optical Fiber Transmission, and Network Access Equipment, including Fiber POE Switch, Fiber media converters, Video converters, HDMI converters, SFP Transceiver, Ethernet switches, fiber optic adapters, fiber optic cables, patch cords, PLC Splitter ODF, etc, which have been are widely applied in many industries, like telecom, broadcast & television, finance, traffic safety protection, computer, campus network, intelligent districts, electronic government affair system engineering, etc.
Our Services & Strength
Support OEM&ODM, For Small Quantity Also can support just need accept reasonable cost.
Support 3 Years Warranty
Delivery time will be in 7 days for normal model
FAQ
1. What's products your company manufacture
We Focus on Developing and producing HDMI Converter, Media Converter,Video Converter,POE Switch,Industrial POE Switch and Patch Cord, ODF , PLC Splitter etc.
2. Can I get sample for free?
Yes, of course, we can free for under 30 USD. but need you pay shipping fee, or you provide your company DHL Fedex Account.
3. Can print Logo for me?
Yes, sure, we can support print LOGO for you, if quantity more, can print logo on the Box and carton
4.what delivery time?
Usually in 7 days, if you accept no Logo, can ship in one day.
